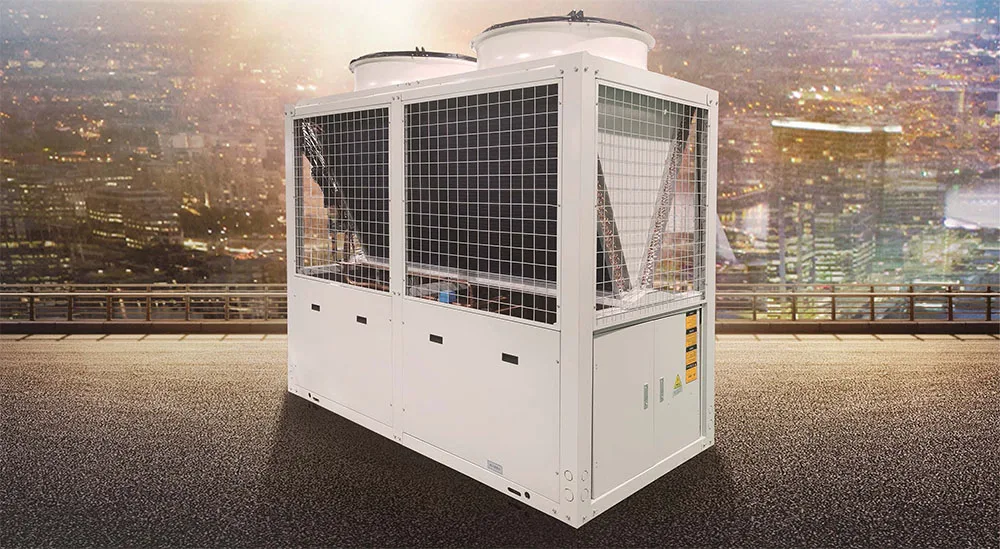

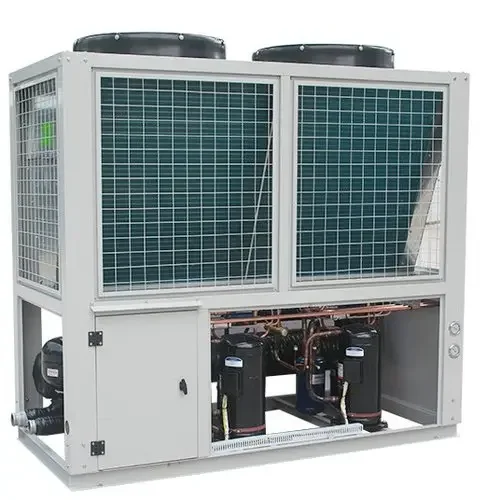

This inverter chiller is published with the manufacturer’s full specification — airflow 60000m³/h, refrigerant: R-410A. Made by Tongxing Air Conditioning Technology Co., Ltd. (11 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Inverter Chiller
- Operating Voltage: 380/400 VAC
- Airflow: 60000m³/h
- Refrigerant:: R-410A
- Warranty: 5 year
- Place Of Origin: China
- Type: chiller system
Technical Specifications
| Type | chiller system |
|---|---|
| Airflow | 60000m³/h |
| Operating Voltage | 380/400 VAC |
| Mounting Type | Ceiling Mount |
| Key Selling Points | save energy |
| Warranty | 5 year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Pressure Vessel, Motor, Bearing, Engine |
| Place Of Origin | China |
| Weight (Kg) | 350 KG |
| Cooling: | 60.0 -130.0KW |
| Heating: | 64.0 – 130.0KW |
| Refrigerant: | R-410A |
| Fin: | Aluminum |
| Compressor: | HERMETIC SCROLL COMPRESSOR |

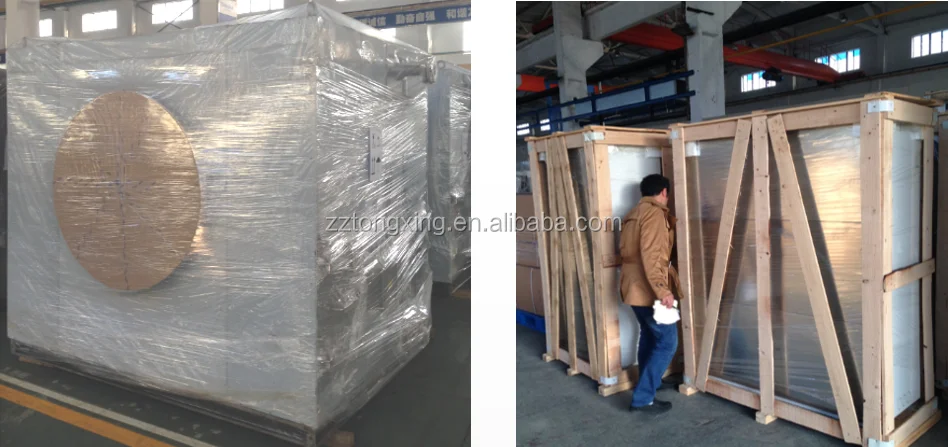

| Packaging Details | Mini-split Series / Samsung WIFI Home Use Ductless Heat Pump Price: Export worthy package suitable for air,sea,railway, truck transportation indoor units: carton Outdoor unit: strech film + groove steel |
| Port Of Dispatch | Qingdao,shanghai,Shenzhen,any China port |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 10000 sets per Month |
Product Details
Model | Heat pump | LSQWF65M/NaE-M | LSQWF80M/NaE-M | LSQWF130M/NaE-M | ||||
Capacity | Cooling/Heating | kW | 65kw | 82kw | 132kw | |||
Capacity steps | % | 0、50、100 | 0、50、100 | 0、50、100 | ||||
EER | W/W | 3.20 | 3.19 | 3.20 | ||||
Power supply | V-Ph-Hz | V-Ph-Hz | 380-400V~3N~50/60Hz | |||||
Power input | Cooling | kW | 20.3 | 25.7 | 41.2 | |||
Compressor | Type | Constant Speed Scroll | ||||||
Starting mode | direct startup | |||||||
Quantity | 2 | |||||||
Water side heat exchanger | Type | – | Dry Expansion Evaporator | |||||
Water flflow volume | m3 /h | 11.20 | 14.10 | 22.70 | ||||
Pressure drop | kPa | 45 | 60 | 60 | ||||
Connection pipe | – | flange connection | ||||||
Air side heat exchanger | Type | – | Aluminum Fin-copper Tube | |||||
Fan type and quantity | Axial-flow | |||||||
Total fan airflflow | m3 /h | 2×1.2×104 | 2×1.4×104 | 4×1.2×104 | ||||
Total fan motor power | kW | 2×0.65 | 2×0.75 | 4×0.65 | ||||
Sound pressure level | dB(A) | 66 | 67 | 70 | ||||
Dimension | Outline(W×D×H) | mm | 2138×1025×2243 | 2138×1025×2243 | 2306×1980×2320 | |||
Package(W×D×H) | mm | 2198×1085×2243 | 2198×1085×2243 | 2366×2040×2320 | ||||
Net/Gross/Operating weight | kg | 730/735 | 770/775 | 1280/1285 | ||||
Loading quantity 40'GP/40'HQ | set | 11/11 | 11/11 | 5/5 | ||||
We are based in Henan, China, start from 2004,sell to North America(20.00%),South America(15.00%),Mid East(15.00%),Eastern Europe(10.00%),Southeast Asia(10.00%),Africa(10.00%),Western Europe(5.00%),South Asia(5.00%),Domestic Market(5.00%),Oceania(3.00%),Eastern Asia(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Air Conditioner
4. why should you buy from us not from other suppliers?
VRF Chillers technology,installation,core value:honesty, speciality, innovation been central industry since 1980s,export since 2004.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,DDP,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–1 set: US $1365 / set
- 2–4 set: US $1289 / set
- 5+ set: US $1183 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this inverter chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.
Can the inverter chiller be supplied for my local voltage?
The standard configuration is 380/400 VAC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Tongxing Air Conditioning Technology Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Tongxing Air Conditioning Technology Co., Ltd. range on HVACR Nexus.
