Inverter Motor, Ceiling, 400CFM, MR1KS400-D

Inverter motor — 3.6kW, 60W. The complete factory specification follows. Made by Shenzhen Monchrui Industry Development Co., Ltd. (9 years on the platform, typical reply ≤6h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Inverter Motor

• Power Input: 60W
• Cooling Capacity: 3.6kW
• Heating Capacity: 4.5kW
• Warranty: 1 Year
• Place Of Origin: Guangdong, China
• Application: indoor/hotel/office building/factory/hospital/restaurant etc

Technical Specifications

Product Details

Product Overview

Title goes here.

1 Ultra-thin Body. 2 High efficiency coil design 3 Silent high -quality plastic wheel fan 4 Built-in Drain pump float switch. 5 100% On-line test

What is the meaning of AC , DC, EC, fan

AC (Alternating Current) fan is an AC power frequency fan, input AC power, power frequency operation, only high, medium and low air volume, need to increase the frequency converter to adjust the frequency.

DC (Direct Current) fan is a DC variable frequency fan, inputting DC power and requiring external conversion from AC to DC. EC (Electrical Commutation) fan is a DC brushless motor fan, input AC power, built-in intelligent control module, convert AC power to DC power, and it can adjust the speed according to the ambient temperature, less power consumption

Control system

Wireless remote controller is standard; Wired wall controller is optional;

Ø Auto reset, operation mode control; with room sensor & coil sensor;

Ø Daily timer or weekly timer; Ø Auto-diagnose, protections and error code display; jumpers configurations on electronic board; Ø Built-in Main PCB: with no function of RS485 ModBus;

Ø Main PCB is installed outside of the unit body, then RS485 ModBus, master-slave network control can be supplied as Optional

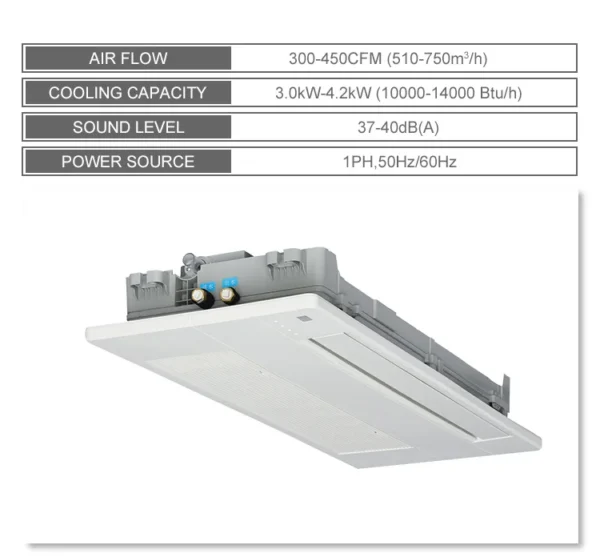

Ultra thin 1 way EC inverter fan coil unit Design

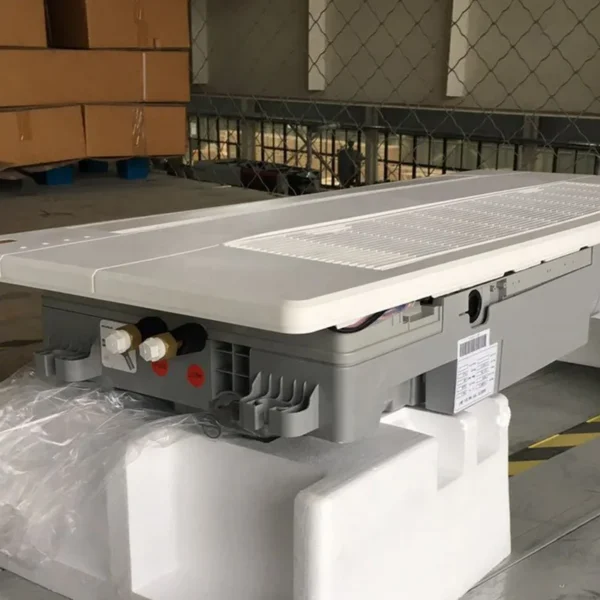

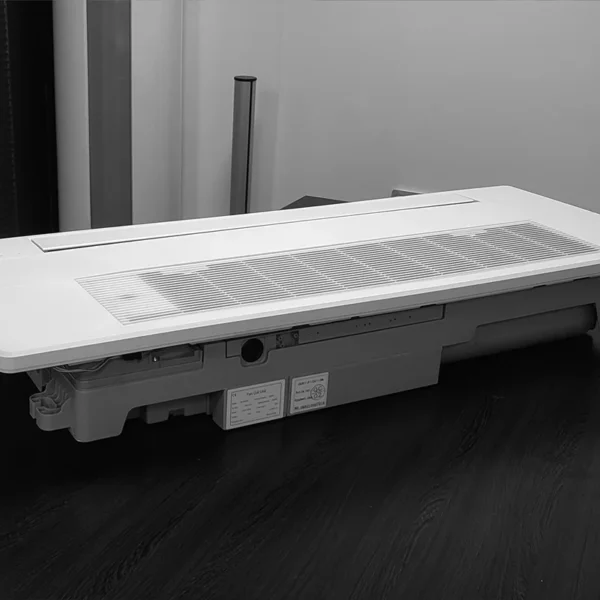

1-way ultra thin type cassette units,the height of the body is only 150mm,which is suitable for some very limited space and narrow space.It's panel and body are made of ABS,high production efficiency,exact dimension and good consistency.

√Unit Body
Aesthetic design, ECO-friendly ABS material and ultra slim,suitable for some limited space and narrow space. Panel Assembly

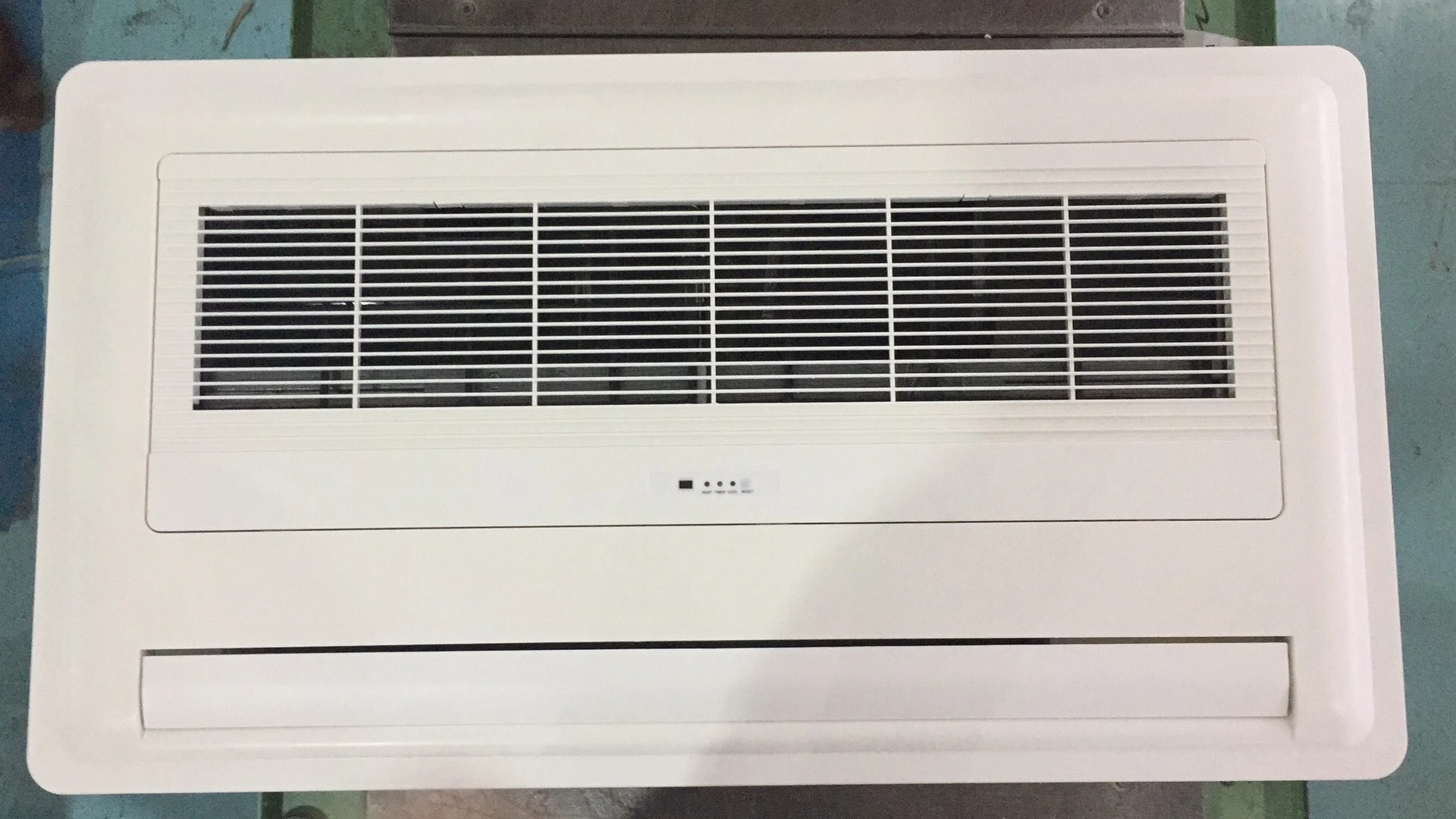

Aesthetic panel design, synthetic washable and removal air filter,auto swing.
√Quiet Running
Cross flow blower with 3 speed motor.
√High Efficiency Coil Coil
are made of copper tubes and high exchange surface area aluminum blue fins.All coils are 100%tested against leaks by 30bar(3Mpa)
air pressure.with 3/4"pipe connections and air bleed vent.
√Condensate Drain Pan
The drain pan is produced by ABS material via injection forming, with high polystyrene insulation outside.
√Drain Pump and Float Switch
700mm head drain pump with no return valve is installed in the unit;an float switch inside as well to prevent from leaking.If the water raising to a certainly position,the float switch will act and alarm,then the unit will cut off the water valve or stop the fan motor.

PRODUCT SPECIFICATIONS

Model: M1KMS*V-A(E)						M1KMS 300V	M1KMS 400V	M1KMS 450V
CFM						300	400	450
Air Flow Rate		High	m3/h	510	680	750
				Medium	m3/h	400	520	650
				Low	m3/h	300	400	500
Cooling	Total Capacity	High	kw	3	3.8	4.2
				Medium	kw	2.6	3.1	3.6
				Low	kw	2.2	2.6	3
		Sensible Capacity	High	kw	2.2	2.8	3
				Medium	kw	1.8	2.3	2.7
				Low	kw	1.5	1.9	2.2
		Water Flow Rate		L/H	516	655	720
		Water Pressure Drop		kPa	15	18	20
Heating	Heating Capacity	High	kw	5.1	6.4	7
		Heating Capacity	Medium	kw	4.5	5.2	6.1
		Heating Capacity	Low	kw	3.8	4.5	5
Power Supply					220~240V/1PH/50Hz(or 60HZ)
Power Input				kw	40	45	50
Sound Pressure				dB(A)	37	39	40
Fan	Type			Cross Flow Fan
		Model		mm	97
		Quantity			1
Motor	Type			3-speed Motor
		Quantity			1	1	1
Coil	Coil Rows			2	2
		Max. Working Pressure		mPa	1.6
		Tube Diameter		inch	3/8”
Dimensions	Unit Body		mm	1054X425X169
		Panel Assembly		mm	1180X465X25

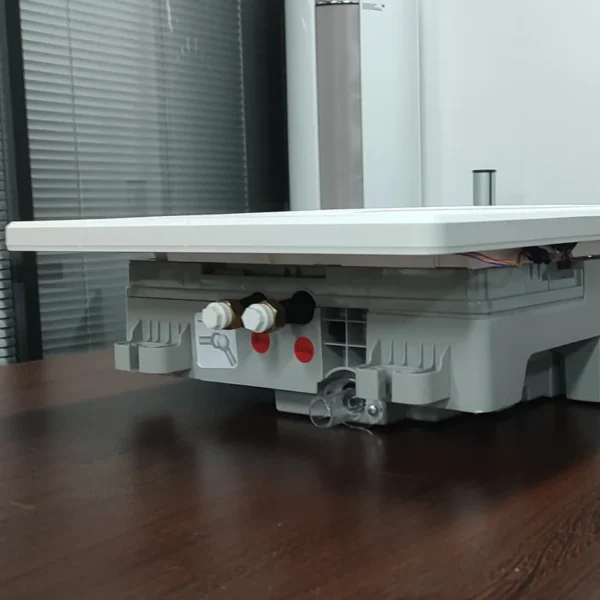

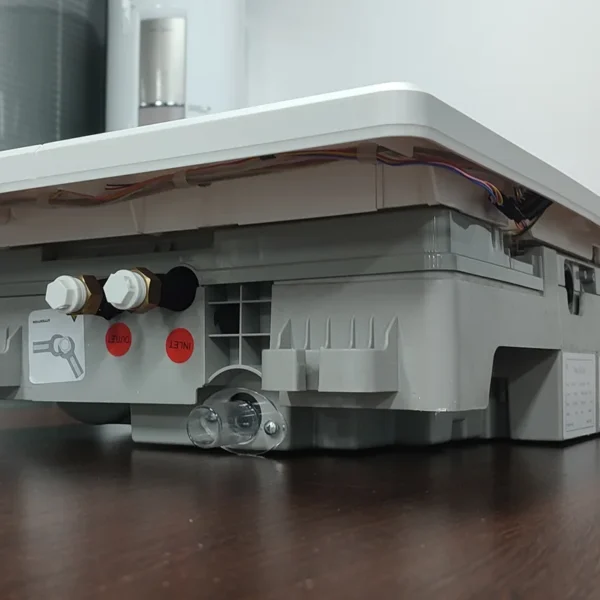

Connection	Water Inlet/Outlet Pipe		inch	ZG1/2” / ZG1/2”
		Condensate Discharge		inch	26
Weight(with feet, with casing)				kg	14	14	14
1.Cooling: inlet air temp. DB+27oC/WB+19.5oC, water inlet/outlet temp. +7oC/+12oC  2.Heating: +21oC, water inlet temp. +60oC; Same water flow rate as for the cooling
