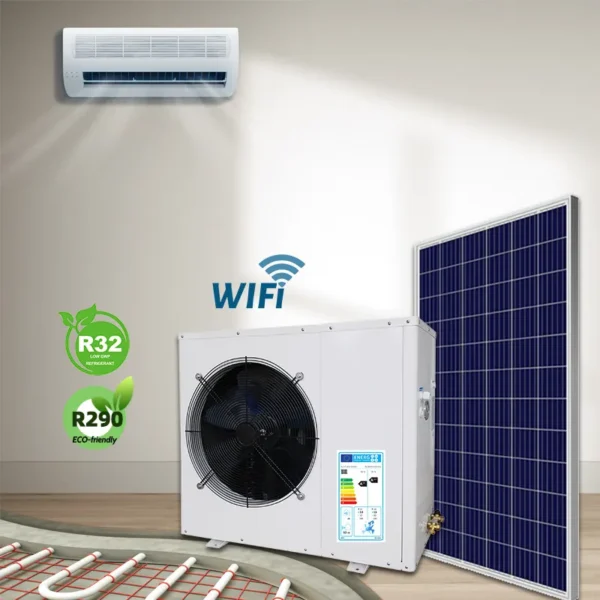

This inverter system heat pump is published with the manufacturer’s full specification — power supply 220~240V/1Ph/50~60Hz, heating capacity 3~9kw/10200~30700btu. Made by Guangdong Shunde O.S.B. Environmental Technology Co., Ltd. (11 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Inverter System Heat Pump
- Model Number: BB1I-075SP
- Power Source: Electric
- Power Supply: 220~240V/1Ph/50~60Hz
- Heating Capacity: 3~9kw/10200~30700btu
- Housing Material: galvanized steel
- Refrigerant: R410a/R32
Technical Specifications
| Type | Air Source Heat Pump |
|---|---|
| Application | Outdoor, Hotel, Commercial, Household |
| Storage / Tankless | circulation water heating |
| Installation | Freestanding |
| App-Controlled | Yes |
| Housing Material | galvanized steel |
| Power Source | Electric |
| Warranty | 2 Years |
| After-Sales Service Provided | Free Spare Parts |
| Place Of Origin | Guangdong, China |
| Brand | OSB/OEM |
| Model Number | BB1I-075SP |
| Function | Hot Water *Space Heating |
| Heating Capacity | 3~9kw/10200~30700btu |
| Working Ambient Temperature | -15~+43°C |
| Max Hot Water Temperature | 50°C |
| Power Supply | 220~240V/1Ph/50~60Hz |
| Suitable Room Size | 39~75m2 |
| Refrigerant | R410a/R32 |
| Name | Monobloc inverter heat pump |
| Heat Exchanger | Tube-in-shell Heat Exchanger |
| Compressor | Mitsubishl* DC Inverter Twin Rotary |
| Selling Units | Single item |
| Single Package Size | 120X48X109 cm |
| Single Gross Weight | 110.0 kg |

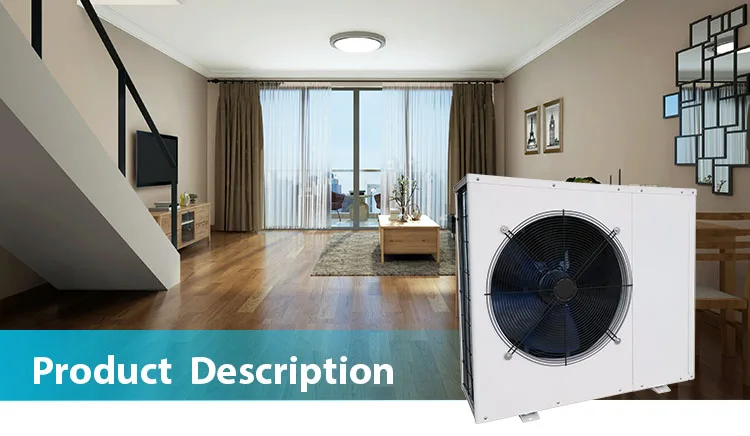

Product Details

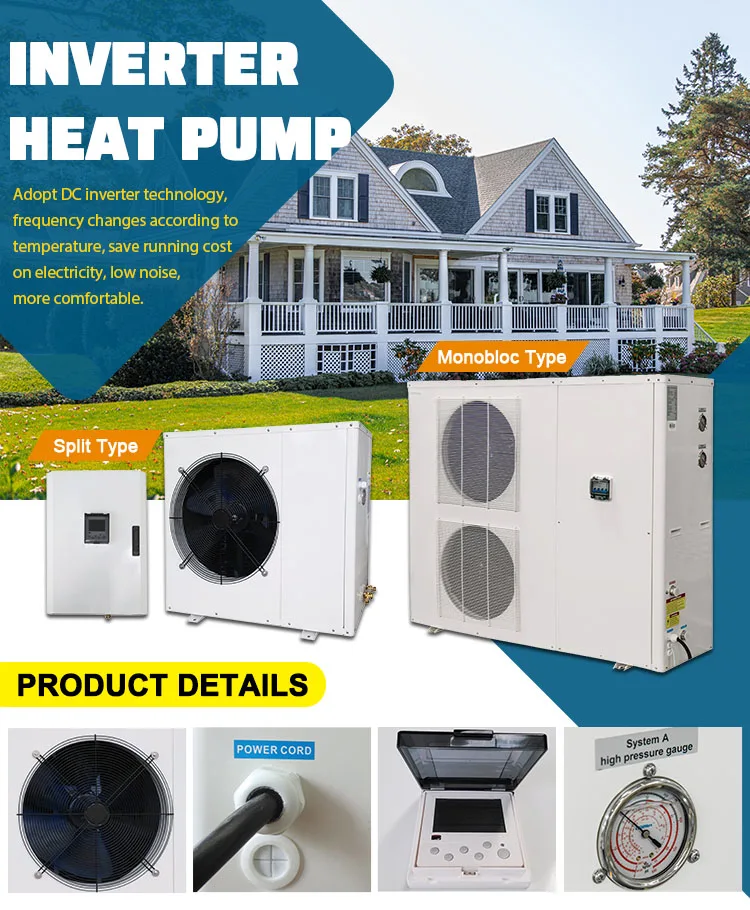

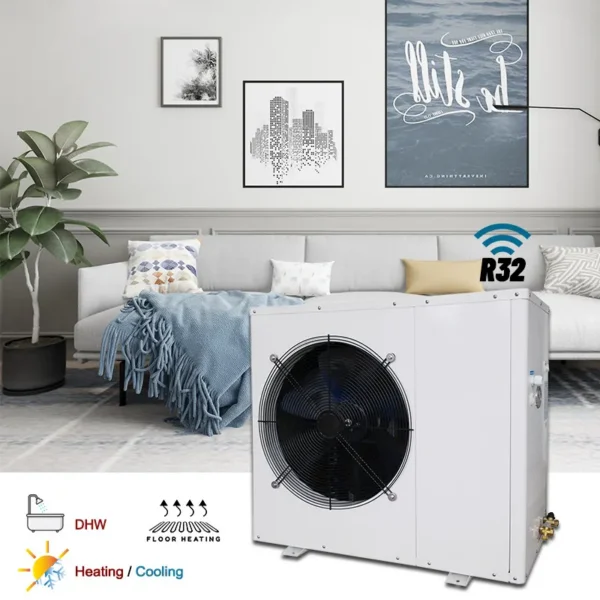

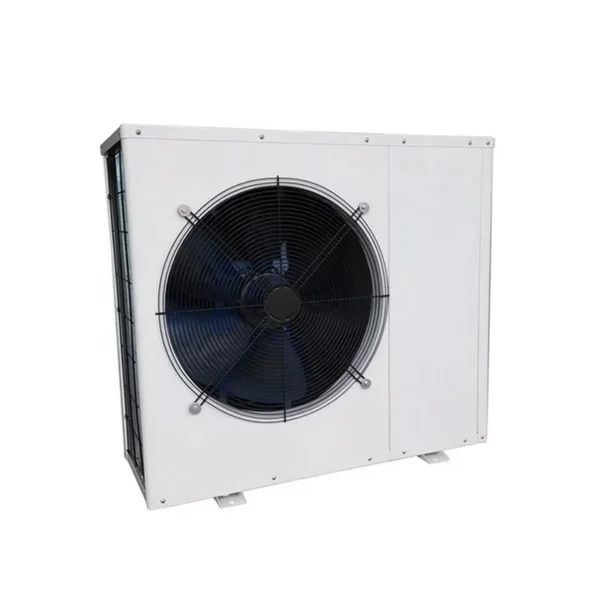

Monobloc DC inverter heat pump air conditioner for 40~80 sqm heating and cooling
- Suitable for low temperature environment of – 15 degrees.
- Comfortable inverter technology with low running noise, especially suitable for floor heating of villas.
- More precise temperature control, can reach below 1 degree.
- Various automatic detection functions can protect units.
- Integrated design easy-to-install.
| Model | BB1I-075S | |
| Heating capacity | kw | 3-9 |
| COP | w/w | 3.5-4.2 |
| Heating power input | kw | 0.72-2.57 |
| Running current heating | A | 3.3-12 |
| Cooling capacity | kw | 2.5-5.5 |
| EER | w/w | 2.0-2.4 |
| Cooling power inout | kw | 1.1-3.96 |
| Running current cooling | A | 4.8-17.3 |
| Power supply | V/Ph/Hz | 230/1/50~60 |
| Max outlet water temp | ℃ | 50 |
| Noise | dB(A) | 50 |
| Water connections | Inch | 1" |
| Water flow volume | m³/h | 1.6 |
| Gross weight | kg | 132 |
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–39 set: US $1070 / set
- 40+ set: US $1065 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this inverter system heat pump?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the inverter system heat pump be supplied for my local voltage?
The standard configuration is 220~240V/1Ph/50~60Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangdong Shunde O.S.B. Environmental Technology Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Guangdong Shunde O.S.B. Environmental Technology Co., Ltd. range on HVACR Nexus.
