This ip65 led freezer is published with the manufacturer’s full specification — 220V, 24W. Made by Shenzhen ONN Semi-Conductor Lighting Co., Ltd. (13 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Ip65 Led Freezer
- Model Number: ONN-X3F
- Power: 24W
- Input Voltage(V): AC 220V( ± 10%)
- Voltage: 220V
- Warranty(Year): 2-Year
- Certification: CE ROHS FCC
Technical Specifications
| IP Rating | IP65 |
|---|---|
| Input Voltage(V) | AC 220V( ± 10%) |
| Lifespan (Hours) | 50000 |
| Lamp Luminous Efficiency(Lm/W) | 100 |
| Color Temperature(CCT) | 6000K (Daylight Alert) |
| Base Type | 2G11 |
| Color Rendering Index(Ra) | 80 |
| Warranty(Year) | 2-Year |
| Support Dimmer | No |
| Lighting Solutions Service | refrigeration lighting |
| Light Source | LED |
| Item Type | Refrigerator Lamps |
| Place Of Origin | Guangdong, China |
| Model Number | ONN-X3F |
| Brand Name | ONN |
| Lamp Luminous Flux(Lm) | 2400 |
| Product Weight（Kg） | 0.22 |
| Working Temperature(℃) | -20 – 45 |
| Product Name | LED freezer lights |
| Feature | Double PCB |
| Voltage | 220V |
| CCT | 2700-6000K |
| Power | 24W |
| Protection Grade | IP65 |
| Beam Angle | 120 Degree |
| Application | Showcase, Refrigeration, Shelf and food lighting |
| Certification | CE ROHS FCC |
| Length | 1495mm |
| Packaging Details | 100 pcs/carton. |
| Selling Units | Single item |
| Single Package Size | 150X2X2 cm |
| Single Gross Weight | 0.196 kg |

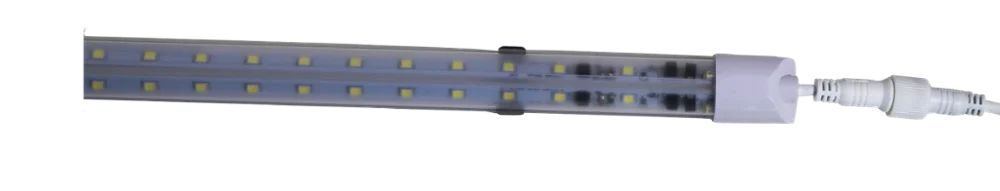

Product Details

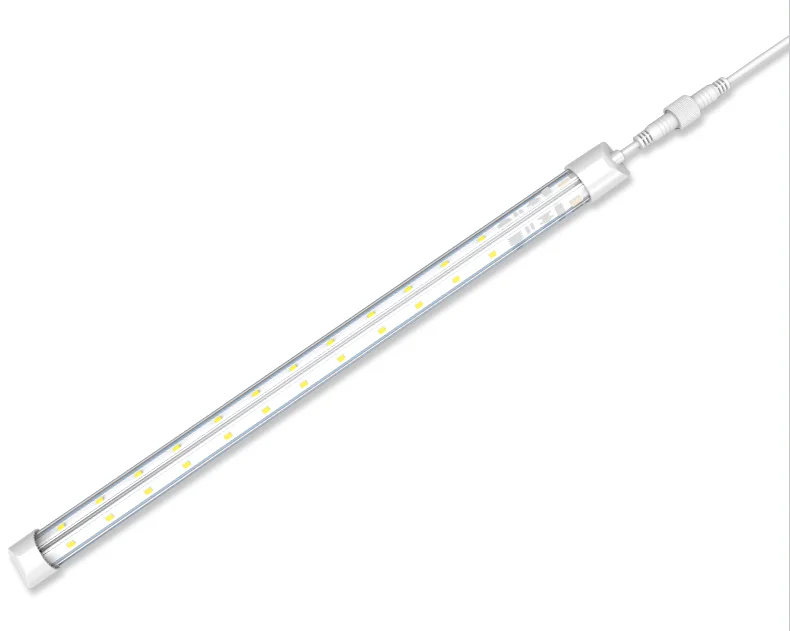

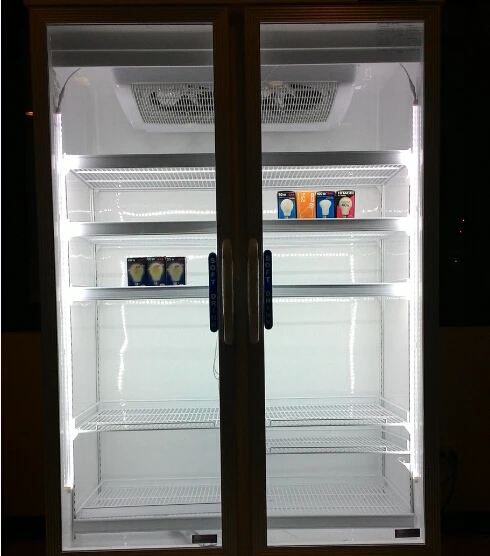

ONN-X3F 1495mm 24W IP65 LED freezer lights are ideal for use in walk-in coolers, freezer cases, cove, and display applications
Application :
Freezer inner illumination,refrigeratory inner illumination,bakery and confectionery,pharmaceutical factory,fishery industry,edible mushrooms industry(suitable for various sites where require water-proof,explosion-proof and not easy to replace,is the revolutionary replacement for traditional “ tri-proof”, “explosion-proof” lights )
Product Features :
| Model | Tube length(mm) | Fitting length(mm) | Voltage | Power |
| X3F-375 | 315 | 380 | 220V AC(50/60Hz) | 8W |
| X3F-550 | 490 | 555 | 220V AC(50/60Hz) | 11W |
| X3F-635 | 575 | 640 | 220V AC(50/60Hz) | 12W |
| X3F-800 | 740 | 805 | 220V AC(50/60Hz) | 16W |
| X3F-935 | 875 | 940 | 220V AC(50/60Hz) | 18W |
| X3F-1085 | 1025 | 1090 | 220V AC(50/60Hz) | 20W |
| X3F-1235 | 1175 | 1240 | 220V AC(50/60Hz) | 24W |
| X3F-1495 | 1435 | 1500 | 220V AC(50/60Hz) | 30W |
| Installation | 1. Metal clips(standard) 2. Double faced adhesive tape 3. By magnet | |||
| Size | W.14.5 x H.12mm | Cable | 0.8M | |
| Beam angle | Left 90°emitting Right 90° emitting Middle 120° emitting | |||
| Protection | IP65 | |||
| efficiency | 95-100Lm/W | |||
| CCT | 6000-6500K | |||
| CRI: | >80Ra | PF | >0.9 | |
| Driver | Internal driver, Non-isolated | |||
| Lifetime | 40,000H | Material | PC | |
| Working temp. | -20~45℃ | Working humidity | 10~90% | |

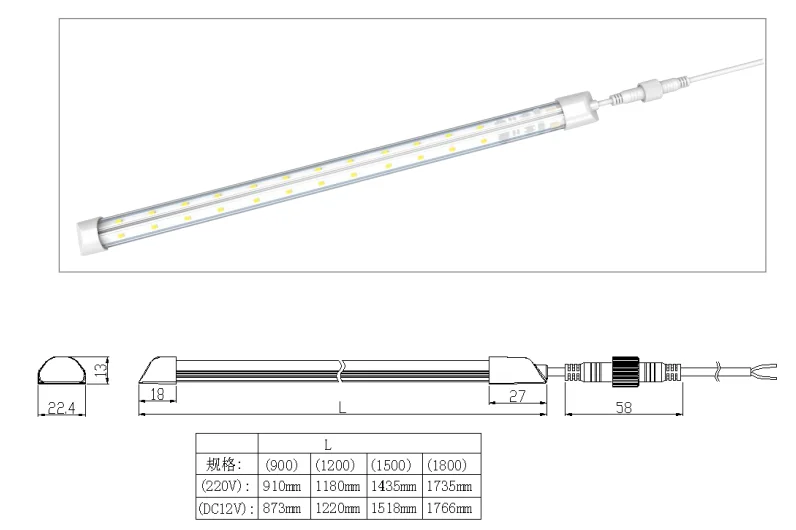

Product Size Drawing :

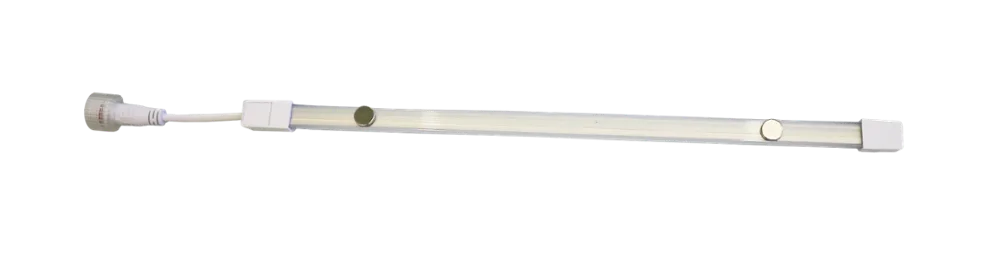

More Details :

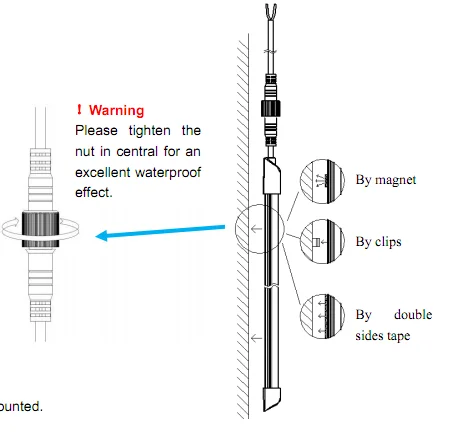

Installation:

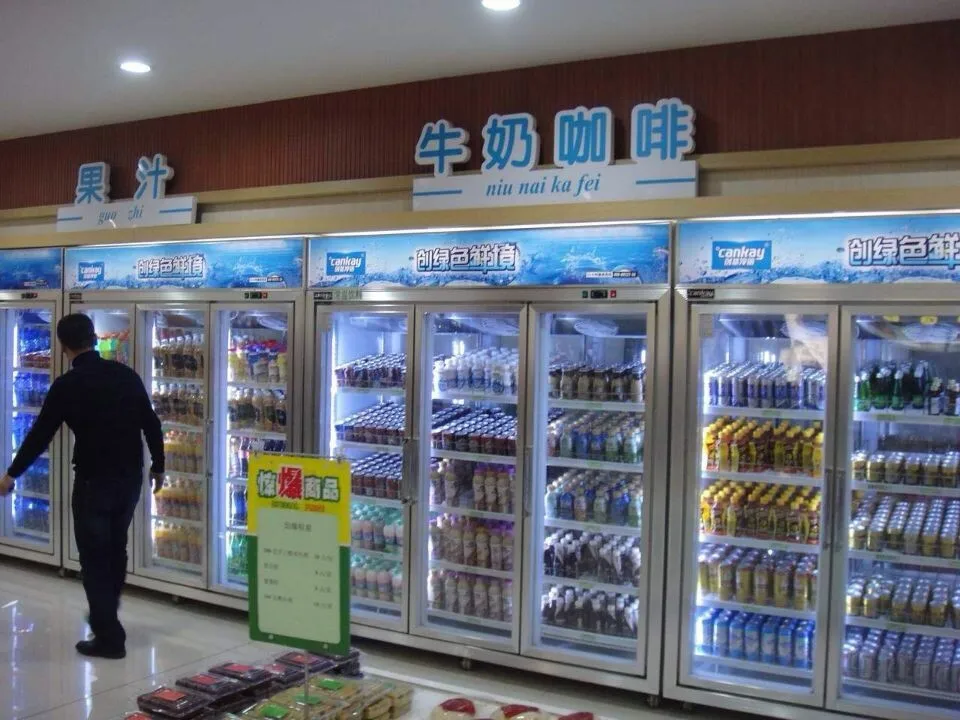

Application :

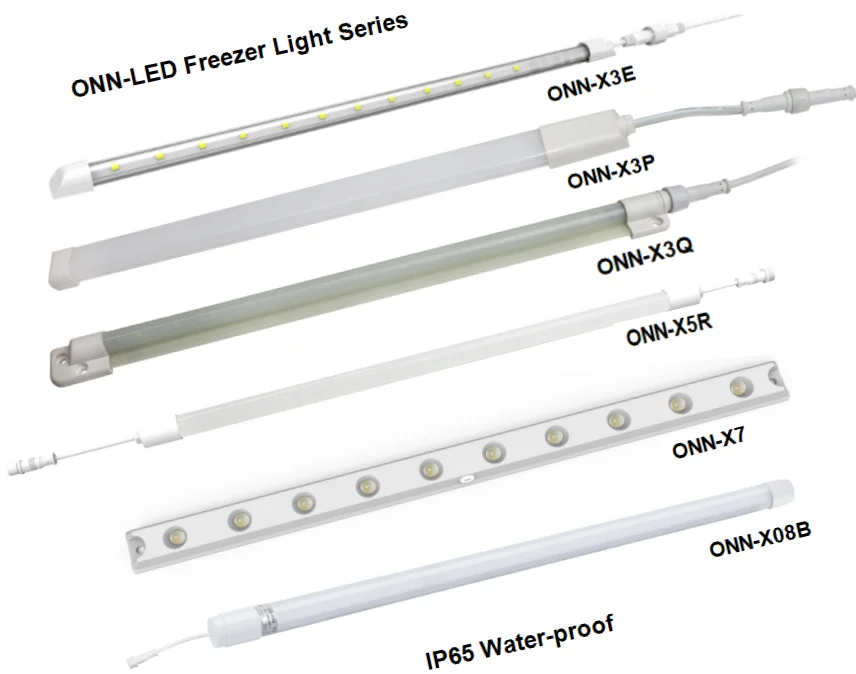

Brief Introduction :
Certificates :
Ordering and Pricing
- Minimum order quantity: 500 piece
- Volume pricing:
- 500+ piece: US $7 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ip65 led freezer?
The standard minimum order quantity is 500 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2-Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this ip65 led freezer carry?
It is supplied with CE ROHS FCC documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the ip65 led freezer be supplied for my local voltage?
The standard configuration is AC 220V( ± 10%). Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

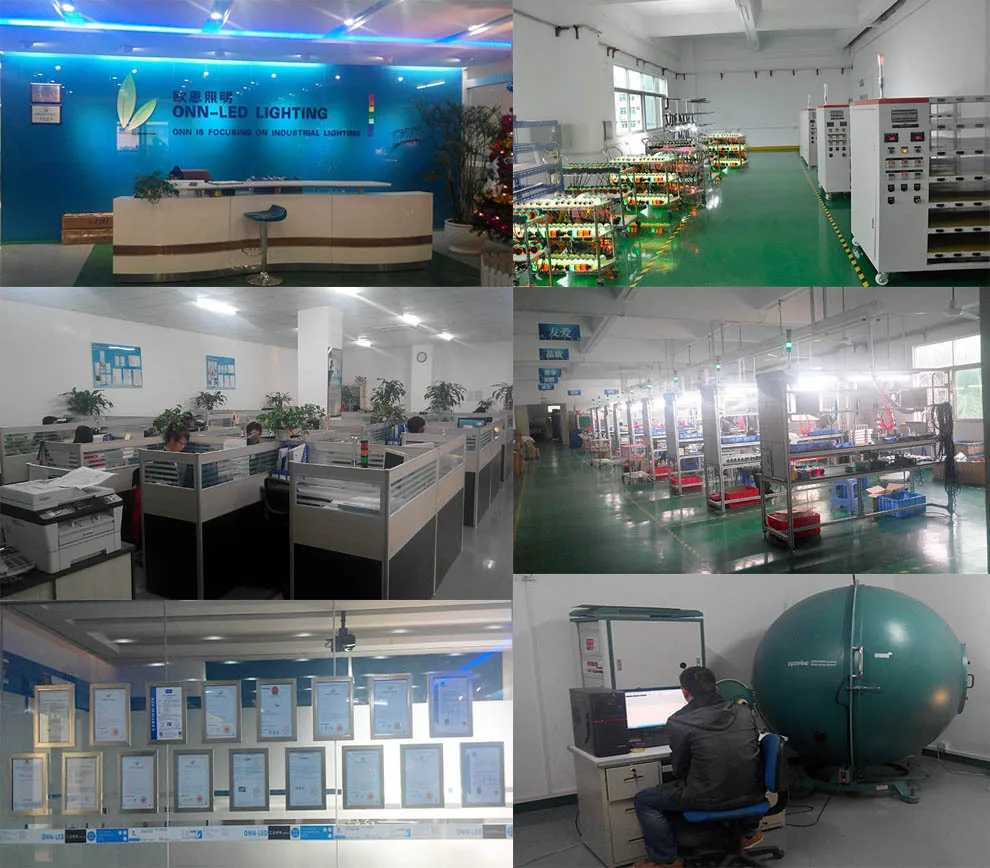

About the Manufacturer
This product is produced by Shenzhen ONN Semi-Conductor Lighting Co., Ltd., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shenzhen ONN Semi-Conductor Lighting Co., Ltd. range on HVACR Nexus.
