Iqf tunnel blast chiller — 220V/380V, cooling capacity 100kgs per batch. The complete factory specification follows. Made by Nanjing Prosky Food Machinery Manufacturing Co., Ltd. (17 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Iqf Tunnel Blast Chiller
- Power(W): 3900W
- Voltage: 220V/380V
- Cooling Capacity: 100kgs per batch
- Capacity: 830L, 15 Trays, 100kgs per batch
- Material: SUS 304
- Warranty: 2 Years
Technical Specifications
| Type | Plate Freezer |
|---|---|
| Voltage | 220V/380V |
| Warranty | 2 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Compressor |
| Key Selling Points | from 25℃ to -40℃ within 45 mins |
| Power(W) | 3900W |
| Place Of Origin | Jiangsu, China |
| Cooling Capacity | 100kgs per batch |
| Brand Name | PROSKY |
| Dimension(L*W*H) | 132*136*193cm |
| Capacity | 830L, 15 Trays, 100kgs per batch |
| Compressor | French Tecumesh |
| Easy Operation | one-key control |
| Usage | Any kind of food freezing |
| Expansion Valve | Use Denmark Danfoss |
| After Warranty Service | Online Guidance |
| Freezer Type | Air Cooling |
| Certificate | CE |
| Material | SUS 304 |
| Advantage | Easy Operation High Efficiency |
| Packaging Details | Use standard export plywood case packaging suitable for sea and air shipment. |
| Port Of Dispatch | Shanghai, Ningbo, Qingdao, Yantai, and any other port |
| Selling Units | Single item |
| Supply Ability | 100 sets per Month Quick blast Freezing Chiller Machine Shock Freezer |

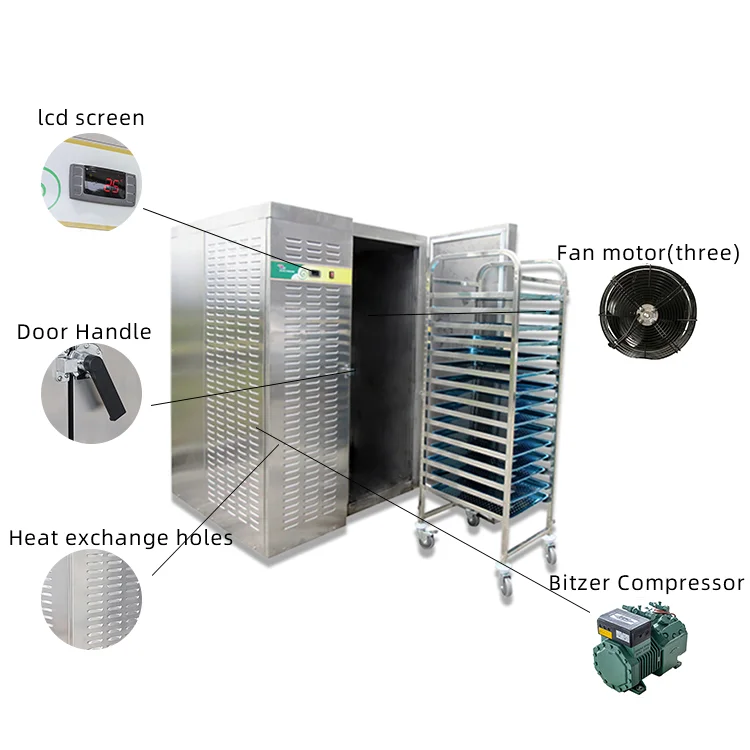

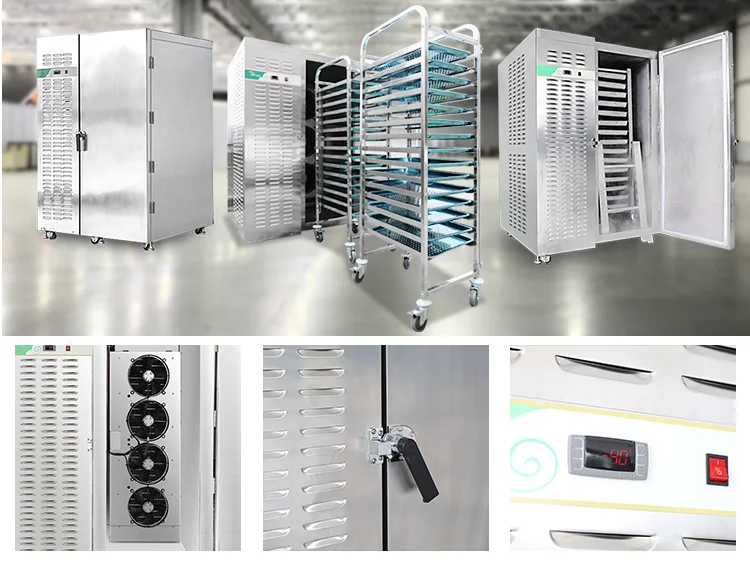

Product Details

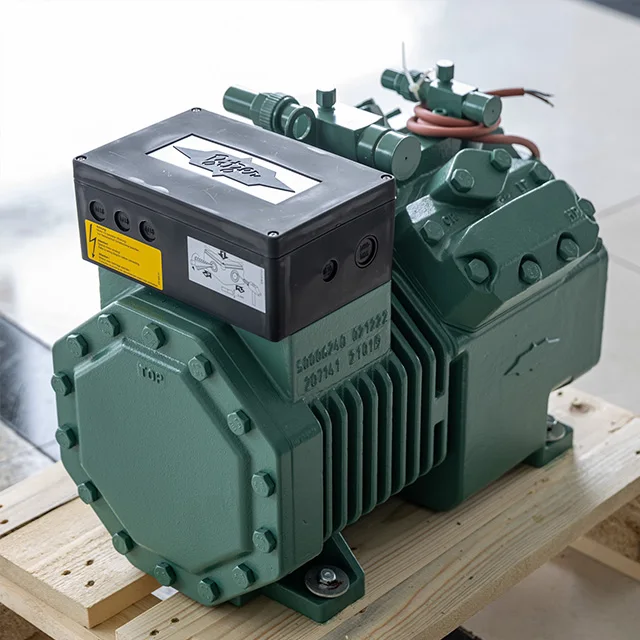

Compressor: 4P Germany Bitzer
2. Shorter freezing time
3. Low consumption
4. 3-year warranty
5. Semi-hermetic, easy for maintenance

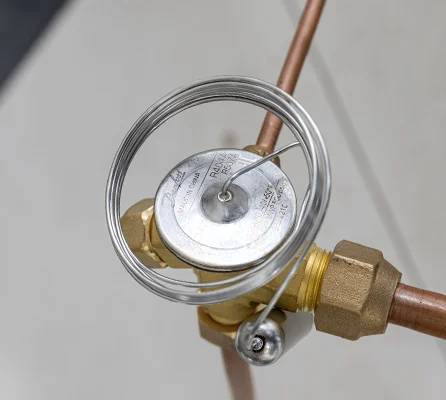

Expansion valve

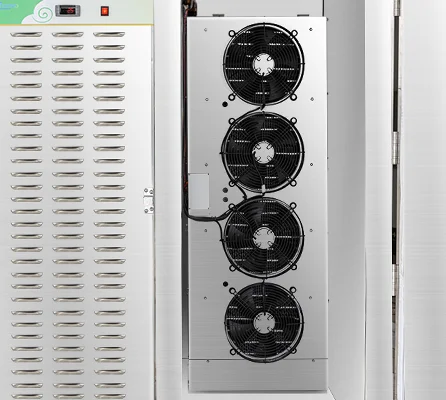

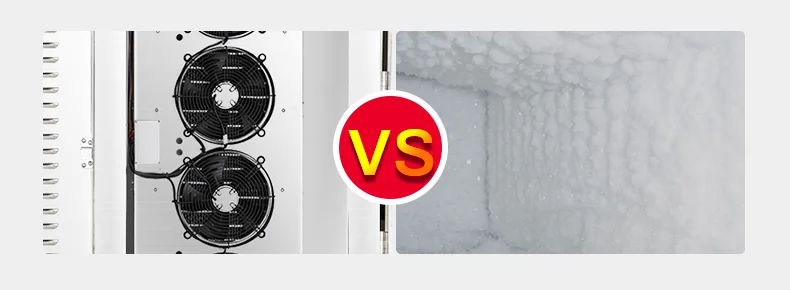

Exporator fan

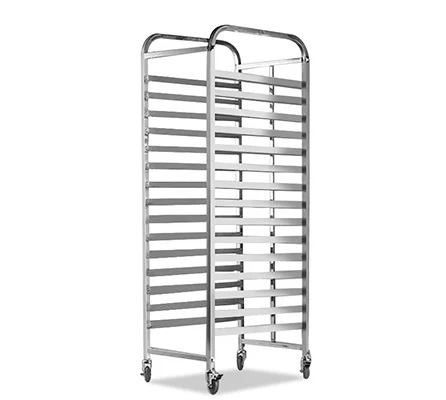

Roll-in trolley
3. Large capacity holding 30 trays(50*35cm) or 15 trays(60*40*2cm);
4. Wheels with brake, easy and durable for use.

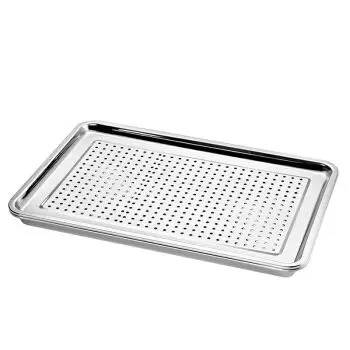

Trays
Features
* Shorter freezing time (25℃ to -35℃ within 25 minutes, 25℃ to -40℃ within 40minutes when empty working);
* Insulation is CFC and HCFC free in 3,94” thickness, High Density Polyurethane;
* Anti-condensation resistance;
* Air-cooled condensing unit with R404A refrigerant;
* Testing on each machine to meet the standard -40℃;
* Dixell display and water resistant.
Temp range | 85℃ to -40℃ (185F to -40F) |
Refrigerant | R404A |

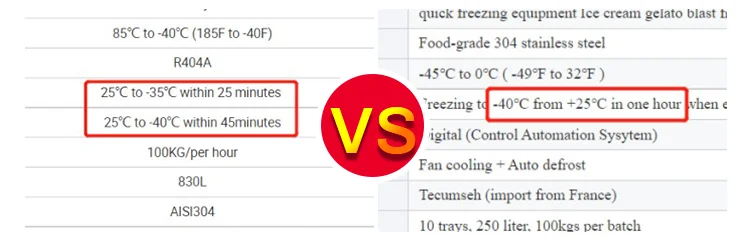

Freezing time（empty working) | 25℃ to -35℃ within 25 minutes |
25℃ to -40℃ within 45minutes | |
Capacity | 15 trays, 830L, 100kgs per batch |
Material | AISI304 |
Cooling system | Fancooling (watercooling can be customized) |
Power | 220V/380V, 50HZ/60HZ |
Tray Qty | 15*2 |
Tray dim | 60*40*2cm(23.6"×15.7"×0.79") |
Exterior dim | 132*136*193cm (51.97"×53.54"×75.98") |
Ship dim | 142*146*215cm (55.9"×57.48"×84.65") |
Weight | Net weight: 648KG (1428.6 lb), Gross weight: 840KG (1851.88 lb) |

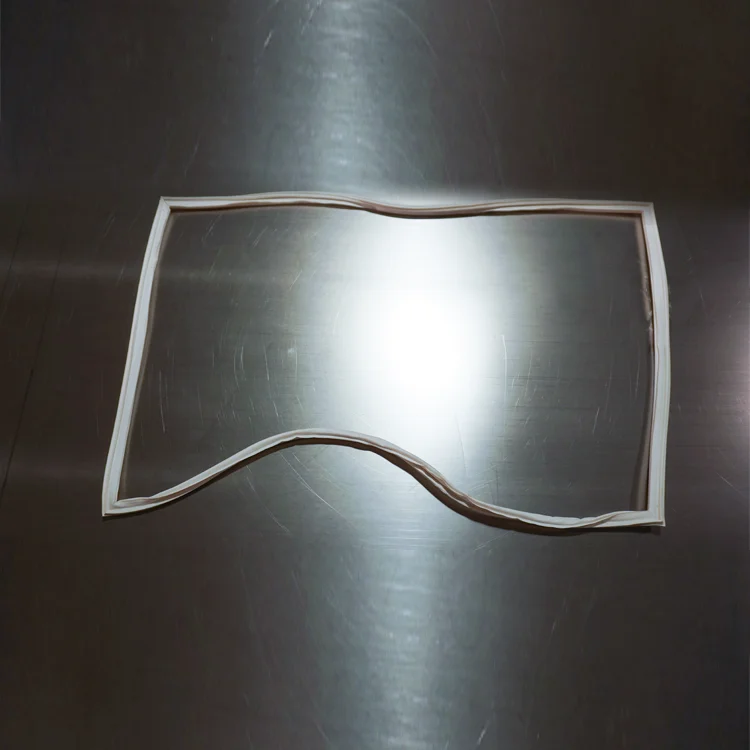

Door gasket
* Low-temperature resistance;
* long life;
* Easy for cleaning.

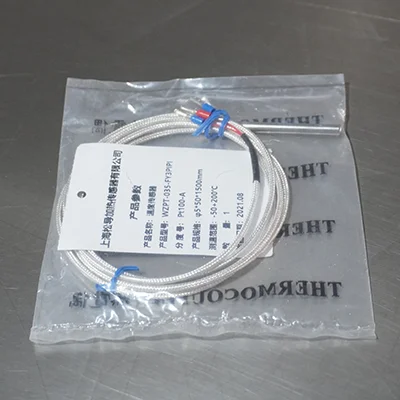

Probe
PT100 probe
A1: T/T 40% as deposit, and 60% release before shipment. We'll take product and package photos for your approval.
A2: Yes, all products testing are made before delivery.
A3: Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Japanese.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $7900 / set
- 10–19 set: US $7200 / set
- 20+ set: US $6400 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this iqf tunnel blast chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this iqf tunnel blast chiller carry?
It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the iqf tunnel blast chiller be supplied for my local voltage?
The standard configuration is 220V/380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

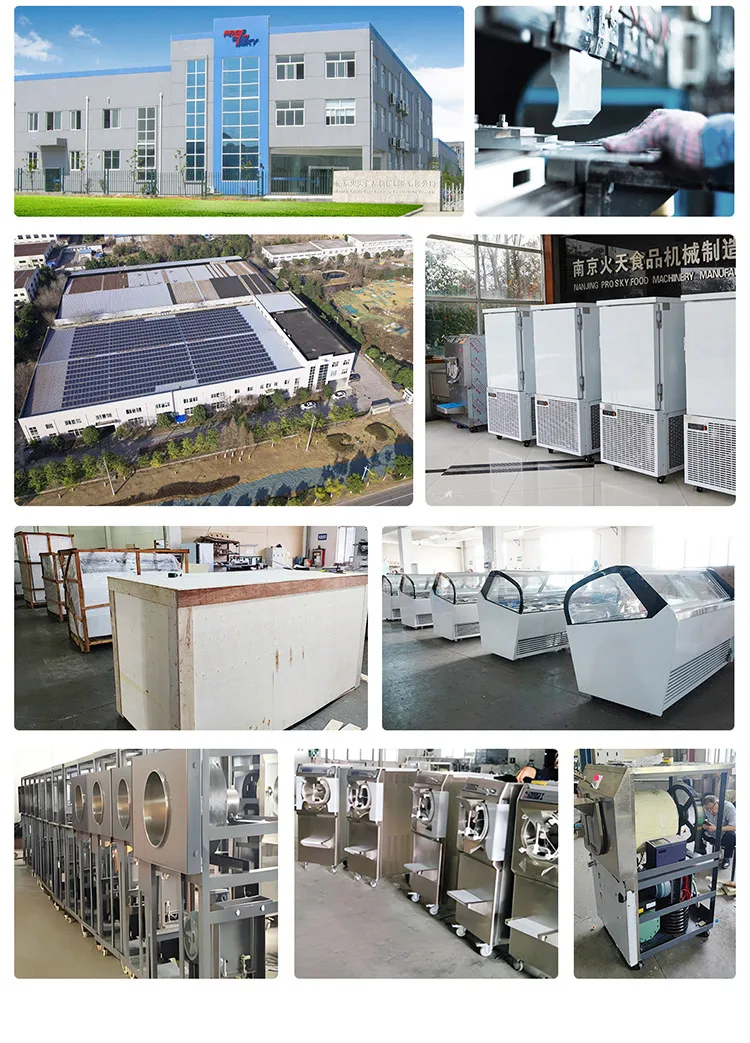

About the Manufacturer
