The lab glycol chiller listed here carries 220 V, 1.95kW, documented exactly as the manufacturer publishes it. Made by Zhengzhou Keda Machinery And Instrument Equipment Ltd (2 years on the platform, typical reply ≤4h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Lab Glycol Chiller
- Model Number: DLSB-30L
- Power: 1.95kW
- Voltage: 220 V
- Rated Voltage/Frequency: 220V 50HZ
- Warranty: 1 Year
- Place Of Origin: Henan, China
Technical Specifications
| Voltage | 220 V |
|---|---|
| Power | 1.95kW |
| Compressor Brand | Bitzer |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Automatic, High-Accuracy |
| Plug Type | Us Plug |
| Core Components | Motor |
| Model Number | DLSB-30L |
| Place Of Origin | Henan, China |
| Weight (Kg) | 132 |
| Brand Name | ZZKD |
| Dimension(L*W*H) | 73*59*125cm |
| Working Temperature Range | -10℃~RT |
| Product Name | Circulating Water Cooling Chiller |
| Model | DLSB-30L |
| Storage Volume | 30L |
| Temperature Stability | ±2℃ |
| Rated Voltage/Frequency | 220V 50HZ |
| Flow | 20 L/min |
| Lift | 4~6 m |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 120.0 kg |
Product Details

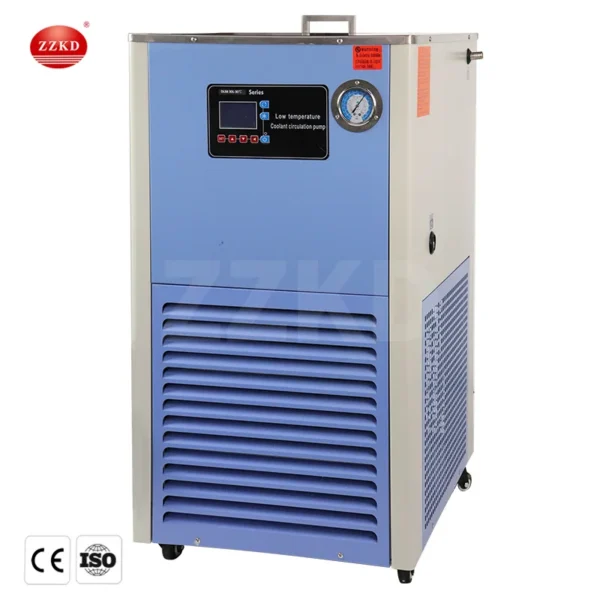

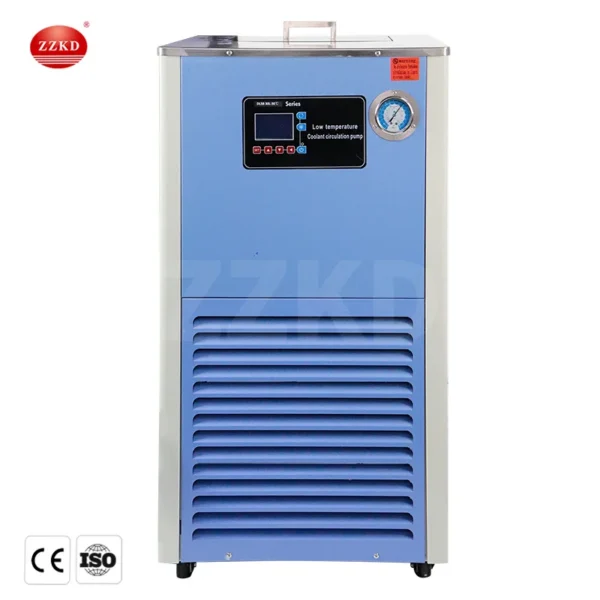

Lab Glycol Chiller Low Temperature Cooling Circulation Pump Cooling Circulator Bath Laboratory Recirculation Chiller
The basic principle of a circulating chiller is that the temperature of a system or object is governed by the heat flow into it and the heat flow out of it. Chiling circulators are used to do low temperature experiment such as chemical, biological and physical experiment in low temperature. They are ideal equipment for cooling lab equipment like rotary evaporators, glass reactors, wiped film evaporators, etc.
| Model | DLSB 30L-30℃ | DLSB 30L-40℃ | DLSB 30L-60℃ | DLSB 30L-80℃ | DLSB 30L-100℃ |
| Storage Volume | 30L | ||||
| Low temperature range | –30℃~RT | –40℃~RT | –60℃~RT | –80℃~RT | –100℃~RT |
| Temperature stability | ±2℃ | ||||
| Refrigeration capacity | 363~2722W | 480~4780W | 1150~4250W | 268~4308W | 268~4308W |
| Total Power | 1950W | 2488W | 3250W | 2890W | 9644W |
| Voltage | 220V 50Hz | 380V 50Hz | 220V 50Hz | 380V 50Hz | 380V 50Hz |
| Total Current | 9.2A | 4.4A | 24A | 38.5A | 46.5A |
| Flow | 20 L/min | 20 L/min | 25 L/min | 23 L/min | 23 L/min |
| Lift | 6 m | 4~6 m | 11 m | 10~12 m | 10~12 m |
Packaging & Shipping
Packaging:
-The glass parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping:
-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent.
| Shipping method | Note |
| Express | Door to door, very convenient, don't need to clearance or pick-up |
| By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport, which you can have a local shipping agent to do for you. |
| By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port, which you can have a local shipping agent to do for you. |
warehouse display
Our Services
Why choose us!
-with 6 years foreign trade,and over 30 years domestic trade in China.
-we are professional mancufacturer in chemical industry!
-our main product is rotary evaporator, glass reactor, vacuum drying oven and their matched equipments.
-our customers are all over the world, mainly spread in America, Canada, India,and so on.
Warranty & Service:
Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise.
Middle service
–Give you best offer
–Provide discount for many sets order
–Do customer's request:
–Choose payment term you convienent.
–Promptly production and delivery,inform you in time.
–Can provide invoice value as you like to decrease your tax.
After sale service
–1 year warranty service and all life maintenance.
–Technical Egineer are avalible for oversea trainning.
–Free change for some parts
–Remote control technical consult
–Free installation DVD
–Maintenance plan
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: US
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this lab glycol chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the lab glycol chiller be supplied for my local voltage?
The standard configuration is 220 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Zhengzhou Keda Machinery And Instrument Equipment Ltd. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Zhengzhou Keda Machinery And Instrument Equipment Ltd range on HVACR Nexus.
