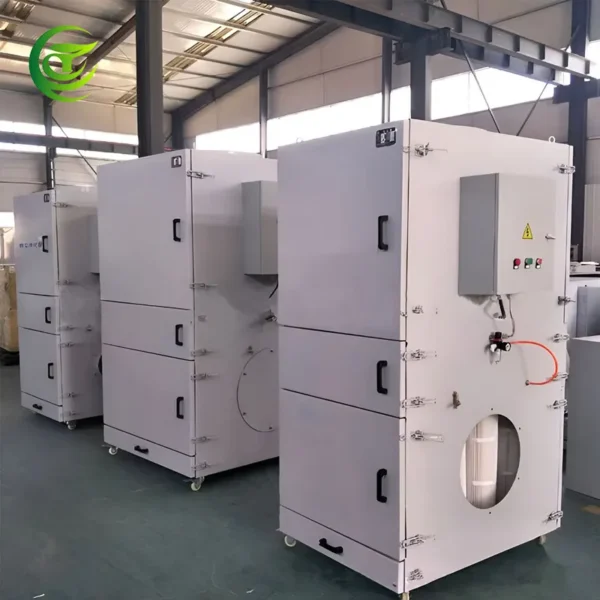

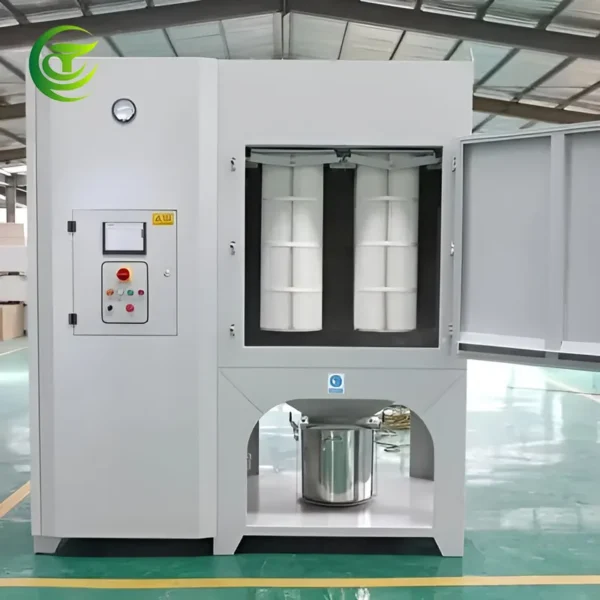

Laser Cutting Fume Extractor

Manufactured by Beijing Chengtai Environmental Protection, this laser cutting fume extractor is documented here exactly as the factory publishes it. Supplier profile: 3 years on the platform. Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Laser Cutting Fume Extractor

• Warranty: 1 Year
• Warranty Of Core Components: 1 Year
• Place Of Origin: Hebei, China
• Application: CNC/Laser cutting/woodworking
• Dust Collection Type: Cartridge Dust Collector
• Marketing Type: New Product 2024

Technical Specifications

Product Details

* 24*7 Hours Online Service

* Production According to Your Drawing (2Dor3D)

* Equipped with Specialized Technical Personnel

* Welcome to Visit Our Factory!

Product Parameters

CCD Low Pressure Pulse Filter Cartridge Dust Collector is a simple single model dust removal equipment, mainly refers to small dust collector. The jet filter is a filter filter that uses compressed air as the cleaning power, uses the pulse jet mechanism to re lease compressed air instantaneously, induces several times of secondary air to shoot into the filter cartridge at high speed, and relies on shock vibration and reverse airflow to clean the dust.

The dust collector has the characteristics of compact layout, good dust removal effect, high purification efficiency, large gas treatment, easy maintenance, small workload, reliable opera tion, etc., and has been widely used in welding, chemical industry, grain processing and other departments.

CCD-I Filter Cartridge Dust Collector
Model	Filter area/㎡	Processing air volume/m ³/h	Pulse valve	Number of pulse valves	Efficiency
CCD-I-24-100	48	2304	DMF-Z-25	4	99.9%
CCD-I-36-100	72	3456				6
CCD-I-48-100	96	4608				6
CCD-I-64-100	128	6144				8
CCD-I-80-100	160	7680				8
CCD-I-100-100	200	9600				10
CCD-I-80-160	256	12288	DMF-Z-40	10
CCD-I-100-160	320	15360				10
CCD-I-120-160	384	18432				12
CCD-I-150-160	480	23040				15
CCD-I-180-160	576	27648				18
CCD-I-200-160	640	30720				20
CCD-I-240-160	768	36864				24
CCD-I-260-160	832	39936				26
CCD-I-300-160	960	46080				30
CCD-I-260-200	1040	49920	DMF-Z-50	26
CCD-I-300-200	1200	57600				30

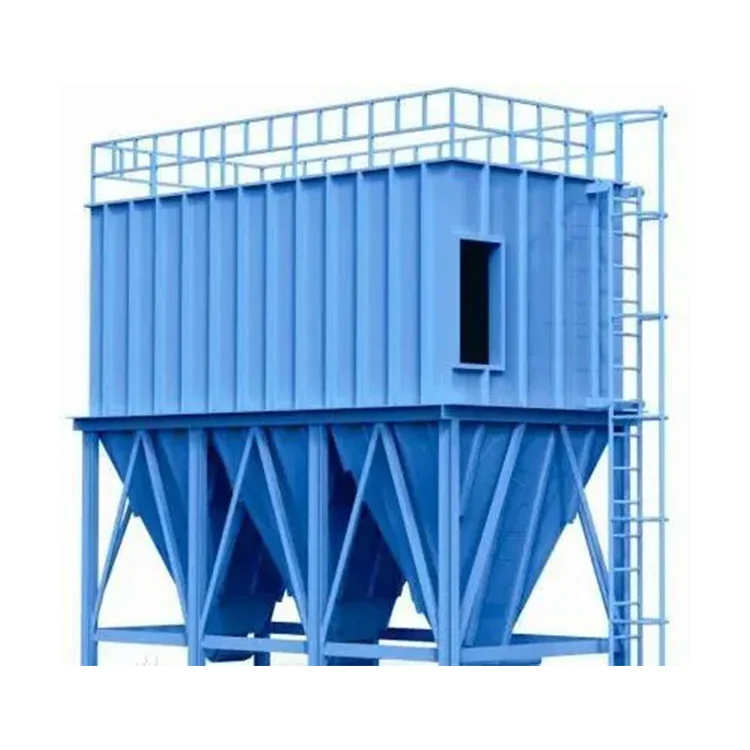

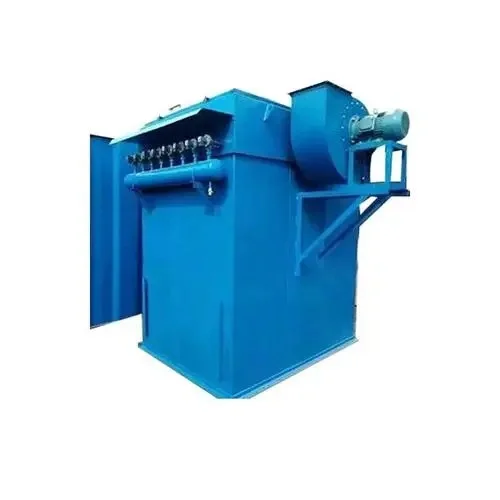

Product Photograph ：

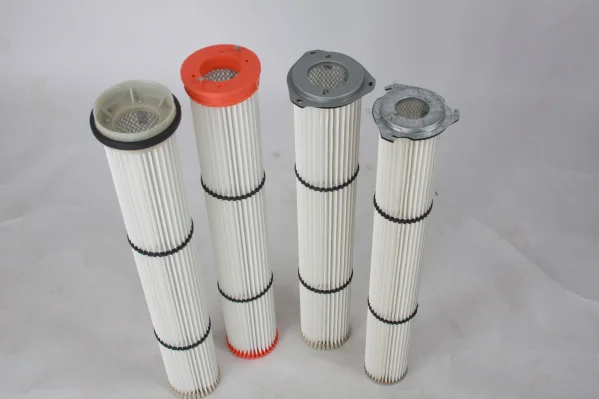

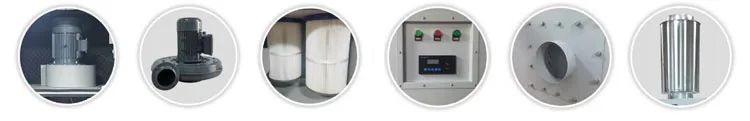

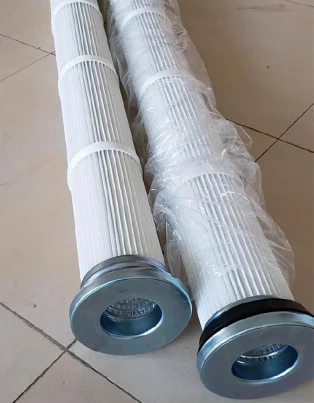

Product Accesssories :

CCD-II(L) Filter Cartridge Dust Collector
Model	Filter cartridge model	Number of filter cartridges	Filter area/㎡	Processing air volume/m ³/h
CCD-II-220L	φ325×660	4	33	2400
CCD-II-300L			6	50	3500
CCD-II-400L			9	75	5000
CCD-II-550L			12	100	6000
CCD-II-750L			16	133	8000
CCD-II-1100L			20	166	10050
CCD-II-1500L			24	200	12000

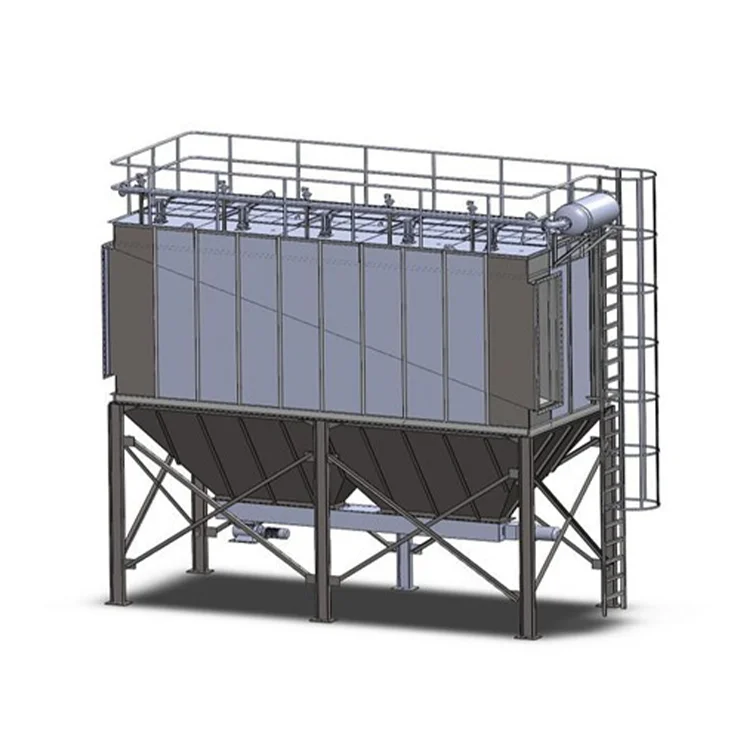

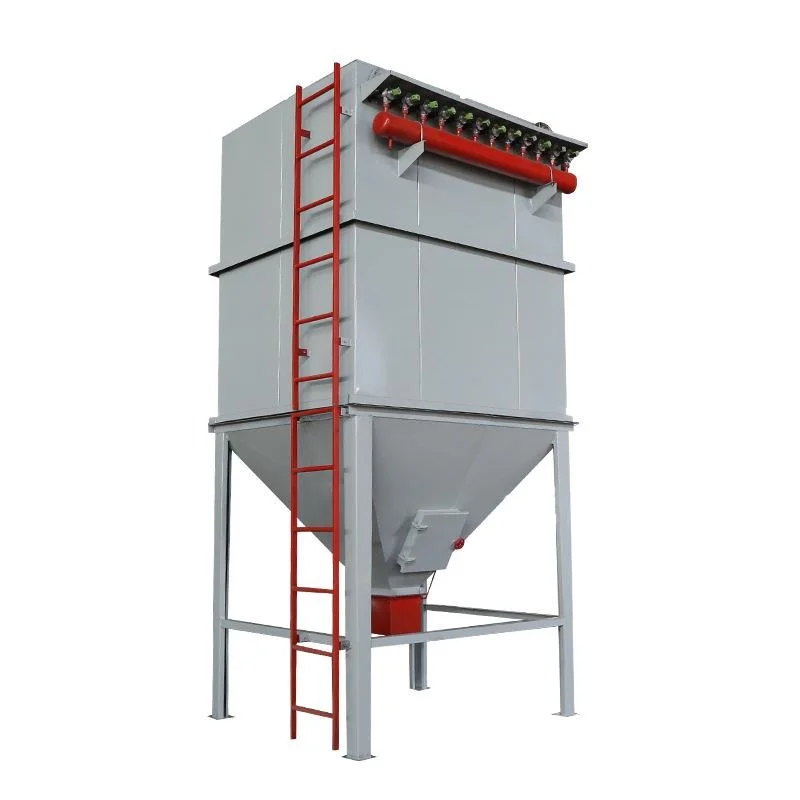

Product Photograph ：

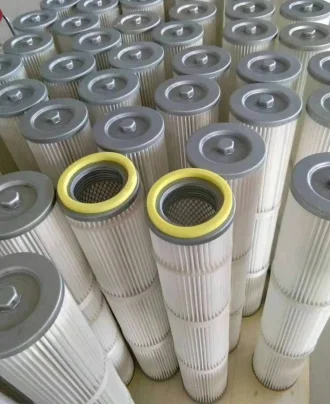

Product Accesssories ：

CCD-II(H) Filter Cartridge Dust Collector
Model	Filter cartridge model	Number of filter cartridges	Filter area/㎡	Processing air volume/m ³/h
CCD-II-220H	φ325×1600	2	40	2400
CCD-II-375H			4	80	5000
CCD-II-550H			6	108	6000
CCD-II-750H			9	162	8000
CCD-II-1100H			12	216	10050
CCD-II-1850H			16	288	14000

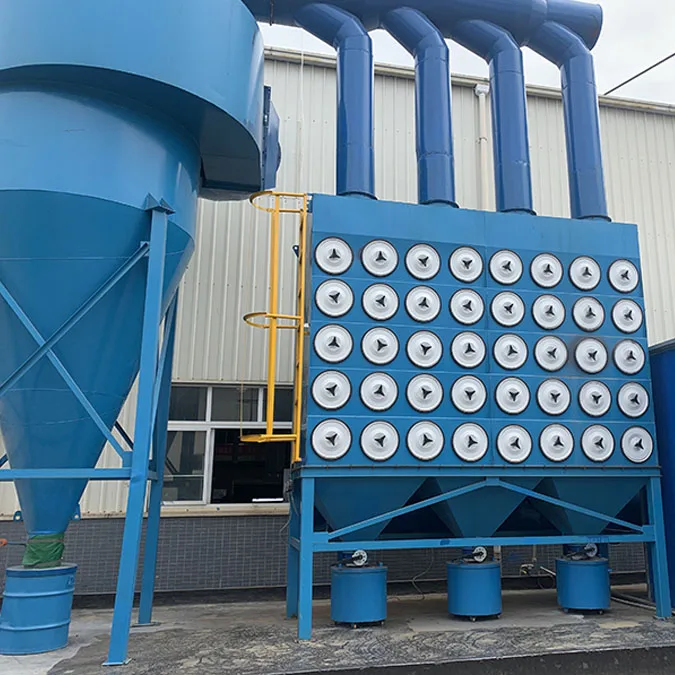

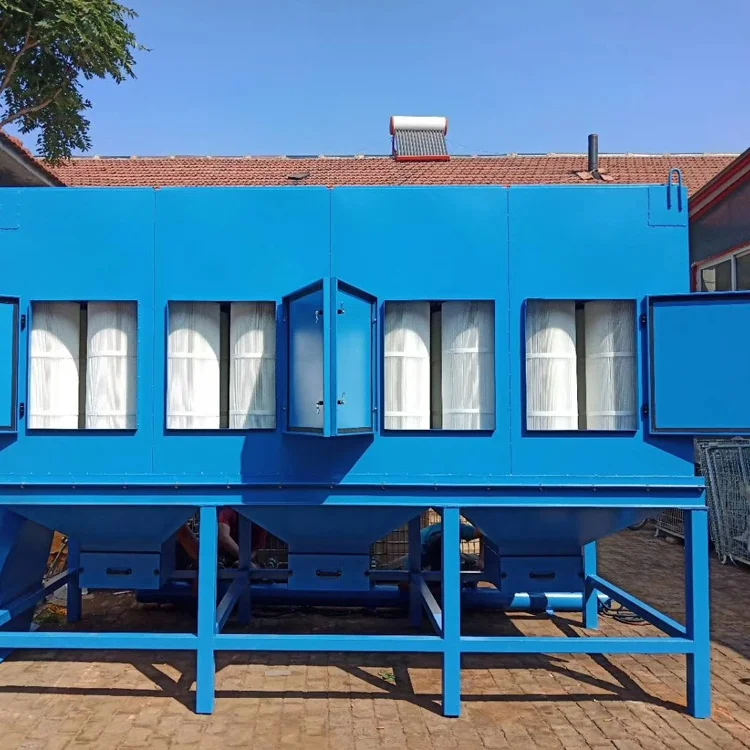

Construction Case

Partial case presentation：

Click to get more cases…

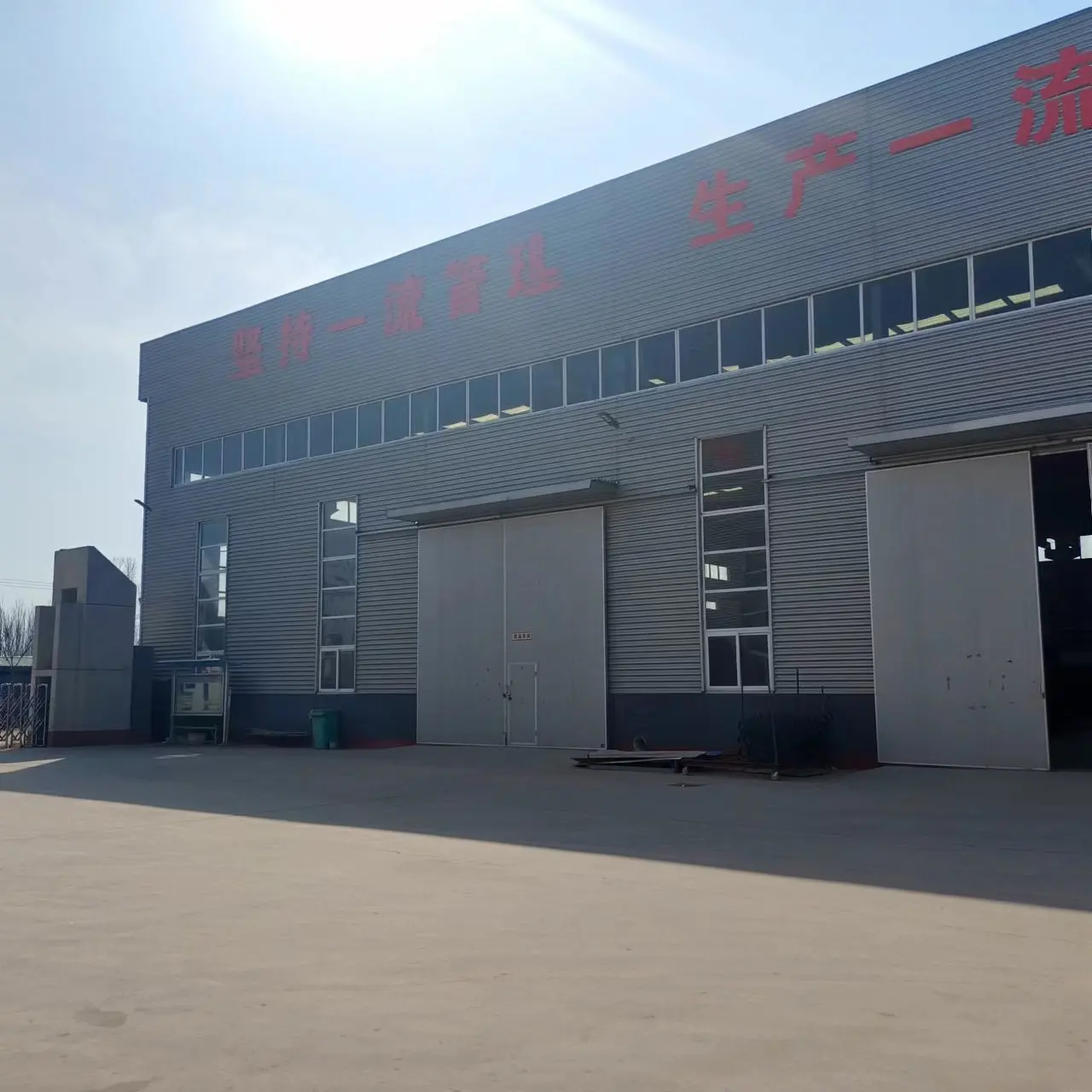

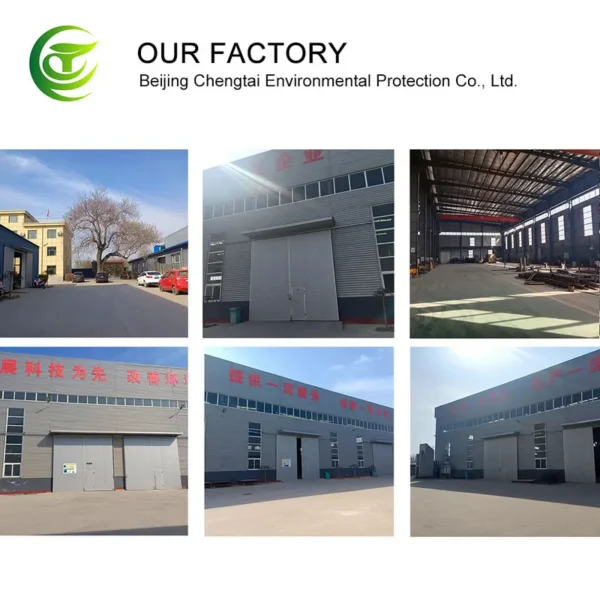

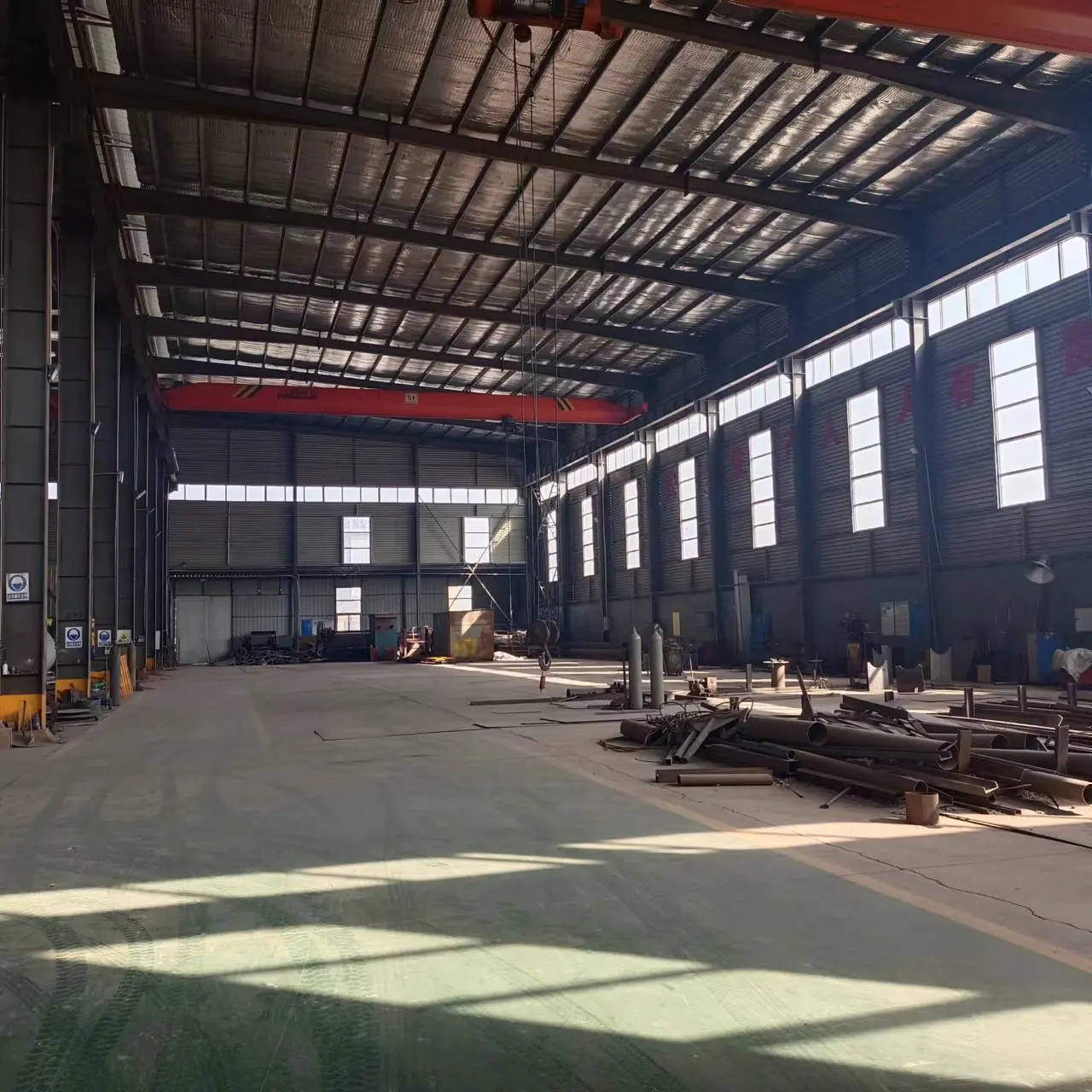

Our Factory

Click To Get A Discounted Quote!

Company Profile

Beijing Chengtai Environmental Protection Co., Ltd. is a professional manufacturer of atmospheric environmental equipment. As a professional manufacturer and supporting manufacturer, the company currently produces various efficient environmental protection equipment and has long-term close cooperation with major universities and research institutions. It has the ability to design, manufacture, install and debug systems, and provides effective after-sales service and technical consultation. We pay attention to details and quality assurance in all aspects of system design, production, installation, and adjustment, exchanging customers' trust with sincerity.

CUSTOMER VISIT

OUR SERVICE ?

We have strong technology term and installation personnel, we are able to design and manufacture dust collector with different capacity.

FAQ

1.The quality

Welcome to our factory and check the quality of product.And we will send you the video and pictures before shipment
after you order.

2. how can we guarantee quality?

Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?

Dust Collector, Conveying Equipment, Filter Bag, Desulfurization Equipment, De-Nox Equipment

4. Why do you want to purchase from us instead of other suppliers?

1. Quick quotation within 24 hours upon inquiry. 2. High quality and cost-effectiveness make it your best choice 3. A professional R&D team designs dust removal technology based on the specific situation of the dust collector. 4. After sales service, solving all troubles

5.Equipment warranty

A.Equipment with 12 months warranty, can be extended to 24 months as request.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this laser cutting fume extractor?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Beijing Chengtai Environmental Protection Co., Ltd., based in China. The company 3 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Beijing Chengtai Environmental Protection Co., Ltd. range on HVACR Nexus.
