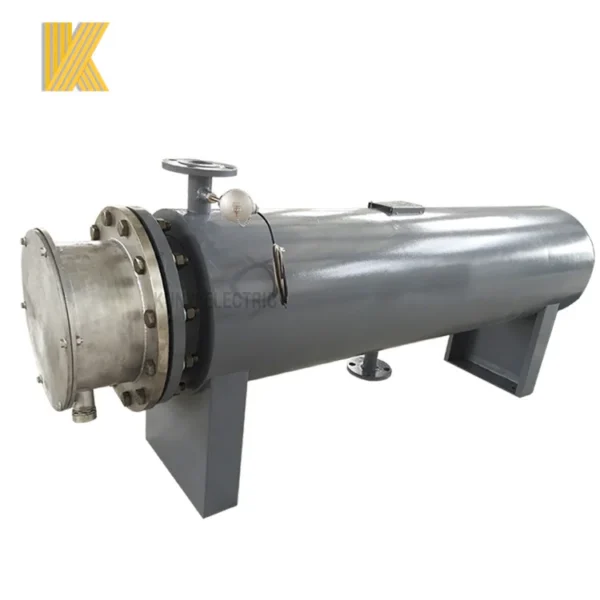

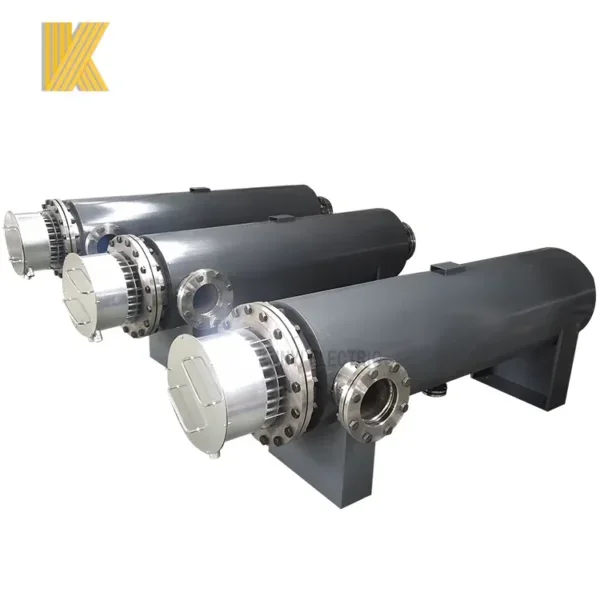

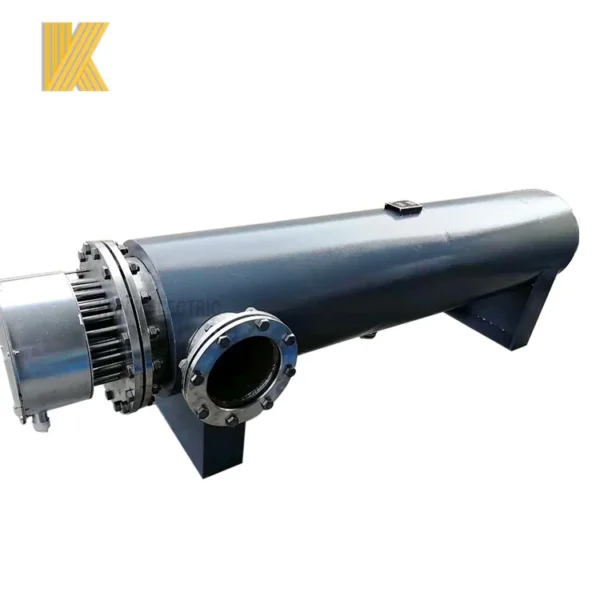

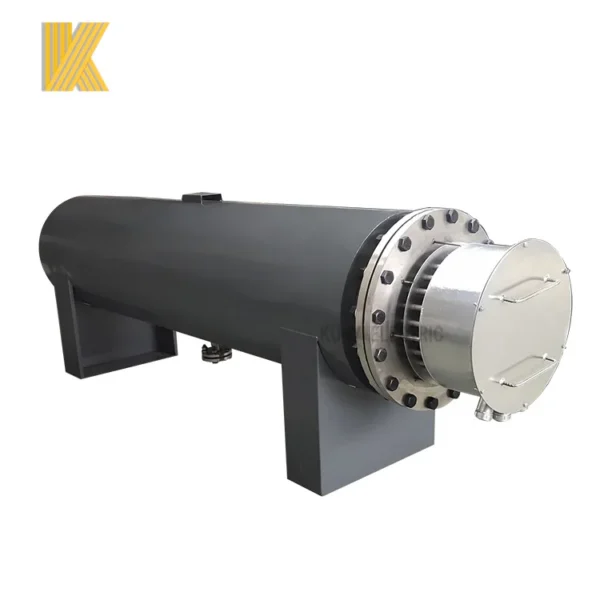

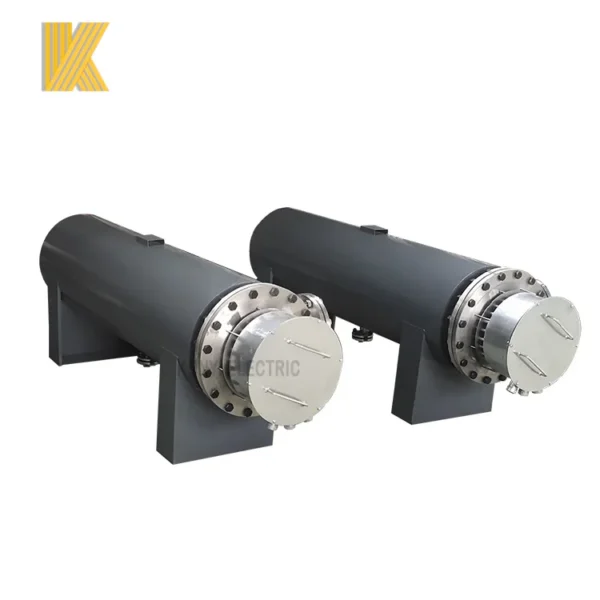

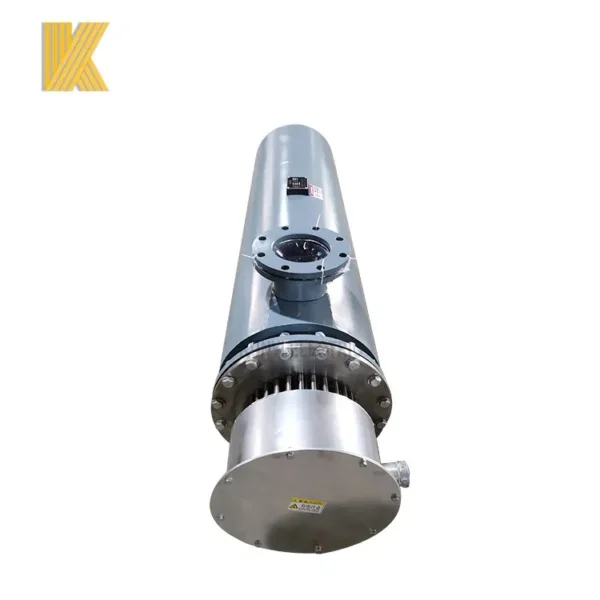

Liquid Oil Pipeline Heater, 60kw, 220v-660v

This liquid oil pipeline heater is published with the manufacturer’s full specification — 220v-660v, heating capacity 60. Made by Yancheng Kunyi Electric Industries Co., Ltd. (6 years on the platform, typical reply ≤7h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Liquid Oil Pipeline Heater

• Power Source: Electric
• Voltage: 220v-660v
• Heating Capacity: 60
• Material: Stainless Steel
• Warranty: 1 Year
• Place Of Origin: Jiangsu, China

Technical Specifications

Product Details

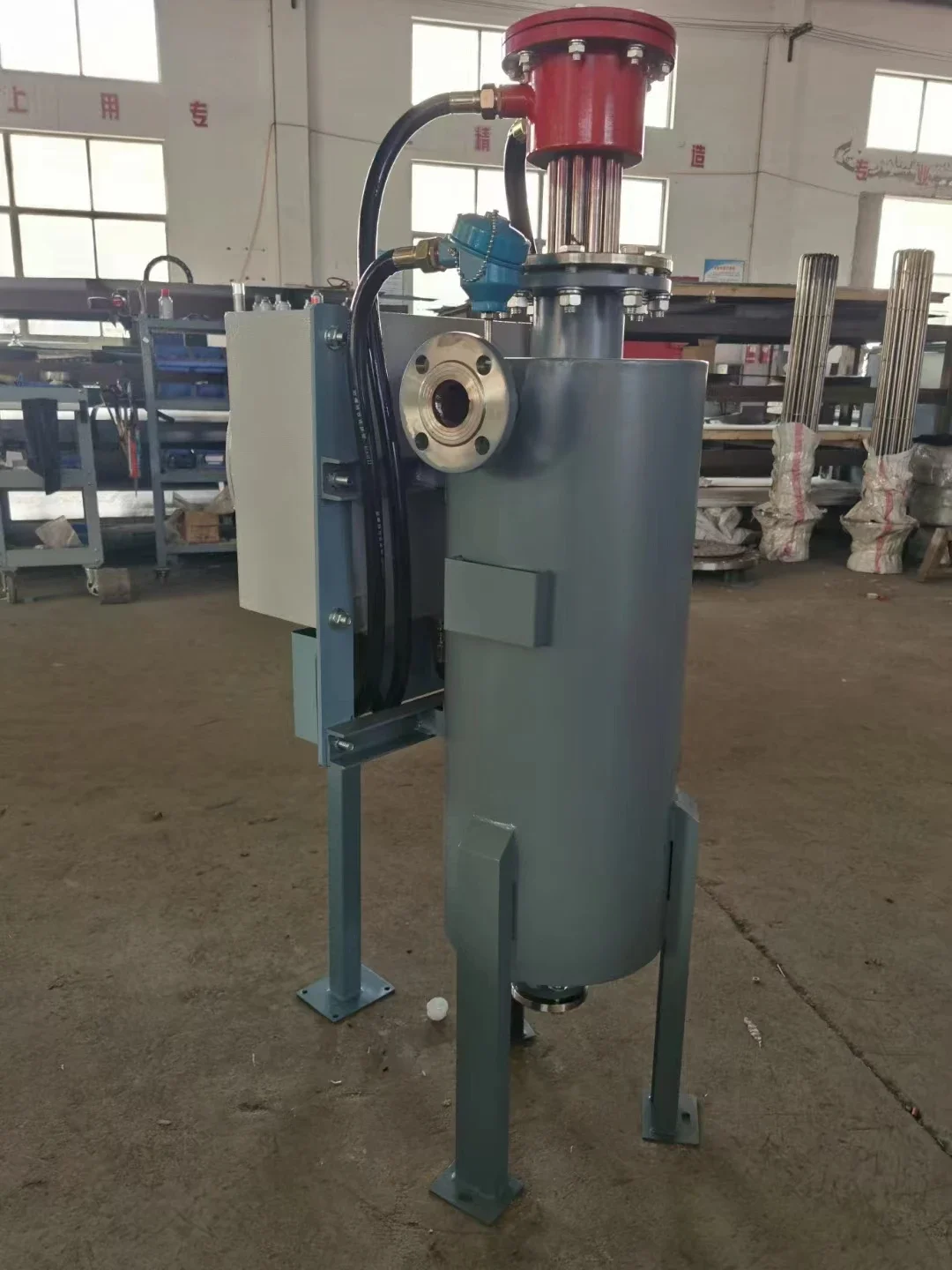

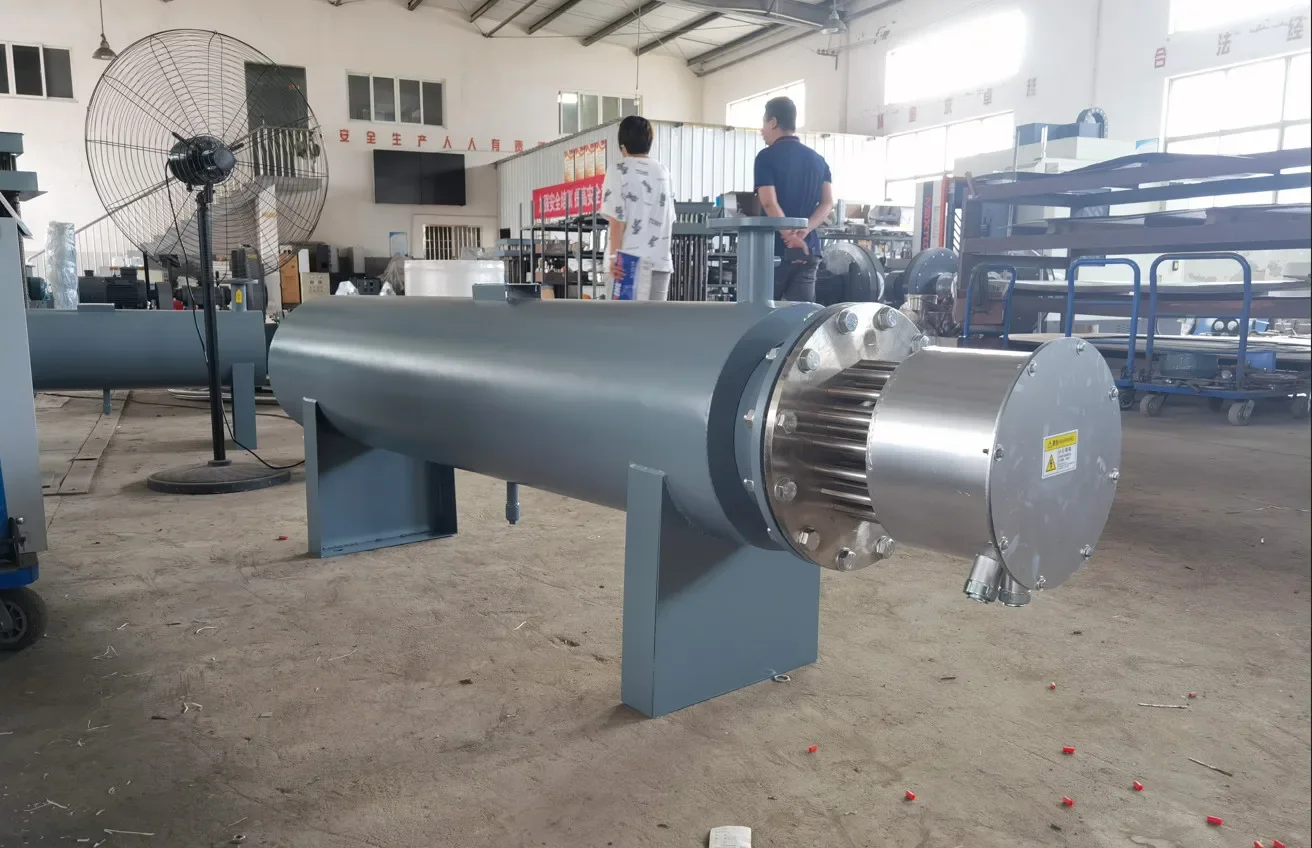

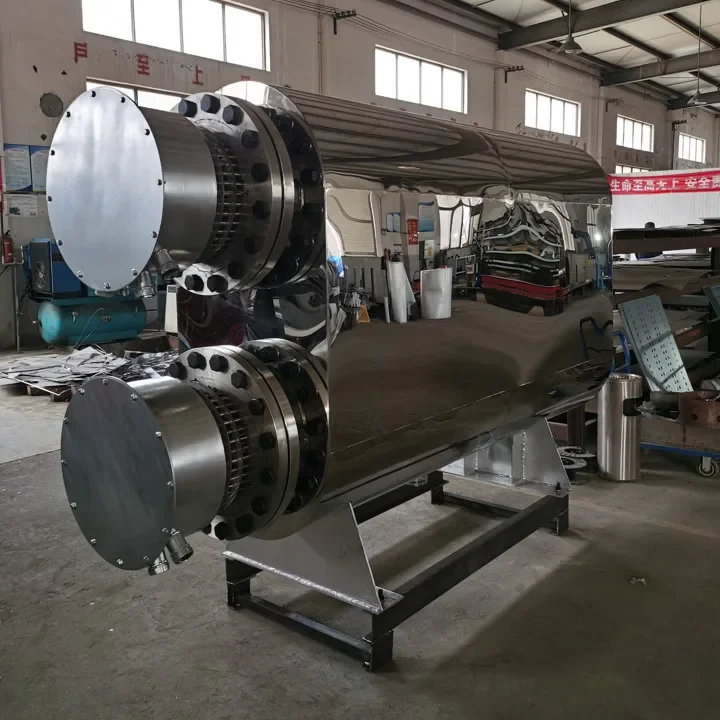

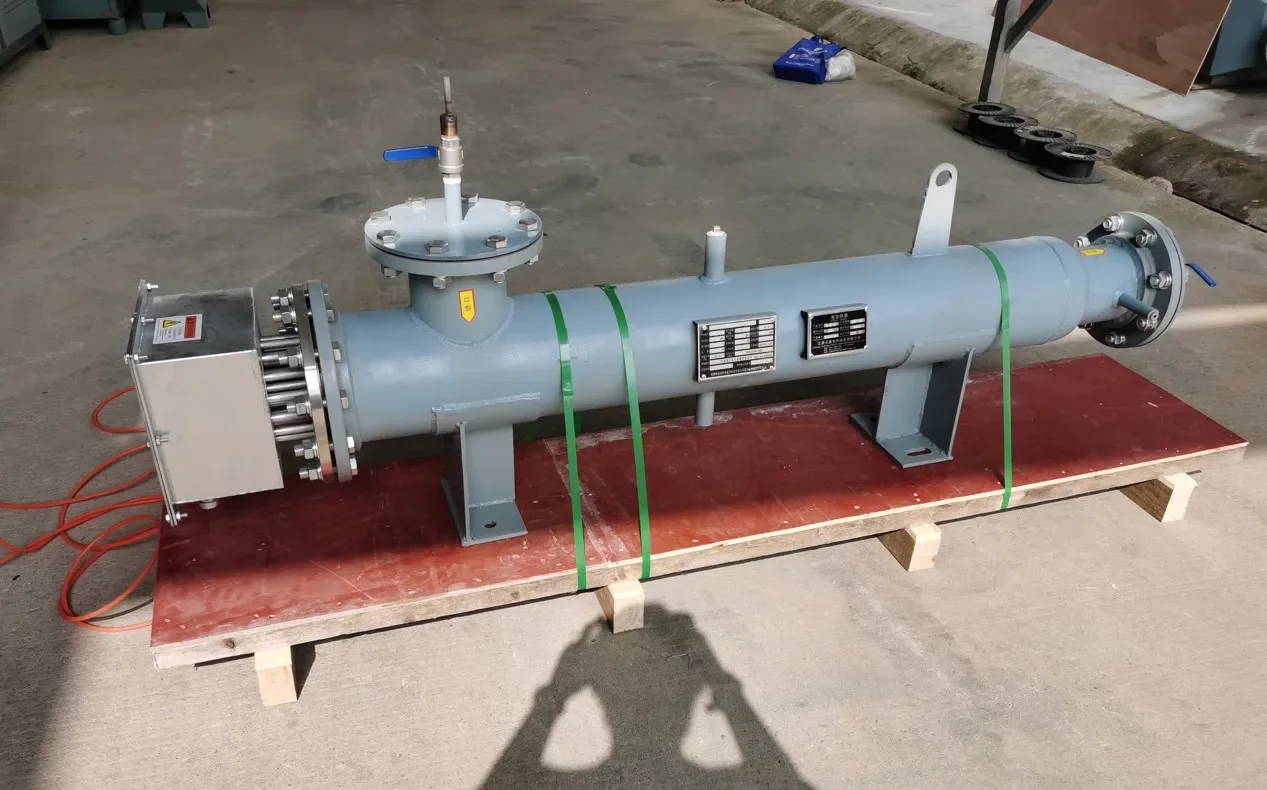

Electric pipeline heaters are heating equipment that convert electrical energy into thermal energy. This type of heater can heat the medium from the initial temperature to the required temperature, which can reach 750°C. The circulation heater consists of two parts: the heater body and the control system. The heating body uses electric stainless steel heating tube as the heating element. There are multiple guide plates inside the product to guide the medium in the heater cavity to fully contact the flange heating core, prolonging the residence time of the medium in the heating inner cavity, thereby making the medium Fully heated evenly to improve heat exchange. After reaching the required temperature, it is sent to the heating equipment. The temperature control system of the heater will automatically adjust the power of the heater based on the signal fed back by the temperature sensor at the heater outlet, saving energy while ensuring heat demand. The electric control system has a built-in overheat protection function. If the temperature sensor in the heater cavity feedbacks that the temperature in the heater cavity is too high or there is an air-burning condition, the power will be cut off immediately to prevent material deterioration, coking, carbonization, and heating caused by excessive temperature. The tube is burned out and damaged to ensure the normal operation of the electric heater.

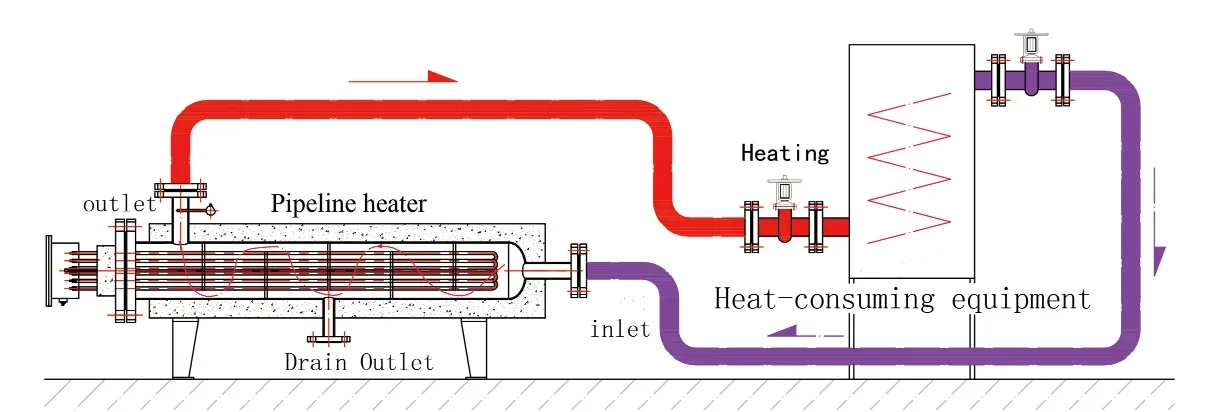

Working Princle:

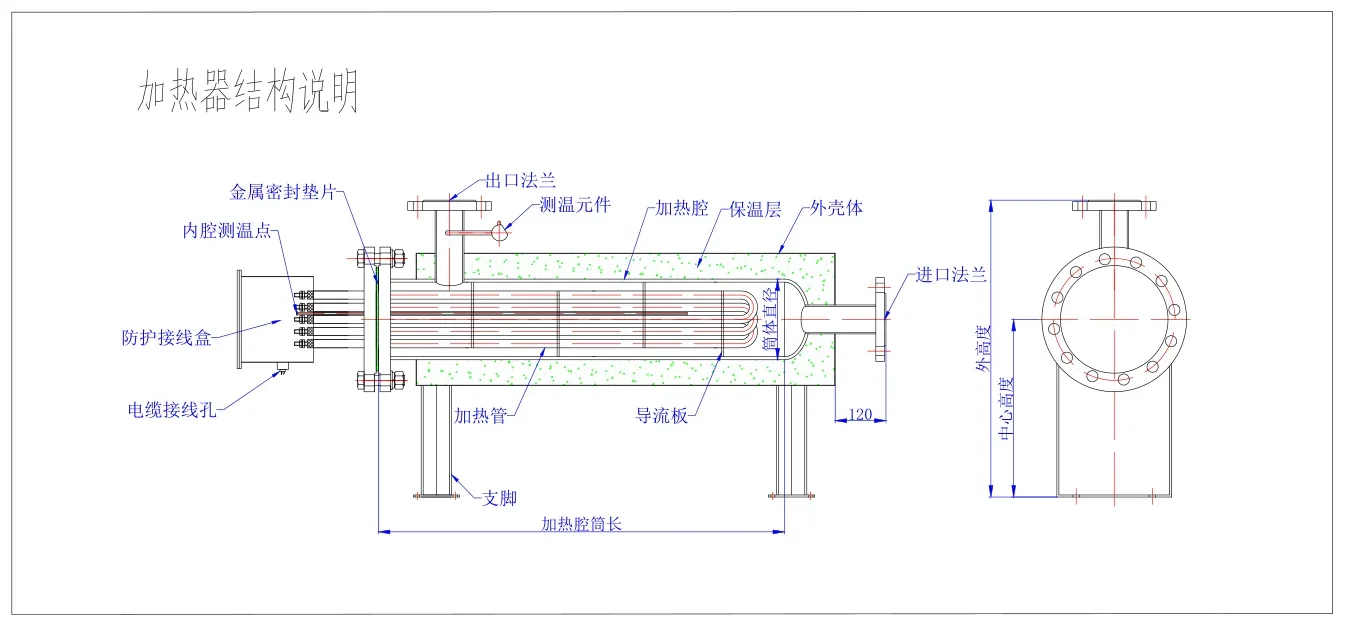

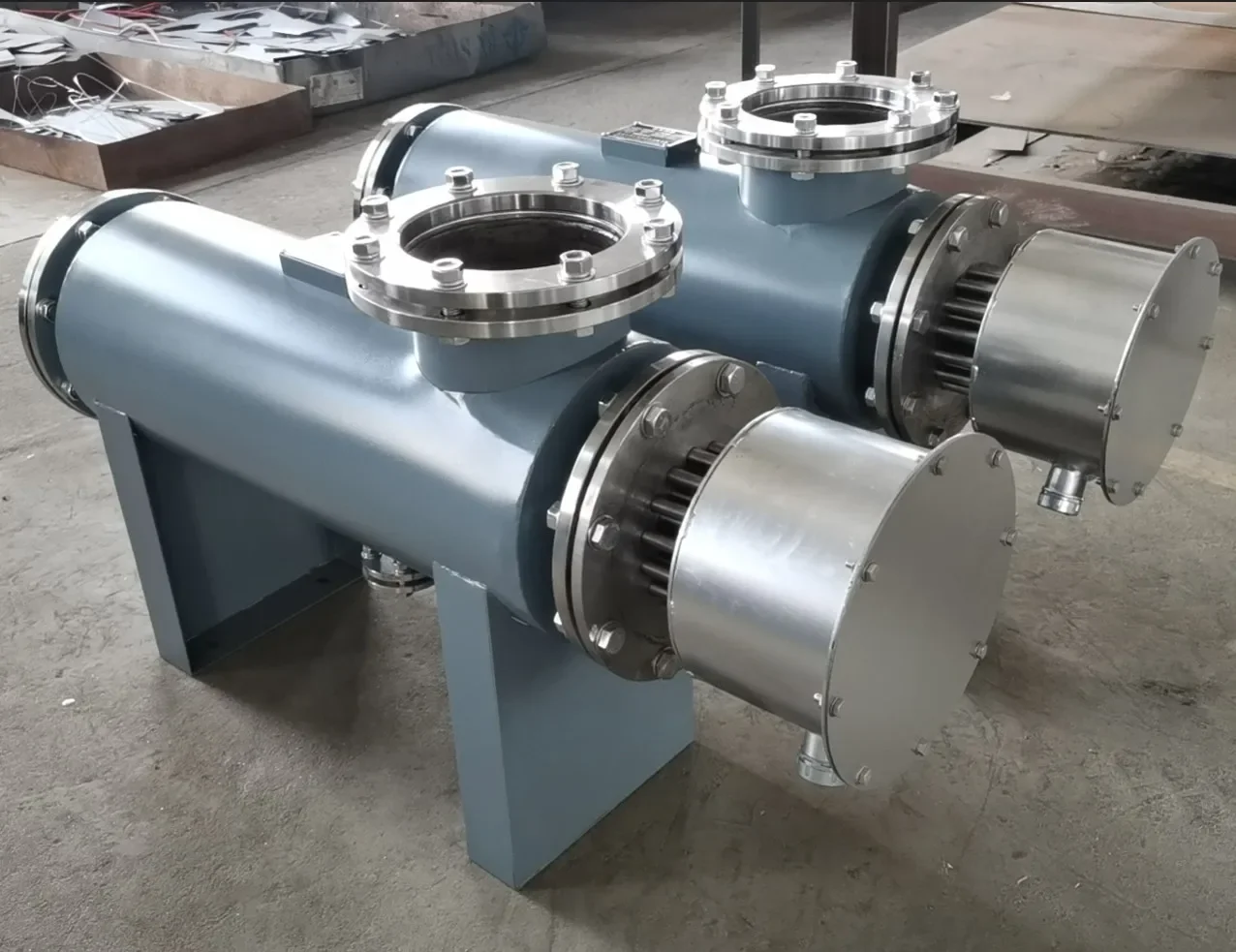

Structure:

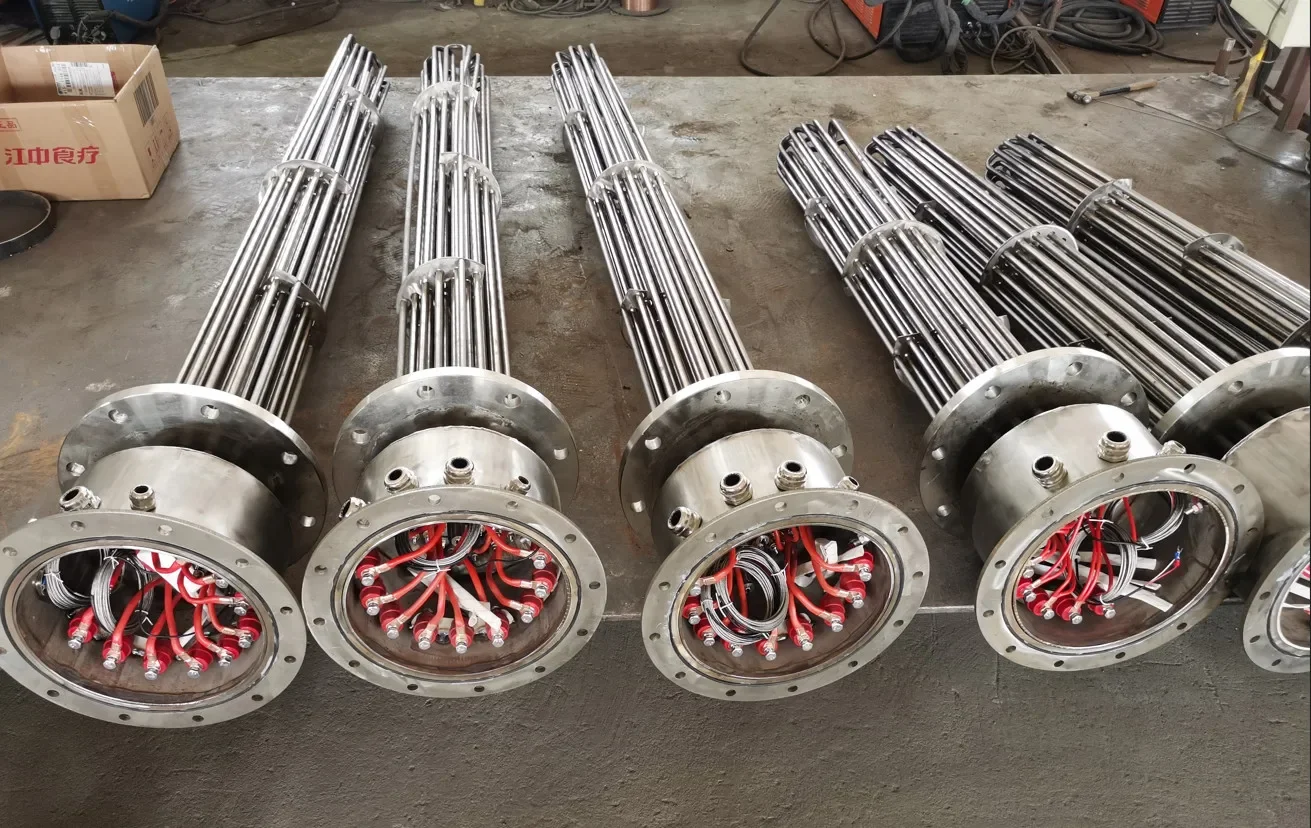

Heating Element

U shape heating tube combined installation, Stainless steel 304 material, and the power can be customized.

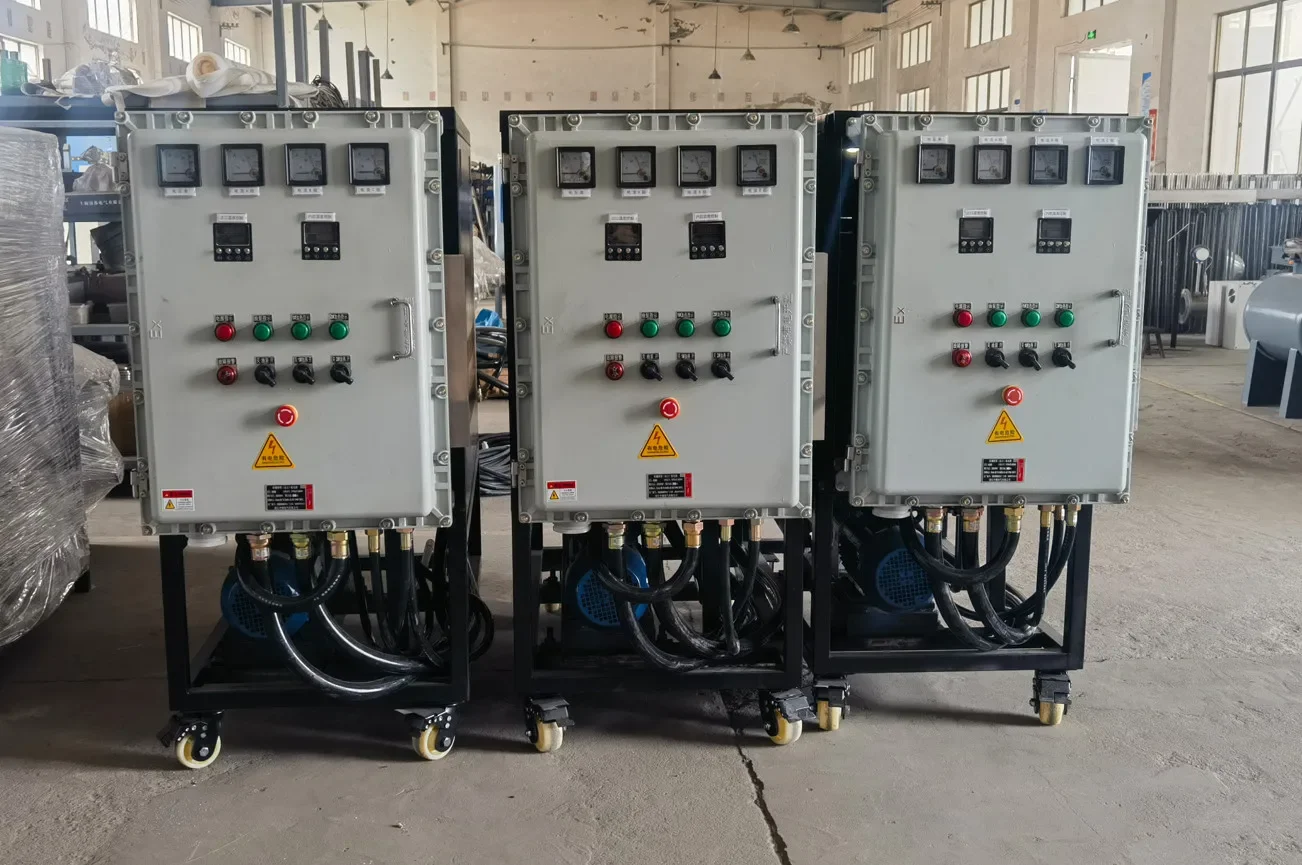

Control System

Fast heating and cooling, stable adjustment, double protection, High safety performance

Good mechanical properties

Compact structure, small volume, convenient installation and disassembly

Product Paramenters
Model	Power (kw)	pipeline heater (liquid)			pipeline heater (gas)
				Heating room size(mm)	Connection diameter (mm)	Heating room size(mm)	Connection diameter (mm)
KYGD-10	10	DN100*700	DN32	DN100*700	DN32
KYGD-20	20	DN150*800	DN40	DN150*900	DN40
KYGD-30	30	DN150*800	DN40	DN150*1000	DN40
KYGD-40	40	DN150*1000	DN50	DN150*1200	DN50
KYGD-60	60	DN200*1200	DN80	DN250*1300	DN80
KYGD-80	80	DN250*1400	DN80	DN250*1500	DN80
KYGD-100	100	DN250*1600	DN80	DN300*1600	DN100
KYGD-120	120	DN250*1600	DN80	DN300*1600	DN100
KYGD-150	150	DN300*1600	DN100	DN350*1600	DN125
KYGD-180	180	DN300*1600	DN100	DN350*1800	DN125
KYGD-240	240	DN350*1800	DN125	DN450*1800	DN150
KYGD-300	300	DN400*1800	DN150	DN500*1800	DN150
KYGD-360	360	DN400*1800	DN150	DN500*2000	DN200
KYGD-400	400	DN450*1800	DN150	DN600*2200	DN200
KYGD-450	450	DN500*2000	DN150	DN6000*2200	DN200
KYGD-600	600	DN500*2500	DN150	DN600*2400	DN250
KYGD-800	800	DN600*2400	DN150	4-DN400*1800	DN300
KYGD-1000	1000	4-DN350*1800	DN150	4-DN450*2400	DN350

YANCHENG KUNYI ELECTRIC INDUSTRIES CO., LTD

is an industry and trade-oriented enterprises, we dedicate to the design, development, production, sale and technical services of electric heaters. The head office is located in Tinghu District, Yancheng City. Our company's main business is electric heating element, electric heating equipment, high temperature electric heaters and environmental protection equipment.

Our company adheres to the business philosophy of "quality first for survival and service-oriented development", and provide our customers with high quality products and services with an efficient and flexible management model and a truth-seeking and pragmatic attitude.
Our mission is: reputation, quality and service. Yancheng Kunyi Electric Industries Co., Ltd. is willing to have a long term cooperation with you and your company.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–9 set: US $850 / set
  • 10–49 set: US $750 / set
  • 50+ set: US $700 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this liquid oil pipeline heater?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the liquid oil pipeline heater be supplied for my local voltage?

The standard configuration is 220v-660v. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
