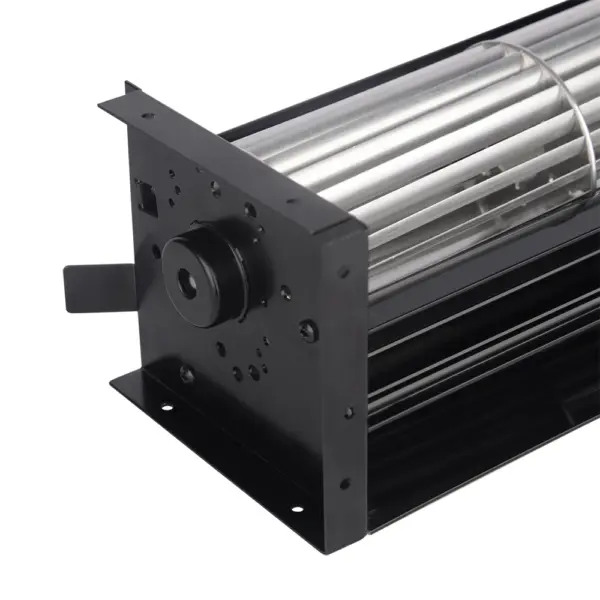

Key specification for this cross flow fan: 12V/24V, blade material Galvanized+Aluminum. Everything below is reproduced from the factory data sheet. For a binding price and lead time, send the volume you need and where it ships to.
This cross flow fan is listed with the manufacturer’s full published specification — voltage 12V/24V, blade material Galvanized+Aluminum, warranty 3 years. It is produced by Ningbo Longwell Electric Technology Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Cross Flow Fan
- Voltage: 12V/24V
- Blade Material: Galvanized+Aluminum
- Material: Plastic, Aluminum Alloy, Steel
- Warranty: 3 years
- Place Of Origin: Zhejiang, China
- Model Number: customizable, LWCD-60520MN-06 Double, LWCD-60610MN-06 Double, LWCD-60640MN-06 Double, LWCD-60700MIN-06 Double, LWCD-60750MN-06 Double, LWCD-60870MN-06 Double, LWCD-601100MN-06 Triple, LWCD-601300MN-06 Triple
Technical Specifications
| Blade Material | Galvanized+Aluminum |
|---|---|
| Mounting | cross flow fan / tangential fan blower |
| Speed | customizable, 1200 Speed(RPM), 1400 Speed(RPM), 1600 Speed(RPM), 1800 Speed(RPM), 2000 Speed(RPM), 2400 Speed(RPM), more than 2400 Speed(RPM) |
| Place Of Origin | Zhejiang, China |
| Voltage | 12V/24V |
| Customized Support | OEM, ODM, OBM |
| Brand Name | LONGWELL |
| Model Number | customizable, LWCD-60520MN-06 Double, LWCD-60610MN-06 Double, LWCD-60640MN-06 Double, LWCD-60700MIN-06 Double, LWCD-60750MN-06 Double, LWCD-60870MN-06 Double, LWCD-601100MN-06 Triple, LWCD-601300MN-06 Triple |
| Warranty | 3 years |
| After-Sales Service Provided | Free Spare Parts |
| Material | Plastic, Aluminum Alloy, Steel |
| Product Name | DC 439 cross over fan ac fan cooling cross flow fan heat 12 volt |
| Selling Units | Single item |
|

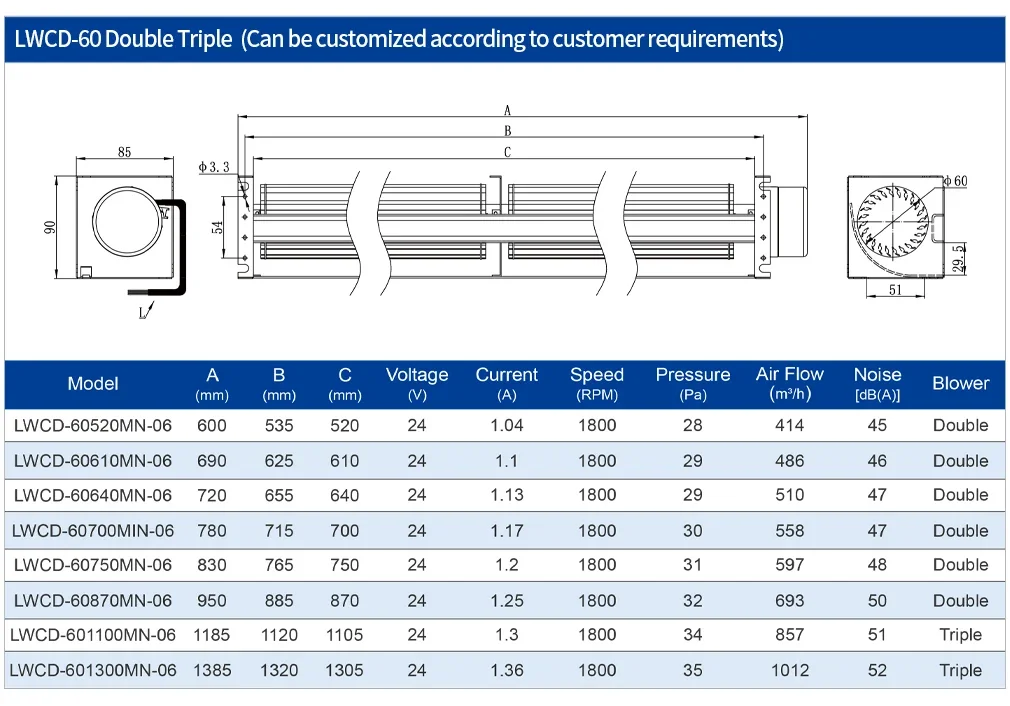

Model
|
A（mm）
|
B(mm)
|
C(mm)
|
Voltage（V)
|
Current(A)
|
Speed (RPM)
|
Pressure(Pa)
|
Air Flow(myh)
|
Noise[dB(A))
|
|
LWCD-60520MN-06 Double
|
600
|
535
|
520
|
24
|
1.04
|
1800
|
28
|
414
|
45
|
|
LWCD-60610MN-06 Double
|
690
|
625
|
610
|
24
|
1.1
|
1800
|
29
|
486
|
46
|
|
LWCD-60640MN-06 Double
|
720
|
655
|
640
|
24
|
1.13
|
1800
|
29
|
510
|
47
|
|
LWCD-60700MIN-06 Double
|
780
|
715
|
700
|
24
|
1.17
|
1800
|
30
|
558
|
47
|
|
LWCD-60750MN-06 Double
|
830
|
765
|
750
|
24
|
1.2
|
1800
|
31
|
597
|
48
|
|
LWCD-60870MN-06 Double
|
950
|
885
|
870
|
24
|
1.25
|
1800
|
32
|
693
|
50
|
|
LWCD-601100MN-06 Triple
|
1185
|
1120
|
1105
|
24
|
1.3
|
1800
|
34
|
857
|
51
|
|
LWCD-601300MN-06 Triple
|
1385
|
1320
|
1305
|
24
|
1.36
|
1800
|
35
|
1012
|
52
|

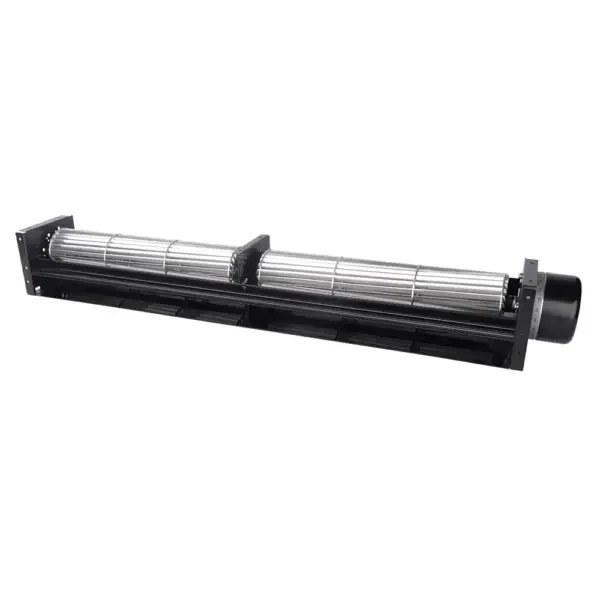

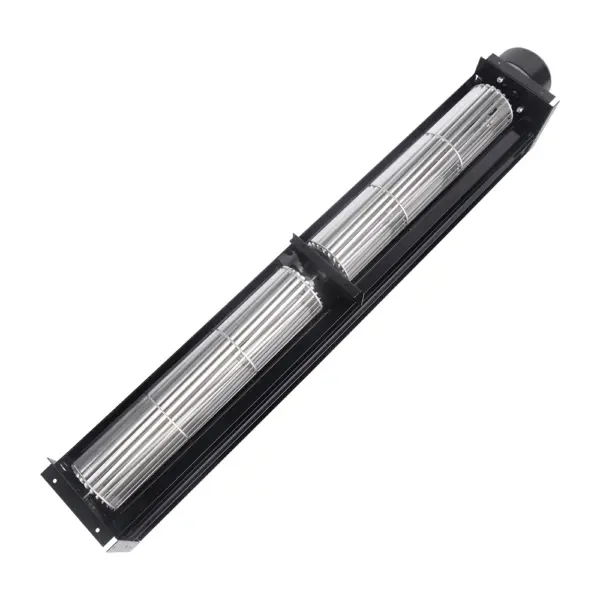

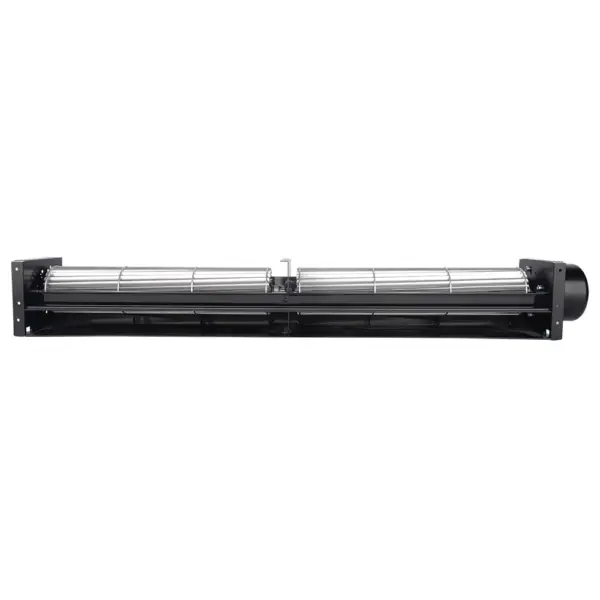

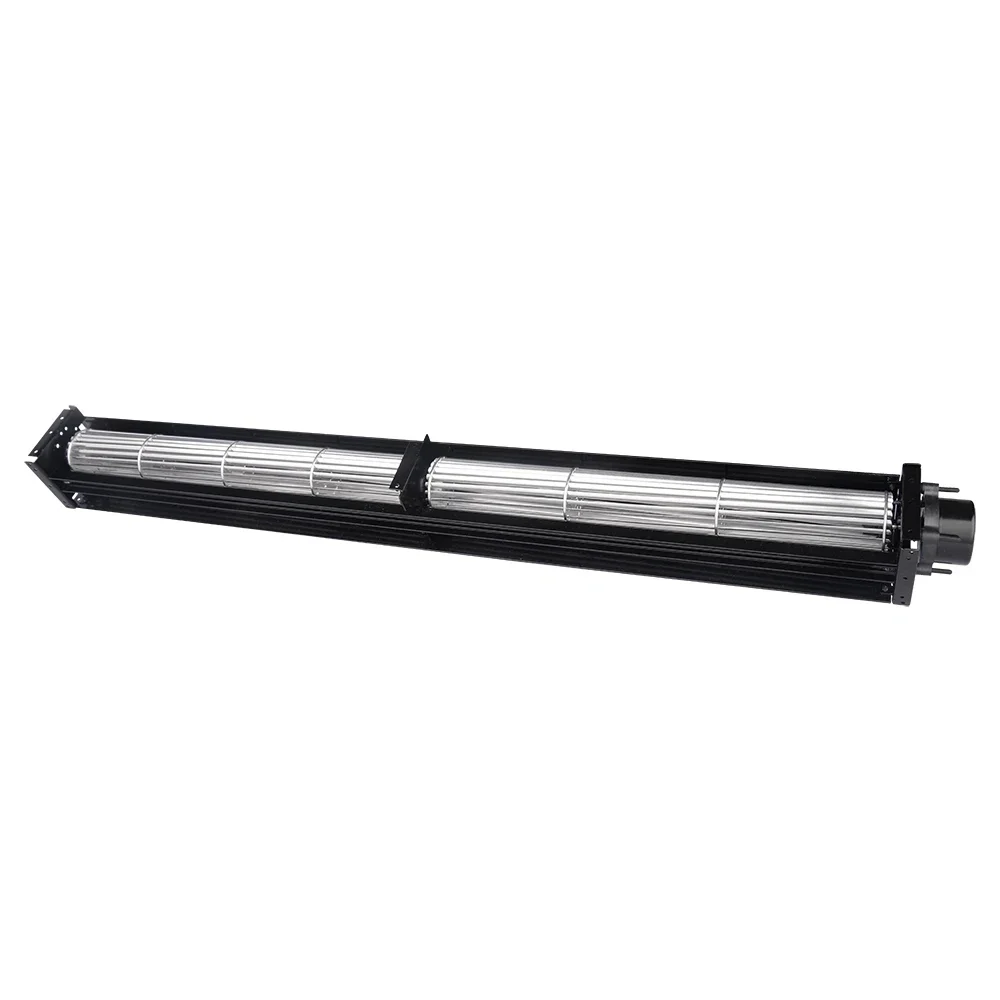

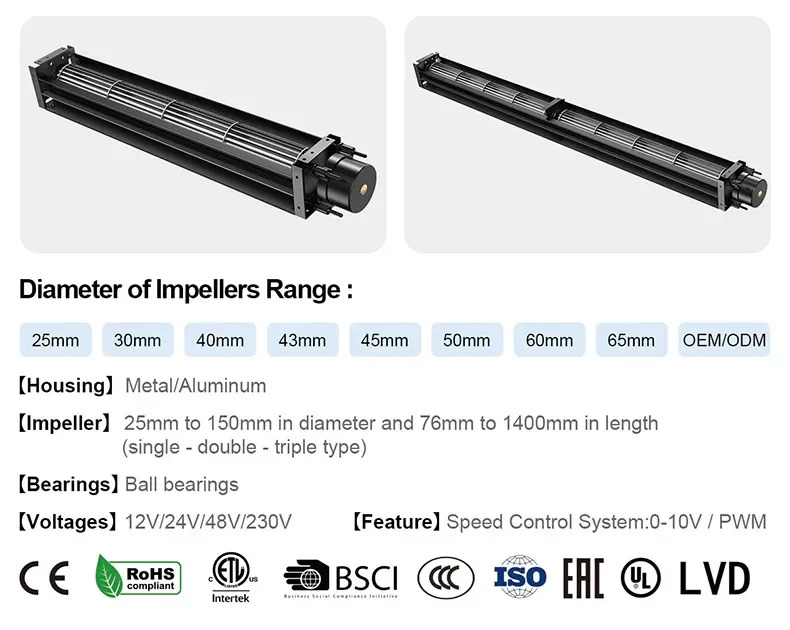

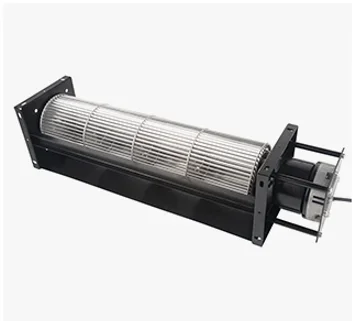

DC Cross Flow Fans-Double Blower

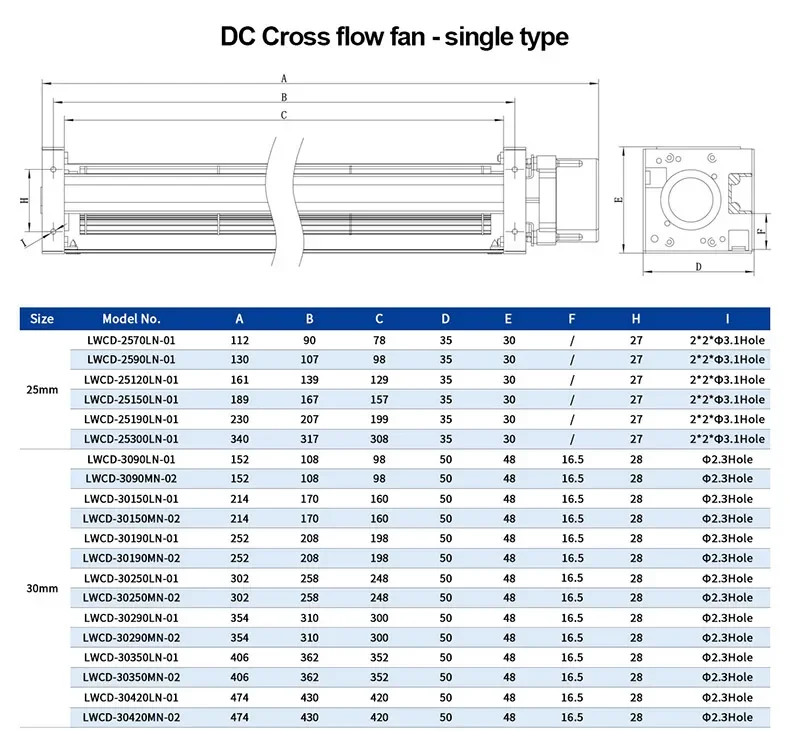

DC Cross Flow Fans-Single Blower

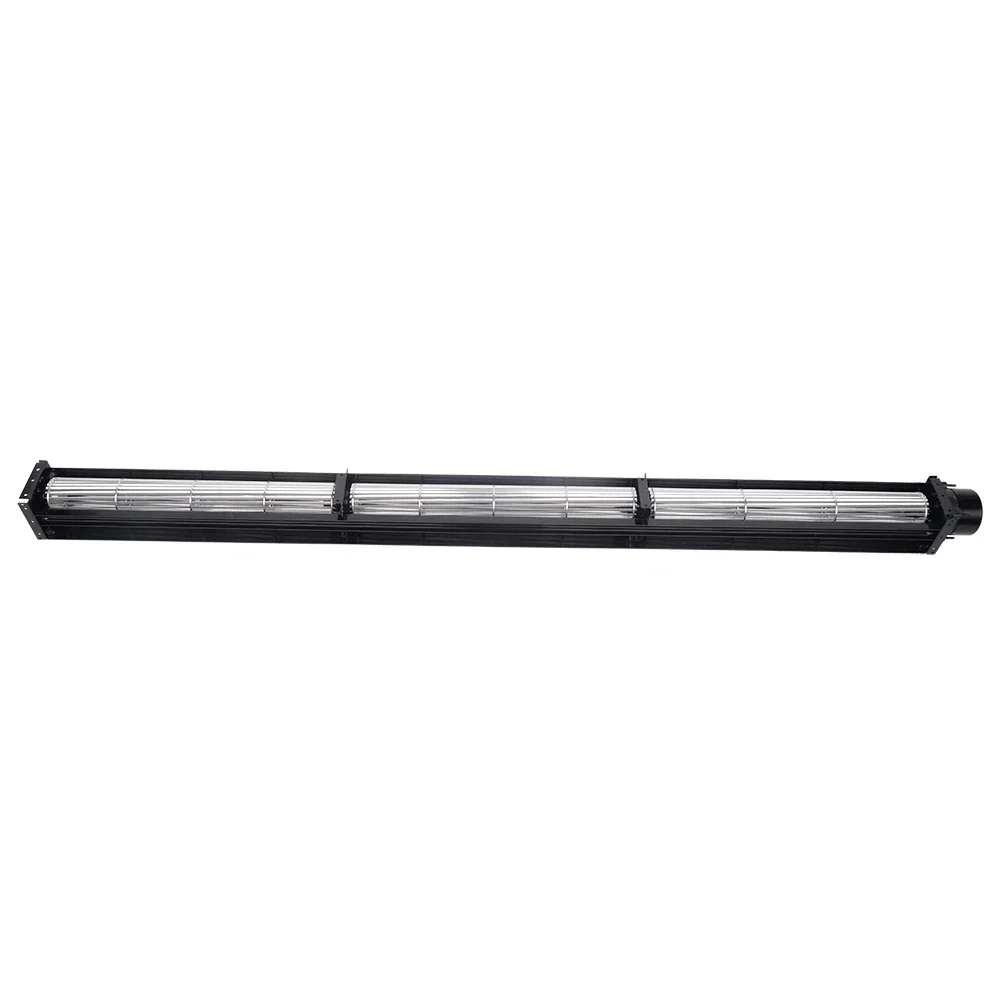

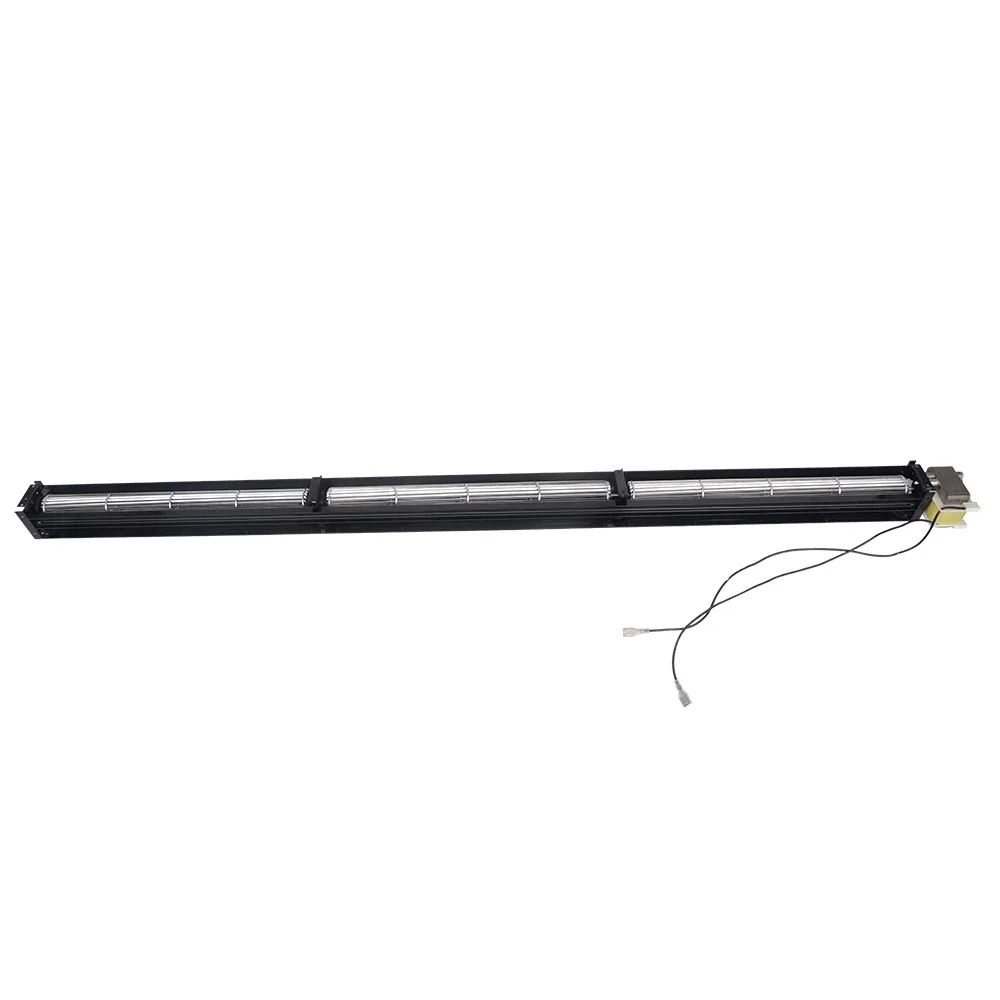

DC Cross Flow Fan – Trip Blower

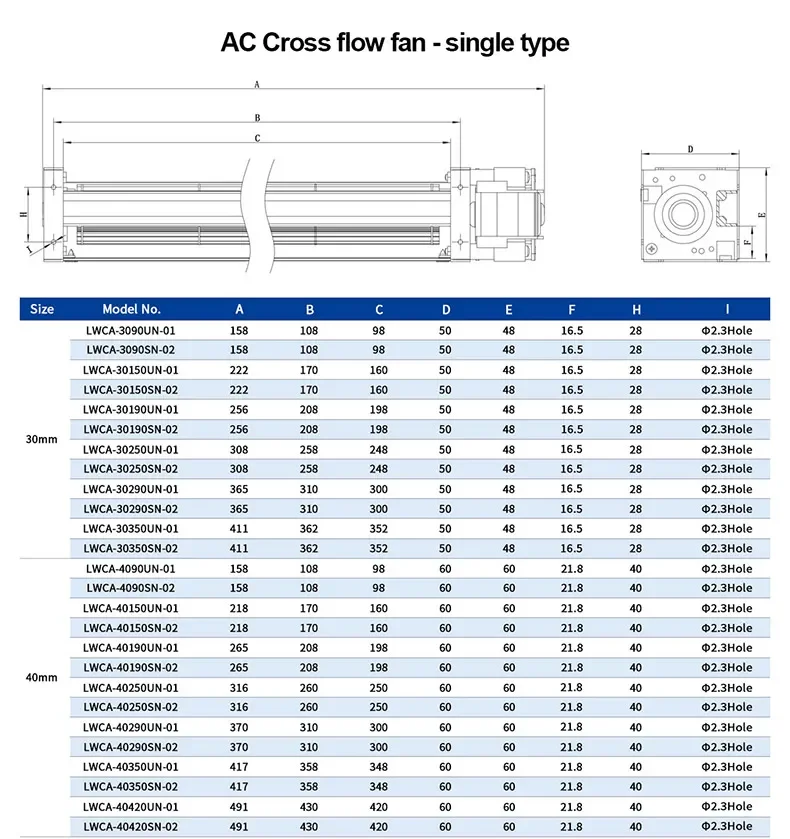

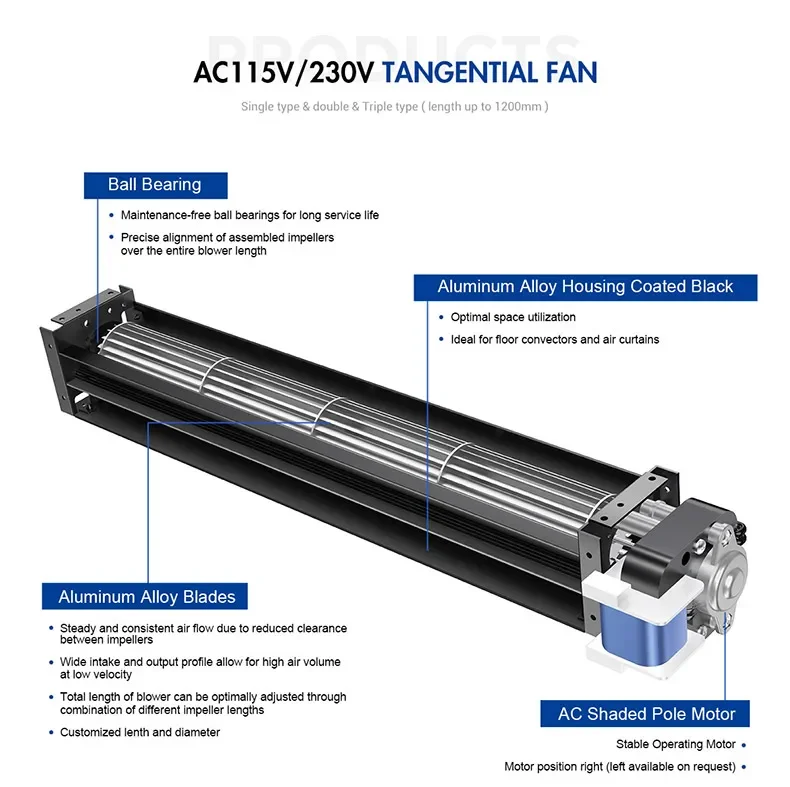

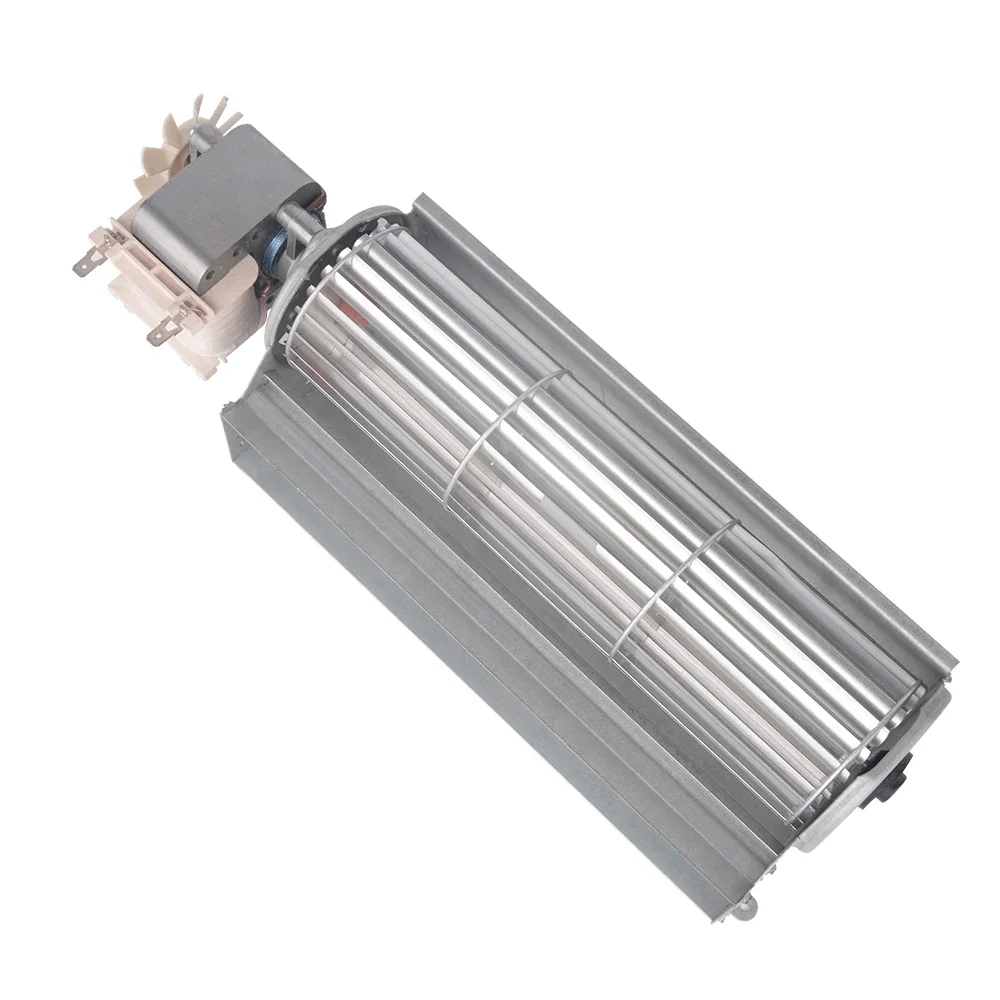

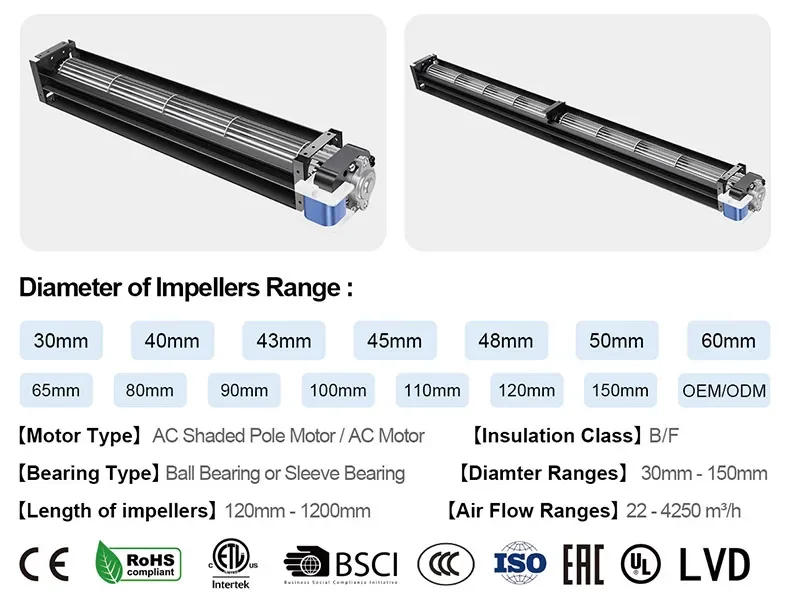

AC Cross Flow Fan – Single
AC Cross Flow Fan – Double
AC Cross Flow Fan
EC Cross Flow Fan
EC Cross Flow Fan

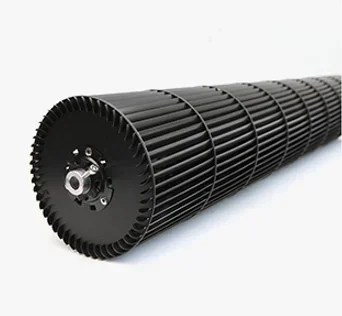

Cross Flow lmpellers
airconditioner, air ex-changer, coolers, heaters, floor convectors, sterilization purifier, air purifiers, medical purifiers,
andventilation ,energy industry, 5G cabinet…
4.Have professional sales team more than 200 person, Set up sites in many countries around the world，to help you solve the problem
any time !
5.LONGWELL Promise will never release unqualified products !
6.Rich experience in different fields and word’s most comprehensive fan soluions
7.Quality is life ! with strict quality control system,supervise the whole process from raw materials, production, quality
inspection, packaging and delivery!
8.Born for High-Quality Breathing, LONGWELL Fans Power Your Equipment
9.LONGWELL have own delivery department, make sure fast delivery and regular feedback of production progress !
10.Professional after-sales team provides 24-hour online service !
Frequently Asked Questions
What is the minimum order quantity for this cross flow fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this cross flow fan?
A 3 years warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 12V/24V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
