Inline duct fan — voltage 110-240V, power source type Corded Electric. The complete factory specification follows. For a binding price and lead time, send the volume you need and where it ships to.
This inline duct fan is listed with the manufacturer’s full published specification — voltage 110-240V, power source type Corded Electric, material Plastic. It is produced by Ningbo Longwell Electric Technology Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Inline Duct Fan
- Model Number: LWDE3G100-IS-05, LWDE3G125-IS-01, LWDE3G150-IS-05, LWDE3G200-1S-05
- Power Source Type: Corded Electric
- Voltage: 110-240V
- Material: Plastic
- Blade Material: Plastic
- Noise Level: 35–39 dB
Technical Specifications
| Mounting | Duct Fan |
|---|---|
| Power Source Type | Corded Electric |
| Noise Level | 35–39 dB |
| Voltage | 110-240V |
| Material | Plastic |
| Speed | 3 000 RPM, 2800RPM |
| Blade Material | Plastic |
| Customized Support | OEM, ODM, OBM |
| Warranty | 1 Year |
| After-Sales Service Provided | Free Spare Parts |
| Duct Diameter | 4 in, 6in, 8 in, 5 in |
| Model Number | LWDE3G100-IS-05, LWDE3G125-IS-01, LWDE3G150-IS-05, LWDE3G200-1S-05 |
| Selling Units | Single item |
| Single Package Size | 500X200X100 cm |
| Single Gross Weight | 280.000 kg |

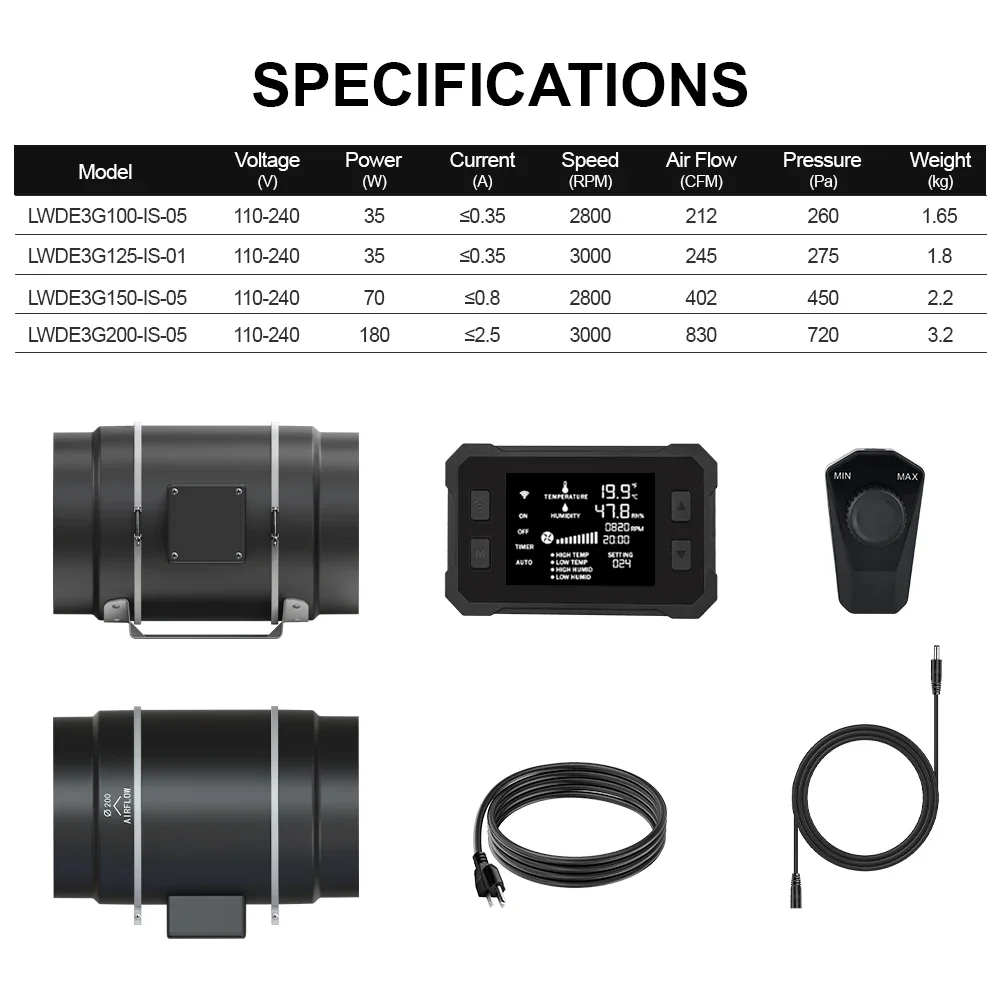

NOTES:
|

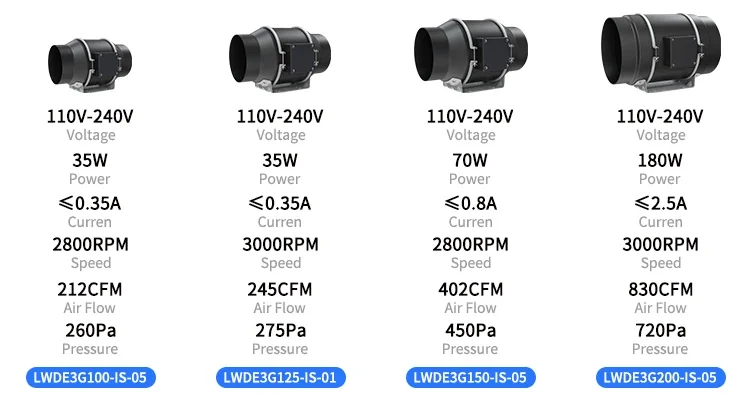

Model
|
Voltage
|
Power
|
Curent
|
Speed
|
Air Flow
|
Pressure
|
Weight
|
|
LWDE3G100-IS-05
|
110-240V
|
35W
|
≤0.35A
|
2800RPM
|
212CFM
|
260Pa
|
1.65kg
|
|
LWDE3G125-IS-01
|
110-240V
|
35W
|
≤0.35A
|
3000RPM
|
245CFM
|
275Pa
|
1.8kg
|
|
LWDE3G150-IS-05
|
110-240V
|
70W
|
≤0.8A
|
2800RPM
|
402CFM
|
450Pa
|
2.2kg
|
|
LWDE3G200-IS-05
|
110-240V
|
180W
|
≤2.5A
|
3000RPM
|
830CFM
|
720Pa
|
3.2kg
|
Features

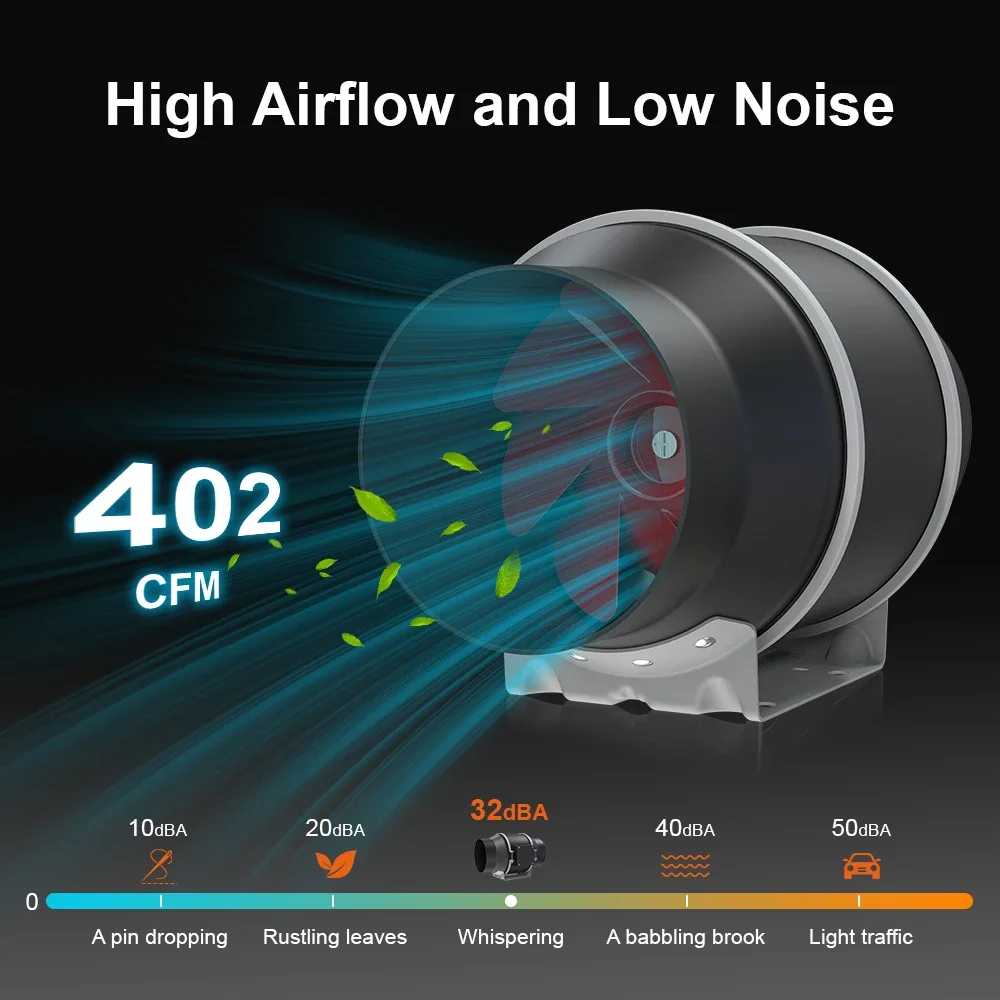

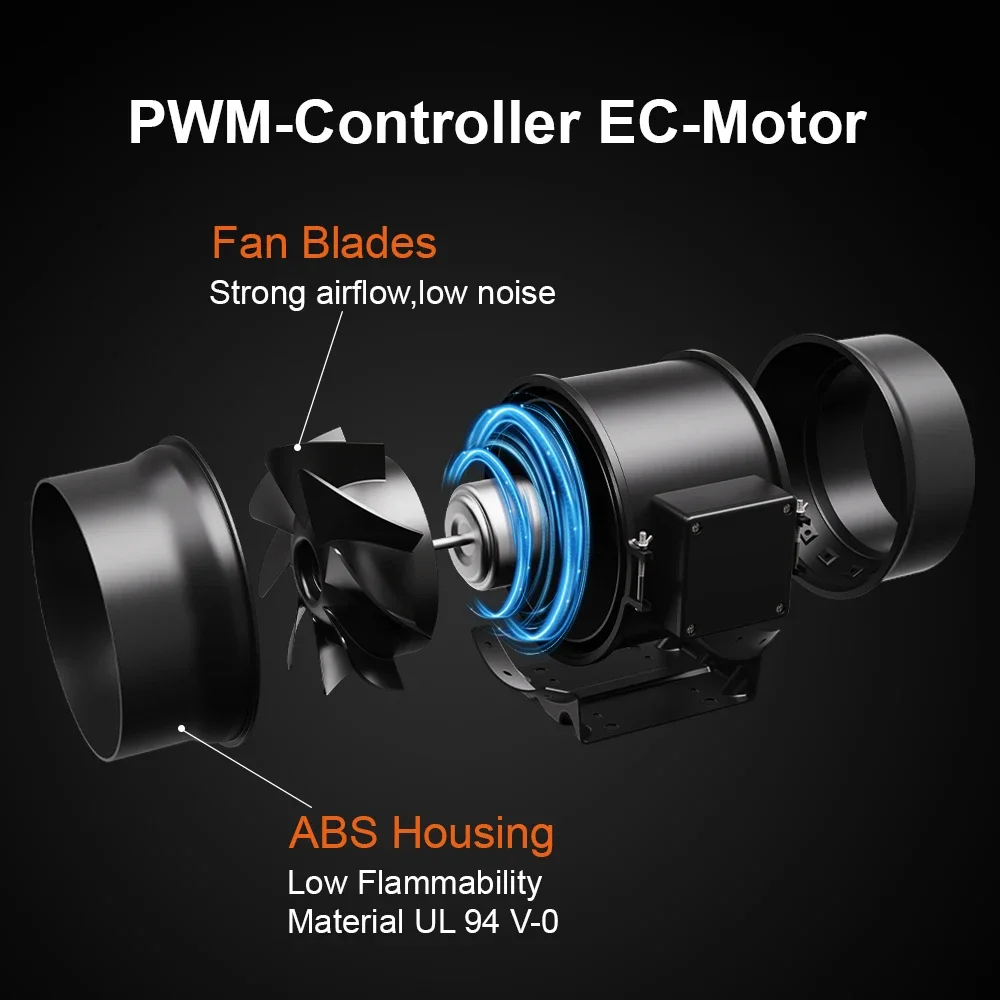

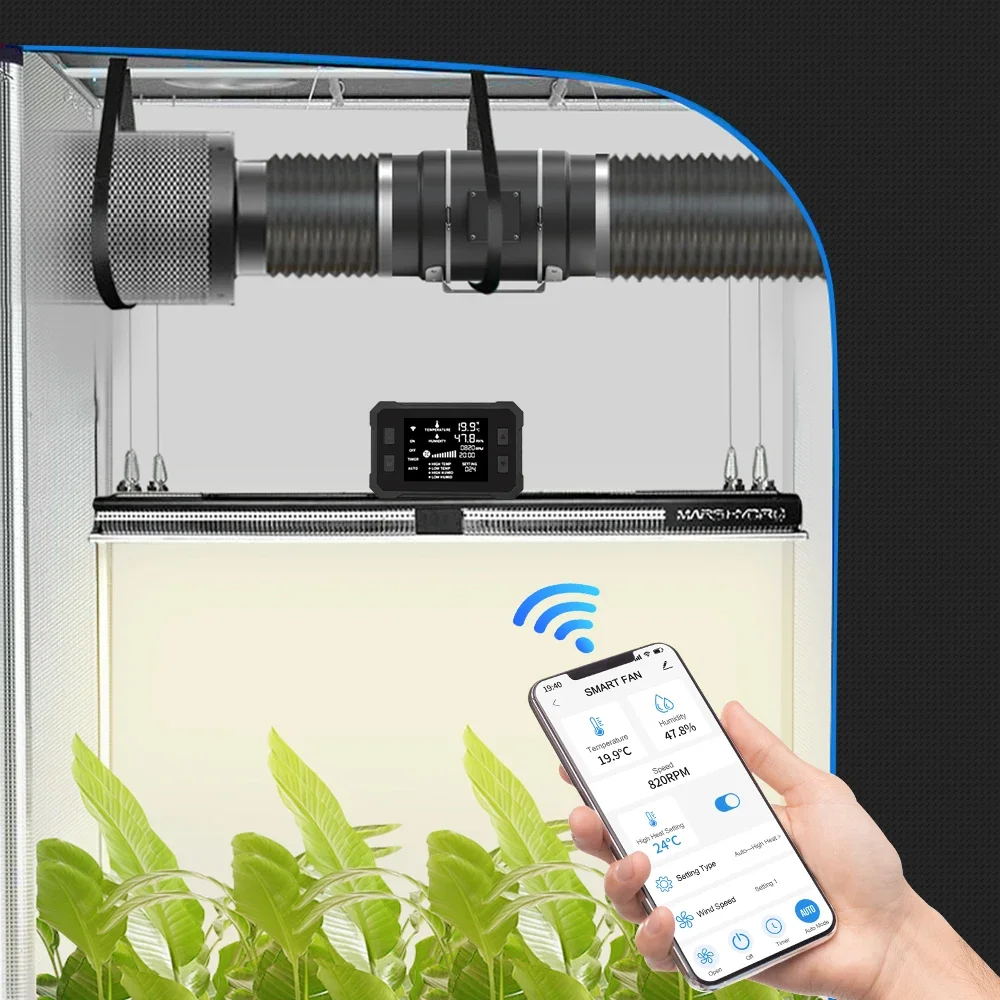

【Powerful Inline Fan】: Mixed flow design combined with a EC motor ensure truly energy efficient, with only 62 watts of power but gives a strong airflow up to 402 CFM. Lightweight ABS blades reduce the airflow resistance, add airflow by 40%. 【Temperature Regulation】: Proper ventilation helps maintain optimal temperatures within the grow space. Plants have specific temperature requirements for growth and flowering. Ventilation systems can expel hot air generated by lights or equipment and bring in cooler air from outside or from a separate cooling system, helping to regulate temperatures. 【Humidity Control】: Controlling humidity levels is essential for preventing mold, mildew, and other moisture-related issues. Ventilation systems can remove excess moisture from the air, especially during the flowering stage when plants are more susceptible to mold. 【Odor Control】: Some plants, can produce strong odors during flowering. Ventilation systems equipped with carbon filters can help remove these odors, preventing them from escaping the grow room and causing disturbances.
Welding machine : 10 units
Frequently Asked Questions
What is the minimum order quantity for this inline duct fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this inline duct fan?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 110-240V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
