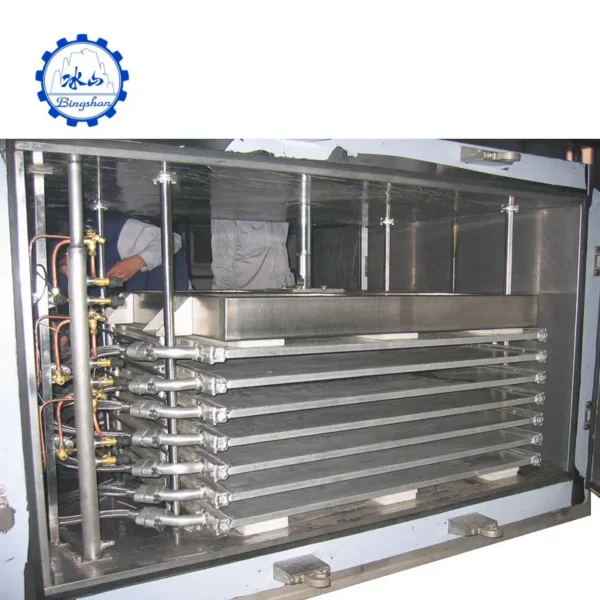

Machine Shrimp Contact Plate, 380V±5%, 1.5kw

 Bingshan Fish or shrimp for sale marine horizontal in china fish freezing machine shrimp contact plate freezer in china

1.air cooler
2.excellent quality
3.complete in specifications
4.dependable performance
5.world-wide reknown reputation

The D/G series high efficiency air cooler is high efficient heat-exchanging device which uses new design, new material and new technology, having the advantage of light weight, long durability and high eficiency compared with products of the same kind. Imported production line is empolyed to manufacture wholly rippled fins of advanced design which can keep high heat-exchanging rate even during frosting. The coil unit which consists of heat-exchanging tubes and fins is fully hot-dip galvanized. It has the advantages of high heat exchanging efficiency, small hot resistance,good corrosion resisting property and quick defrosting. The fan selected is high efficiency, low noise outer rotor axial flow fan. It has the advanctages of big air flow, low power, and long delivering distance. Casing surface employs rust-proof stoving finish and plastic spraying techniques to achieve corrosion resistance, beautiful and clean appearance, and good removablity.

Cooling coil
    Specific wholly rippled street fin, fin spacing 5,8,10,12,16mm Stell tubes φ20mm.Tube pattern60x52mm staggered.Hot-dip galvanized,and tested with gas pressure test of 2.4Mpa

Fan
    Blow-through type or draw-air-in type outer rotor axial fan Motor protection up to IP54,and can be run continuously from -50ºC to 100ºC.electrical supply:380V/50HZ/3φ. Electrical is determined against the axial fan model.
Casing
     Galvanized steelsheets used. Rational processing technology is used to secure high intensity bump proof casing.
    Good removablity with side plate, front plate and back plate.
    Surface steel sheets are painted with fine stoving finish or other finish..

Drip tray
    Wholly plastic spraying and rust-proof threated. Portable construction,good removability.drain pipes are joined by built-in threads.

     1. if specific application is required of the air cooler by customer,we can design different style and construction to meet it.
    2.it is suggested that frost build-up should not exceed 4 mm in thickness to ensure the heat transfer efficiency of the high-efficiency air cooler. Otherwise, excessive frost must be removed away

Q1.What is our main product ?

A1: Our company is a professional trading company funded by Dalian Refrigeration Co., Ltd. in 1988. Concentrate on consulting, design, sales, installation, commissioning and maintenance of the refrigeration equipments.

Q2.When can I get the price ?

A2:We usually offer the quotation within 2-3 work days for equipment and 5-10 work days for system after receiving your inquiry. For urgent offer, please contact with us for special.

Q3.What is the Trade Term?

A3: We accept Ex-work factory , FOB Dalian, CNF or CIF, as your requirement.

Q4.How long is our Production leading time?

A4: It depends on type of equipment.

For cold storage equipment, the lead time is 60-80days after receiving down payment or Letter of credit.

For Spiral Freezer, Tunnel Freezer, the lead time is 80-90days after receiving down payment or Letter of credit.

For flake ice making unit and plate freezer, the lead time is 45days after receiving down payment or letter of credit.

Q5.What is the Payment term?

A5: By 100% T/T before shipment or By L/C at sight.

Q6. During shipping, if there is a damage to products, how do you get replacement?

A6: Firstly, we should investigate the reason cause the damage. At the same time, we will claim for the insurance by ourselves or assist the buyer.

Secondly we will send the replacement to the buyer. The responsible person for above damage will take charge of the cost of the replacement.

Q7. What are your terms of packing?

A7: Packing: export worthy package suitable for container transportation.

Q8. Do you test all your goods before delivery?

A8: Yes, we have 100% test before delivery.

Q9: How do you make our business long-term and good relationship?

A9: Dalian Refrigeration Co., Ltd was established on 1930. In past 88 years, we have set up our famous brand “Bingshan” not only in domestic market but also overseas market. How to make this brand life so long time?  Good quality and reliable service create good reputation among the customers. Many customers keep adopting our system in past 20days extension of the business. Win-win business is our main task for the long-term cooperation.

Q10: Are you a factory or a trading company?

A10: We are the only door to overseas market for Dalian Refrigeration Co., Ltd. We have our own design team, installation team and after-sales team. We are professional engineering & trading company. We have set up branch office in Philippines, Malaysia, Thailand, Burma, Cambodia, Singapore, Bangladesh, Pakistan, Russian, Uzbekistan, Brazil, Argentina etc.

Q11: Where is your factory located?

A11: Our factory is located in Dalian, Liaoning province.

Q12: What is your warranty?

A12: Warranty: 12months after commercial running or 18months from the date of shipment, subject to the earlier expiry.

Q13: Can you arrange thirty party pre-shipment inspection

A13: Pre-shipment inspection: Supplier’s pre-shipment inspection is Final; pre-shipment inspection by third Party on buyers cost.

Q14:Can we do our OEM logo?
A14:Yes, for the products with drawing supplied by you, we of course apply your logo
