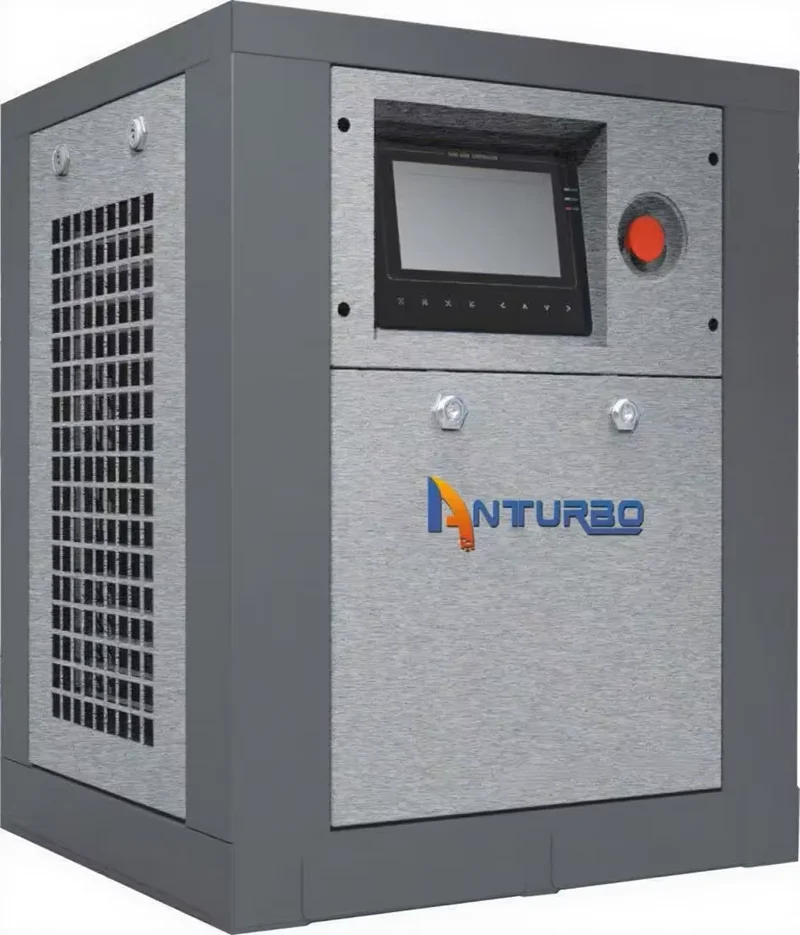

Medium pressure turbo blower — 380V Air Blower, power source Electric. The complete factory specification follows. Made by Shanghai Anturbo Machinery Technology Co., Ltd. (1 year on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Medium Pressure Turbo Blower
- Model Number: ATB
- Power Source: Electric
- Power: 4kw
- Rated Voltage: Other
- Voltage: 380V Air Blower
- Blade Material: Aluminium Alloy
Technical Specifications
| Application | Air Blower |
|---|---|
| Power Source | Electric |
| Rated Voltage | Other |
| Electric Current Type | AC |
| Motor Type | DC Motor |
| Speed | 4000 RPM, 1100 rpm, 600 RPM, 1725rpm, 3300RPM, 3250 rpm, 850rpm |
| Blade Material | Aluminium Alloy |
| Pressure | Medium Pressure |
| Warranty | 1 year |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Jiangsu, China |
| Brand Name | Anturbo |
| Model Number | ATB |
| Color | White |
| Product Name | turbo blower |
| Power | 4kw |
| Voltage | 380V Air Blower |
| MOQ | 1set |
| Function | aeration |
| Noise | Low Noise <85db |
| Keywords | Aqucculture |
| Brand | Anturbo |
| Selling Units | Single item |
Product Details
Products Description
Our high-efficiency vortex blower adopts advanced vortex technology, delivering stable and high-pressure airflow with low
noise,energy-saving operation, oil-free design, and long service life; featuring a compact structure, smooth running, and almost maintenance-free performance, it is widely used in industrial dust removal, wastewater aeration, pneumatic conveying,aquaculture,environmental protection, chemical engineering, printing, and other demanding fields, perfectly meeting various industrial application requirements.
noise,energy-saving operation, oil-free design, and long service life; featuring a compact structure, smooth running, and almost maintenance-free performance, it is widely used in industrial dust removal, wastewater aeration, pneumatic conveying,aquaculture,environmental protection, chemical engineering, printing, and other demanding fields, perfectly meeting various industrial application requirements.
Core Component Display
High speed permanent magnet synchronous motor
PMSM is the core power unit of turbo blowers, playing a vital role in driving efficient and stable operation, and is a key factor distinguishing turbo blowers from traditional roots blowers. Its main function is to provide high-speed, stable and efficient power output to drive the ternary flow impeller to rotate at high speed, thereby realizing rapid gas suction, compression and transportation.

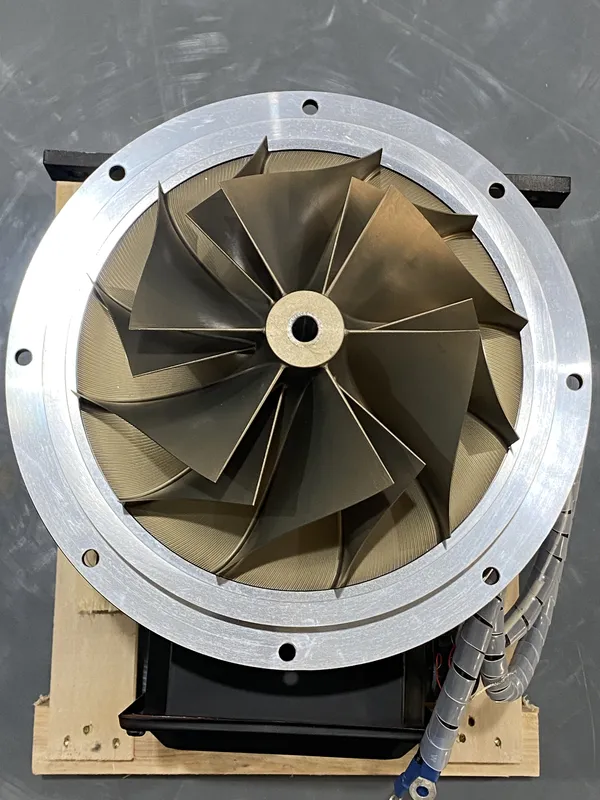

Ternary flow impeller
The ternary flow impeller is a core functional component of turbo blowers, which plays a decisive role in improving the blower's energy efficiency and operating performance. Its main function is to rotate at high speed driven by the motor, generating strong centrifugal force to suck in gas and accelerate it.
High speed ceramic ball bearings
High speed ceramic ball bearings are a key core component in turbo blowers, playing a pivotal role in ensuring high-performance and reliable operation. Their main functions include providing stable support for the high-speed rotating impeller and shaft, with excellent wear resistance and low friction coefficient that effectively reduces energy loss during operation.

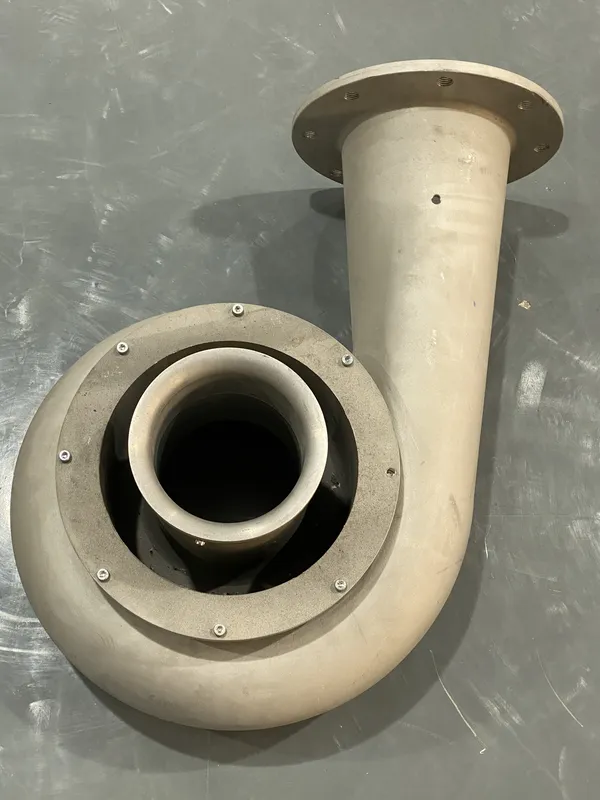

volute casing
The volute is a critical core component in turbo blowers, playing a key role in ensuring efficient and stable operation. Its main function is to collect the high-speed gas discharged from the impeller and guide it to flow smoothly through the spiral cavity,preventing gas backflow and reducing energy loss.
Product Introduction & Specifications
The turbine blower is different from the traditional Roots blower. It uses ceramic bearings, direct connection technology,
high-efficiency impellers and ultra-high-speed motors. With its groundbreaking energy-saving effect, it brings the most efficient economic benefits. With environmentally friendly and stable technologies, a pleasant and comfortable working environment is provided, and various effects can be expected.
high-efficiency impellers and ultra-high-speed motors. With its groundbreaking energy-saving effect, it brings the most efficient economic benefits. With environmentally friendly and stable technologies, a pleasant and comfortable working environment is provided, and various effects can be expected.
Type | ATB5 | ATB10 | ATB20 | ATB30 | ATB40 | ATB50 | |||||
Power（KW) | 4 | 7.5 | 15 | 22 | 30 | 37 | |||||
Pressure（KPa) | Flow(m³/min) | ||||||||||
10 | 14 | 28 | 48 | 68 | 78 | 98 | |||||
20 | 11 | 19 | 39 | 52 | 69 | 89 | |||||
30 | 7 | 13 | 27 | 40 | 51 | 65 | |||||
40 | 5 | 10 | 20 | 28 | 38 | 48 | |||||
Differences Between Turbo Blowers and Roots Blowers
Turbo blowers and traditional roots blowers differ essentially in working principle, energy efficiency, maintenance costs, noise control, and application adaptability. In working principle, turbo blowers are speed-type compressors, adopting high-speed centrifugal compression technology driven by permanent magnet synchronous motors to boost gas pressure via high-speed impeller rotation. In contrast, roots blowers are positive displacement compressors, relying on two meshing rotors to squeeze gas from inlet to outlet. In energy efficiency, turbo blowers boast 96% motor efficiency and 87% impeller efficiency, saving 30%-45% more energy than roots blowers, especially under variable loads. Roots blowers, however, suffer drastically reduced efficiency and severe energy waste at low loads due to their constant flow feature.
Company Profile
Anturbo Machinery Technology Co., Ltd.
Anturbo Machinery Technology Co., Ltd. is a professional manufacturer engaged in the R&D, production
and export of Roots blowers. Our products are widely applied in industries such as central feeding, gas transmission,
aquaculture,and sewage treatment. We are dedicated to delivering high-quality gas transmission equipment and comprehensive system solutions to global clients. With years of in-depth industry expertise and extensive international trade experience, we have established a robust global service network, earning trust from customers across numerous countries and regions worldwide.
and export of Roots blowers. Our products are widely applied in industries such as central feeding, gas transmission,
aquaculture,and sewage treatment. We are dedicated to delivering high-quality gas transmission equipment and comprehensive system solutions to global clients. With years of in-depth industry expertise and extensive international trade experience, we have established a robust global service network, earning trust from customers across numerous countries and regions worldwide.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Certifications
FAQ
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this medium pressure turbo blower?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 year warranty. Spare parts and technical support remain available after the warranty period.
Can the medium pressure turbo blower be supplied for my local voltage?
The standard configuration is Other. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
