This micro heat pump is published with the manufacturer’s full specification — cooling capacity 30-268 kw, power source Electric. Made by Henan Shangfeng Hvac Engineering Co., Ltd. (4 years on the platform, typical reply ≤5h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Micro Heat Pump
- Model Number: YT
- Power Source: Electric
- Cooling Capacity: 30-268 kw
- Heating Capacity: 45-350 kw
- Housing Material: Stainless Steel
- Refrigerant Type: R410a
Technical Specifications
| Type | Air Source Heat Pump |
|---|---|
| Energy Efficiency Rating | Class A++ |
| Application | Hotel, Commercial, Household |
| Storage / Tankless | Instant / Tankless |
| Installation | Freestanding |
| App-Controlled | Yes |
| Housing Material | Stainless Steel |
| Power Source | Electric |
| Warranty | 2 Years |
| After-Sales Service Provided | Free Spare Parts |
| Place Of Origin | Guangdong, China |
| Brand | YOUR LOGO |
| Model Number | YT |
| Product Name | Air Water Chiller Evi Pool Heat Pump Industrial Water Chiller |
| Higher Water Temperature Output Up | 55 °C |
| Operation Ambient Temperature Can Reach | -25°C |
| Working Temperature Range | -25~48°C |
| Refrigerant Type | R410a |
| IP Class | IPX4 |
| Water Flow Volume | 8-60 m³/h |
| Compressor Quantity | 4 |
| Cooling Capacity | 30-268 kw |
| Heating Capacity | 45-350 kw |
| Selling Units | Single item |
| Single Package Size | 7X7X19.3 cm |
| Single Gross Weight | 68.0 kg |
Product Details
Product Description
Recirculating Chiller Air Water Chiller Evi Pool Heat Pump Industrial Water Chiller for Sale
Features
| •R410A refrigerant, environmental friendly •Outlet water temperature |  |
Heat Pumps in Action: Various Application Scenarios
| Model | DLN-050TA1 | DLN·100TA1 | DLN-200TA1 | DLN-400TA1 | |
| Power suppy | VPh/Hz | 380-475/3/50 | 380-415/3/50 | 350-415/3/50 | 380-475/3/50 |
| Heating Capacity at Air 7℃/6℃, Water 30℃ in, 35℃ out | |||||
| Heating Capacity | kW | 45 | 90 | 180 | 350 |
| Power Input | kW | 10.3 | 20.8 | 42 | 81.4 |
| COP | 4.36 | 4.32 | 4.25 | 4.30 | |
| Heating Capacity at Air -12°C/-14°C, Water 50°C in, 55°C out | |||||
| Haating Capecity | kW | 36 | 67 | 167 | 328 |
| Power rpus | kW | 15.5 | 25.48 | 56.7 | 113.9 |
| COP | 2.32 | 2.63 | 2.95 | 2.88 | |
| Heating Capacity at Air -12°C/-14°C, Water 50°C in, 55°C out | |||||
| Heating Capacity | kW | 24 | 40 | 107 | 205 |
| Power Input | kW | 15.4 | 25 | 54 | 104.6 |
| COP | 1.55 | 1.60 | 1.98 | 1.96 | |
| Cooling Capacity at Air 35°C/24°C, Water 12°C in, 7°C out | |||||
| Cooling Capacty | kW | 30 | 60 | 140 | 260 |
| Power Input | kW | 11.9 | 22.9 | 43.8 | 87.9 |
| EER | 2.53 | 2.62 | 3.19 | 3.05 | |
| Max Power Inout | kw | 16.8 | 36.5 | 70.1 | 145.0 |
| Dimensions(LWH) | mm | 1252*1076*1870 | 2198*1096*2176 | 2300*1150*2400 | 2800*2200*2450 |
| Working temperature range | °C | -25~48 | -25-48 | -25~48 | – 25~48 |
| Net Weight | kg | 450 | 800 | 1330 | 2186 |
THE BENEFITS OF HEAT PUMPS FOR BUSINESSES
The well-designed commercial heat pump system is more than capable of meeting all of
a company's heating requirements and, over time, will save the company money due to
lower energy costs.
INTELLIGENT THERMAL
The heat pump works well even at temperatures as low as -30℃.
HEAT PUMPS FOR INDUSTRIAL AND COMMERCIAL BUILDINGS
Many companies are beginning to consider heat pumps as a long-term, cost-effective option for heating a busy workplace as they work to decrease their carbon footprint and energy costs. A company or home without a gas supply might make and save several thousand dollars annually by using an air source heat pump.WIDE RANGE OF APPLICATIONS
The heating and cooling needs of various buildings, including villas, homes, industries, hotels, hospitals, spas, sauna facilities,
greenhouses, flower gardens, farms, etc., might be satisfied by these EVI low-temperature heat pumps.
OUTSTANDING RELIABILITY
Fast cooling, heating and precise temperature control and durable construction, Anti-corrosion treatment as optional, Reliable scroll compressor, Multi-protection design.

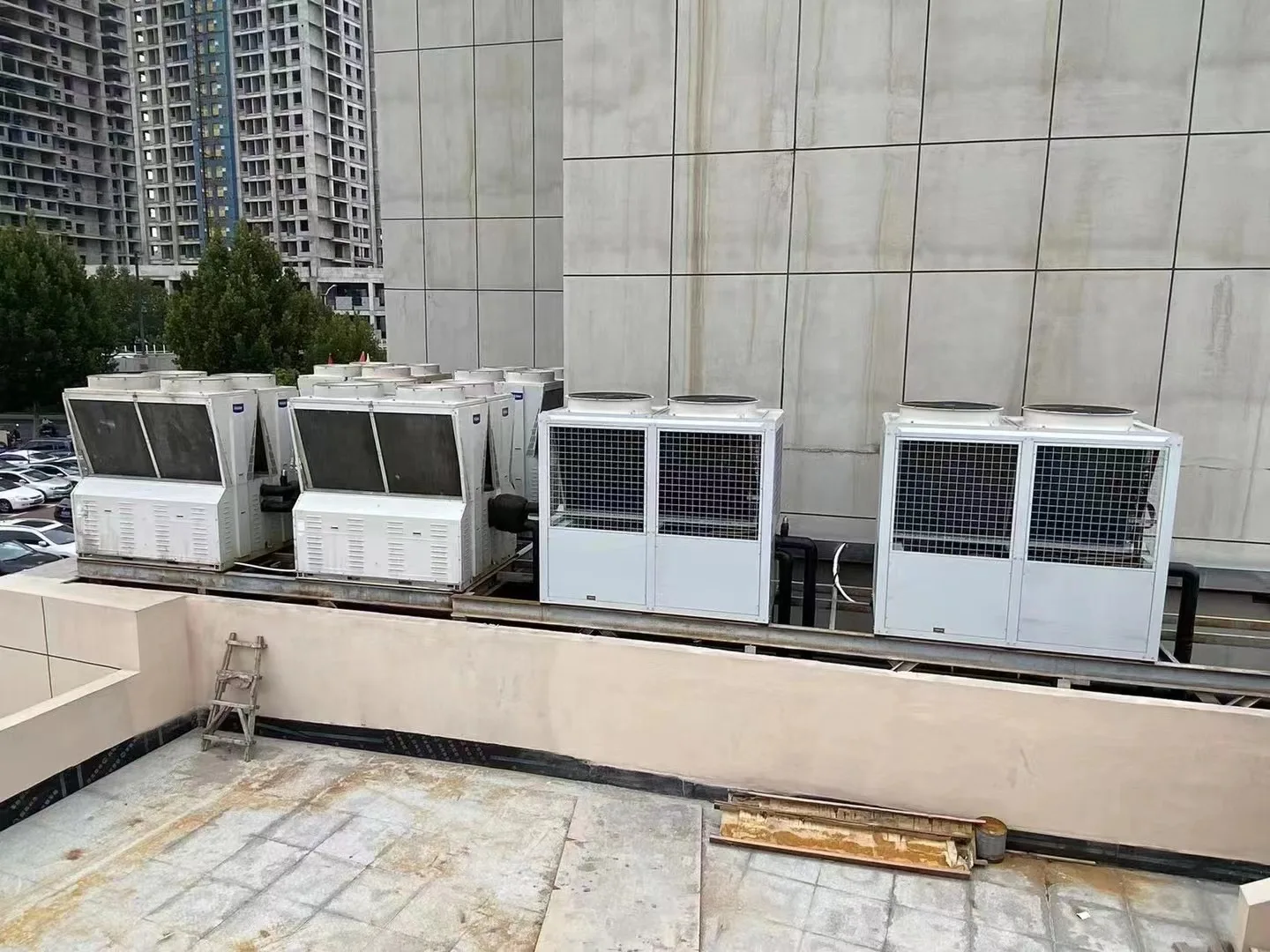

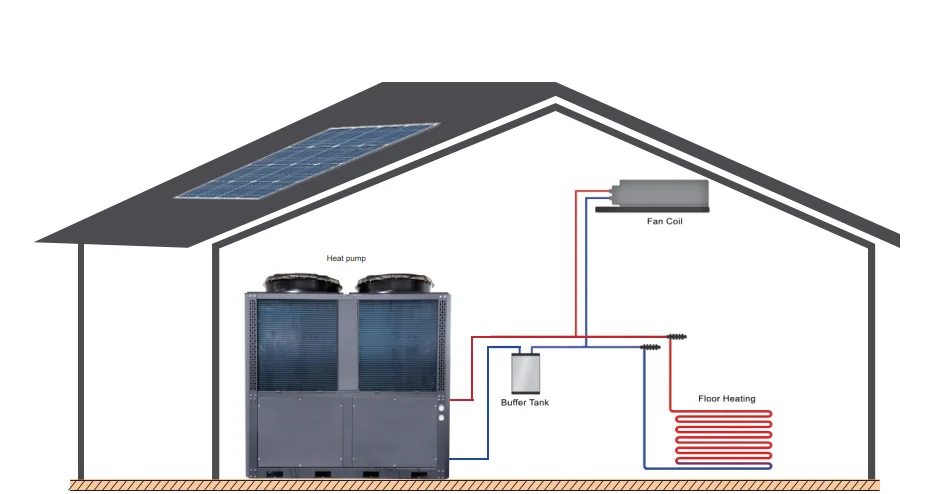

Application Solutions

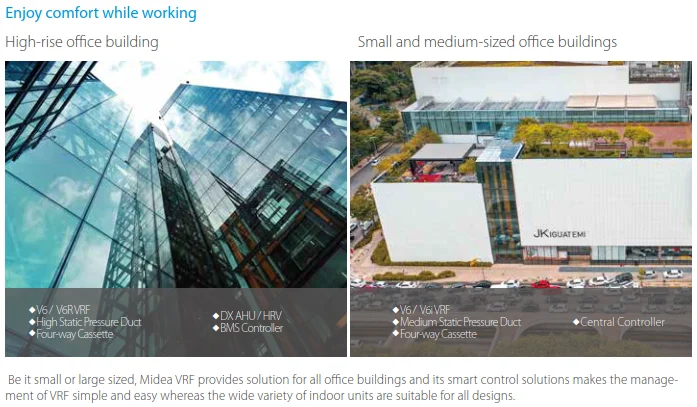

Office Complexes

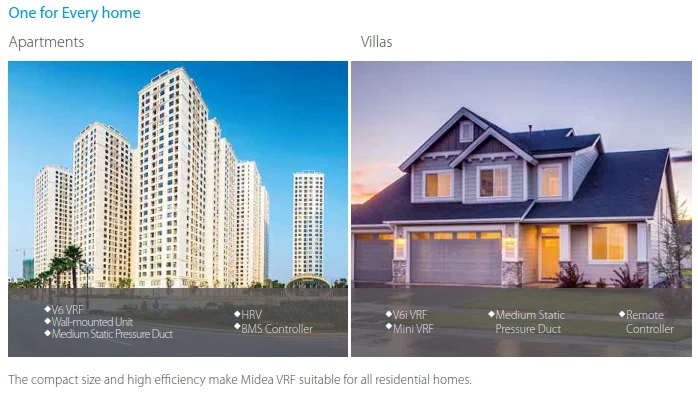

Residential Apartments

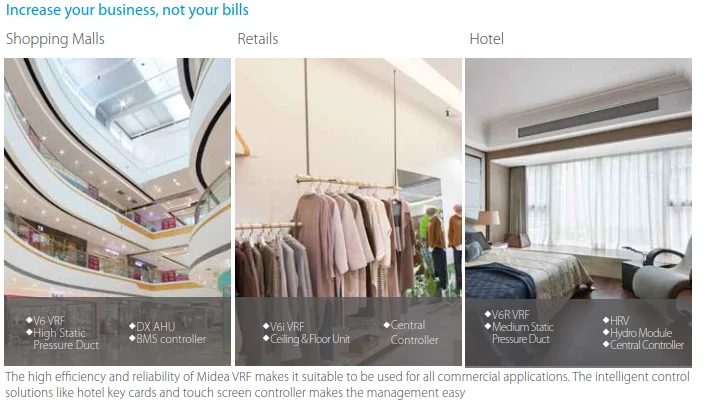

Hotels & Shopping Malls

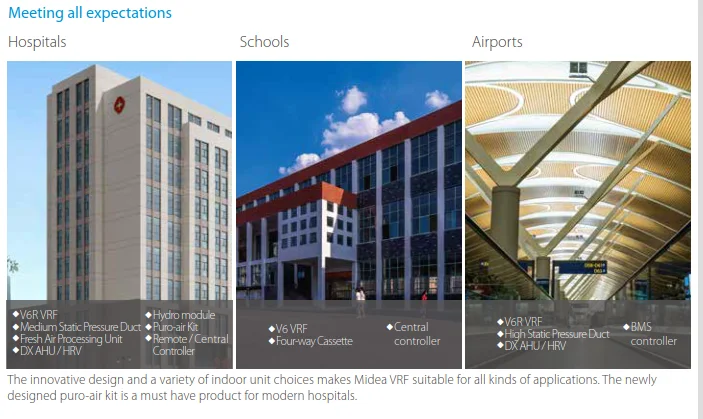

Other Applications
Are you Factory ?

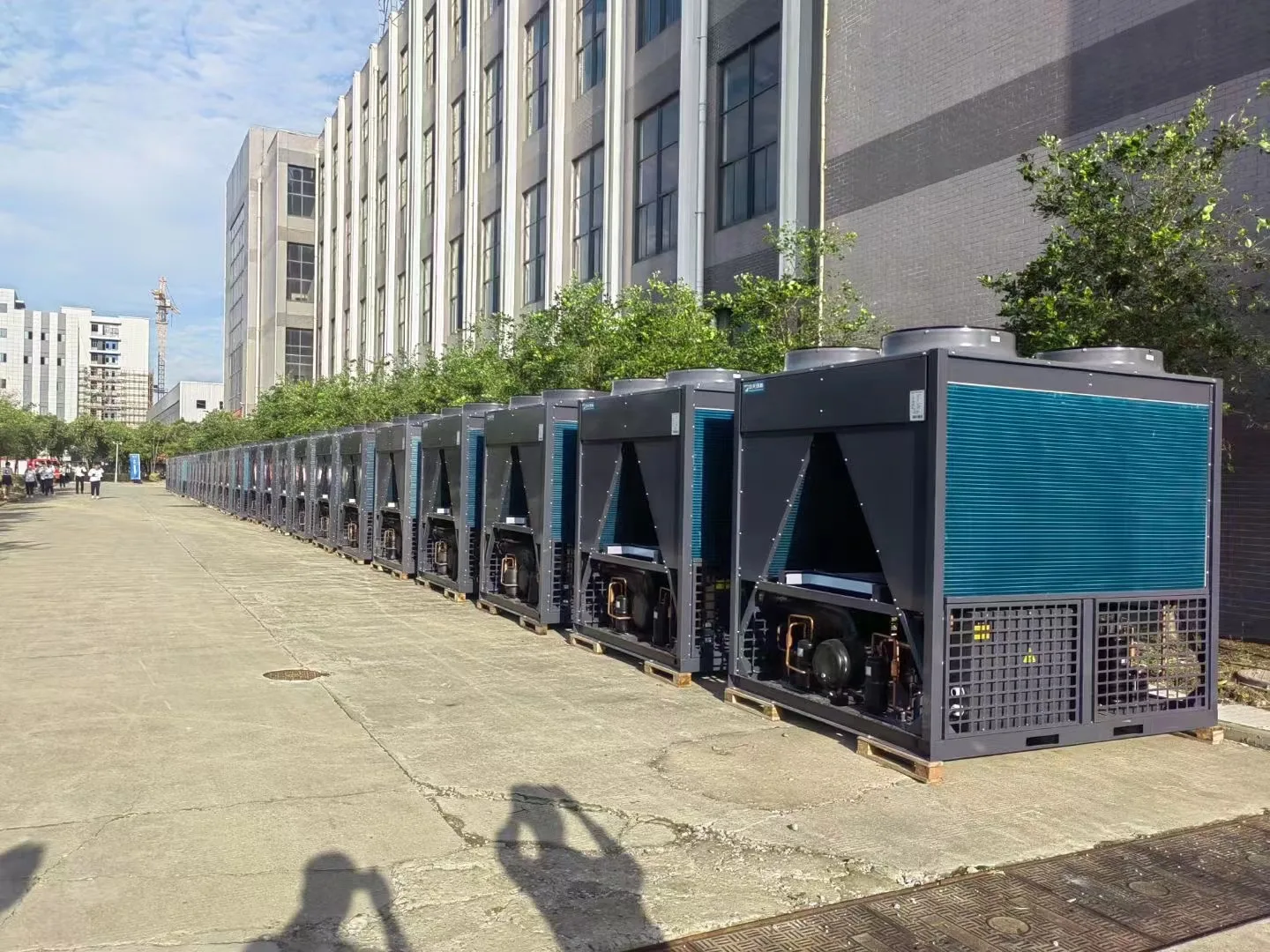

Our factory is located in Taizhou City, Jiangsu Province. The company is committed to terminal and integrated solutions for heat pump heating, air energy and hot water, central air conditioning, modular units, fan panels, etc. The company covers an area of 250 mu, with a building area of 68000 square meters, and has six modern electrical flow production lines. Each line produces 50 sets per shift, with a cumulative daily output of 150-200 sets.
The enterprise has passed the certification of IS09001 IS014001 GB/T28001 three systems, and has the comprehensive of – 25 ℃ ultra-low temperature national heat pump. At the same time, it is OEM for domestic and international first-tier brands.
Can you make samples?
We can make samples for you, but they are not free. You should bear the freight. However, if you order large goods later, we will refund you part of the cost of the sample higher than the price of the large goods.
Can you design for free ?
We have special designers who can help you design drawings for free, as long as you tell us your needs.
How to contact us ?
Henan Shangfeng Hvac Engineering Co., Ltd.(registered trademark: TX) is located in Taixing City, Jiangsu Province. The company is committed to heat pump heating, air energy hot water, central air conditioning, terminal and integrated application solutions .
Ordering and Pricing
- Minimum order quantity: 5 set
- Volume pricing:
- 5–19 set: US $1299 / set
- 20+ set: US $1259 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this micro heat pump?
The standard minimum order quantity is 5 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Henan Shangfeng Hvac Engineering Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, Trading Company. Browse the full Henan Shangfeng Hvac Engineering Co., Ltd. range on HVACR Nexus.
