Key specification for this micro motor: rated voltage Dc 24V, type Servo Motor. Everything below is reproduced from the factory data sheet. Made by Suzhou Micro Actuator Technology Co., Ltd. (6 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Micro Motor

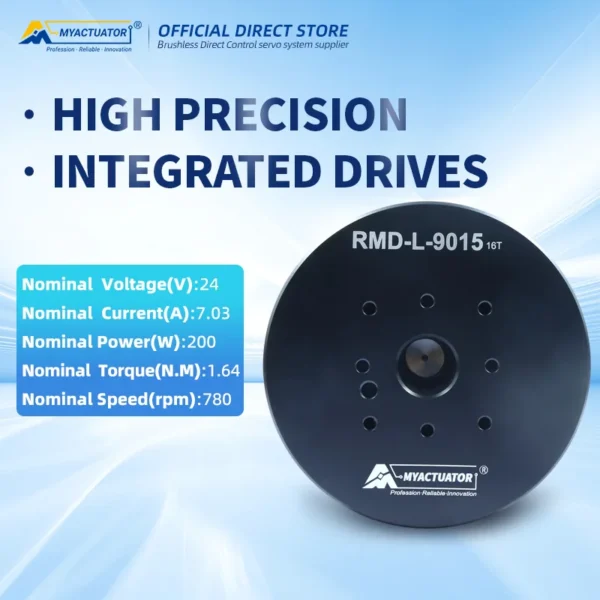

- Model Number: RMD-L-9015
- Rated Power: 200 W
- Rated Voltage: Dc 24V
- Input Voltage: 12-30V
- Speed Rpm: 780RPM
- Speed(RPM): 500RPM
Technical Specifications
| Commutation | Brushless |
|---|---|
| Rated Voltage | Dc 24V |
| Rated Power | 200 W |
| Speed Rpm | 780RPM |
| Speed(RPM) | 500RPM |
| Efficiency | IE3 |
| Type | Servo Motor |
| Construction | Permanent Magnet |

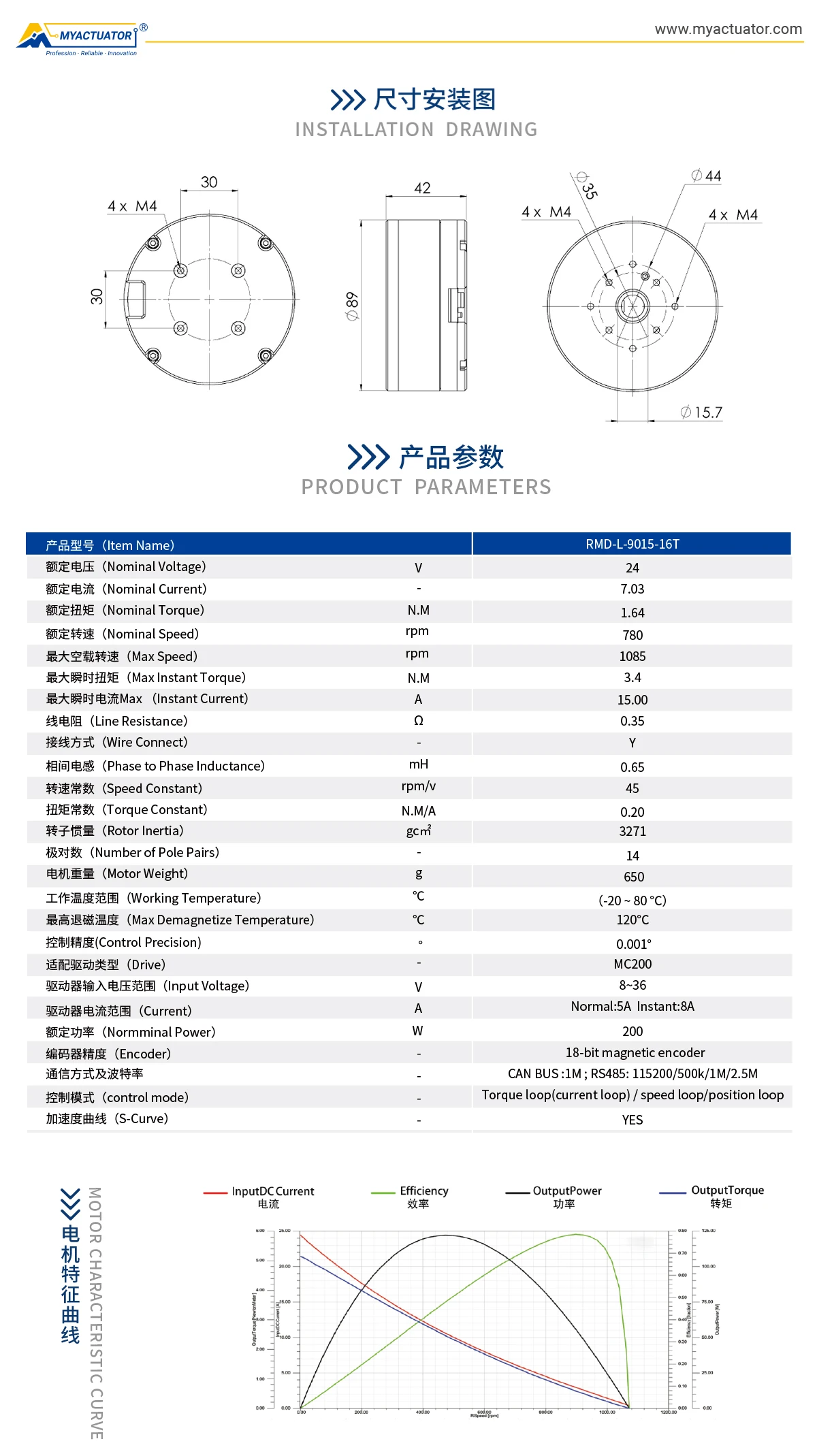

| Frame | 90mm |
| Motor Mounting Type | Flange Mount |
| Protect Feature | Waterproof |
| Usage | Boat, PTZ |
| Warranty | 3 months ~ 1 year |
| Continuous Current(A) | 3.34A |
| Model Number | RMD-L-9015 |
| Torque | 1.67N.M |
| Place Of Origin | Jiangsu, China |
| Brand Name | myactuator |
| Motor Type | brushless dc servo motor |
| Input Voltage | 12-30V |

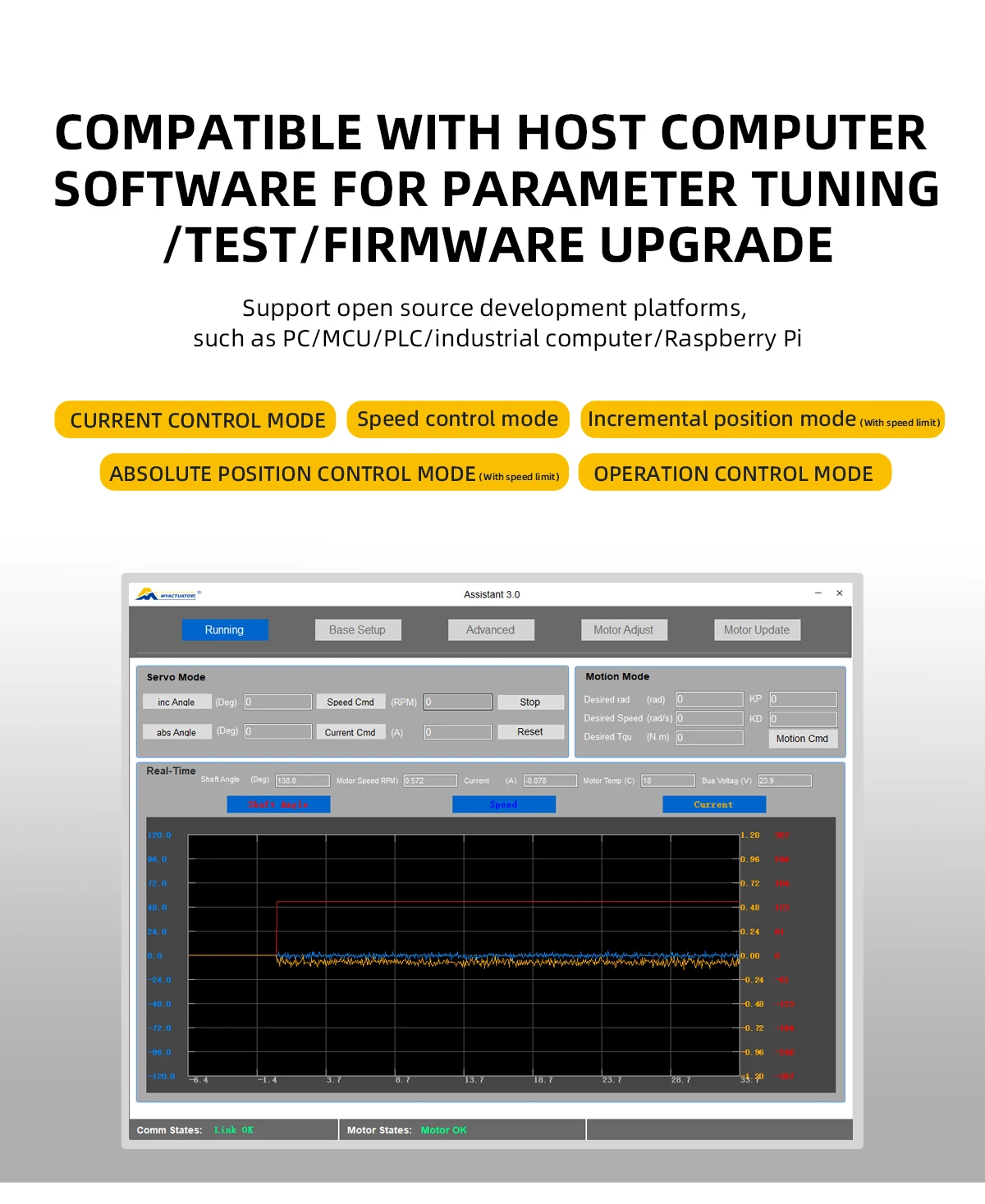

| Motor Driver Type | sensored foc control |
| Encoder Type | 14bit absolute magnet encoder |

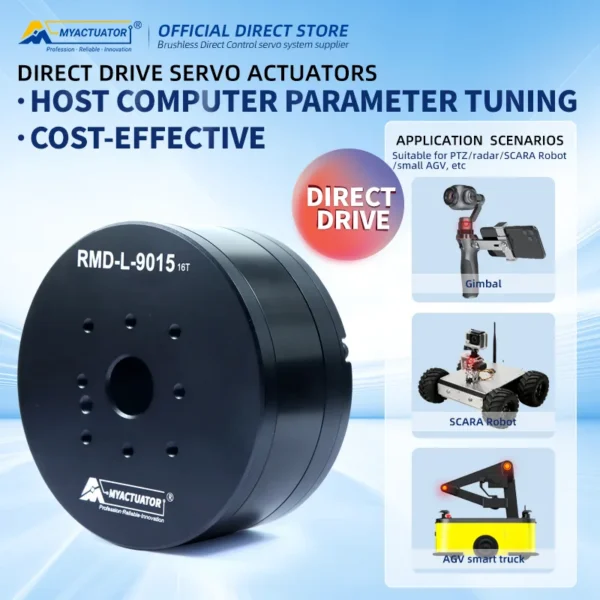

| Application | robot/automation/turntable |
| Color | black/customize |

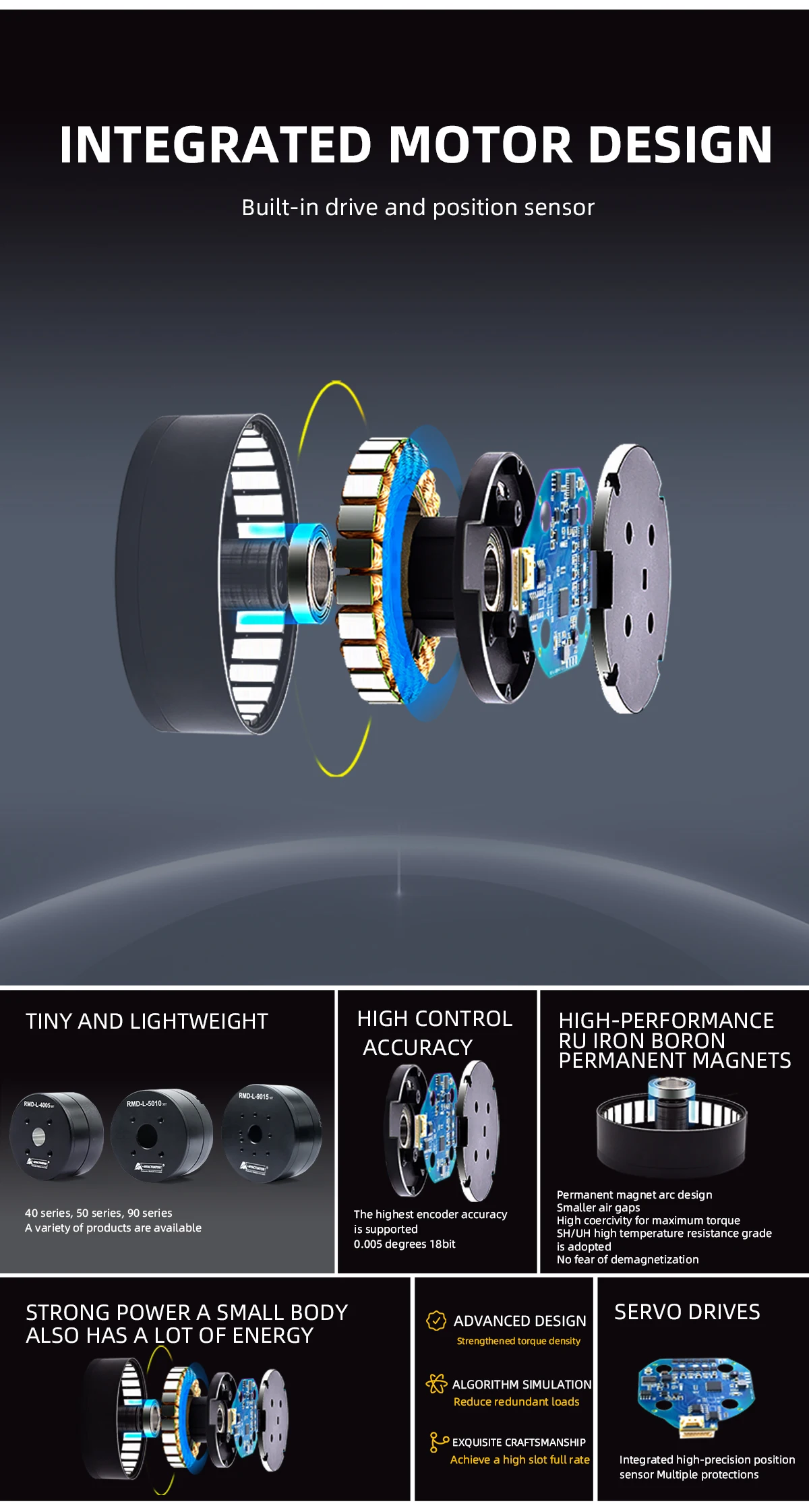

| Mechatronics | yes/encoder and driver built in motor |
| Certification | ce |
| Selling Units | Single item |
| Single Package Size | 11X11X7 cm |
| Single Gross Weight | 1.0 kg |
Product Details
ABOUT US
CUITURE
CUITURESuzhou Micro Actuator Technology Co., Ltd. was established in August 2020. The company is located in Huaqiao, Kunshan which nearby Shanghai. The company brand is MyActuator. MyActuator is an integrated company specializing in the design, simulation, research and development, assembly and sales of robot actuators and control systems.
The company's product matrix is rich, with 5 series of hundreds of products. Including RMD series servo motors, GF series high-speed motors, GB series motors, UAV power kits, DRC drivers, etc. The company's products have obtained internationally recognized CE and RoHS certificates, and the company plans to declare 7 patents in 2021. In 2022, the company plans to apply for high-tech enterprises.
Our products are widely used in mobile portable robots, exoskeleton robots, quadruped robots, small robotic arms, AGV,Gimbal, etc. The products are not only well recommanded by domestic customers, but also exported to more than 20 countries around the world such as the United States, Europe, Australia, Japan, South Korea, and Singapore. And in-depth cooperation with the City University of New York, the University of Science and Technology of China, Shanghai Tongji University, Harbin Institute of Technology, etc.
We are committed to providing more efficient and stable servo actuators for more intelligent technology companies, focusing on the miniaturized and intelligent robot subdivision field, and serving the robot era that has come.
1.MyActuator is an integrated company specializing in the
design, simulation, research and development, assembly
and sales of robot actuators and control systems
2.Exported to more than 20 countries around the world such
as the United States, Europe, Australia, Japan, South
Korea, and Singapore
3.Fast dispatch: Most of the products are in stock,OEM orders
can be accepted, which can meet the different needs of customers

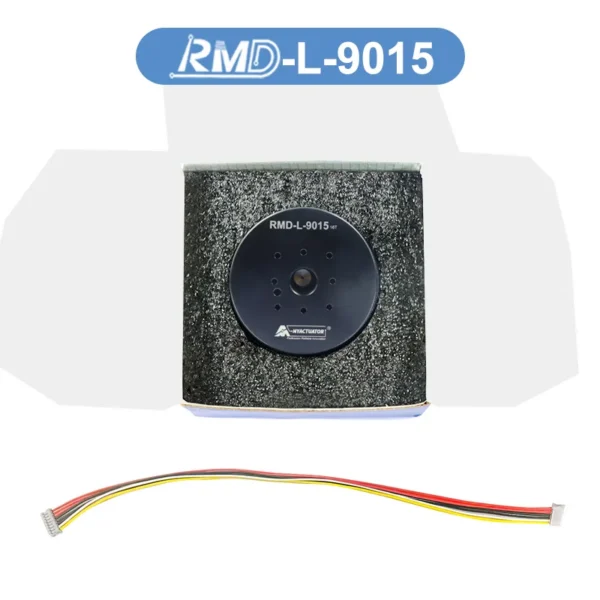

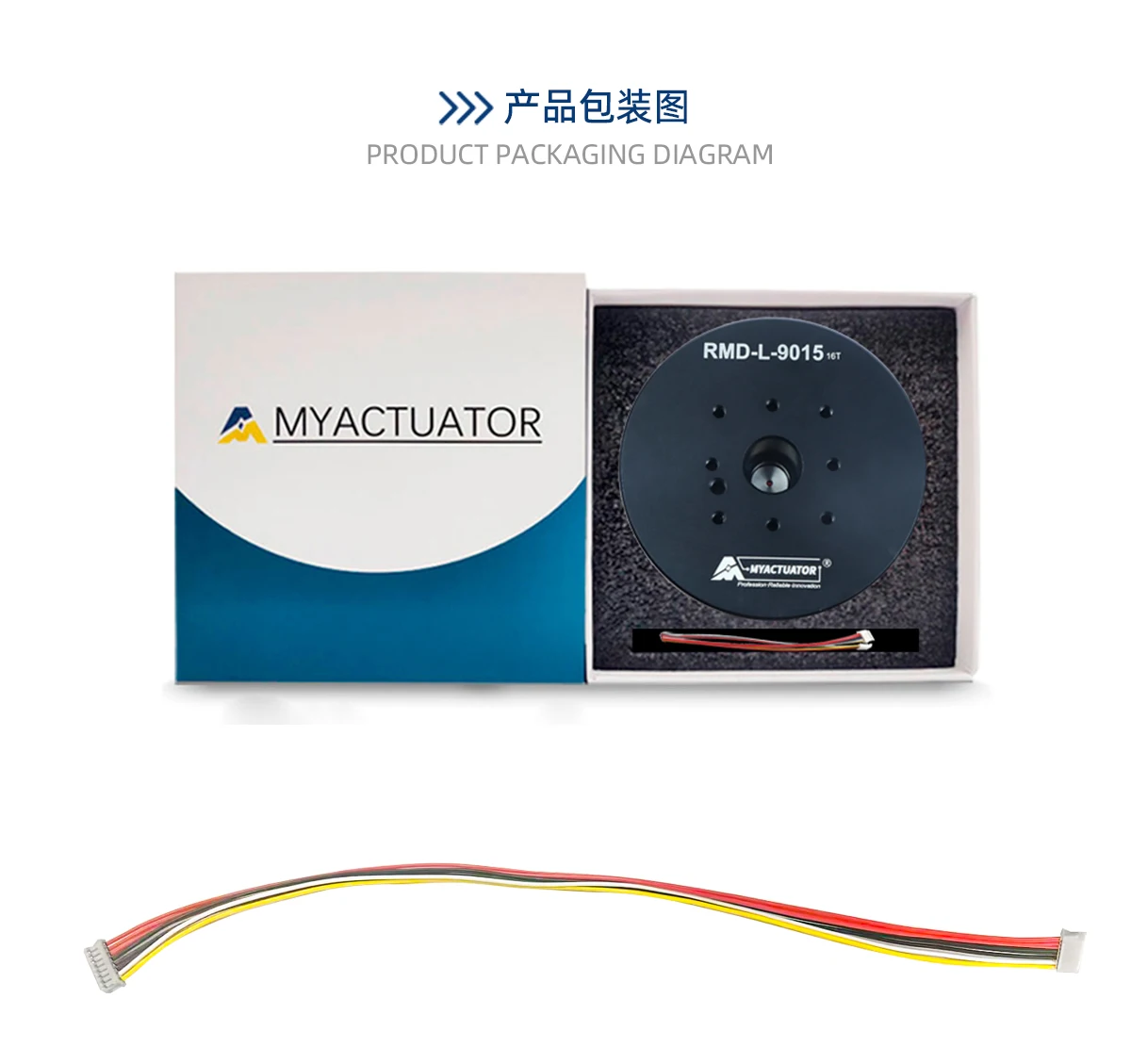

PACKAGE:
Standard export carton packing.
1) How long is your delivery time?
Normally 5-7days for sample ; 25-30days for mass order and 45-50days for customize products .Of course ,the accurate lead time depands on differ project.
2) What is your terms of payment?
We accept paypal, T/T and L/C ;Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% in advance ,balance before shippment.
3) Do you provide free sample?
It depands.If we have long term cooperation and you have placed official order ,we can supply new product sample for tests.
4) What kind of products you provide?
We mainly provide permanent magnet brushed dc motors(BLDC and PMSM) and motor drive system.
5) Can you accept OEM and ODM order ;what about MOQ?
Yes ,we accept OEM or ODM ( including motor and drive system customize);MOQ depands on requests. For example,just change logo and motor winding ,MOQ only 50pcs;if change software or motor structure ;MOQ no less than 500pcs.
6) Do you have plan to develop agent?
We welcome professional and qualified institutions to distribute our products, we will provide you with excellent profit margin and comprehensive support.
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ordering and Pricing
- Minimum order quantity: 100 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this micro motor?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 months ~ 1 year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this micro motor carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the micro motor be supplied for my local voltage?
The standard configuration is Dc 24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
