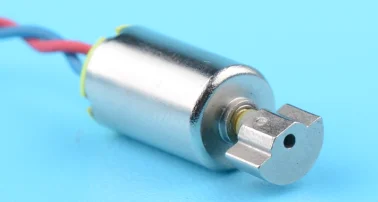

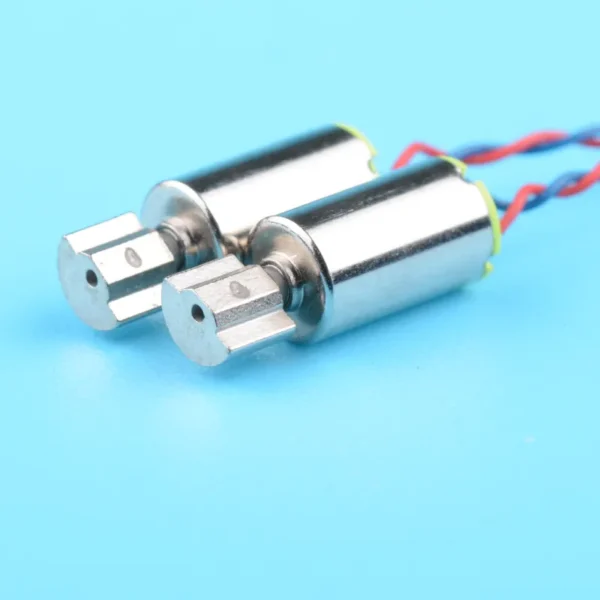

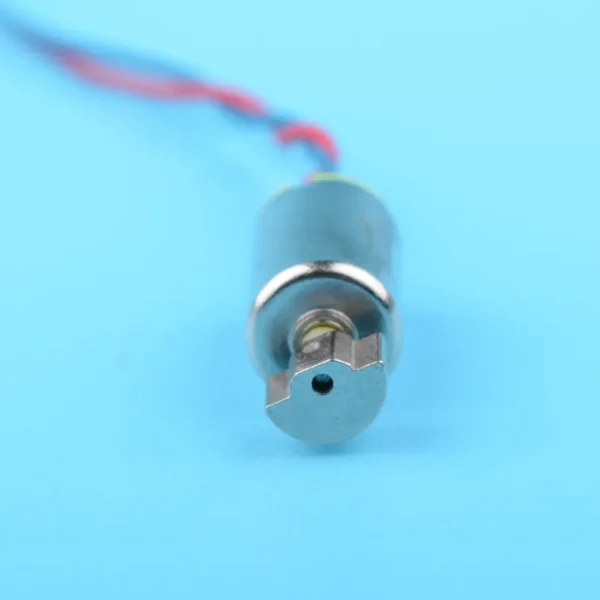

The micro vibration motor listed here carries type Coreless Vibration Motor, speed 11000 ±10%rpm, documented exactly as the manufacturer publishes it. Made by Yichang Flourishing Import & Export Trade Co., Ltd. (13 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Micro Vibration Motor
- Model Number: JMM1406-0610Z
- Nominal Voltage: 1.5v
- Rated Speed (R/Min): 11000 ±10%rpm
- Speed(RPM): 11000 ±10%rpm
- Warranty: 3 months ~ 1 year
- Place Of Origin: Hubei, China
Technical Specifications
| Velocity | NO |
|---|---|
| Force | 1 G |
| Rated Speed (R/Min) | 11000 ±10%rpm |
| Type | Coreless Vibration Motor |
| Protective Feature | Overload Protection |
| Customized | Yes |
| Warranty | 3 months ~ 1 year |
| Rated Torque | 0.01 Nm |
| Model Number | JMM1406-0610Z |
| Place Of Origin | Hubei, China |
| Brand Name | JRX |
| Application | Mobile Phone ,Personal Care,Sex Toy |
| Nominal Voltage | 1.5v |
| Number Of Poles | 3 |
| Stall Current | 140mA Max |
| Counter Weight | R 2.5*3.0 |
| Typical Application | Mobile Phone ,Personal Care,Sex Toy |
| Motor Diameter | 6mm |
| Housing Length | 10mm |
| Motor Type | DC Brush 1.5v Coreless Vibration Motor |
| Lead Wire | Customized |
| Weight | About 1.7g |
| Speed(RPM) | 11000 ±10%rpm |
| Continuous Current(A) | 55mA Max |
| Selling Units | Single item |
| Single Package Size | 10X8X6 cm |
| Single Gross Weight | 0.002 kg |
Product Details
Product Application
Best Quality for 1.5V DC Micro Vibration Motor (JMM1406-0610Z) is widely used for Adult Products, Sex Toys, Sex product , Dental Equipment,Electric Toothbrush, Fire Security Systems, Beauty Product, Mobile Phone, Cell Phone, Pager, Personal care,Health Product Equipment ,Massager, Massage Rod, Eye Massager, Body Massager, Vibrator.etc.

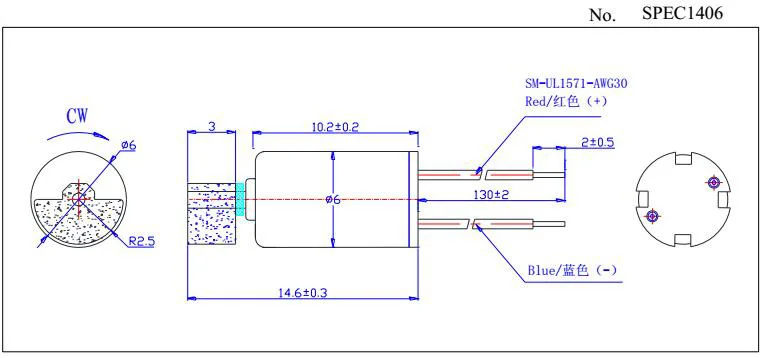

SPECIFICATIONS FOR BEST QUALITY FOR 1.5V DC MICRO VIBRATION MOTOR (JMM1406-0610Z) | ||||||
Model Size | Counter weight | mm | R 2.5*3.0 | |||
Motor diameter | mm | 6 | ||||
Body length | mm | 10.0 | ||||
Main performance parameters | Rated voltage | V | 1.5V | |||
Speed (max. & min.) | r/min | 11000+_2000 | ||||
Rated current | mA | 55 | ||||
Customize parts | Counter weight | mm | Customise | |||
Wire length/Colour | mm/Red,Black,White | Customise | ||||
Rotation | CW/CCW | CW/CCW | ||||
Main Features
1) Energy-saving:High energy conversion efficiency,more than 70%.
2) Reliable Operational Stability: Operates quietly and quickly with high efficiency and low resistance.
3) Low Noise : Starting and braking quietly, running with low noise.
4) High Speed : The rpm can reach 11500~51000±10%.
5) Fast Response:Rapid starting and braking with fast response, mechanincal time constant is less than 28 milliseconds.
Some can reach 10ms or less.
Main Features

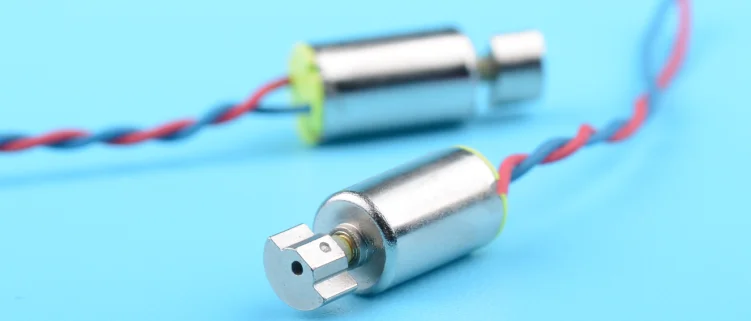

Name: 1.5V 610 Vibration Motor for mobile phone
Direction of rotation: CW
Original: China

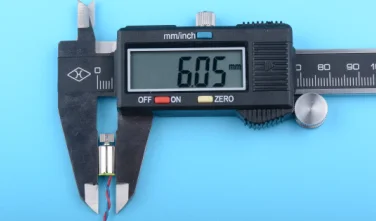

Motor Diameter : 6mm

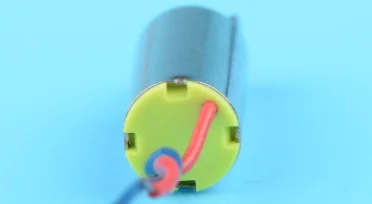

Wire Colour : red and blue
Domestic famous engines for Adult Products, Mobile Phone, strong force, low noise, high speed.
Main Features
Name: 1.5V 610 Vibratior Motor

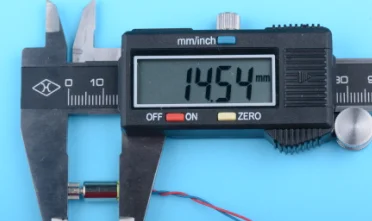

Total Length : 14.5mm
Domestic famous engines for Sex product , Dental Equipment,Electric Toothbrush, strong force, low consumption, high speed .
Main Features
Name: 1.5v Coreless Vibration Motor

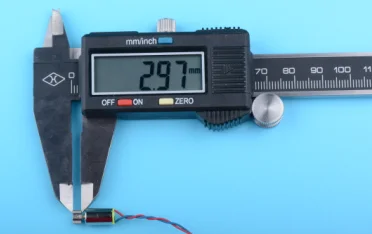

Counter weightlengh :3.0 mm
Original: China
Domestic famous engines for Personal care,Health Product Equipment ,Massager.strong force, low consumption, high speed .
* Sample testing support. * Any questions can solved .
* View our Factory. * Engineers available to service overseas.
Ordering and Pricing
- Minimum order quantity: 10 piece
- Volume pricing:
- 10–49999 piece: US $0.65 / piece
- 50000–999999 piece: US $0.55 / piece
- 1000000+ piece: US $0.45 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this micro vibration motor?
The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 months ~ 1 year warranty. Spare parts and technical support remain available after the warranty period.
Can the micro vibration motor be supplied for my local voltage?
The standard configuration is 1.5v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Yichang Flourishing Import & Export Trade Co., Ltd., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Yichang Flourishing Import & Export Trade Co., Ltd. range on HVACR Nexus.
