Mini blower — 3.3V/5V, blade material Plastic. The complete factory specification follows. Made by Shenzhen Feng Huishun Technology Development Co., Ltd. (4 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Mini Blower
- Model Number: FH3004GSM5
- Voltage: 3.3V/5V
- Blade Material: Plastic
- Material: Plastic Blade
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
Technical Specifications
| Mounting | Free Standing |
|---|---|
| Voltage | 3.3V/5V |
| Blade Material | Plastic |
| Electric Current Type | DC |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | FH/OEM/ODM |
| Model Number | FH3004GSM5 |
| Product Name | DC Blower Fan |
| Size | 30X30X4mm |
| Bearing Type | Hydraulic/Sleeve Bearing |
| Material | Plastic Blade |
| Motor | Brushless DC Motor |
| Usage | Air Ventilation,Car seat, Radiator, Toilet, Radiator, Helmet |
| Feature | High Efficiency,Low Noise Power Saving |
| Function | Customer’s Requirement |
| Fan Type | Mini DC Blower fans |
| Packaging Details | Fan packed in cartons or individual box if required. |
| Port Of Dispatch | SHENZHEN/HK |
| Selling Units | Single item |
| Single Package Size | 15X12X12 cm |
| Single Gross Weight | 0.02 kg |
| Supply Ability | 20000 pieces per Day |
Product Details
Product Description
Product Name | 30x30x4mm DC Blower Fan |
Material | Plastic impeller & Aluminum frame |
Voltage | 3.3V/5V |
Speed | 6000RPM~8500RPM |
Max Air Flow | 0.89CFM (It can also do other CFM according to your requirements) |
Bearing | Hydraulic bearing/Sleeve bearing |
Life | above 30000 hours |
Wire | Standard |
Storage temperature range | -30~+70 C° (No-condensing) |
Operating temperature range | -10~ +70 C° (No-condensing) |
Package | Carton box,we can also according to the requirements of customers. |
Details Images

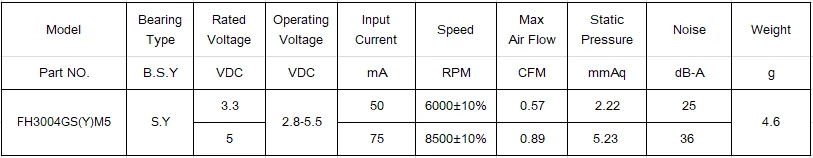

Product Specification
The specifications of some models are as follows:
Remarks
Other RPM/CFM/Voltage/Current…please contact us see the specification for more details. All models could be customized on voltage or any other requirements to fit your needs.
Dimensions(Unit：mm) Fan Performance Curve
Recommend Products

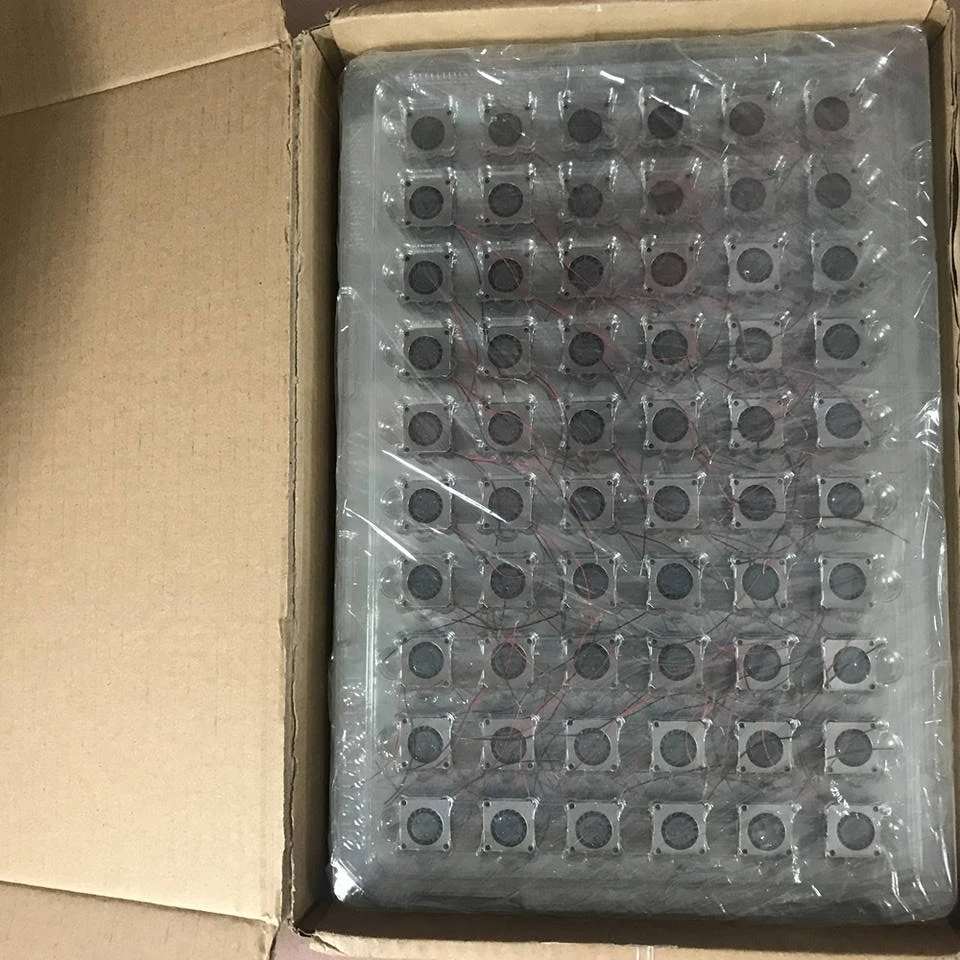

Packing&Shipping
1. Standard Packaging, inside single package, out carton package.
2. Upon customers' request, but the price is different with neutral packing.
Usually we deliver the goods to express by DHL/UPS/FEDEX,ect. If you have any questions, you can also consult The Customer Service Center or our sales for details,thanks for your cooperation.
Company Introduction
Our company is a professional manufacturer of all kinds of brushless cooling fans, producing all kinds of axial-flow fans, blower fans, centrifugal fans, cross flow fans, EC fans, brushless motors and other products, which are sold well in Europe, North America, Asia, Africa and other regions. The products are widely used in the computer information industry, network communication industry, industrial production equipment, air purification, automobile, Commercial household appliances and other fields.
The fan of our company has stable quality, good heat dissipation effect, strong air flow, low noise, high temperature resistance, low temperature resistance, long service life, low consumption, beautiful appearance and other advantages.
Welcome friends from all over the world to do business with us and let's make a beautiful future together.
Factory
Sales department
Workshop
Assembly line 1
Assembly line 2
Quality control
Product test
Packaging
Warehousing
Our Advantages
Our Services & Strength
Our products has the following advanges:
1. Fan with large air volume,low noise, long life (according to your requirements) fire,water,corrosion-resistant and so on.
2. We have a strong design capability,according to customer requirements design and manufacture of special fan.
3. We understand te specific needs of fans in various industries and can provide you with a variety of standard products to choose from.
4. Our fans using high-quality bearings, silicon steel, enameled wire, with higher reliability.
5. We have a complete quality control system. We have a series of inspections from raw materials to production to shipment, as shown below.
5. We have a complete quality control system. We have a series of inspections from raw materials to production to shipment, as shown below.
5.1 Incoming inspection (including inspection of frame blade, fan blade and other parts).
5.2 Semi finished products (mainly motor stator assembly test).
5.3 OQC test / Complete inspection of finished products (including performance test, appearance inspection, etc.)
5.4 Aging test (about 2-3 days).
5.5 Random sampling inspection.
5.6 Double layer customized packaging (mainly to ensure that customers can receive goods intact)
6. We provide thoughful and meticulous service,as well as fast on-time delivery.
7. We can deisgn and developm customized product.We are able to research best solutions for customers if needs.
FAQ
1. What are kinds of cooling fan or centrifugal fan supplied by your company?
Answer: we can provide DC cooling fan, AC cooling fan, EC cooling fan,blower fan,centrifugal fan and cross flow fan.
2. What are kinds of information provided by the customer before inquiry?
Answer : please kindly advise the size, voltage, the type of bearing, the speed of fan , or air flow.
3. How many types bearing of our cooling fan are there in our company at present?
Answer : now we have two types bearing for the fan, sleeve and ball, working time of sleeve is for 30,000 hours, the ball is for 50,000-80,000 hours.
4. How to detect the data of cooling fan in your company?
Answer: the speed and voltage are detected by the tachometer, air flow is found by wind tunnel.
5. How to control the quanlity of products in your company.
Answer: 100% total testing before each of fan leaves our factory.
Answer: we can provide DC cooling fan, AC cooling fan, EC cooling fan,blower fan,centrifugal fan and cross flow fan.
2. What are kinds of information provided by the customer before inquiry?
Answer : please kindly advise the size, voltage, the type of bearing, the speed of fan , or air flow.
3. How many types bearing of our cooling fan are there in our company at present?
Answer : now we have two types bearing for the fan, sleeve and ball, working time of sleeve is for 30,000 hours, the ball is for 50,000-80,000 hours.
4. How to detect the data of cooling fan in your company?
Answer: the speed and voltage are detected by the tachometer, air flow is found by wind tunnel.
5. How to control the quanlity of products in your company.
Answer: 100% total testing before each of fan leaves our factory.
6. What is your warranty ?
Answer: we offer an 12 months warranty and on line engineer support.
Answer: we offer an 12 months warranty and on line engineer support.
7. Can you produce according to the samples? Answer: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
8.Can you provide OEM/ODM services?
Answer: sure ,like tooling , packing and others, our engineer will do our best to meet with your requirement!
Answer: sure ,like tooling , packing and others, our engineer will do our best to meet with your requirement!
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–99 piece: US $3.5 / piece
- 100–4999 piece: US $2.95 / piece
- 5000+ piece: US $2.2 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this mini blower?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the mini blower be supplied for my local voltage?
The standard configuration is 3.3V/5V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Feng Huishun Technology Development Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Feng Huishun Technology Development Co., Ltd. range on HVACR Nexus.
