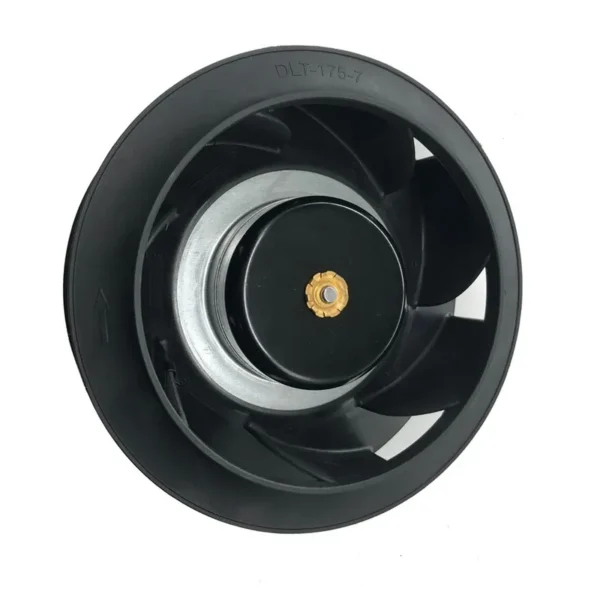

Centrifugal Blower, 175x175x69mm, 12V/24V/48V, Plastic

The centrifugal blower listed here carries 12V/24V/48V, power source type Electric, documented exactly as the manufacturer publishes it. Made by Shenzhen Feng Huishun Technology Development Co., Ltd. (4 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Centrifugal Blower

• Model Number: FH17569GBM2
• Power Source Type: Electric
• Voltage: 12V/24V/48V
• Material: Plastic, Aluminum Alloy
• Blade Material: Plastic
• Noise Level: 56.5dB

Technical Specifications

Product Details

Product Description

Product Name	DC Centrifugal Blower
Product Dimension	175x69mm
Material	Aluminum Motor case and Plastic Impeller
Rated Voltage	24V DC(12V 48V Optional)
Bearing type	Dual Ball bearing
Main Parameter	Rated Speed: 2500RPM(At rated Voltage,Measured after 3Mins.) Air Flow:267.5CFM (Maximum In Free Air) Air Pressure: 26.7MM-H2O(Maximum When Air Flow = 0) Noise Level: 56.5dBA (At Rated Speed)
Life Expectancy	50000hours at 40 C°
Storage temperature range	-40~+80 C°
Operating temperature range	-25~ +70 C°
Function (optional)	PWM Control / FG Tacho / RD Alarm
Wire & Connector & Tube	Wire length & Connector model ( as required )
Package	carton box,we can also according to the requirements of customers.

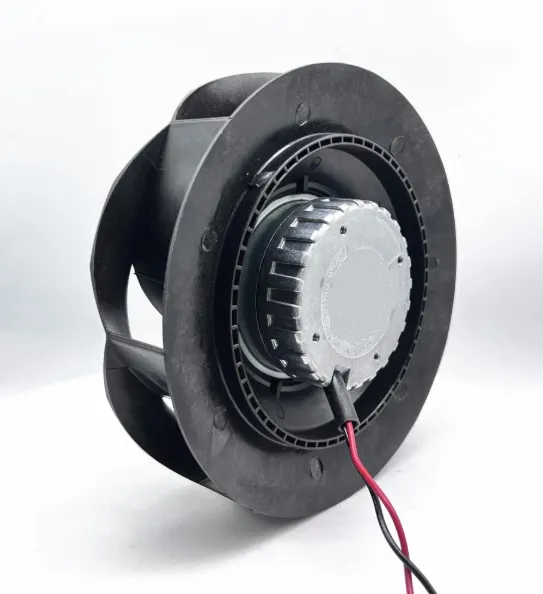

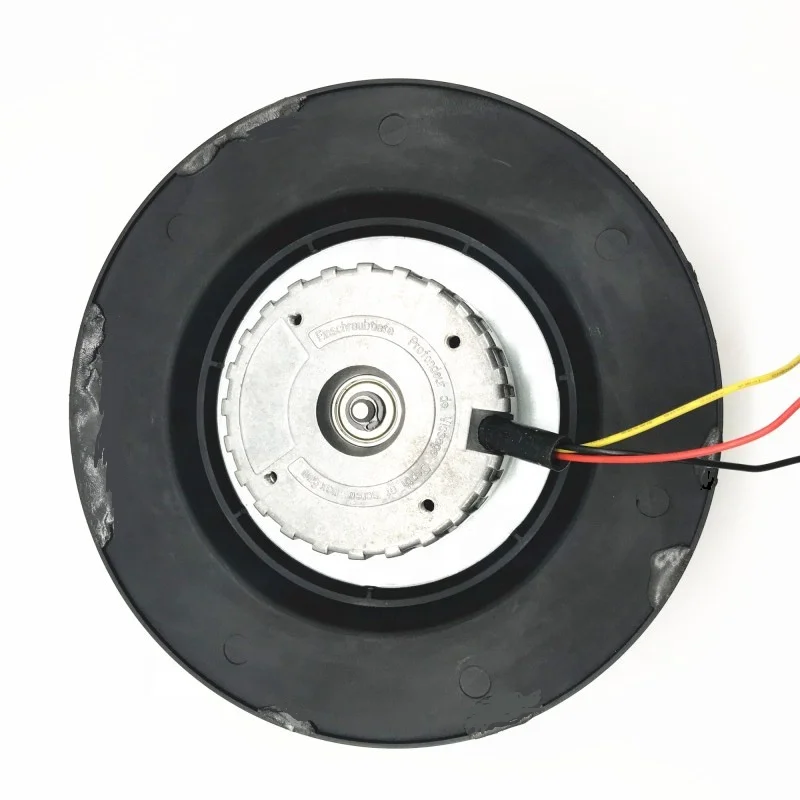

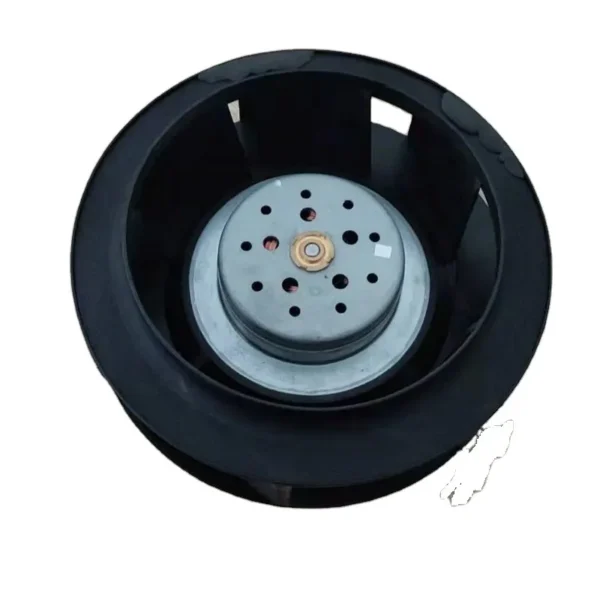

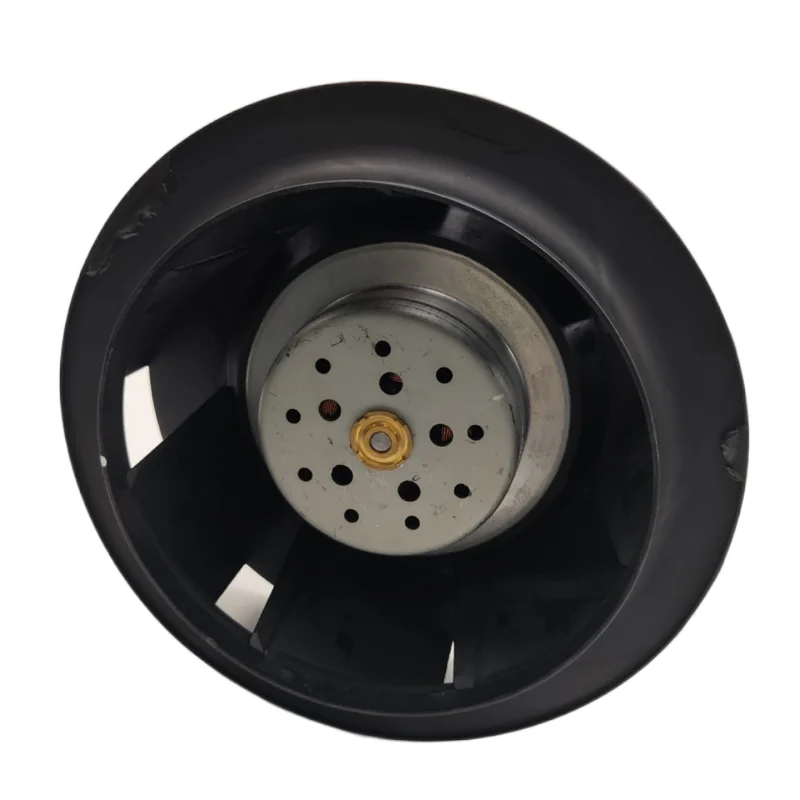

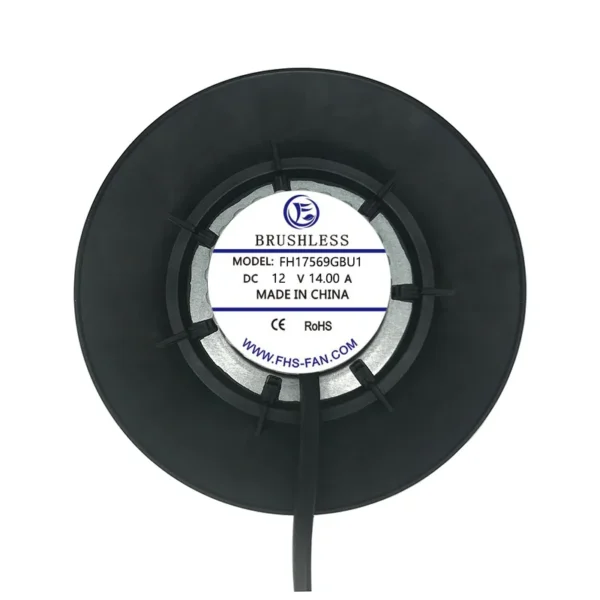

Details Images

Product Specification

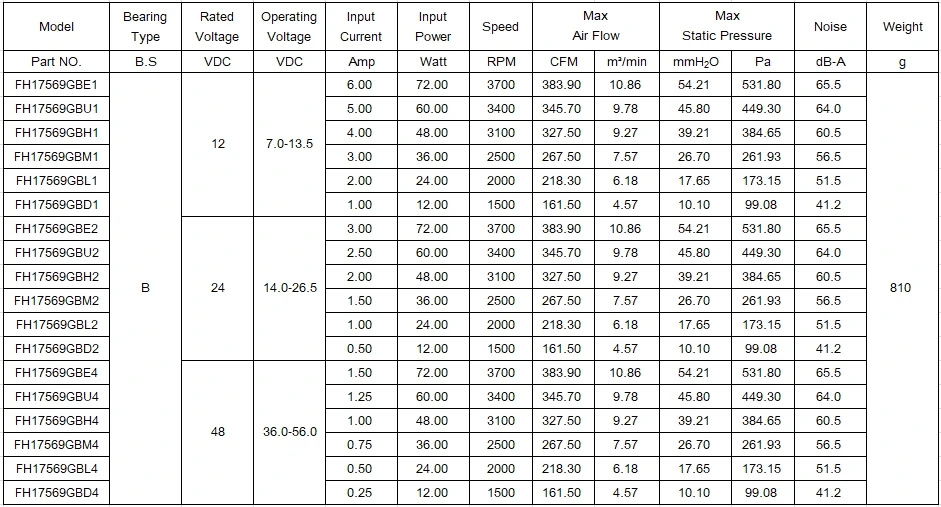

The specifications of some models are as follows:

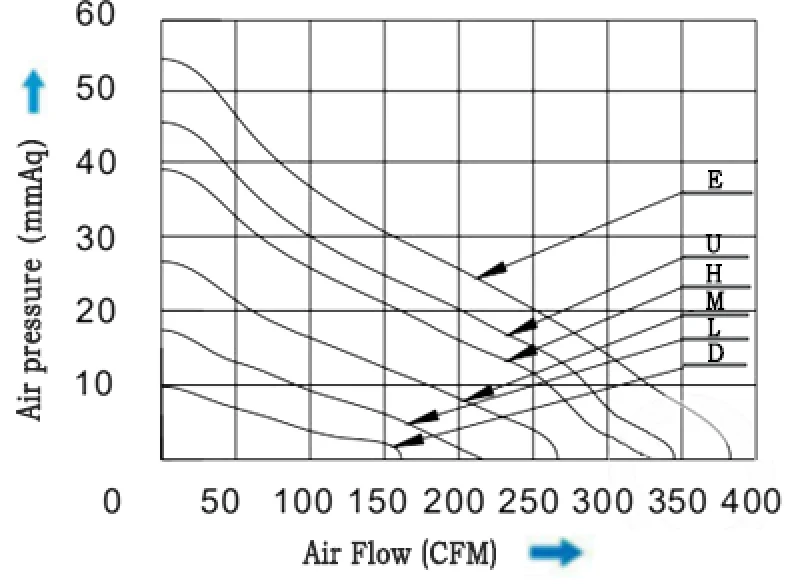

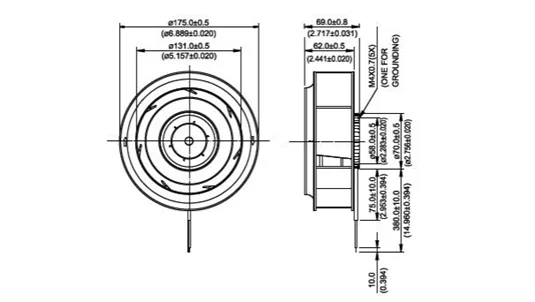

.Dimensions(Unit：mm) : Performance Curve:

Additional signal:

1). FG: Output speed signal. 2). PWM: Duty / Pulse speed regulation. 3). RD: Lock alert function. 4). TC: Temperature adjustment function. 5). VCC: (Voltage control/Automatic control) function.

Additional protection:

1). Automatic lock/start function of AS. 2). Slow start function. 3). Overcurrent protection. 4). Reverse connection protection. 5). Overvoltage protection. 6). dustproof waterproof IP54 IP55, IP67.

Fan production procedures: The main production procedures of a centrifugal fan are as follows：

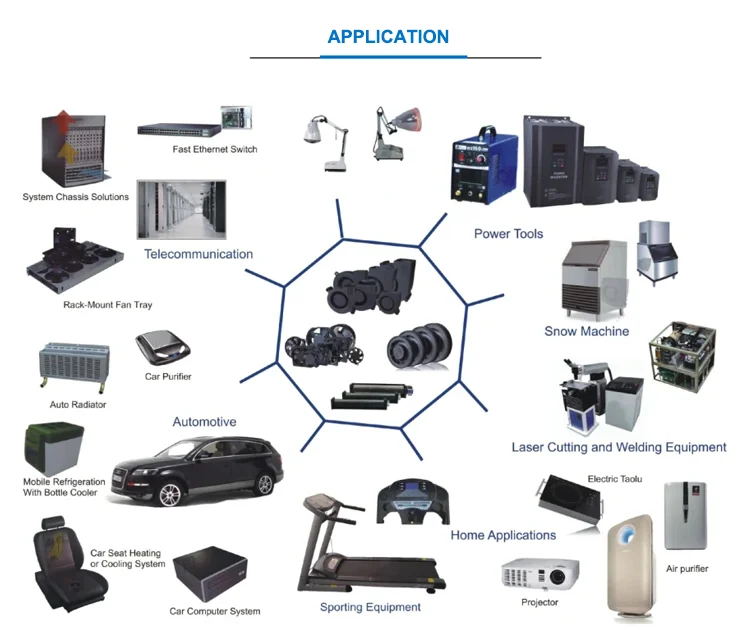

Product Usage

The products are widely used in the computer information industry, network communication industry, industrial production equipment, air purification, automobile, Commercial household appliances and other fields.

Packing&Shipping

1. Standard Packaging, inside single package, out carton package.

2. Upon customers' request, but the price is different with neutral packing.

Usually we deliver the goods to express by DHL/UPS/FEDEX,ect. If you have any questions, you can also consult The Customer Service Center or our sales for details,thanks for your cooperation.

Our Advantages

Long Life Bearings

We use long life ball bearings or sleeve bearings for the fans according to customers' applications.

Ball bearing life: 50,000hours.
Sleeve bearing life: Over 30,000 hours.

Durable Design

For high speed axial and centrifugal fans, we use revised impellers and brass bushing for higher durability.

High efficiency and low noise.

Fully Customizable

If you look beyond our current fan specifications, we shall be happy to customize for you.
We supply several options of fan grills: plastic cover, metal grill, grill with filter, etc. We also offer speed control with
on/off switches

FAQ

1. What are kinds of cooling fan or centrifugal fan supplied by your company?
Answer: we can provide DC cooling fan, AC cooling fan, EC cooling fan,blower fan,centrifugal fan and cross flow fan.

2. What are kinds of information provided by the customer before inquiry?
Answer : please kindly advise the size, voltage, the type of bearing, the speed of fan , or air flow.

3. How many types bearing of our cooling fan are there in our company at present?
Answer : now we have two types bearing for the fan, sleeve and ball, working time of sleeve is for 30,000 hours, the ball is for 50,000-80,000 hours.

4. How to detect the data of cooling fan in your company?
Answer: the speed and voltage are detected by the tachometer, air flow is found by wind tunnel.

5. How to control the quanlity of products in your company.
Answer: 100% total testing before each of fan leaves our factory.

6. What is your warranty ?
Answer: we offer an 12 months warranty and on line engineer support.

7. Can you produce according to the samples? Answer: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

8.Can you provide OEM/ODM services?
Answer: sure ,like tooling , packing and others, our engineer will do our best to meet with your requirement!

Ordering and Pricing

• Minimum order quantity: 20 piece
• Volume pricing:
  • 20–499 piece: US $27.5 / piece
  • 500–4999 piece: US $26 / piece
  • 5000–9999 piece: US $23.5 / piece
  • 10000+ piece: US $22 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this centrifugal blower?

The standard minimum order quantity is 20 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the centrifugal blower be supplied for my local voltage?

The standard configuration is 12V/24V/48V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
