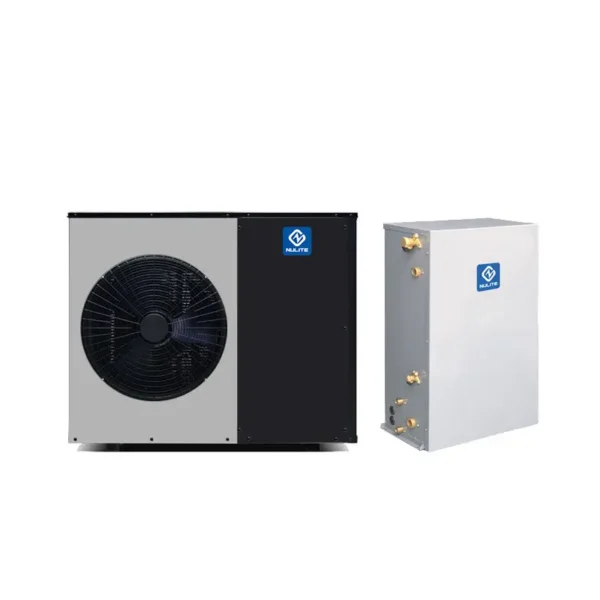

Key specification for this mini split heat pump: 220V/380V 50Hz/60HZ, 15KW. Everything below is reproduced from the factory data sheet. Made by Nulite New Energy (guangzhou) Co., Ltd. (9 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Mini Split Heat Pump
- Model Number: NL-C4BFII/R
- Power Source: Electric
- Voltage: 220V/380V 50Hz/60HZ
- Heating Capacity: 15KW
- Housing Material: Stainless Steel
- Refrigerant: R410A
Technical Specifications
| Type | Air Source Heat Pump |
|---|---|
| Heating Capacity | 15KW |

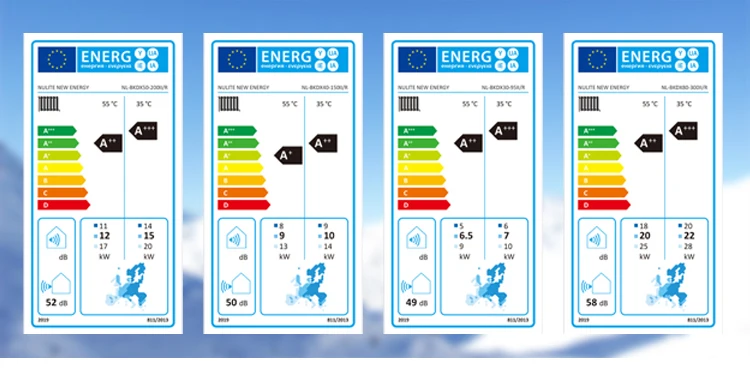

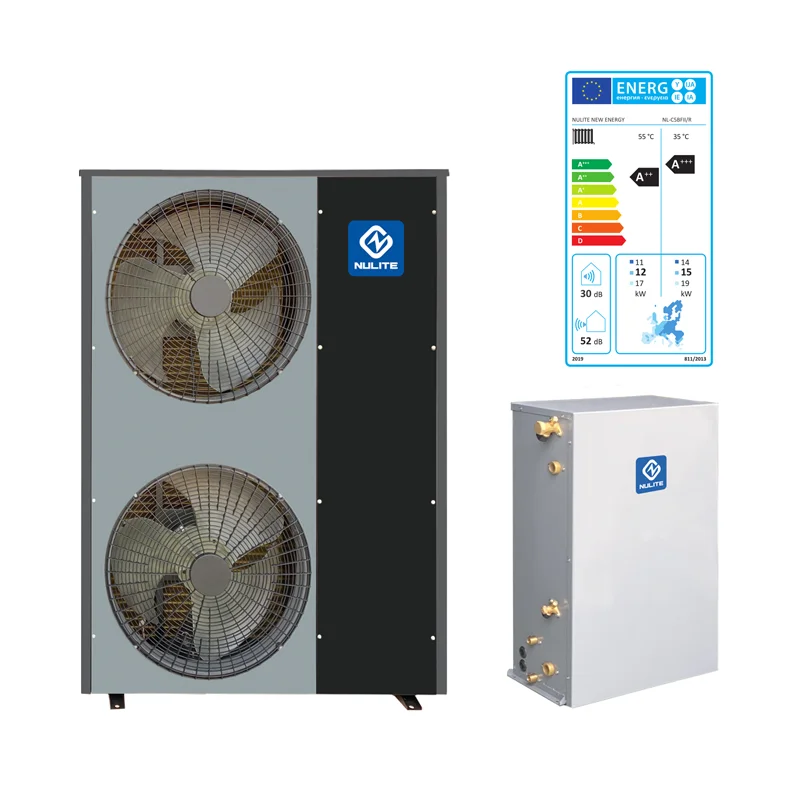

| Energy Efficiency Rating | Class A+++ |
| Application | Outdoor, Hotel, Commercial, Household |
| Refrigerant | R410A |
| Storage / Tankless | Instant / Tankless |
| Compressor | Scroll Compressor |
| Installation | Freestanding or Wall mounted |
| App-Controlled | Yes |
| Housing Material | Stainless Steel |
| Feature | HEATING COOLING DHW |
| Power Source | Electric |
| Warranty | 2 Years |
| After-Sales Service Provided | Free Spare Parts |
| Operating Language | English, German, French, Dutch, Spanish, Turkish, Danish, Polish, Czech, Italian |
| Private Mold | No |
| Packaging Types | PLYWOOD BOX |
| Place Of Origin | Guangdong, China |
| Brand | NULITE NEW ENERGY |
| Model Number | NL-C4BFII/R |
| Voltage | 220V/380V 50Hz/60HZ |
| Function | House Heating Cooling Hot Water |
| Ambient Temp. | -25°C-46°C |
| Noise Level | ≤58dB(A) |
| Delivery Time | 1-20 working days |
| Selling Units | Single item |
| Single Package Size | 110X52X155 cm |
| Single Gross Weight | 185.000 kg |
Product Details
Product Description

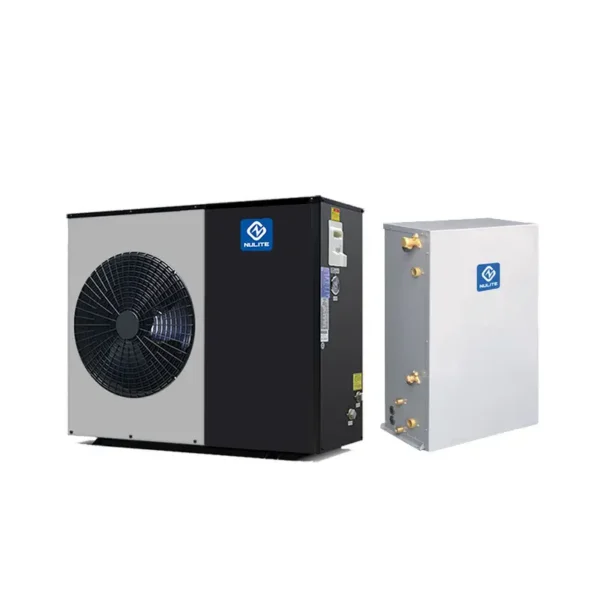

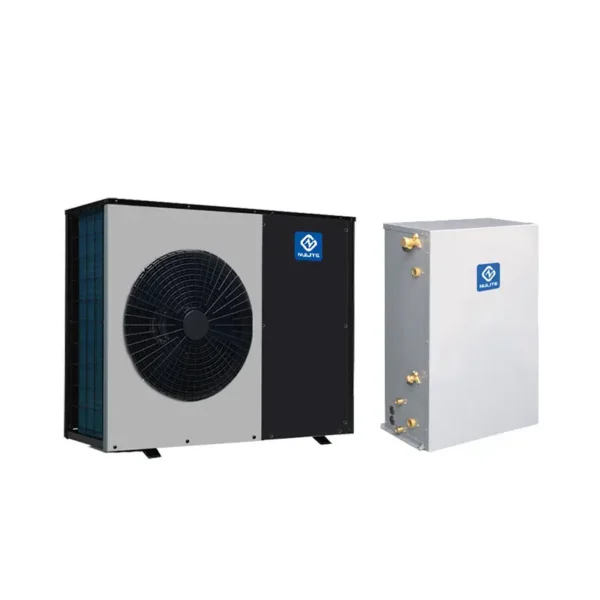

Product Name | Mini Split HEATING COOLING HOT WATER DC INVERTER AIR TO WATER HEAT PUMP |
Material | Metal |
Function | Hot Water/Heating/Cooling |
Package | Plywood box |
DC inverter heat pump advantages:
1.Function:heating + cooling + hot water
2.Voltage:220V/380V/50Hz/1/3 Phase;
3.Using r32/r410a green refrigerant;
4.Super low noise;
5.Energy-saving 80%;
6.Anti-freezing work in -25 degrees low temperature;
7.Adopted twin-rotor Mitsubishu compressor;
8.Build-in 3kw electrical heater;
9.Side discharge design;
10.Welcome to OEM,ODM service;
2.Voltage:220V/380V/50Hz/1/3 Phase;
3.Using r32/r410a green refrigerant;
4.Super low noise;
5.Energy-saving 80%;
6.Anti-freezing work in -25 degrees low temperature;
7.Adopted twin-rotor Mitsubishu compressor;
8.Build-in 3kw electrical heater;
9.Side discharge design;
10.Welcome to OEM,ODM service;
Product Parameter
Model name | NL-C3BFII/R | NL-C4BFII/R | NL-C5BFII | |||
Rated heating capicity (KW) | KW | 2.6～9.5 | 3.8~15.5 | 4.5～20 | ||
Rated hot water capicity (KW) | KW | 2.2～9.2 | 3.5~15 | 4.0～19.4 | ||
Rated cooling capicity (KW) | KW | 2.7～6.6 | 3.8~10 | 4.5～11 | ||
Power Consumption | KW | 1～3.2 | 1.5~4.5 | 2～5.5 | ||
Voltage (V) | V/Hz | 220V/Inverter | 220V/380V- Inverter | 220V- Inverter | ||
Rated output water temperature | °C | Hot water 55℃ / Heating 45℃ / Cooling 12℃ | Hot water: 55C / heating:40～45C / cooling:12～8C | |||
Max output water temperature | 30°C | 60℃ | 60°C | |||
Rated water flow | m³/h | 1.8 | 2.7 | 3.6 | ||
Refrigeration | R32/R410A | R410A | ||||
Rated of waterproof | IPX4 | |||||
Control mode | Microcomputer central processor (linear control) | Microcomputer central processor (linear control) | ||||
Compressor brand | Mitsubishi | Mitsubishi | ||||
Compressor quantity | 1 | 1 | 1 | |||
Outdoor unit net size | mm | 996*408*1000 | 996*408*1000 | 1065*408*1385 | ||
Indoor unit net size | mm | 500*300*750 | 500*300*750 | 500*300*750 | ||
Outdoor unit weight | Kg | 82.5 | 85 | 110 | ||
Nosie level | dB(A) | ≤55 | ≤55 | ≤58 | ||
Fan quantity | 1 | 1 | 2 | |||
Auxiliary Element | KW | 3 | 3 | 3 | ||
Ambient temperature | °C | (-25C – 46C) | (-25C – 46C) | (-25C – 46C) | ||
Inlet pipe diameter | DN25 | DN25 | DN25 | |||
Outlet pipe diameter | DN25 | DN25 | DN25 | |||

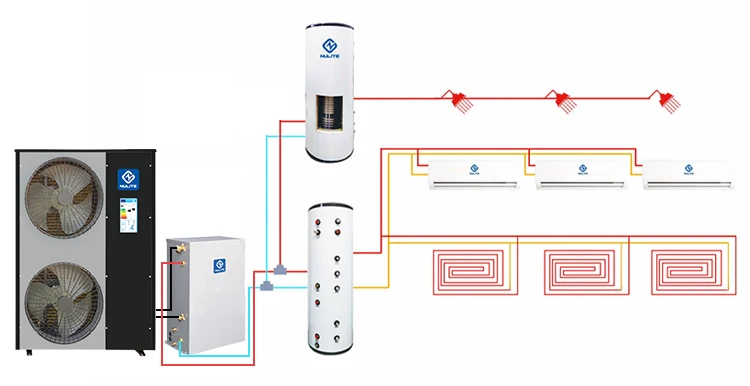

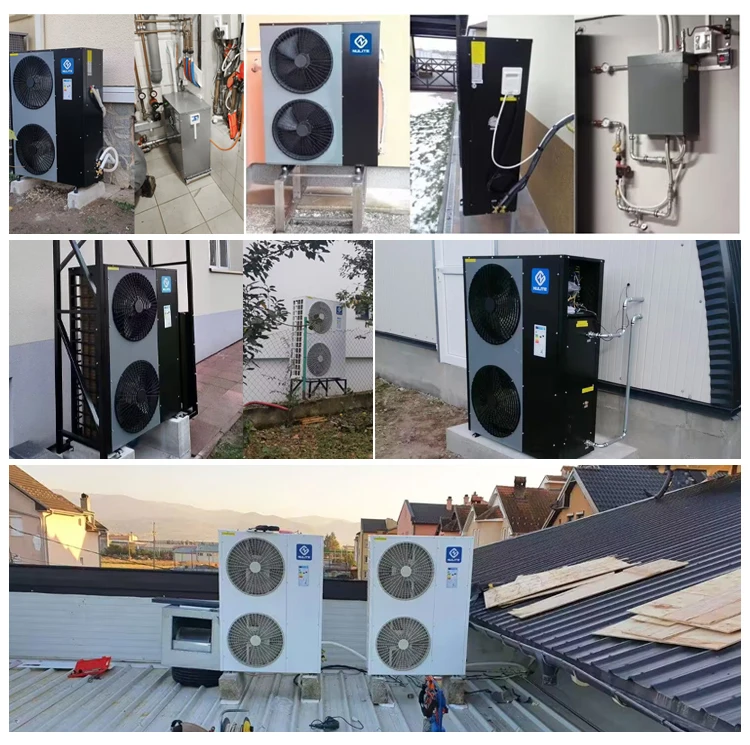

Customer installation example:
The following pictures are installation examples of some of our customers. The modified series can be installed with or without a buffer tank. However, we recommend that customers still properly bring water tanks, because such installation can improve the energy efficiency of the machine.
Product details

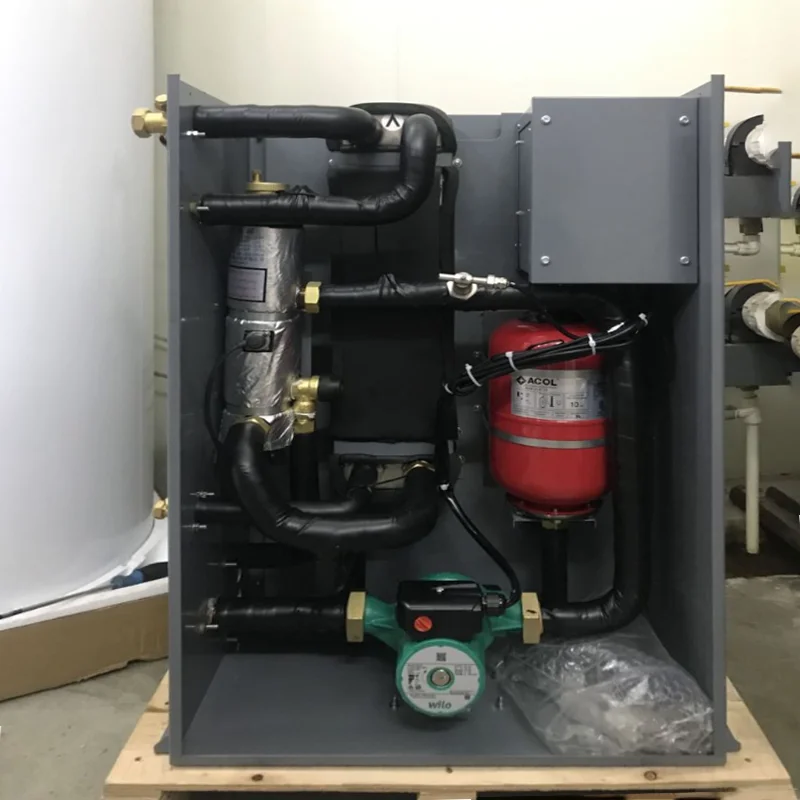

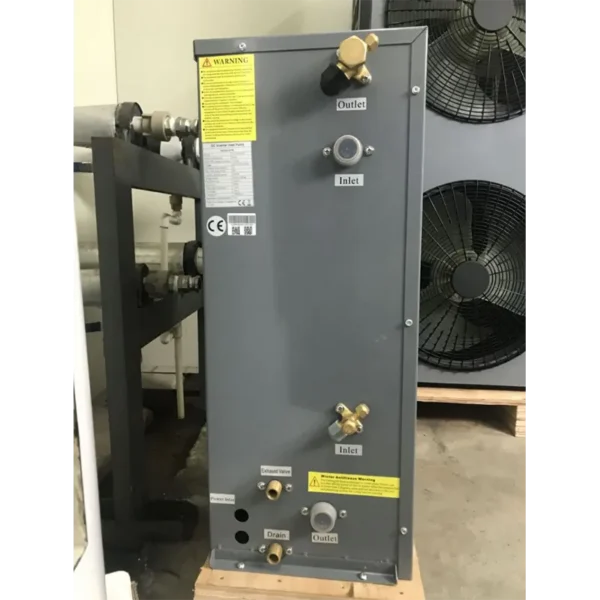

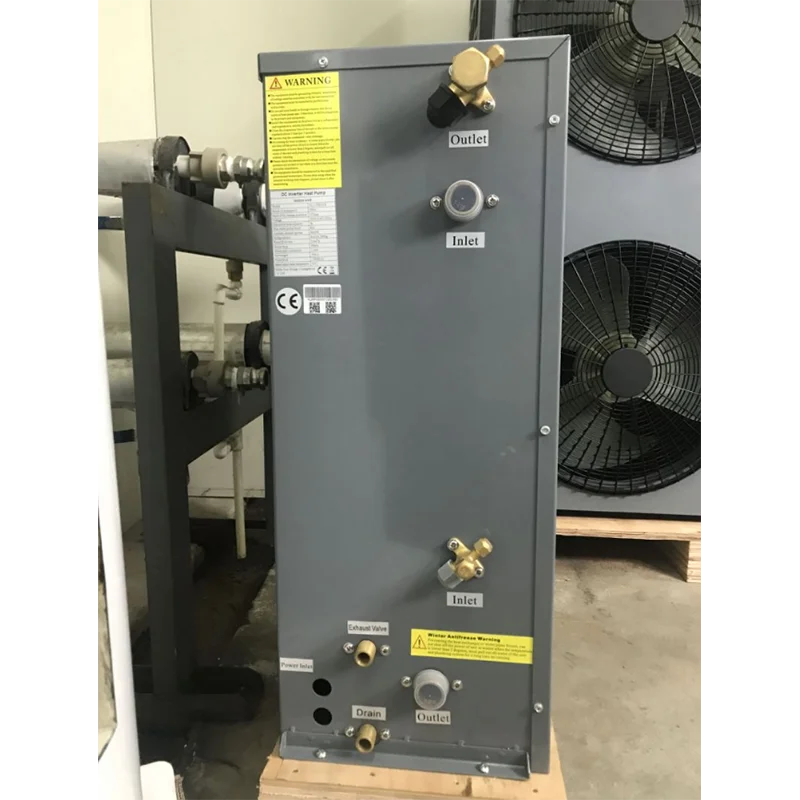

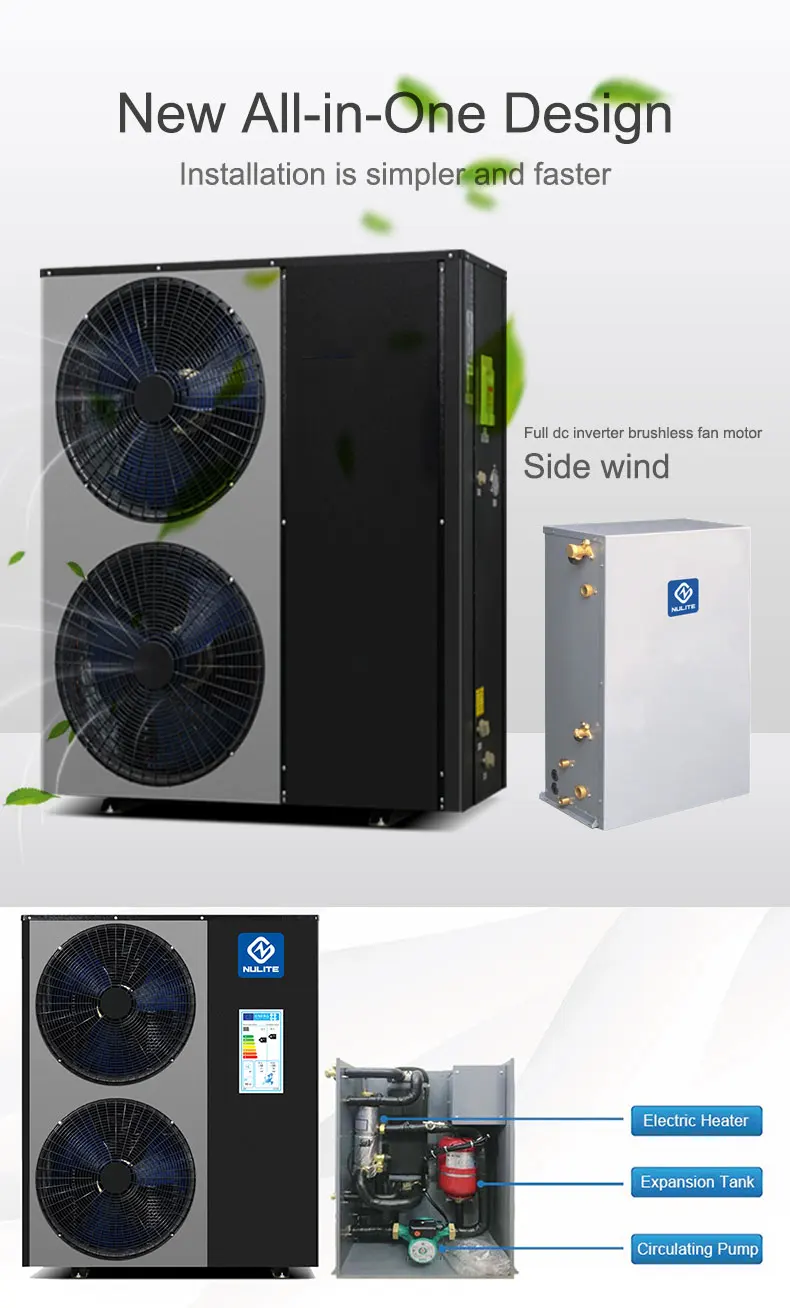

This series of products is a DC frequency conversion machine with internal pumps and expansion tanks. It uses a brushless DC variable frequency motor suitable for voltages of 50Hz / 60Hz frequency.
Related Products
Company Introduction
NULITE NEW ENERGY HEAT PUMP HEADQUARTER
located in Guangzhou City, with three branch companys, and with 200,000 sq meters modern factory
NULITE NEW ENERGY ASHP SHOW ROOM with more than 5,000 square meters show room of 300 different models
Warehouse more than 30,000 square meters storage room, could hold more than 100,000 units at the same time
Company Advantages
Why trust us
Customer Reviews
Here are some of our customers' evaluations of our products. Thank you very much for your continued support. We will do our best to serve you. Hope you can become one of them and become our partner.
NULITE NEW ENERGY IN ASIA
NULITE NEW ENERGY HEAT PUMP is the official heat pump supplier for China North & South Pole Expedition Team.
NULITE NEW ENERGY HEAT PUMP IN EUROPE.
NULITE NEW ENERGY HEAT PUMP of EVI Split & DC Inverter Split Heat Pump is well sold in Europe and North America Market, including US,Canada, Germany, Sweden, Poland, Ukraine, Russia, Finland, Czech, Slovak, Slovenia, etc.
Packing&Shipping
Packing Details : stable plywood box package
Delivery Details : 1-25 working days after receiving payment by T/T, or alibaba trade assurance payment
Dealing Details: EXW factory, FOB Guangzhou/Shenzhen Port, CIF to destination Port, DDP Door to Door Service provided
Delivery Details : 1-25 working days after receiving payment by T/T, or alibaba trade assurance payment
Dealing Details: EXW factory, FOB Guangzhou/Shenzhen Port, CIF to destination Port, DDP Door to Door Service provided
FAQ
Q: Are you heat pump supplier of trading company or manufacturer ?
A: We are R&D and manufacturer factory. With 400,000 sq meters modern factory in Guangzhou City & Heyuan City. with OEM service
provided, MOQ> 20 Units.
Q: How long is your Heat Pump delivery time?
A: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is
according to quantity.
Q: Do you also provide other kind of heat pump?
A: ASHP of EVI(9KW-132KW) | SWIM POOL(5KW-150KW) I Domestic heat pump(80L-300L tank size) I etc…
Q: What is your terms of payment for heat pump ?
A: Payment<= 5000USD, 100% in advance. Payment>= 5000USD, 30% T/T in advance ,balance before shippment.
AIibaba trade assurance payment available. L/C Payment available only with 1 millon+ USD dealing amount.
CONTACT US RIGHT NOW!
For the most suitable Heating Cooling, Hot Water Solution!
More details to confirm, please feel free to contact us as below!
A: We are R&D and manufacturer factory. With 400,000 sq meters modern factory in Guangzhou City & Heyuan City. with OEM service
provided, MOQ> 20 Units.
Q: How long is your Heat Pump delivery time?
A: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is
according to quantity.
Q: Do you also provide other kind of heat pump?
A: ASHP of EVI(9KW-132KW) | SWIM POOL(5KW-150KW) I Domestic heat pump(80L-300L tank size) I etc…
Q: What is your terms of payment for heat pump ?
A: Payment<= 5000USD, 100% in advance. Payment>= 5000USD, 30% T/T in advance ,balance before shippment.
AIibaba trade assurance payment available. L/C Payment available only with 1 millon+ USD dealing amount.
CONTACT US RIGHT NOW!
For the most suitable Heating Cooling, Hot Water Solution!
More details to confirm, please feel free to contact us as below!
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–47 unit: US $2150 / unit
- 48–95 unit: US $2050 / unit
- 96–999 unit: US $1950 / unit
- 1000+ unit: US $1900 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this mini split heat pump?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the mini split heat pump be supplied for my local voltage?
The standard configuration is 220V/380V 50Hz/60HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
