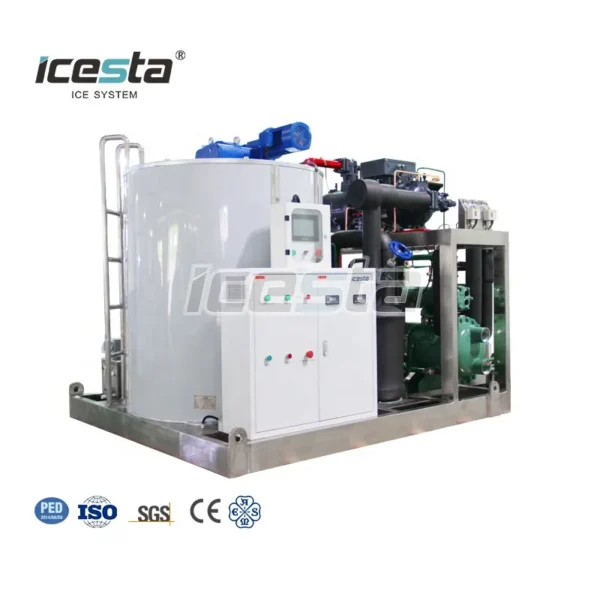

Ice Machine, ICESTA, 5t, 8t, 10t, 380V, 23.75KW, IF5T-R4A

This ice machine is published with the manufacturer’s full specification — 380V, 23.75KW. Made by Shenzhen Brother Ice System Co., Ltd. (19 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Ice Machine

• Model Number: IF5T-R4A
• Power: 23.75KW
• Voltage: 380V
• Ice Storage Capacity: Other
• Material: Stainless Steel
• Warranty: 1 Year

Technical Specifications

Product Details

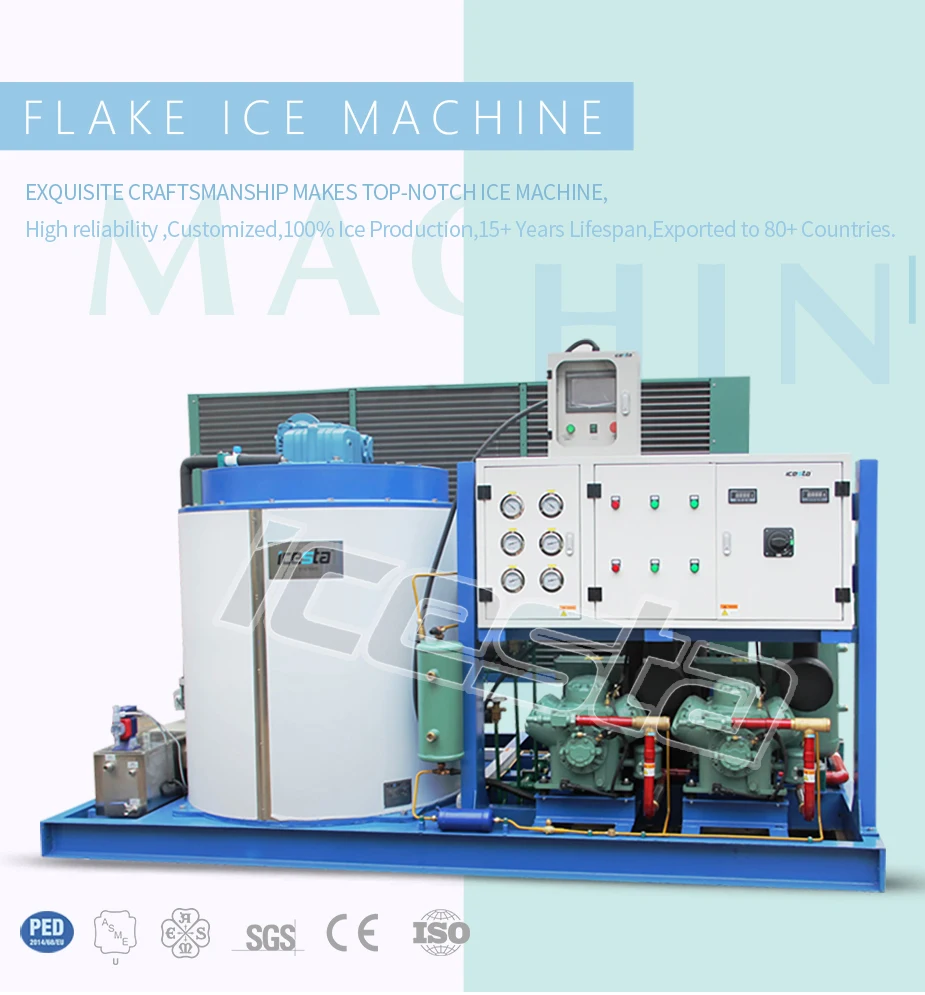

Product Introduction

Icesta Industrial flake ice machine compared with similar products on the market,it has incomparable outstanding advantages in terms of performance,quality, appearance, etc., and enjoys a good reputation in the market. ICESTA Ice System summarizes the defects of past products, and continuously improves them. The specifications of Icesta Industrial flake ice machine can be customized according to your needs.

The large series of ICESTA ice flake machine always used in the field such as aquatic food & meat product processing, fowl butchering, ocean-going fishing, dye chemical industry, mines cooling, concrete construction project, ice factories, Etc.

Technical Parameters

*The technical data based on 25°C ambient temp.20°C water inlet temp
* Power supply：3P/380V/50HZ，3P/220V/60HZ，3P/380V/60HZ，3P/460V/60HZ Optional.
* The ice thickness：1.6-2.3mm.
* Refrigerant: R404A(R22 R17 R507 is optional).

Model	IF3T-R4A	IF5T-R4A	IF8T-R4A	IF10T-R4A
Ice production	3t/24h	5t/24hrs	8t/24hrs	10t/24hrs
Cooling capacity	22.4kw	33.5kw	57.1kw	72kw
Evaporation temperature	-20°C	-20°C	-20°C	-20°C
Condensing temperature	40°C	40°C	40°C	40°C
Input total power	14.62kw	23.75kw	35.61kw	46.51kw
Compressor power	11.5kw	18kw	26.6kw	37.5kw
Pump power	0.12kw	0.12kw	0.37kw	0.37kw
Reducer power	0.37kw	0.37kw	0.75kw	0.75kw
Unit size	1700*1200*1260mm	2030X1560X1470mm	2200X1600X1870mm	3200X2000X2140mm
Weight	620kg	880kg	2600kg	2708kg

Model	IF15T-R4A	IF20T-R4A	IF25T-R2A	IF30T-R4A
Ice production	15t/24h	20t/24h	25t/24h	30t/24h
Cooling capacity	97kw	128.4kw	156.3kw	181.6kw
Evaporation temperature	-20°C	-20°C	-20°C	-20°C
Condensing temperature	40°C	40°C	40°C	40°C
Input total power	59.47kw	73.56kw	93.66kw	112.28kw
Compressor power	50.1kw	59.7kw	79.8kw	93.2kw
Pump power	0.37kw	0.75kw	0.75kw	1.5kw
Reducer power	0.75kw	0.75kw	0.75kw	1.1kw
Unit size	3200*1700*2410mm	4000*2100*2200mm	4000*2100*2200mm	5600*2100*2450mm
Weight	3480KG	4160kg	4960kg	5380kg

Show Details

All great works are moving in countless details, and every high-quality ice machine is precisely carved out of the details.

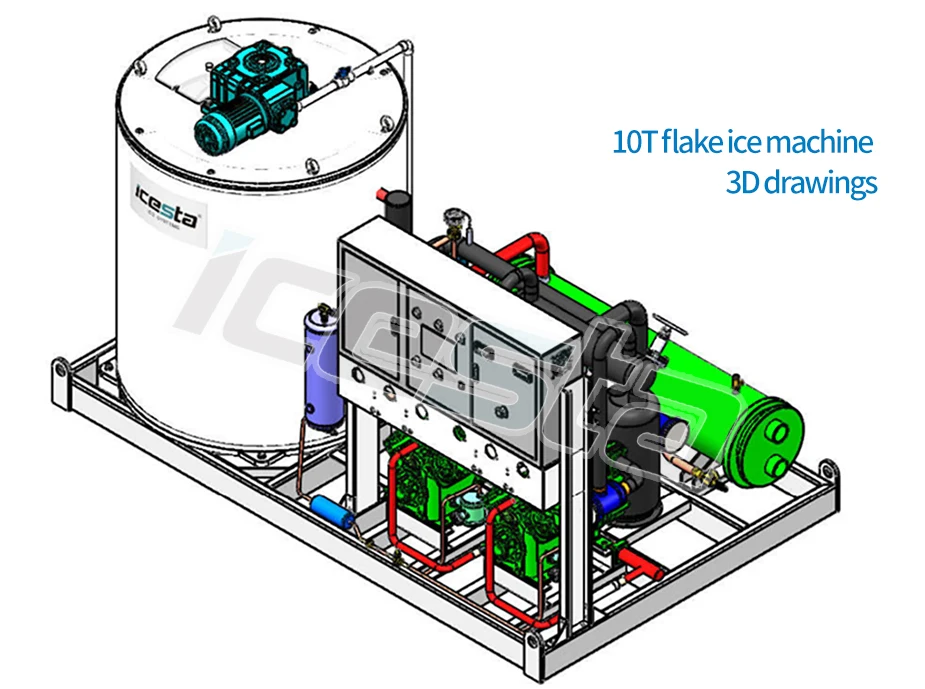

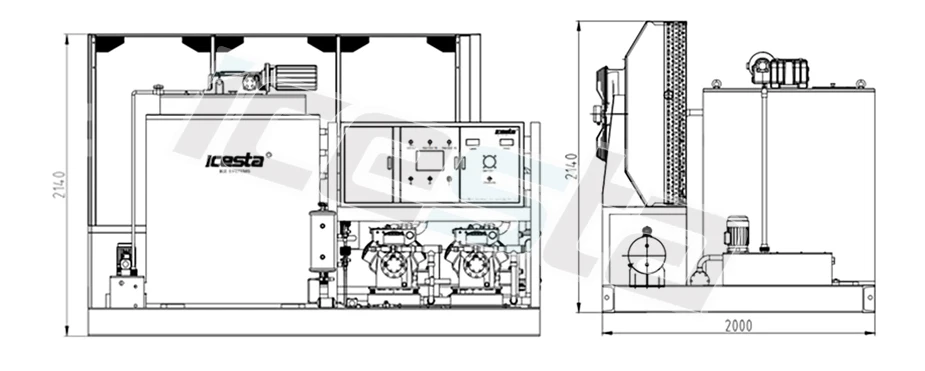

Drawing Display

The ICESTA team has used more than 20 years of experience in refrigeration and ice making to continuously innovate products to achieve higher efficiency, more stable operation, smoother ice removal and ice production, over 20 technicians provide life time service.

Advantage

Advantages of ICESTA flake ice machine
The ICESTA series of flake ice machines are the first dynamic process intelligent control system (touch screen) in the industry in our country, which can remotely control the system touch screen, so that the running status of the ice machine can be displayed through touch, and it can quickly search for problem solutions to make the ice machine human Make a more perfect breakthrough.

ICE FLAKER Generator (evaporator)
*Prominent Heat treatment to avoid any SRINKAGE

*TOP welding testing technics with X-RAY——Never leak

Intellectualized PLC controller with touch-screen
*All failure record & instant solution available
*Stop-time setting at will.
*Different languages version

Elaborate details design gives all-sided convenience
*Human-machine interactive intelligent touch screen control system
*Sufficient ice output

Application Industry

ICESTA is providing the world Excellent Tube ice solutions with high ice output, reliable performance and humanization design.
ICESTA ice flaker serious always used in the field such as supermarkets , restaurants (fresh),aquatic food & meat product processing, leather processing , fowl butchering,dye chemical industry, mines, concrete construction project,Etc.

Auxiliary equipment

Icesta Provide all kinds of Auxiliary equipment, if you have other kinds of product need to buy, we would very happy to provide serive with our experiences.

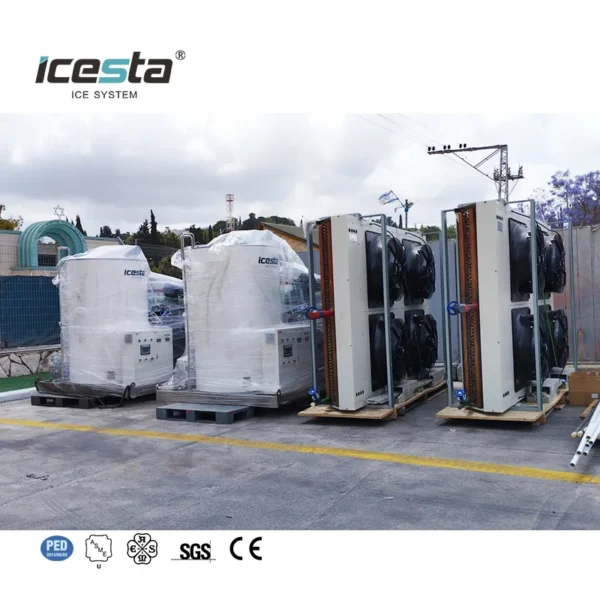

Engineering Case

Since 2007, ICESTA products have been sold to more than 80 countries around the world, and provide distributor services in many regions

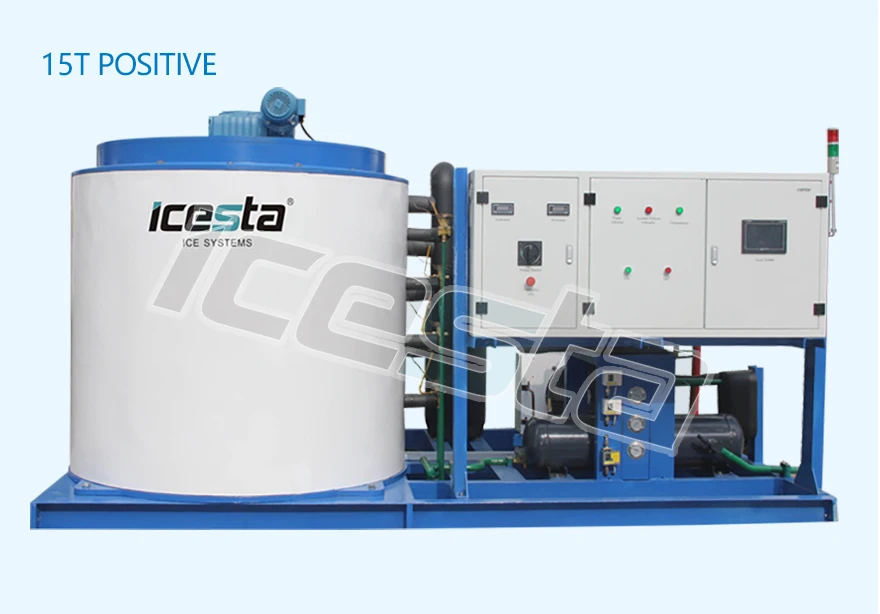

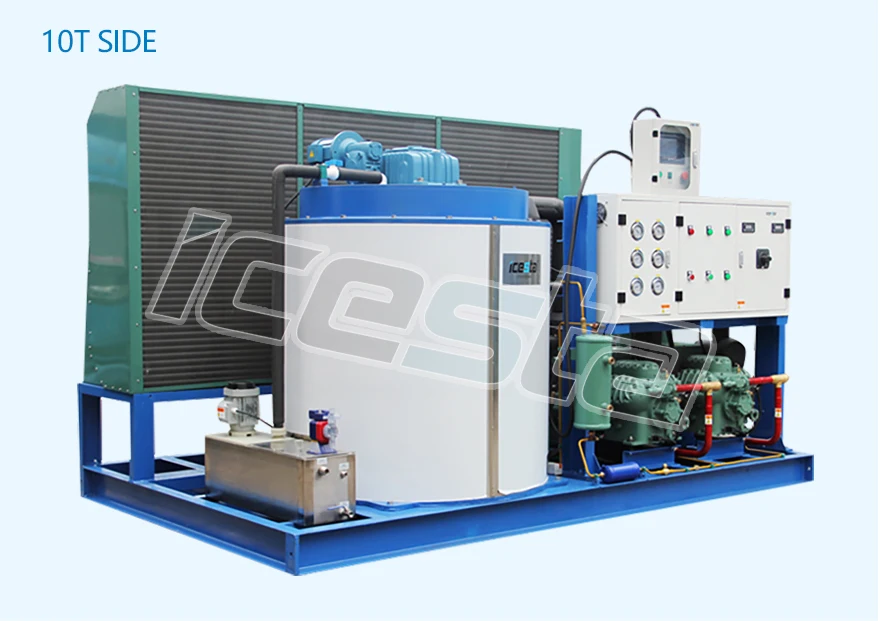

Picture Display

Technology, change the world, innovate, and subvert tradition. We are committed to making people's production and life more convenient, efficient and beautiful These pictures is just for references, if you need details, please contact us.

Product Hot Sale

Why choose us

ICESTA

20 years dedication in ice making technology to create excellence.

Shenzhen Brother Ice System Co., Ltd. ( ICESTA Brand), a well-known ice machine manufacturer and industry leader and pioneer in China.The product covers flake ice /Block ice machine, Tube ice /slurry ice/plate ice/cube ice machines, water
chillers,Plate/spiral/blast freezers, Automatic ice storing & delivery system with integrated container ice system,artificial snow making machine.etc

Experiences & History:
20-Years Team focus on innovative solution in Ice & Cooling technology.
18-Years Professional Manufacturer, Supplier of Excellent Turnkey ice & cooling projects.

Industry status& Reputation:
* TOP 3 of China industrial ice machine Brand with strong capability of R&D
* 20000㎡ Factory
* ISO 9001 , CE, PED, ASME (U.S ) Certificates etc

Technology & Management capability:
* 80+ patents Certificates
* High Technology enterprise Certificate

Services & Global Net:
* Export to 80+ countries
* Local service in 50+ countries with networks all over the world.
* 1-2 years warranty covers each component.

FAQ

FAQ (Frequently Asked Questions)

1. Questions before quotation
A. Would you make ice from seawater, saltwater or freshwater?
B. Where and when would the machine be installed roughly?The ambient temperature and water inlet temperature?
C. What’s the power supply?
D. What is the application of the flake ice produced?
E. Which cooling mode would you prefer to? Water or air ,Evaporative cooling?

2. Installation & commissioning
A. Installed by customers according to the manuals, online instructions and live video conference of ICESTA.
B. Installed by ICESTA engineers.
a. ICESTA would arrange 1~3 engineers based on the projects to the installation sites for the final supervision of all
installations and commissioning.
b. Customers need to provide local accommodation and round-trip ticket for our engineers and pay for the commissions. US Dollars
100 per engineer per day.
c. Power, water, installation tools and spare parts need to be ready before ICESTA engineers arrive.

3. Warranty & Technical support
A. 1 year after Bill of Lading date.
B. Any failure occurred within the period due to our responsibility, ICESTA will supply the spare parts for free.
C.ICESTA provide full technical support and training courses after equipment installation and commissioning.
C. Permanent technical support & consultation all life long for the machines.
D. Over 25 engineers for instant after-sale services and more than 15 are available for serving overseas.
365 days X 7 X 24 hours phone / EMAIL assistance

4. Failure Claim procedures
a. Detailed written failure description is required by fax or by mail, indicating the relevant equipment information and detailed
description of failure.
b. Relevant pictures are required for failure confirmation.
c. ICESTA engineering and after-sales service team will check and form a diagnosis report.
d. Further trouble-shooting solutions will be offered to customers within 24 hours after receiving the written description and pictures

Ordering and Pricing

• Minimum order quantity: 1 unit
• Volume pricing:
  • 1+ unit: US $16000 / unit
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this ice machine?

The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this ice machine carry?

It is supplied with CE ISO9001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the ice machine be supplied for my local voltage?

The standard configuration is 380V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Shenzhen Brother Ice System Co., Ltd., based in China. The company 19 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shenzhen Brother Ice System Co., Ltd. range on HVACR Nexus.
