Key specification for this mppt solar charge controller: type MPPT, model number EMD60A. Everything below is reproduced from the factory data sheet. Made by Elejoy electronics (Taizhou) Co., Ltd. (4 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Mppt Solar Charge Controller
- Model Number: EMD60A
- Max PV Power: 2700W
- PV Power: 2700W
- Max PV Voltage: 130V
- PV Voltage: 130V
- Warranty: 1 year
Technical Specifications
| Type | MPPT |
|---|---|
| Application | Solar System Controller, Voltage Controller, Charger Controller |
| Place Of Origin | Zhejiang, China |
| Brand Name | ELEJOY |
| Model Number | EMD60A |
| Work Time (H) | 100000 hours |
| Max PV Power | 2700W |
| Max PV Voltage | 130V |
| PV Voltage | 130V |
| PV Power | 2700W |
| Warranty | 1 year |
| Certificate | CE |
| Selling Units | Single item |
| Single Package Size | 27.5X16.5X6 cm |
| Single Gross Weight | 4.0 kg |
Product Details
Professional MPPT solar charge controller factory in China
All of the MPPT solar charge controllers have passed CE certification.
MPPT: Maximum Power Point Tracking
The MPPT controller utilizes Solar Maximum Power Point Tracking (MPPT) technology to extract maximum power from the solar array. The tracking algorithm is fully automatic and does not require user adjustment. MPPT technology tracks the array maximum power point as it varies with weather conditions, ensuring that maximum power is harvested from the array throughout the course of the day.
PRODUCT FEATURE
-

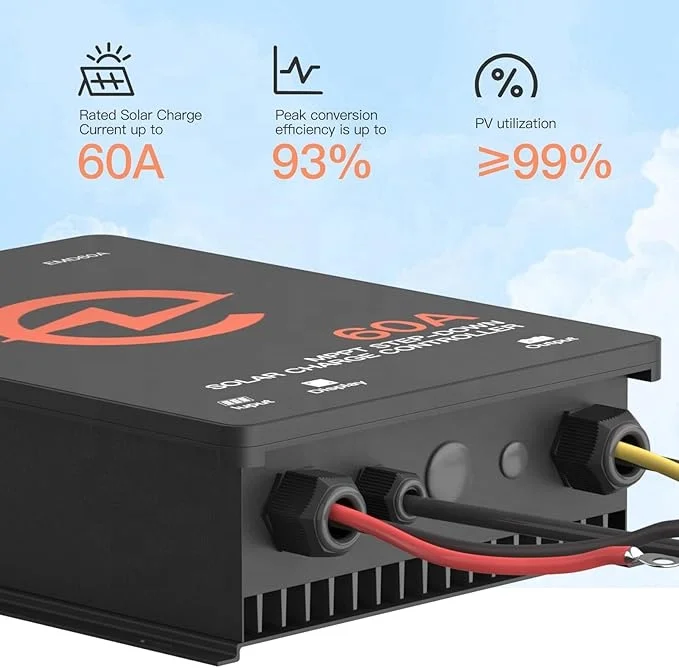

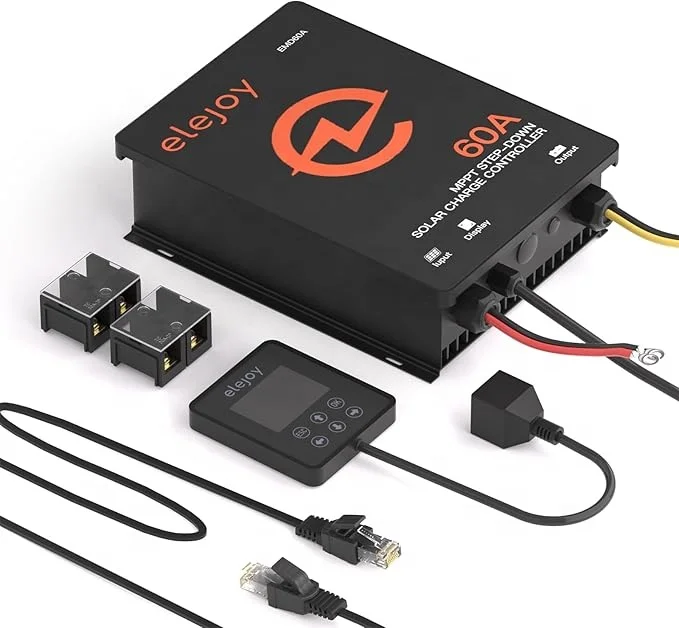

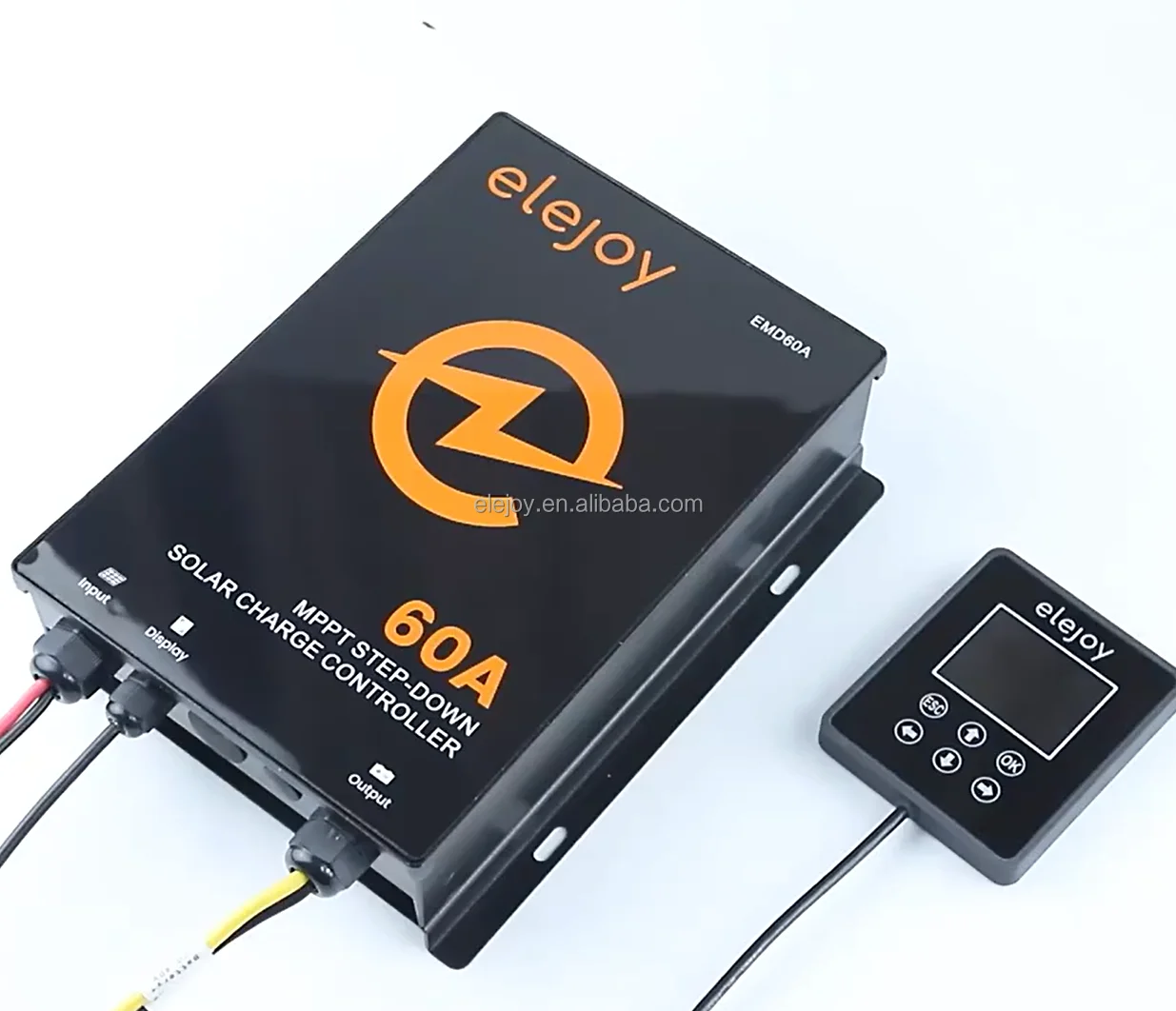

The EMD60A series buck type MPPT solar charge controller is an intelligent solar controller designed for small and medium-sized off-grid photovoltaic power generation systems, with a maximum output current of 50A. Using industry-leading MPPT (Maximum Power Point Tracking) technology, it achieves maximum power tracking of solar panels, enabling it to quickly and accurately track the maximum power point of solar panels in any environment. This allows the controller to obtain the maximum energy from solar panels in real-time, significantly improving the energy utilization of the solar system.
-
Using MPPT (Maximum Power Point Tracking) technology, the efficiency of MPPT tracking reach up to 99%

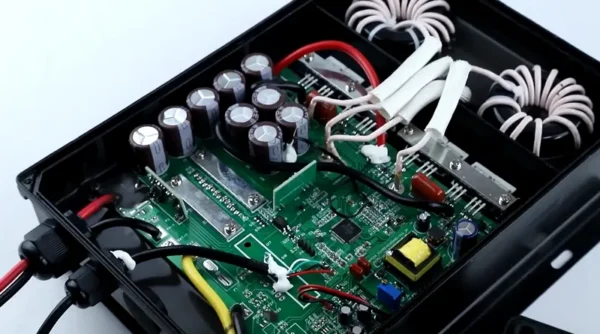

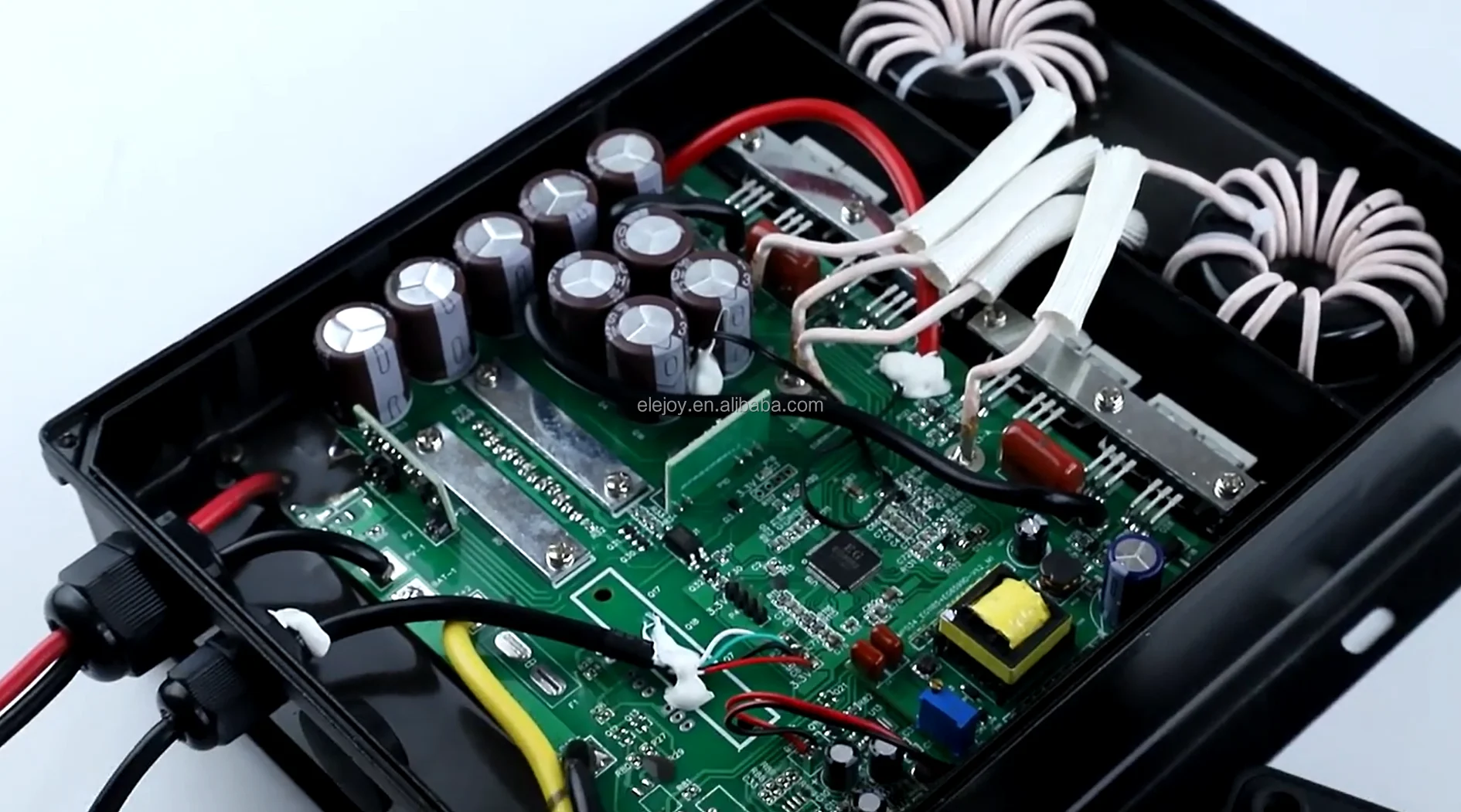

Using high efficiency synchronous rectifier circuit structure
Input voltage: 20-130V Output voltage: 10-60V, Output current 60A
MPPT Efficiency ≥99%
Output voltage adjustable
Support for lead-acid & lithium battery etc.
Supports lithium battery and lead-acid activation

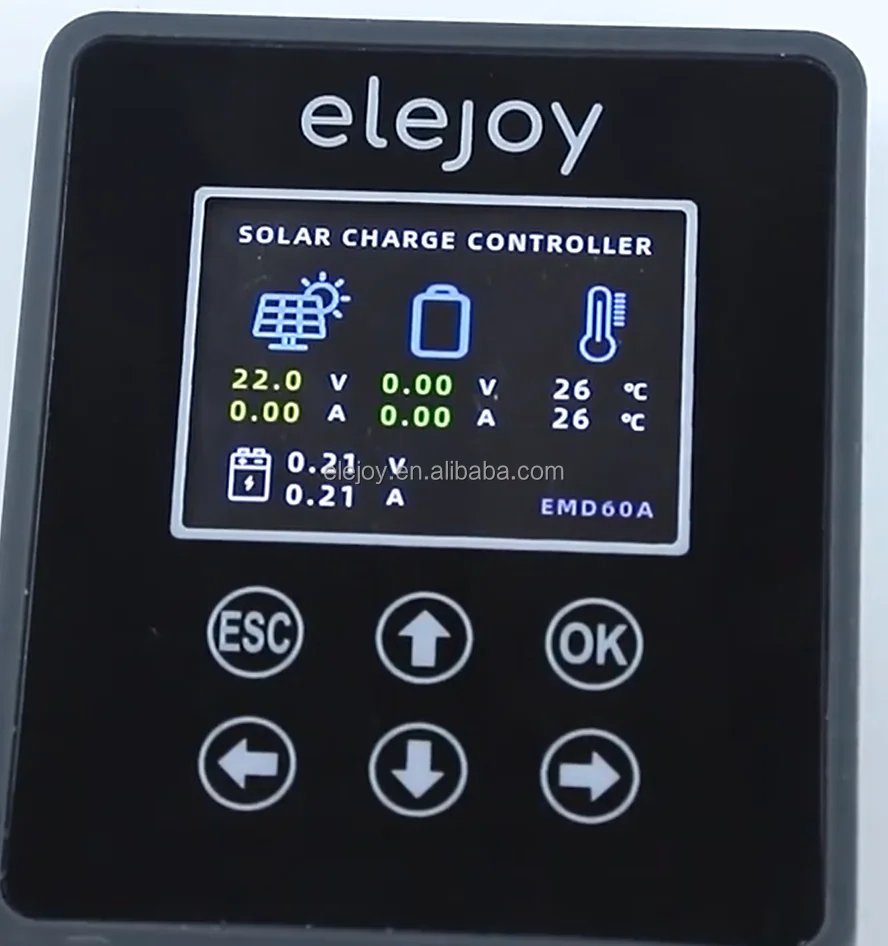

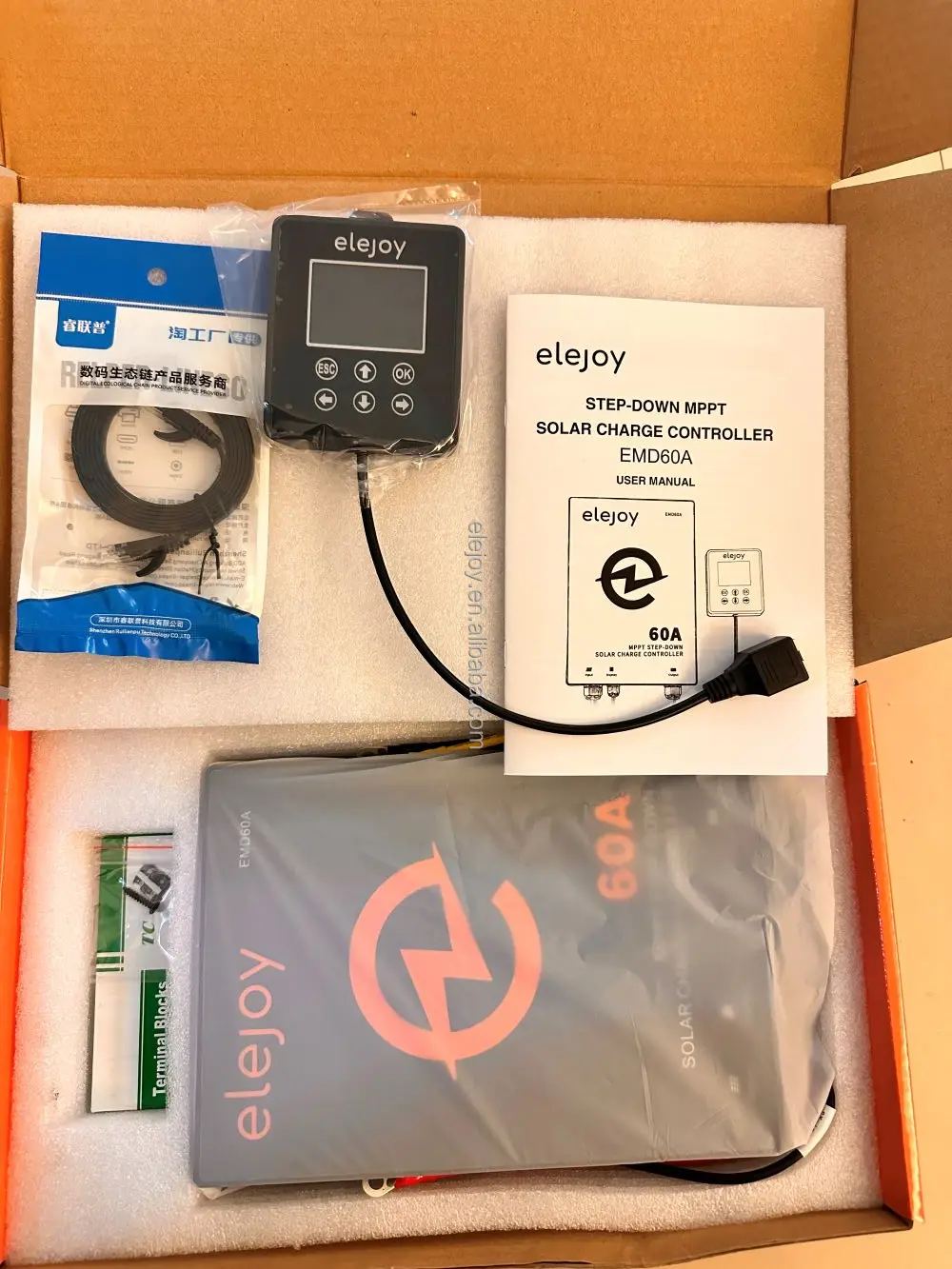

High-definition LCD screen display input voltage, output voltage & output current

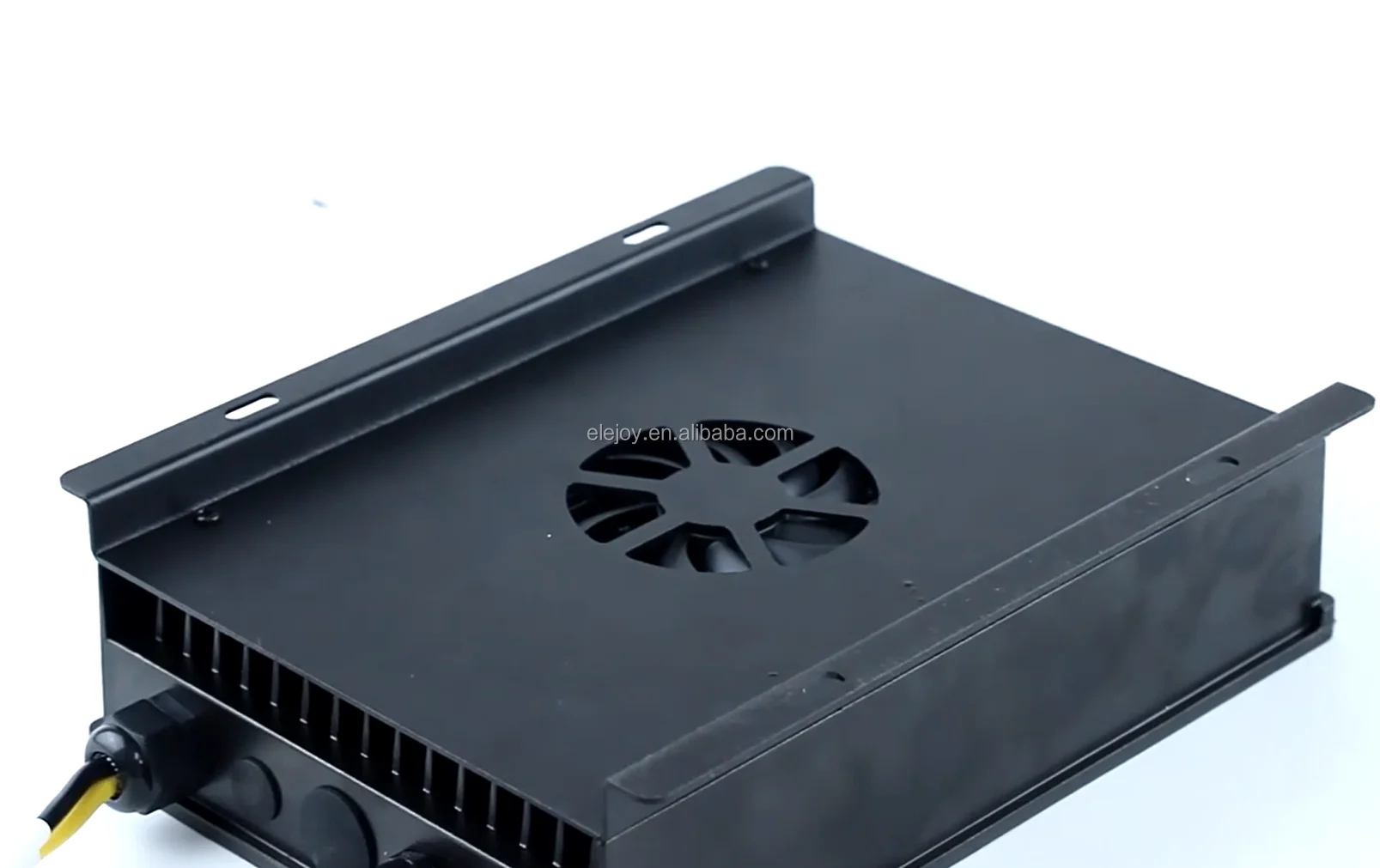

Intelligent temperature control & use a fan for heat dissipation
Under-voltage protection, Over-temperature protection, Short-circuit protection, Output over-current protection, Over voltage protection, Reverse current protection
High-quality aluminum radiators & high-temperature reduction treatments ensure reliable & efficient operation in various working environments
APPLICATION AREA
n Solar power generation
n Outdoor energy storage power supply
n RV backup power supply
n Household appliances
n Lighting
n Digital products
n Solar powered toy car
| Model | EMD60A | |
| Product name | MPPT solar charge controller | |
| Brand | ELEJOY | |
| Input | Open Circuit Voltage | >20V |
| Input Voltage | 16V – 130V | |
| 16V – 130V @12V battery | ||
| 32V – 130V @24V battery | ||
| 46V – 130V @36V battery | ||
| 62V – 130V @48V battery | ||
| Output | Output Voltage | 10V – 60V |
| Output Current | 60A @<2700W | |
| No-load Loss | 2.5W-5.5W | |
| Power Conversion Efficiency | >93% | |
| MPPT Conversion Efficiency | >99% | |
| Other | Voltage Adjustment Rate | 1% |
| Load Adjustment Rate | 5% | |
| Cooling Method | Smart air cooling | |
| Operating Temperature | -40℃ ~ 60℃ | |
| Net Weight |
| |
| Dimensions | 275mm×165mm×60mm |
Company Overview
FAQ:
1. Are you a manufacturer?
100% yes, if you have a chance, you can visit our factory anytime.
2. Do you have any MOQ limit?
One piece is possible, you can buy one sample for testing first.
3. What about the lead-time?
Normally 1-2 working days after receive the payment.
4. How to pay for the sample fee?
Please send the payment to our PayPal account or from Alibaba directly.
5. How do you ship the goods?
We often ship by DHL, UPS, FedEx or TNT, it usually takes 3-5 days to arrive.
6. Do you offer guarantee for the products?
Yes, we offer 1-year warranty for all solar charge controllers.
7. I cannot find the suitable model, can I ask for a special model I need?
Sure. We are professional solar charge controllers designer and manufacturer in China, please advising the detail specification you need, we will make it according to your request.
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–49 piece: US $60 / piece
- 50–99 piece: US $55 / piece
- 100–299 piece: US $52 / piece
- 300+ piece: US $49 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this mppt solar charge controller?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this mppt solar charge controller carry?
It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the mppt solar charge controller be supplied for my local voltage?
The standard configuration is 130V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
