The negative pressure exhaust fan listed here carries 380v-480v, power source Electric, documented exactly as the manufacturer publishes it. Made by SHANGHAI TERRUI INTERNATIONAL TRADE CO., LTD. (20 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Negative Pressure Exhaust Fan
- Model Number: YDA048DECK6460WMA5
- Power Source: Electric
- Voltage: 380v-480v
- Blade Material: Aluminum Alloy
- Material: Aluminum Alloy
- Speed: 460rpm
Technical Specifications
| Fan Type | Exhaust |
|---|---|
| Type | exhaust fan |
| Blade Diameter | 48”/1.2m |
| Voltage | 380v-480v |
| Speed | 460rpm |
| Blade Material | Aluminum Alloy |
| Material | Aluminum Alloy |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Control Methods | App Control |
| Customized Support | OEM, OBM, ODM |
| Mounting Type | Wall Fan |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Place Of Origin | Shanghai, China |
| Brand Name | TERRUI |
| Model Number | YDA048DECK6460WMA5 |
| Color | Black, White |
| Product Name | 48”/1.2M REFINE Exhaust fan |
| Application | Large Areas |
| Keywords | poultry suction fan |
| Usage | cooling |
| Number Of Fan Blades | 6 |
| Fan Motor | Outer rotor permanent magnet brushless DC motor |
| Certification | CE |
| Applicable Industries | Poultry Houses Fan |
| Selling Units | Single item |
| Single Package Size | 146X146X58 cm |
| Single Gross Weight | 31.000 kg |

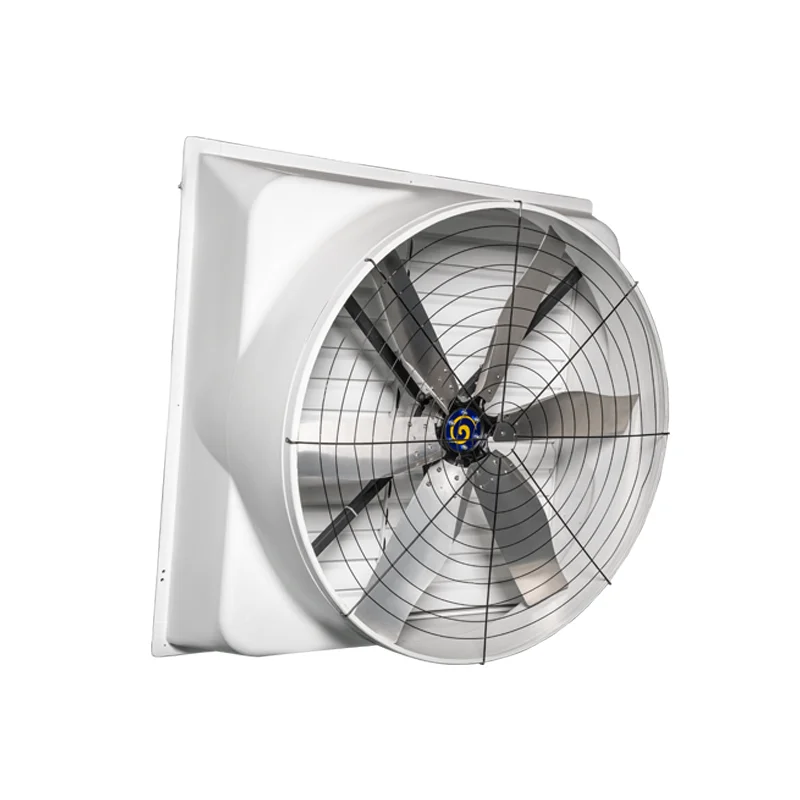

Product Details
◎Housing is made from high strenth fiberglass.corrosion resistance,easy to clean
◎6 process testings(noise,shaking,blade speed,air volume,concentricity and efficiency)bring good heat
emission,high efficiency(direct drive),big torque,long-life usage
◎large air volume,less noise gives more comfort to animals
◎Steel meshes fixed on the front and back of the fan protect animals and labours from bruise

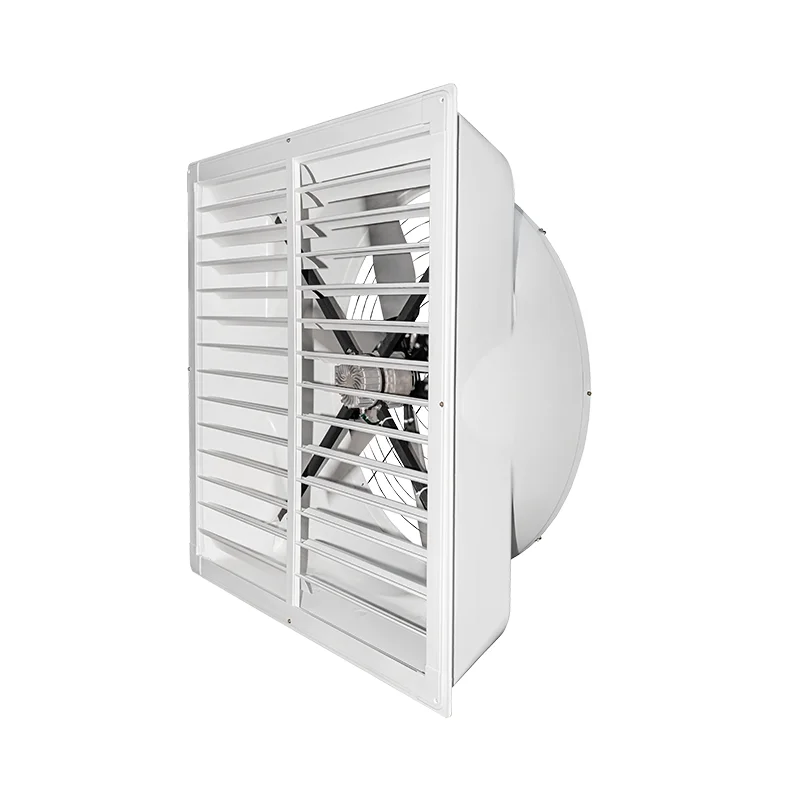

◎High quality shuttler for easy opening and closing
◎Voltage and frequency can be customized
Product Name | 48’’/1.2M REFINE Exhaust fan |
Frame Material | High-strength fiberglass |
Max Airflow | 45000m³/h (26000CFM) |
Power | 3PH/380-480V/50-60HZ |
Blade Material | 6pcs Alloy(3mm thickness) |
Rotation Speed | 460r/min |
Air Volume/W | 52.9m³/h |
Terrui International CO.,LTD
2. Multiple new-design model options;
3. Strict quality control, fast delivery and good after-sales service;
4. We welcome OEM and ODM orders;
Sincerely we hope to work together with you and get a win-win cooperation relationship in the future！ Welcome to Shanghai Terrui International Co., Ltd!
9. International product sales consultant market analysis, planning, marketing and other services
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $378 / piece
- 10–29 piece: US $356 / piece
- 30+ piece: US $338 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this negative pressure exhaust fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this negative pressure exhaust fan carry?
It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the negative pressure exhaust fan be supplied for my local voltage?
The standard configuration is 380v-480v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by SHANGHAI TERRUI INTERNATIONAL TRADE CO., LTD., based in China. The company 20 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full SHANGHAI TERRUI INTERNATIONAL TRADE CO., LTD. range on HVACR Nexus.
