Key specification for this noise dust collector impeller: 220 V, material Stainless Steel. Everything below is reproduced from the factory data sheet. Made by Guangzhou Xiangfeng Electromechanical Equipment Co., Ltd. (4 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Noise Dust Collector Impeller
- Blower Power: 550W
- Voltage: 220 V
- Material: Stainless Steel
- Blade Material: Stainless Steel
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
Technical Specifications
| Voltage | 220 V |
|---|---|
| Material | Stainless Steel |
| Blade Material | Stainless Steel |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Place Of Origin | Guangdong, China |
| Brand Name | Baofeng |
| Weight | 23kg |
| Size | 50*46*49cm |
| Blower Power | 550W |
| Frequency | 50 Hz |
| Application | Air Ventilation |
| Phase | 3 Phase |
| Selling Units | Single item |
| Single Package Size | 59X47X69 cm |
| Single Gross Weight | 65.0 kg |
Product Details
Model | RB -3-060-11 | RB -3-018-12 | RB -3-025-13 | RB -3-037-14 | RB -3-055-15 |
Power Supply 50Hz | 3 phase 380V | 3 phase 380V | 3 phase 380V | 3 phase 380V | 3 phase 380V |
Blower power | 60W | 180W | 250W | 370W | 550W |
Max airflow rate | 4 m³/min＝240 m³/h(r) | 6.8 m³/min＝408 m³/h(r) | 8.4 m³/min＝504 m³/h(r) | 11 m³/min＝ 660 m³/h(r) | 14 m³/min＝ 840 m³/h(r) |
Wind pressure | 412Pa | 450Pa | 850Pa | 850Pa | 1050Pa |

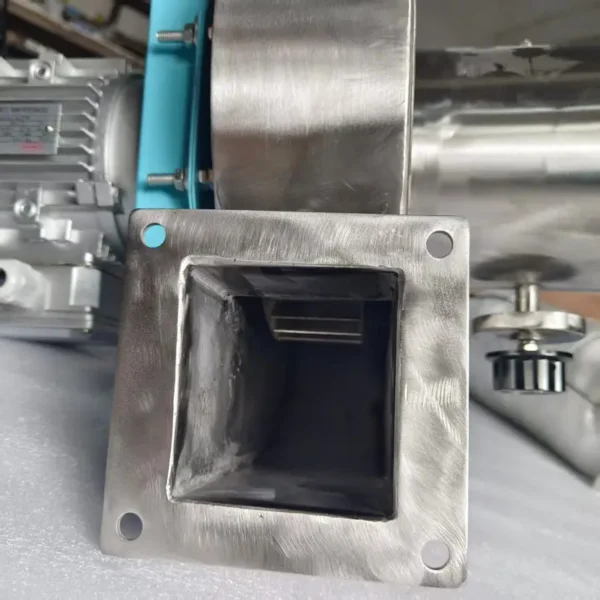

Air outlet specifications | 67x47mm | 70x67mm | 75x53mm | 102x52mm | 76x78mm |
Weight（about） | 10kg | 13.5kg | 13.5kg | 17kg | 20kg |
Model | RB -3-075-16 | RB -3-1.1-17 | RB -3-1.5-18 | RB -3-2.2-19 | RB -3-3-20 |
Power Supply 50Hz | 3 phase 380V | 3 phase 380V | 3 phase 380V | 3 phase 380V | 3 phase 380V |
Blower power | 750W | 1.1kW | 1.5kW | 2.2kW | 3kW |
Max airflow rate | 20 m³/min＝1200 m³/h(r) | 22 m³/min＝1320 m³/h(r) | 23 m³/min＝1380 m³/h(r) | 24 m³/min＝ 1440 m³/h(r) | 25 m³/min＝ 1500 m³/h(r) |
Wind pressure | 1250Pa | 1.7kPa | 1.9kPa | 2.1kPa | 2.3kPa |
Air outlet specifications | 102x78mm | 115x115mm | 115x115mm | 190x190mm | 190x190mm |
Weight（about） | 24kg | 28kg | 33.5kg | 36.5kg | 44kg |
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1+ unit: US $350 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this noise dust collector impeller?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the noise dust collector impeller be supplied for my local voltage?
The standard configuration is 220 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Xiangfeng Electromechanical Equipment Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Guangzhou Xiangfeng Electromechanical Equipment Co., Ltd. range on HVACR Nexus.
