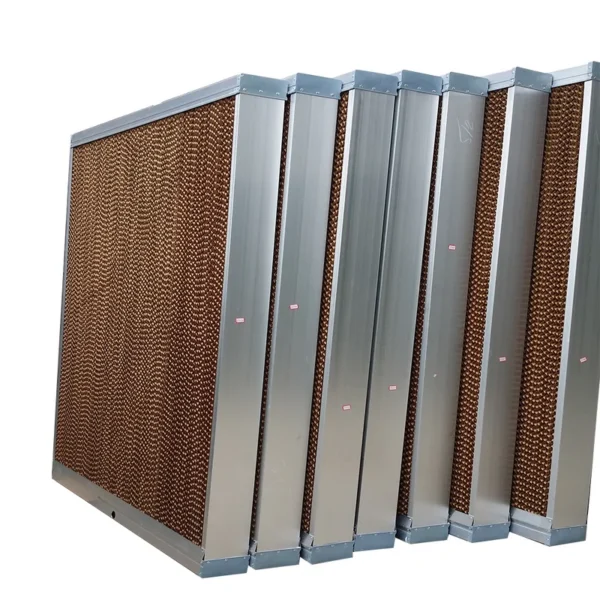

The pad water air cooler listed here carries type 7090/7060/6090/5090, model number 7090/7060, documented exactly as the manufacturer publishes it. Made by North Husbandry Machinery (qingzhou)co., Ltd. (2 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Pad Water Air Cooler
- Model Number: 7090/7060
- Frame Material: aluminum,plastic,galvanized,stainless stee
- Warranty: 5 year
- Place Of Origin: Shandong, China
- Type: 7090/7060/6090/5090
- Weight (Kg): 23
Technical Specifications
| Usage | Chicken, cow, Pig |
|---|---|
| Condition | New |
| Warranty | 5 year |
| Model Number | 7090/7060 |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 23 |
| Brand Name | NORTH&HUSBANDRY |
| Type | 7090/7060/6090/5090 |
| Color | Blown/Red/Black/White/Green/Yellow |
| Height | 600/950/1000/1200/1500/1800/2000 |
| Width | 300/600/750/900 |
| Thickness | 50/100/150/200/300/600 |
| Oil Paint Paintcoat | black/green/yellow/blue/transparency |
| Customized Logo | (Min. Order 28 Cubic Centimeters) |
| Customized Packaging | (Min. Order 28 Cubic Centimeters) |
| Frame Material | aluminum,plastic,galvanized,stainless stee |
| Tension Resistance: | 70N |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Products Description
Livestock breeding equipment new cooling pad factory cooling environmental protection water curtain paper
Evaporative cooling system is the most efficient and economical cooling system, widely used in agriculture, industry, and commerce.
Poultry House:Adjust temperature, ventilation, and humidity to promote rapid animal growth. Greenhouses: To maintain optimal growing conditions for plants. Industrial Applications:Where large volumes of cooling are needed at a lower cost. Everything is for creating higher value.

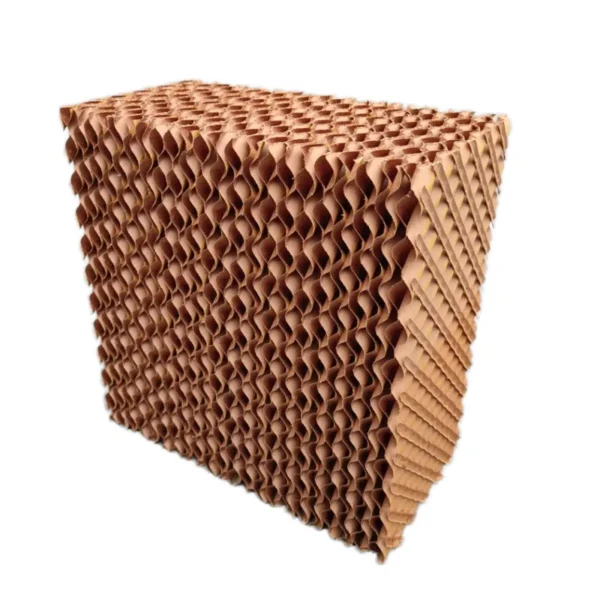

Wood Pulp Fiber Evaporative Cooling Pad Water Cooling System
1. Evaporation Process: The system uses water to cool the air. As water evaporates, it absorbs heat from the air, resulting in cooler air being circulated into the environment. 2. Airflow: A fan pulls warm air through wetted cooling pads, which are typically made of cellulose or synthetic materials that retain water. 3. Cooling Pads:These pads are designed to maximize surface area for the water, enhancing the evaporation process. They are kept moist by a continuous supply of water. 4. Ducting and Distribution: The cooled air is then distributed throughout the space via ducting or fans.
pad thickness | Wind speed | 0.6 | 0.8 | 1.0 | 1.2 | 1.4 | 1.6 | 1.8 | 2.0 |
100mm | Pressure drop | 7.0 | 8.0 | 11.0 | 16.0 | 20.0 | 24.0 | 28.0 | 35 |
Effectiveness | 82.0 | 80.0 | 78.3 | 76.5 | 74.9 | 73.3 | 72.0 | 70.8 | |
150 | Pressure drop | 10.0 | 13.0 | 18.0 | 23.0 | 30.0 | 38.0 | 45.0 | 54.4 |
Effectiveness | 92.5 | 91.3 | 90.0 | 88.7 | 87.5 | 86.5 | 85.4 | 84.5 |

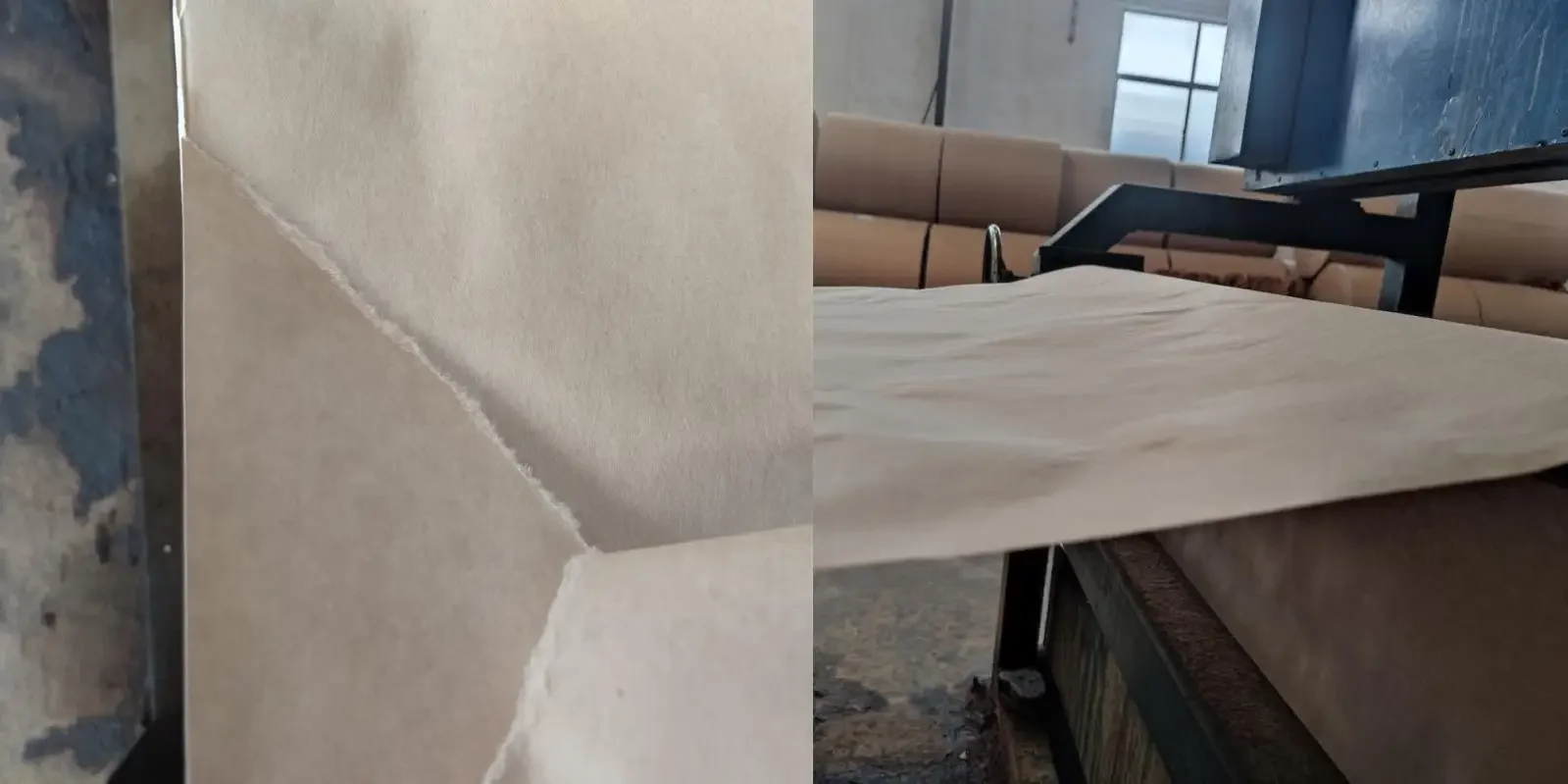

The N&H cooling pad series are the major component of wet curtain cooling system.Our product performance has the characteristics of a largest number of single sheets of paper, which can reach 86 sheets of paper at 60cm, and the characteristics of moderate curing hardness and high bonding strength. Such products can produce better water absorption and longer life. The raw paper of cooling pad are made in China and Finland. These raw materials are made from long-lived excellent wood in the deep of the tropical rain forest, which is ground by machines into high-quality fibrous wood pulp, and then processed by paper-making equipment to make a perfect piece of paper.These paper has a large fiber, fiber uniform, easy to absorb water, not easy to decay and other characteristics.

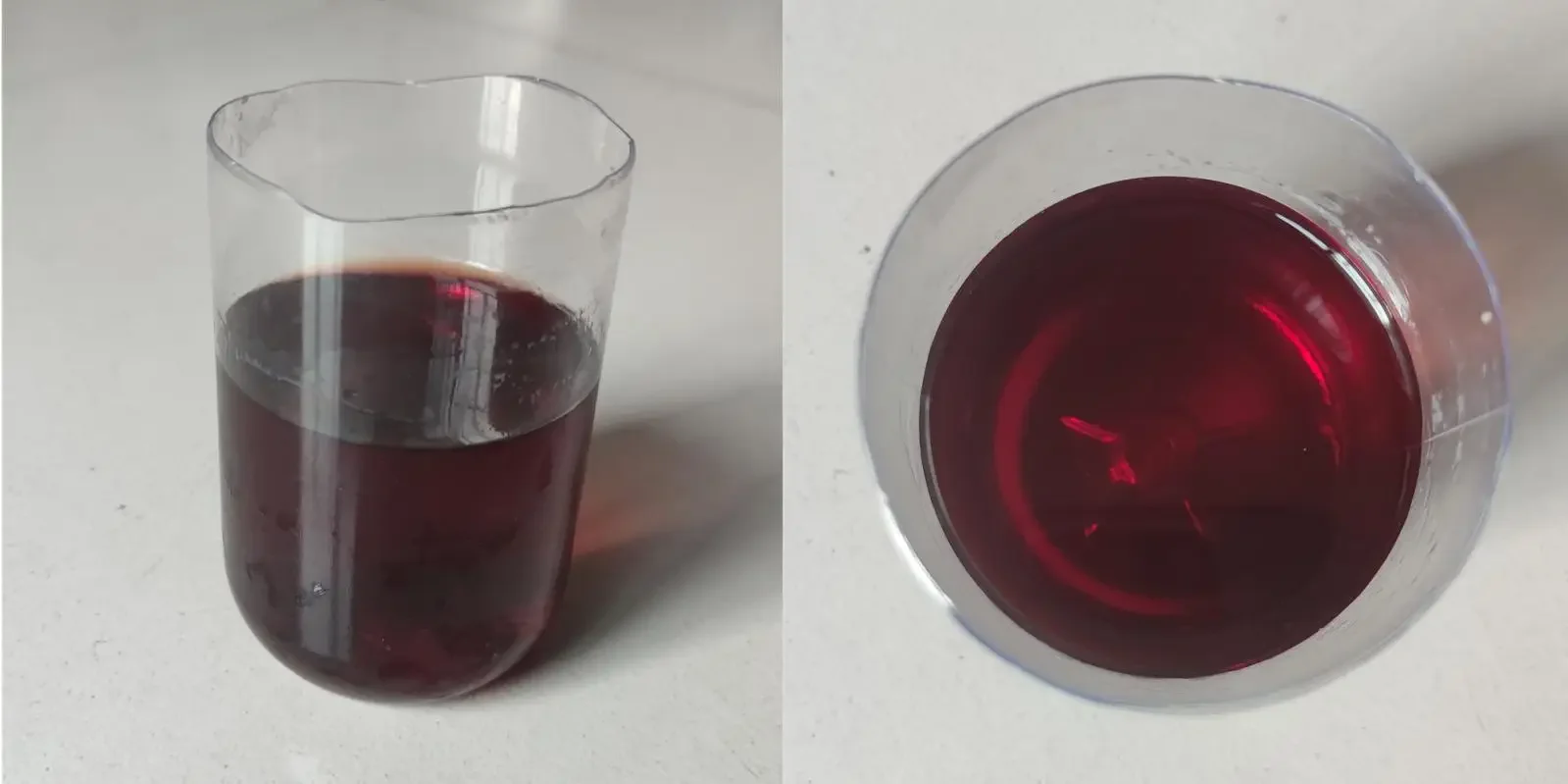

Curing red glue as one of the important solidified materials. The formulated chemical substances made by our engineers through polyvinyl alcohol,Thickeners and preservatives and other chemicals. This product has good curing effect, moderate hardness, anti-corrosion, long life and other effects.

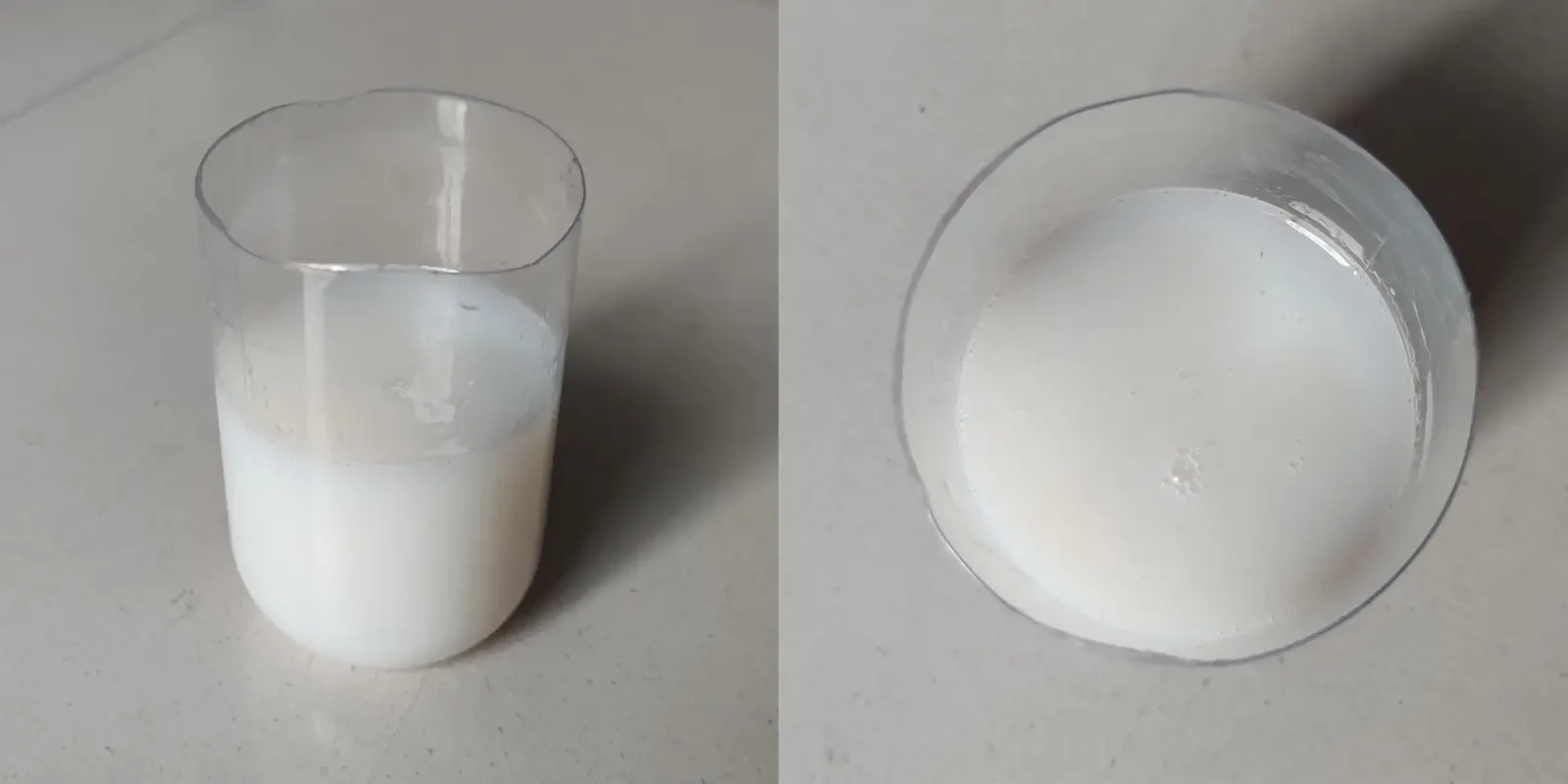

As one of the important raw materials, white glue is made by our company's engineers through chemical material ratio, including toluene, hot melt adhesive and water-based adhesive,manufactured through high-temperature reaction, .This product has High adhesion, high temperature resistance, long life, adhesive life of 8-15 years.Products through drying and heating,can generate high-strength adhesion effect under high temperature.

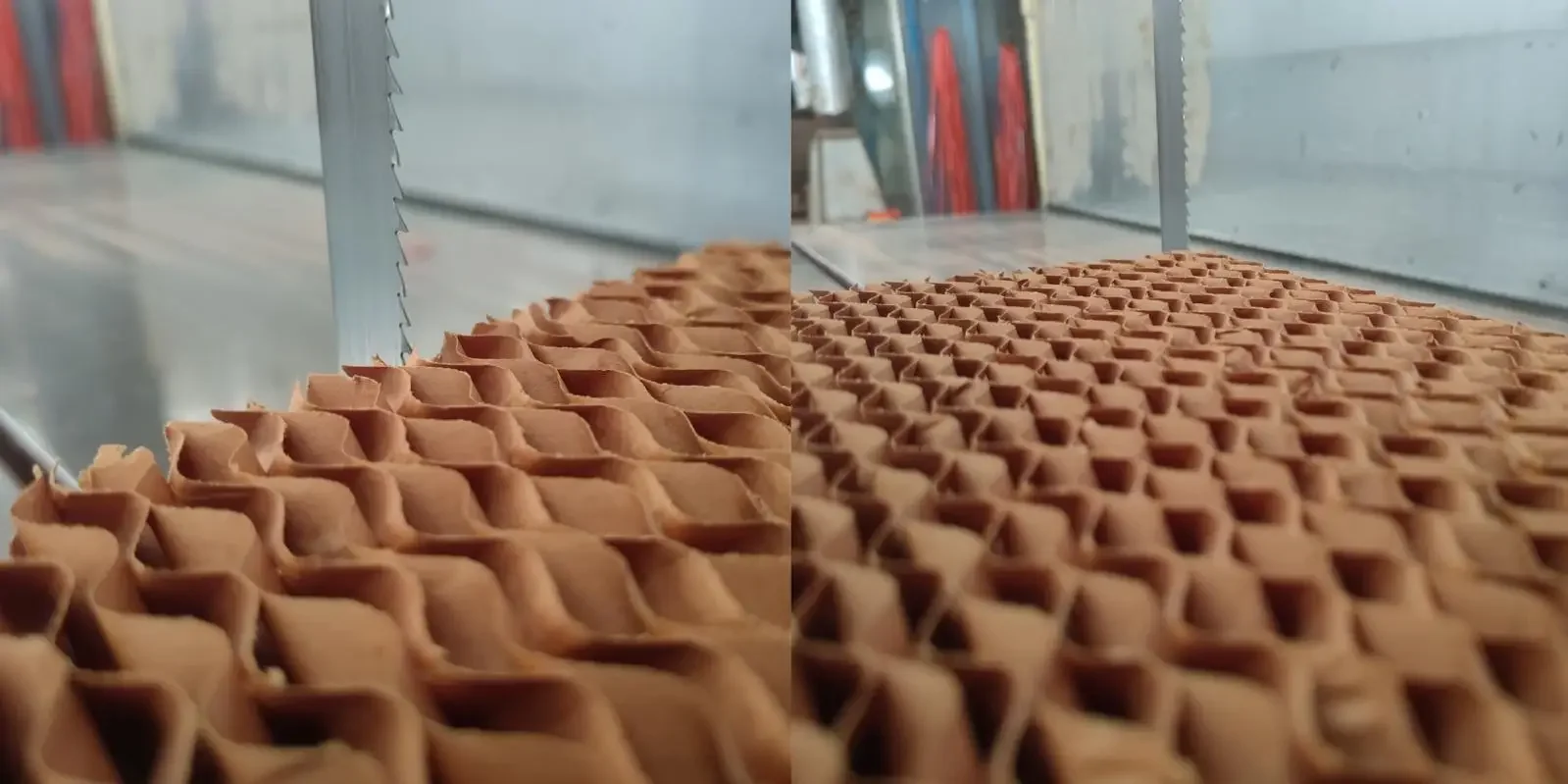

The sawing machine can split the cooling pad into different sizes. The burrs and fibers of the product can be adjusted by adjusting the revolving speed to achieve the best performance and effect. The smooth side and the rough fiber respectively maximize the cooling effect of the product.

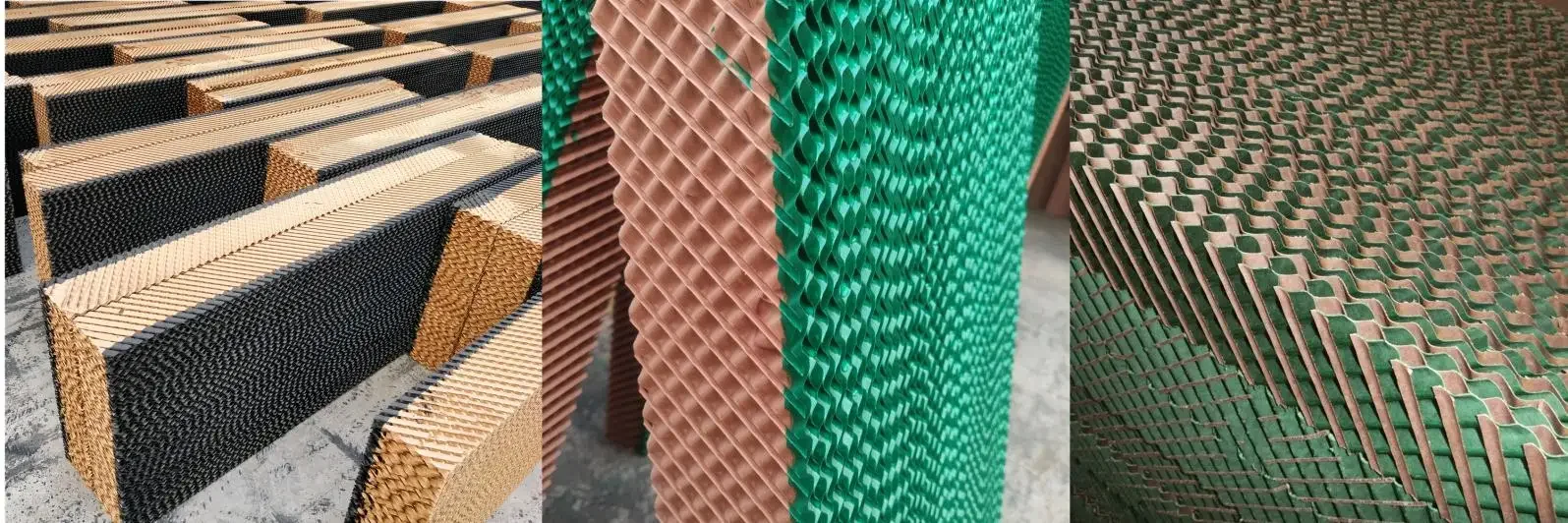

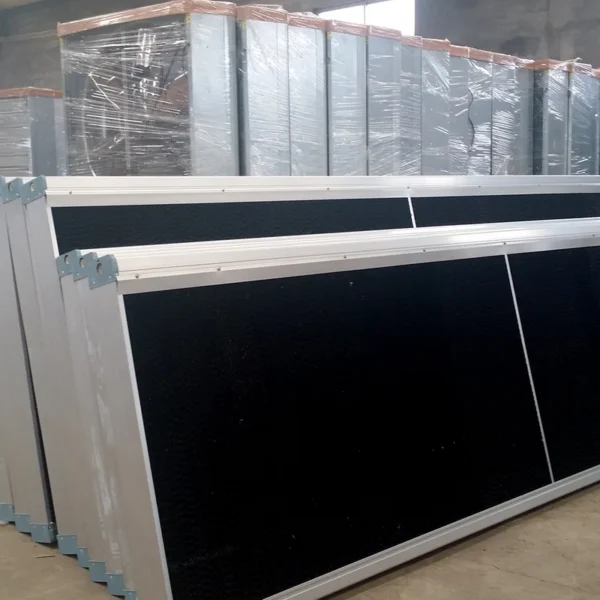

Color and coating can be customized discretionarily .Brown color is normal.Colour can be changed through soak color paste , such as : green, brown and green double color, black. Paint coating can be customized add , this is high-end custom.Prolong the service life of the product, increase the cooling and humidifying effect, and the color can be single-sided black, single-sided green, single-sided red, single-sided blue, transparent color, etc.

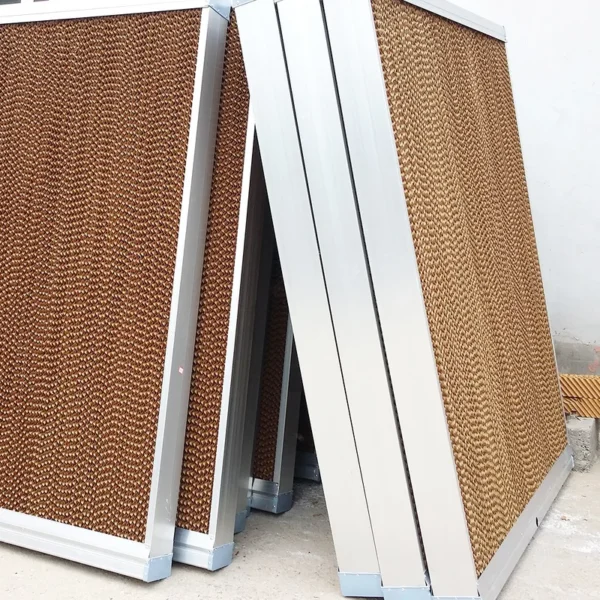

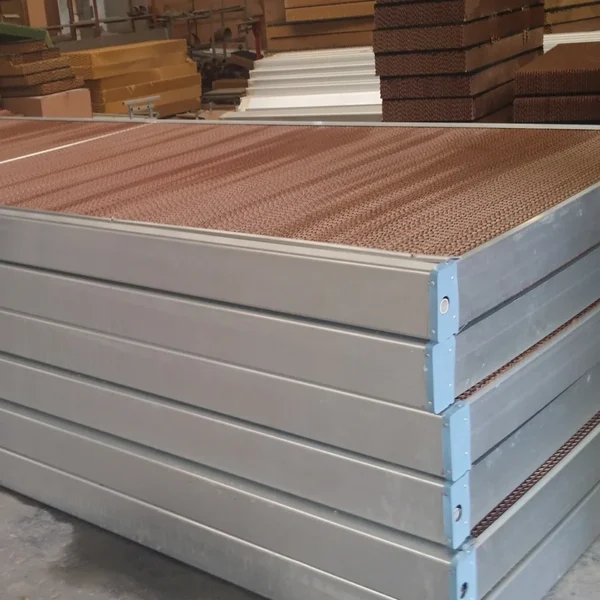

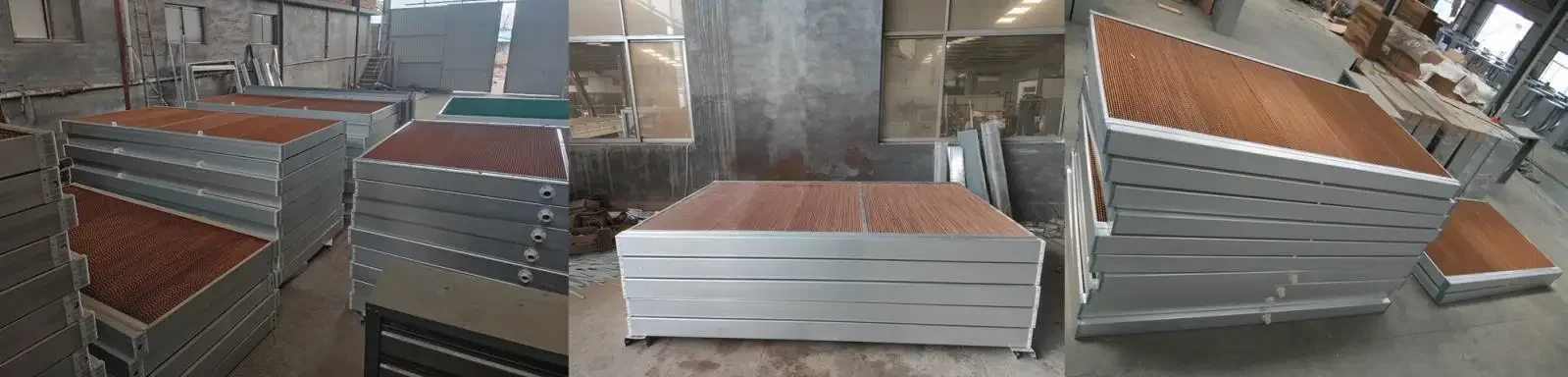

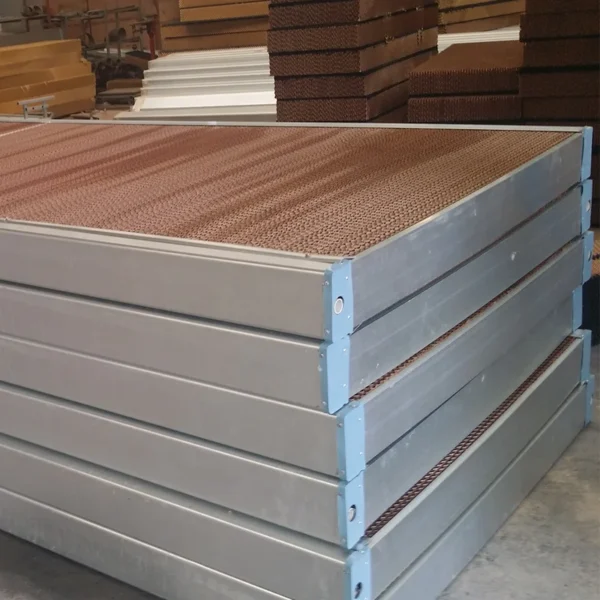

Additional custom accessories:Aluminum alloy, stainless steel, and plastic
Exhibition
Thailand Exhibition
Indonesia exhibition
VIV exhibition
Why Choose Us
NORTH&HUSBANDRY IS a Cooling Pad manufacturer factory for over 20 years.We welcome you to visit our factory.Factory direct sale, can give you the best price. You can take the price to any factory to compare the price and quality.The best product is the one with the right quality and price.If you meet these 2 requirement, then you can give me an order.If the quality does not meet your requirements, then we can also recommend other manufacturers for you to check and compare.
FAQ

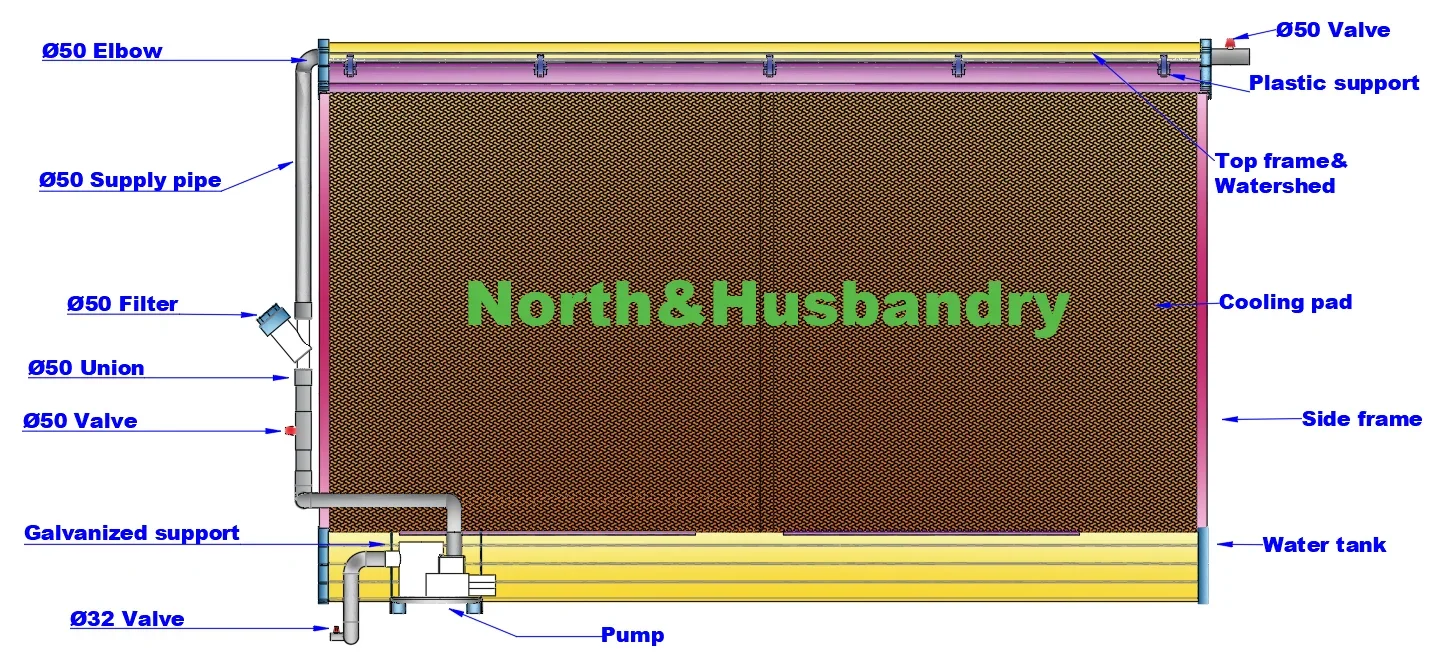

Customer: Are you a factory? North&Husbandry: Yes, this is a manufacturer from Weifang City, Shandong, China. Welcome to visit our factory. Customer: What products can you supply? North&Husbandry: We can produce many types of products and also make some sheet metal products based on your drawings. Our main products are Centrifugal Cone Fan, Hammer cone fan,Butterfly cone fan, Pull and push Exhaust fan, Hammer fan, hanging fan,Brown cooling pad,single side of black cooling pad, green and yellow,Environmental control system,poultry pan feeding equipment,nipple drinker,Poultry Cages,Cages Feeder, Silo, Electric outdoor sunshade curtain,Electric retractable canopy,small garden greenhouse,and so on. If you purchase our products, you also need some other accessories.We are also willing to help you purchase and put it in the container. Customer: Can you provide the cooling pad frame? North&Husbandry: yes,We can provide aluminum alloy frame, plastic frame, and stainless steel frame. Customer:have need other accessories? North&Husbandry:Please check the first picture of this page, it is the workflow and schematic.It contains all the accessories in a complete system.
Ordering and Pricing
- Minimum order quantity: 65 cubic meter
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this pad water air cooler?
The standard minimum order quantity is 65 cubic meter. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by North Husbandry Machinery (qingzhou)co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full North Husbandry Machinery (qingzhou)co., Ltd. range on HVACR Nexus.
