This tangential fan is listed with the manufacturer’s full published specification — voltage 230 V, blade material Stainless Steel, model number PC30B2A530L. It is produced by Pbm Motor And Fan (suzhou) Co., Ltd.. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Tangential Fan
- Model Number: PC30B2A530L
- Voltage: 230 V
- Blade Material: Stainless Steel
- Impeller Material: Stainless Steel
- Warranty: 2 Years
- Place Of Origin: Jiangsu, China
Technical Specifications
| Blade Material | Stainless Steel |
|---|---|
| Mounting | Free Standing |
| Place Of Origin | Jiangsu, China |
| Voltage | 230 V |
| Customized Support | OEM, ODM |
| Brand Name | PBM |
| Model Number | PC30B2A530L |
| Warranty | 2 Years |
| After-Sales Service Provided | Online support |

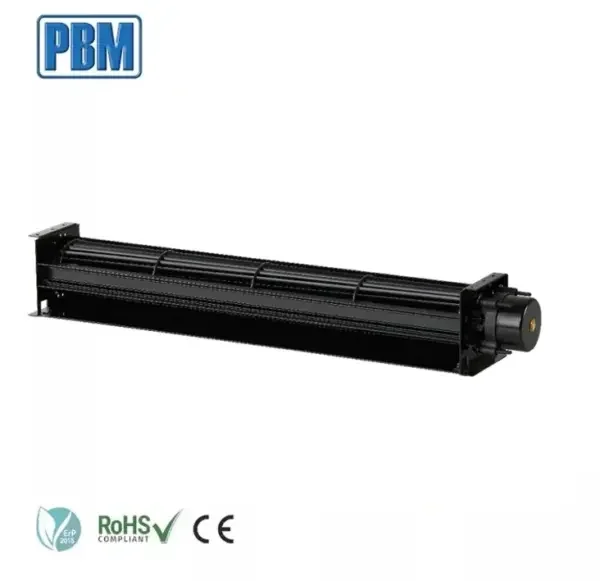

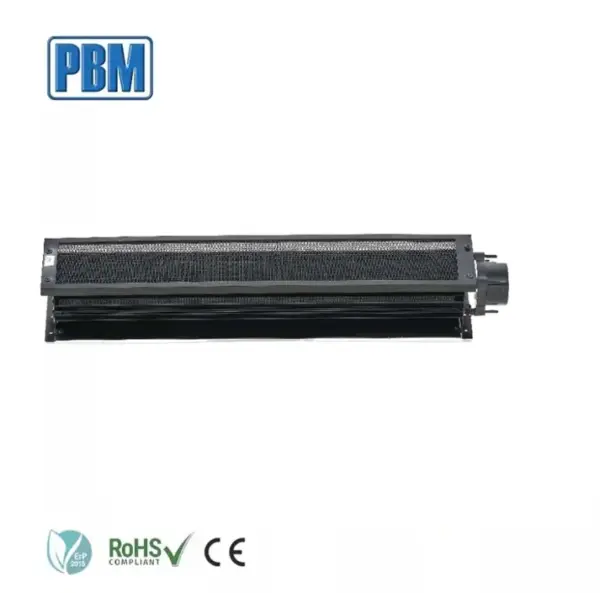

| Product Name | Cross Flow Fan |
| Impeller Material | Stainless Steel |
| Bearing Type | NMB Ball Bearing |
| Selling Units | Single item |
| Single Package Size | 11X5X5 cm |
| Single Gross Weight | 1.000 kg |
|
Model
|
PC30B2A530L
|
|
Rated Voltage
|
230VAC
|
|
Operating Voltage
|
187~270 VDC
|
|
Rated Speed
|
2400 RPM
|
|
Input Current
|
0.14 A
|
|
Input Power
|
17 W
|
|
Sound Level
|
33 dB(A)
|
|
Dimension
|

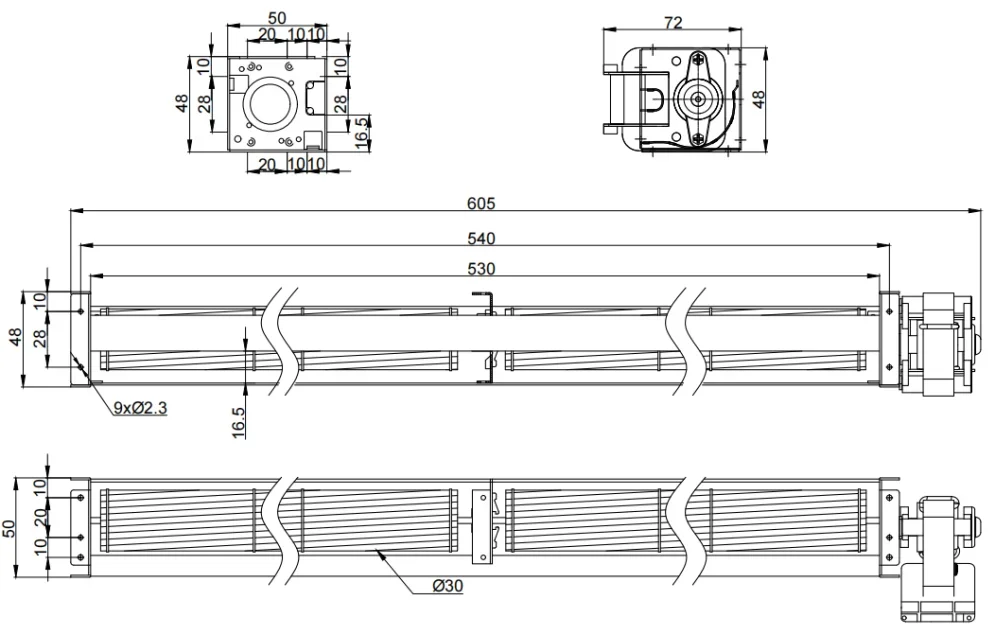

48mm X 72mm X 605mm (see dimension drawing)
|
|
Material of Impeller
|
Steel
|
|
Impeller Plate
|
Injection-moulded round sheet-metal plate
|
|
Mounting Position
|
Any
|
|
Surface of Rotor
|
Electrophoresis
|
|
Bearing System
|
NMB ball bearing
|
|
Lead Wire
|
Red , Black, White AWG22#
|
|
Weight
|
837g
|
|
Package
|
Standard
|
|
Locked-rotor Protection
|
Over-current limiting circuit protects motor from damage at least for 72 hours of locked rotor condition at rated voltage.
|
|
Maximum Current |
A, Typical inrush current when the motor is trying to re-start under locked rotor conditions is 2~4 times the normal running current reoccurring and for 16~20% of restarting cycle period.
B, If he CL function is used this restarting inrush current is about the same as the normal running current. |
|
Reverse Polarity Protection
|
No damage if the positive and negative leads are reversed under maximum operation voltage conditions.
|
|
Over Voltage Protection
|
The circuit will be shut down automatically when input voltage over 30VDC. And re-started when Voltage down to 30VDC below.
|
|
Soft Start
|
In 5 seconds after power on and speed control voltage gets to 1.5V.
|
Frequently Asked Questions
What is the minimum order quantity for this tangential fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this tangential fan?
A 2 Years warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 230 V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.

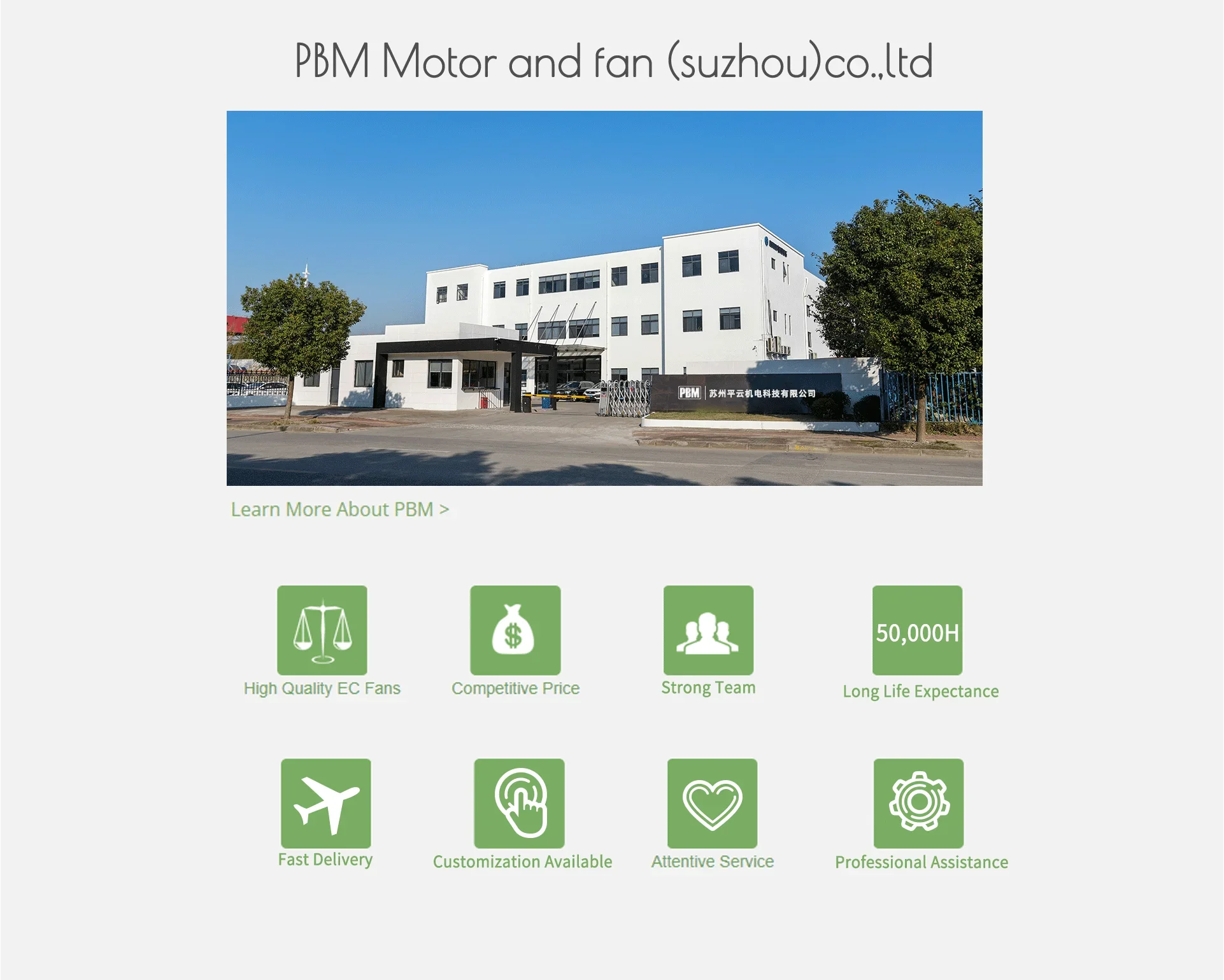

About the Manufacturer
