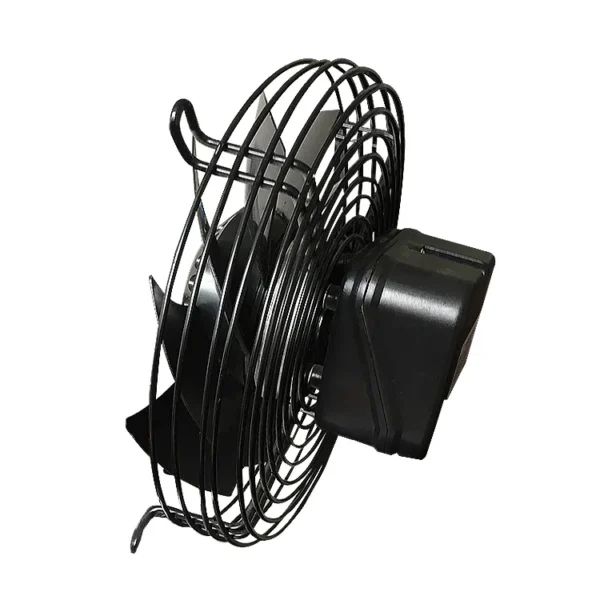

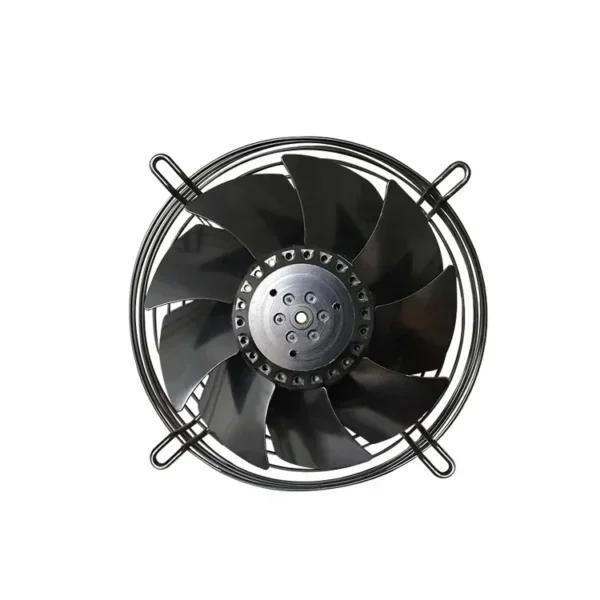

Phase external rotor motor — voltage 115-400V, power source Electric. The complete factory specification follows. Made by Wenzhou Jason Fan Manufacturer Co., Ltd. (18 years on the platform, typical reply ≤3h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Phase External Rotor Motor
- Model Number: FJ2E-200.FG
- Power Source: Electric
- Power Supply Connection: Wire or terminal box set
- Voltage: 115-400V
- Dielectric Withstand Voltage: AC 1800V at 0.5mA 50/60Hz
- Material: Plastic
Technical Specifications
| Voltage | 115-400V |
|---|---|
| Type | Smart fans |
| Material | Plastic |
| Blade Material | Cast Iron |
| Mounting Type | Wall Fan |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Place Of Origin | Zhejiang, China |
| Brand Name | Jasonfan |
| Model Number | FJ2E-200.FG |
| Safety | Thermally protected |
| Operation System | Dual high precise ball bearing |
| Dielectric Withstand Voltage | AC 1800V at 0.5mA 50/60Hz |
| Allowable Ambient Temperature Range | -40~+80 degree |
| Power Supply Connection | Wire or terminal box set |
| Insulation | F Class |
| Protection Grade | IP44 |
| Selling Units | Single item |
| Single Package Size | 30X30X25 cm |
| Single Gross Weight | 2.000 kg |
Product Details
Overview
- Allowable Ambient Temperature Range: -40 ~ +80°c
(Under unconcretionary)
- Dielectric withstanding voltage: AC 1800V at 0.5mA, 50/60HZ
- Insultaion Isolation Grade: F Protection Grade: IP 54
- Unit Weight: 1.7Kg
Material
- Fixed guard: Steel wire is finished with black oven backed painting and anti-corrosion treatment.
- Impeller: pressed from metal armor plate, impellers are installed on rotor by press. surface is finished by black paint and anti-corrosion treatment.
- Bearing Type: Maintain-free NSK ball bearing.
- Power Supply Connection: Wire connection or terminal box set.

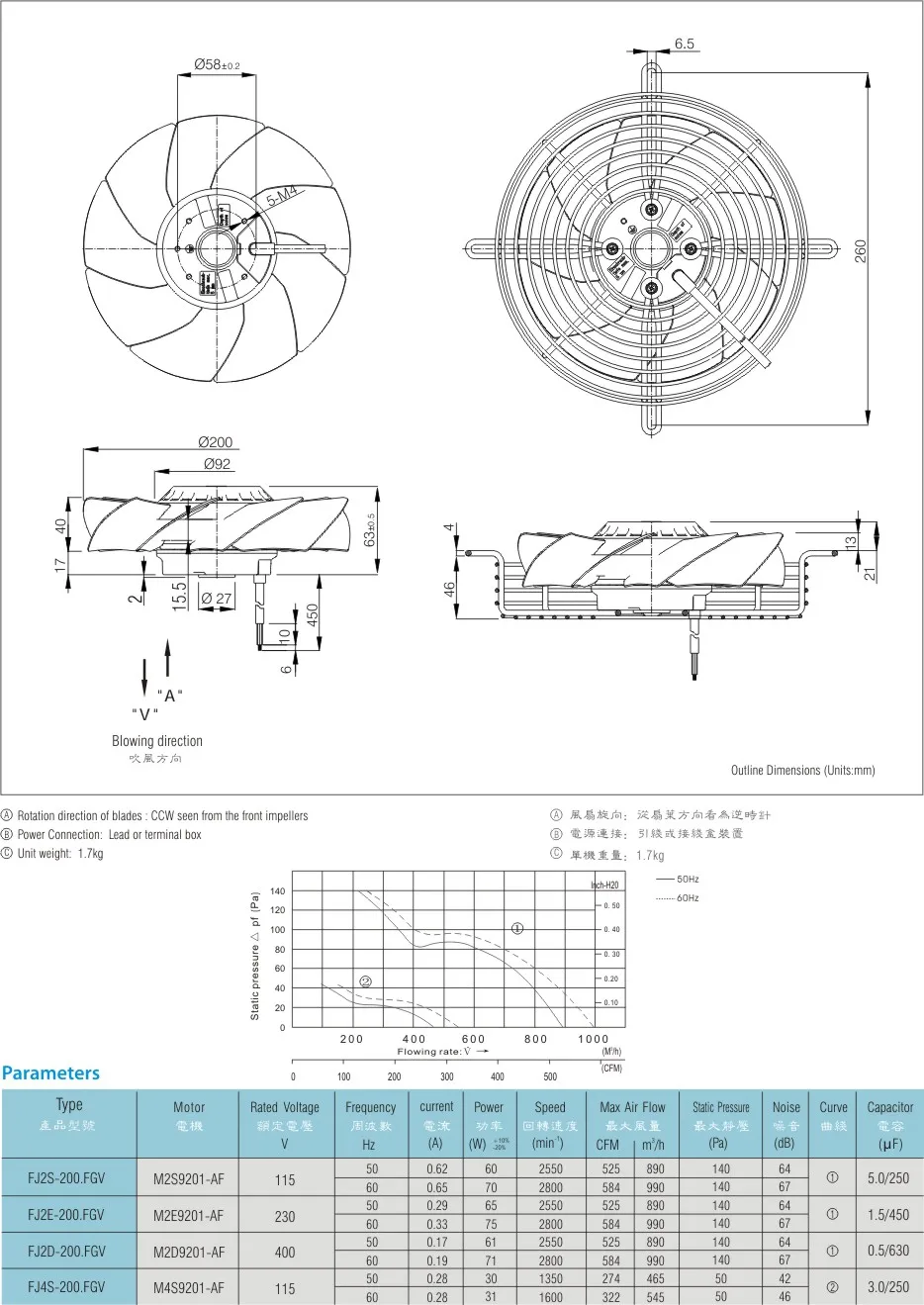

| Specifications | |
| Category | Axial fan |
| Type | FJ2E-200.FG |
| Rated Voltage | 115V-400V |
| Frequency | 50/60Hz |
| Current | 0.12A-0.65A |
| Input Power | 27W-75W |
| Speed | 1350RPM-2700RPM |
| Max Air Flow | 274-546CFM |
| StaticPressure | 50Pa-140Pa |
| Noise | 42dB-67dB |
| Capacitor | 1.5/450 |
| Weight | 1.7KG |
Product Application
WE ARE LEADING PROFESSIONAL MANUFACTURER
Our Main Market: Domestic Market(45.00%), North America(15.00%), Oceania(10.00%), Africa(3.00%)
Southeast Asia(10.00%), Western Europe(7.00%), Mid East(6.00%), South America(4.00%)
Note
All the listed price is only for references, for the latest price please contact us directly.
| CLICK HERE TO EMAIL ME: Shirley Lv |
 | About us We are specialized in developing and producing axial fans, centrifugal fans and air filters in different sizes with high quality in the cooling and ventilation fields. All of our products are reliable and they can work in harsh circumstance efficiently. They are featured in High airflow, Low noise and Durable life. Our company reposes on a simple Chinese city – Yueqing, which is famous for low-voltage electronics and precision industry around the world. Devoted to the development of fans and insisting on high quality are the spirit and the principle of our company. We will try our best to satisfy the most rigorous inquiries of customers and make Jasonfan a worldwide welcomed brand. |
Workshops
For assuring the stability and consistency of product quality, we try our best to increase the self-making rate of all the parts. We have attained more than 90% self-making rate until now, from the raw material purchase to injection and die-casting. In our plant, we cacarry our production and stock process strictly according to Iso9001 standar. All the steps including receiving material, production, inspection, stock and Ex-warehouse, we carry out through our ERP system. During production, semi-finished products must get through three inspections–withstanding voltage testing, earth testing and conventional testing. Every product has a unique laser-printed code for quality trace.

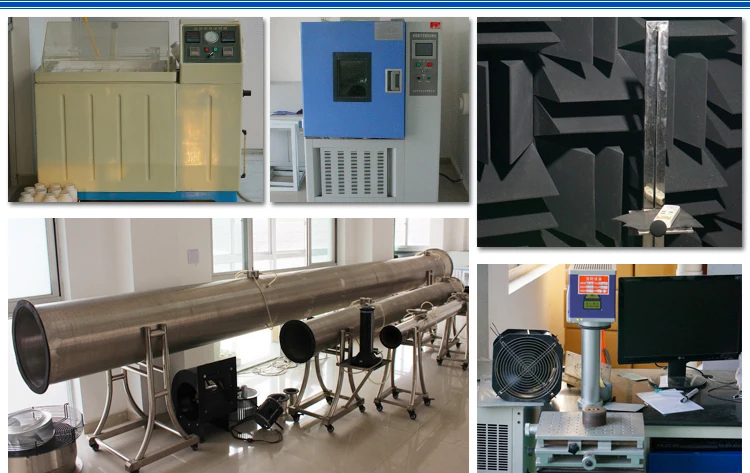

Testing Equipments
Skill achieves excellence. We set up a Professional laboratory system, including test equipment for air flow, noise and high-low temperature alternating cabinet (salt spray chamber included), etc. Our technician team members achieve their ideas of air movement solution through circuit analysis, test of reliability and environment in this laboratory system. As response to the new rule of EU ERP regulations, we have accomplished the efficiency test of every model we have.
It is very important to protect our fans during their transportation to our customers. We replaced our foam packing with carton paperboard as interval of fans in order to avoid environmental problem of foam. We load all the cartons on pallet in order to save labor force cost for our customer. And we also supply plastic film parcel up the outside of the pallet for waterproof if our customers’ end are in rain reason.
How to contact us ?
Send your inquiry details in the below, click " Send " now!
Back to Homepage==>> http://jasonfan.en.alibaba.com/
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2+ piece: US $30 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this phase external rotor motor?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the phase external rotor motor be supplied for my local voltage?
The standard configuration is 115-400V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Wenzhou Jason Fan Manufacturer Co., Ltd., based in China. The company 18 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Wenzhou Jason Fan Manufacturer Co., Ltd. range on HVACR Nexus.
