Phe ice cream plate — 220V/380V, heat exchanger type Plate Heat Exchanger. The complete factory specification follows. For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Phe Ice Cream Plate
- Voltage: 220V/380V
- Frame Material: Carbon steel
- Plate Material: Stainless steel, Ti
- Warranty: 1 year
- Certification: ISO2001
- Place Of Origin: Zhejiang, China
Technical Specifications
| Heat Exchanger Type | Plate Heat Exchanger |
|---|---|
| Voltage | 220V/380V |
| Core Components | Heat exchanger plate |
| Warranty | 1 year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Competitive price, high quality |
| Place Of Origin | Zhejiang, China |
| Brand Name | Daysly |
| Liquid Flow Rate | 50kg/s |
| Maximum Pressure Rating | 10/16 Bar |
| Dimension(L*W*H) | 660X500X780MM |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Frame Material | Carbon steel |
| Plate Material | Stainless steel, Ti |
| Application | Liquid to liquid heat exchanger |
| Gasket | NBR / EPDM / VITON |
| Practical Application | Milk, juice, water,ice cream, pasteurizer, CIP |
| Certification | ISO2001 |
| Marketing Type | Hot Product 2019 |
| Selling Units | Single item |
| Single Package Size | 100X150X50 cm |
| Single Gross Weight | 50.0 kg |
Product Details
Product Description

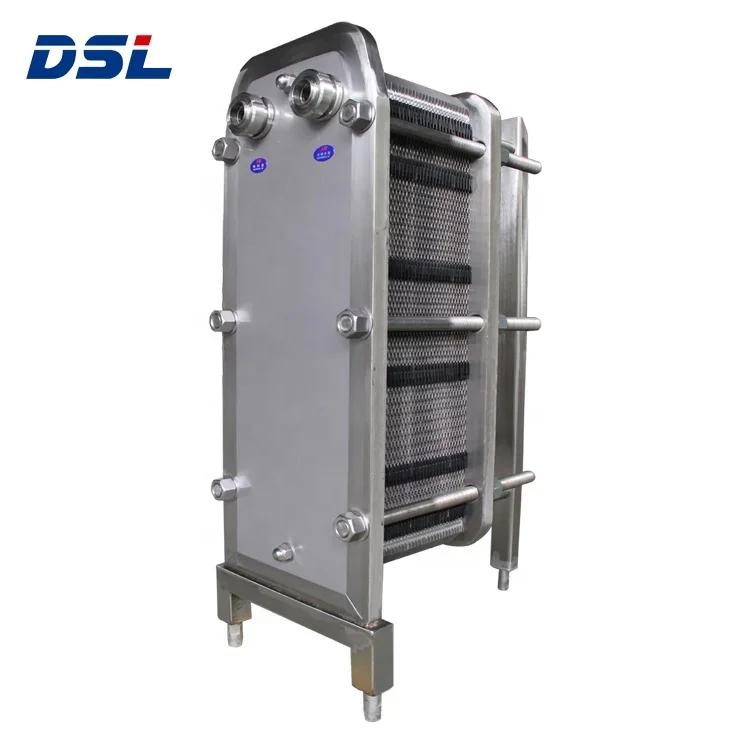

Standard design

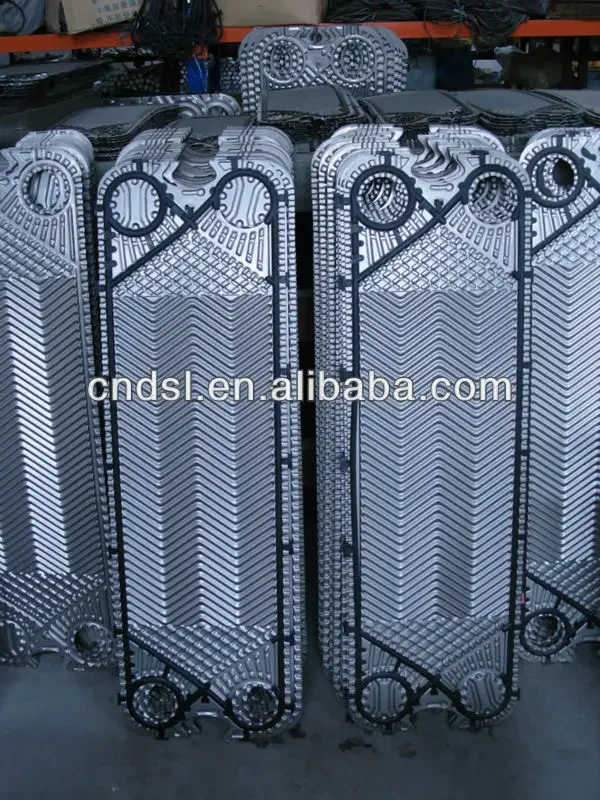

The plate heat exchanger consists of a pack of corrugated metal plates with portholes for the passage of the two fluids
between which heat transfer will take place. The plate pack is assembled between a fix frame plate and a movable pressure plate and compressed by tightening bolts. The plates are fitted with a gasket which seals the interpolate channel and directs the fluids into alternate channels. The number of plates is determined by the flow rate, physical properties of the fluids, pressure drop and temperature program.
The plate corrugations promote fluid turbulence and support the plates against differential pressure. The frame plate and the pressure plate are suspended from an upper carrying bar and located by a lower guiding bar, both of which are fixed to a support column. Connections are located in the frame plate or, if either or both fluids make more than a single pass within the unit, in the frame and pressure plates.
Typical capacities
Liquid flow rate
Up to 50 kg/s (800 gpm), depending on media, permitted
Pressure drop and temperature program.
Water heating by steam
300 to 800 kW
Working principle
Channels are formed between the plates and the corner ports are arranged so that the two media flow through alternate channels.
The heat is transferred through the plate between the channels, and complete counter-current flow is created for highest possible efficiency. The corrugation of the plates provides the passage between the plates, supports each plate against the adjacent one and enhances the turbulence, resulting in efficient heat transfer.
Particulars required for quotation
To enable Daysly's representative to make a specific quotation, enquiries should be accompanied by the following particulars:
– Flow rates or heat load required
– Temperature program
– Physical properties of liquids in question (if not water)
– Desired working pressure
– Maximum permitted pressure drop
– Available Steam Pressure
Food industry: Milk pasteurization, Milk and beverage pasteurization , Wine tempering, Bottled water treatment , CIP
(Cleaning-in-Place) heating , Reverse osmosis water.
Marine application : Central cooling of the main or auxiliary engines or turbines, Lubrication oil cooling, Recooling of
circulated water for cooling cylinders, pistons, injection nozzles, Cooling of oil, compressor oil and other lubricants,
Preheating of lubrication oil and heavy fuel oil, Preheating of seawater for fresh water production, Heat recovery, Heat exchange
to air-condition the passengers’ cabins and freight spaces.
Others: turbine oil cooler, Chemical industry, district heating, district cooling, swimming pool heating, solar heating,
Short delivery time.
High quality
Reasonable price
Customer made
Know-how design and customer support
The plate heat exchanger consists of a pack of corrugated metal plates with portholes for the passage of the two fluids
between which heat transfer will take place. The plate pack is assembled between a fix frame plate and a movable pressure plate and compressed by tightening bolts. The plates are fitted with a gasket which seals the interpolate channel and directs the fluids into alternate channels. The number of plates is determined by the flow rate, physical properties of the fluids, pressure drop and temperature program.
The plate corrugations promote fluid turbulence and support the plates against differential pressure. The frame plate and the pressure plate are suspended from an upper carrying bar and located by a lower guiding bar, both of which are fixed to a support column. Connections are located in the frame plate or, if either or both fluids make more than a single pass within the unit, in the frame and pressure plates.
Typical capacities
Liquid flow rate
Up to 50 kg/s (800 gpm), depending on media, permitted
Pressure drop and temperature program.
Water heating by steam
300 to 800 kW
Working principle
Channels are formed between the plates and the corner ports are arranged so that the two media flow through alternate channels.
The heat is transferred through the plate between the channels, and complete counter-current flow is created for highest possible efficiency. The corrugation of the plates provides the passage between the plates, supports each plate against the adjacent one and enhances the turbulence, resulting in efficient heat transfer.
Particulars required for quotation
To enable Daysly's representative to make a specific quotation, enquiries should be accompanied by the following particulars:
– Flow rates or heat load required
– Temperature program
– Physical properties of liquids in question (if not water)
– Desired working pressure
– Maximum permitted pressure drop
– Available Steam Pressure
Food industry: Milk pasteurization, Milk and beverage pasteurization , Wine tempering, Bottled water treatment , CIP
(Cleaning-in-Place) heating , Reverse osmosis water.
Marine application : Central cooling of the main or auxiliary engines or turbines, Lubrication oil cooling, Recooling of
circulated water for cooling cylinders, pistons, injection nozzles, Cooling of oil, compressor oil and other lubricants,
Preheating of lubrication oil and heavy fuel oil, Preheating of seawater for fresh water production, Heat recovery, Heat exchange
to air-condition the passengers’ cabins and freight spaces.
Others: turbine oil cooler, Chemical industry, district heating, district cooling, swimming pool heating, solar heating,
Short delivery time.
High quality
Reasonable price
Customer made
Know-how design and customer support

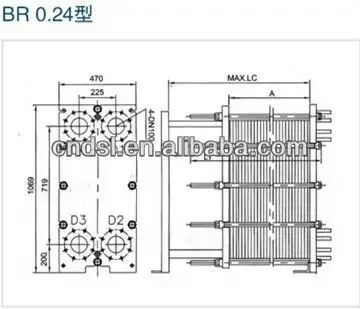

Specification
A [mm] N(2.55+X) N(3.95+X)
MAX.LC [mm] 1600 1600
Connection dia 100 100
Single plate
heat area 0.24 0.24
Max plate QTY 278 278
Max
temperature [°C] 150 150
Max pressure [barg] 10 16
Flange size DN100/4”
Max. flow rate [kg/s] 140m3/h
Company Profile
WENZHOU DAYSLY TECHNOLOGY CO.,LTD is located in Binhai, a science and technology park of WENZHOU, CHINA. The company was set up in 1996 to fulfill the needs of the local and oversea Food, Beverage, Pharmaceutical and Chemical industries. This was in line with the strong economic growth in China and the increasing demand for Stainless Steel Sanitary products. The management's commitment to ongoing improvement in quality and capacity, has been supported by the use of innovative and new manufacturing technology. This has led to new product development to support its production process and maintain a high level of quality. Stainless Steel Sanitary products manufactured by the company are now exported to other Asian countries as well as Middle East, Australia,Europe, Canada and the United States of America. Also with the support of management and its ability to anticipate change and react accordingly the company has managed to use the addition of new products as a vehicle to grow the company business.
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2011,sell to Southeast Asia(28.00%),North America(10.60%),Mid East(8.60%),Eastern Europe(8.00%),Eastern Asia(6.00%),Domestic Market(5.20%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Bio-engineering equipment,Brewery equipment,Evaporator and concentrator,Food and beverage equipment,Stainless steel tank
4. why should you buy from us not from other suppliers?
DAYSLY is a leading manufacturer in China, specialized in the research, manufacture, and sale of a wide range of food, beverage, pharmaceutical, biological equipment, with professional quality management to achieve continuous improvement.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,AUD,GBP,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Zhejiang, China, start from 2011,sell to Southeast Asia(28.00%),North America(10.60%),Mid East(8.60%),Eastern Europe(8.00%),Eastern Asia(6.00%),Domestic Market(5.20%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Bio-engineering equipment,Brewery equipment,Evaporator and concentrator,Food and beverage equipment,Stainless steel tank
4. why should you buy from us not from other suppliers?
DAYSLY is a leading manufacturer in China, specialized in the research, manufacture, and sale of a wide range of food, beverage, pharmaceutical, biological equipment, with professional quality management to achieve continuous improvement.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CAD,AUD,GBP,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Contact us
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $2600 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this phe ice cream plate?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this phe ice cream plate carry?
It is supplied with ISO2001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the phe ice cream plate be supplied for my local voltage?
The standard configuration is 220V/380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Wenzhou Daysly Technology Co., Ltd., based in China. The company 10 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Wenzhou Daysly Technology Co., Ltd. range on HVACR Nexus.
