The plc controller listed here carries 12V DC, power – output Depends on Application, documented exactly as the manufacturer publishes it. Made by Shenzhen Baijie Technology Co., Ltd. (7 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Plc Controller
- Model Number: HelperBoardT153
- Power – Output: Depends on Application
- Voltage – Supply: 12V DC
- Voltage – Output: 3.3V / 5V
- Voltage – Input: 12V DC
- Voltage – Supply, Single/Dual (±): 12V Single Supply
Technical Specifications
| Main Purpose | Industrial HMI, PLC, Edge Gateway, IIoT |
|---|---|
| Embedded | Yes |
| Outputs And Type | Display Output, Communication Output |
| Operating System | Buildroot Linux + Qt |
| Board Type | Development Board |
| Communication Interface | Ethernet / CAN FD / UART / SPI / I2C |
| Mounting Type | Surface Mount |
| Type | Development Board |

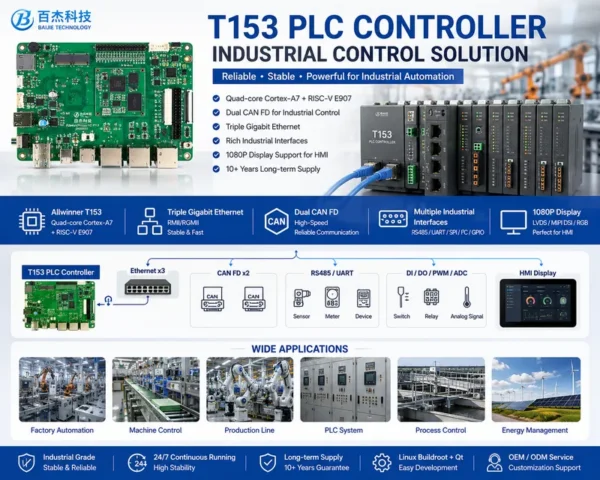

| Core Processor | Allwinner T153 Quad-Core Cortex-A7 + RISC-V E907 |
| Interface | Stamp hole, 144 pins |

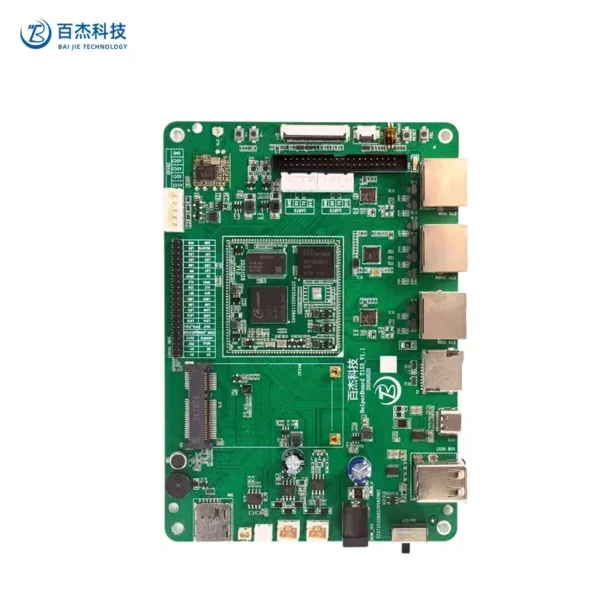

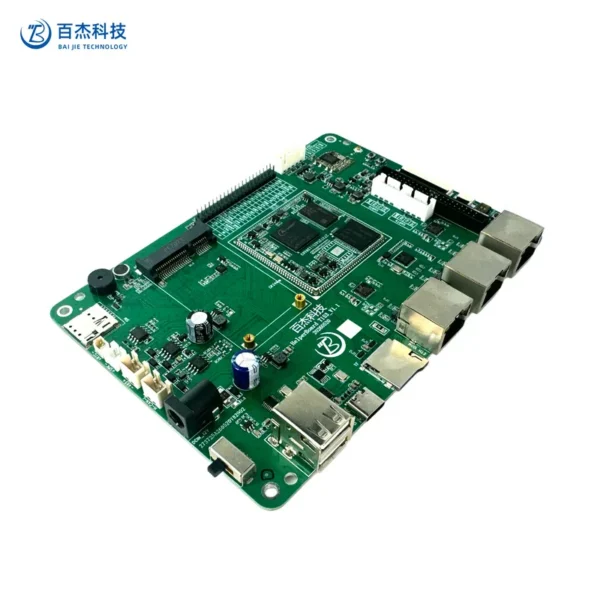

| Description | Allwinner T153 Industrial HMI Development Board |
| Model Number | HelperBoardT153 |
| Place Of Origin | Guangdong, China |
| Brand Name | Baijie Technology |
| Series | HelperBoard |
| Mfg. Date Code | 2025+ |
| Package | Development Board |
| Function | Industrial HMI, PLC Control, Edge Gateway |
| Utilized IC / Part | Allwinner T153 |
| Number Of A/D Converters | 24 Channels GPADC |
| Number Of Bits | 32 Bit |
| Sampling Rate (Per Second) | Customizable |
| Data Interface | Ethernet, CAN FD, UART, SPI, I2C |
| Input Range | 12V DC Input |
| Amplifier Type | N/A |

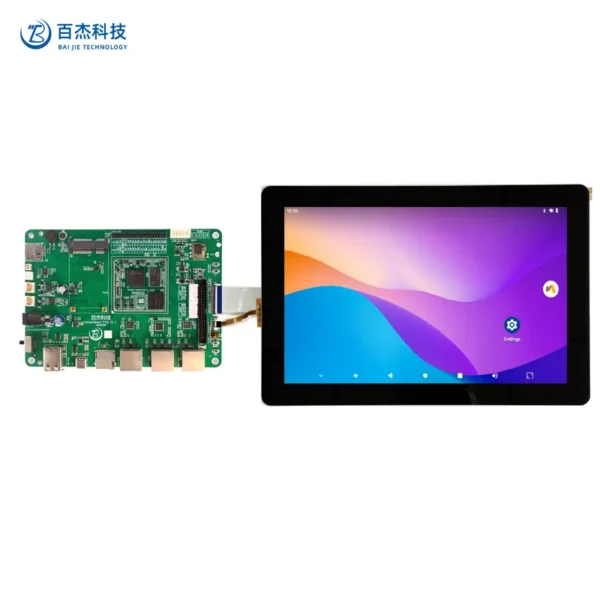

| Output Type | LVDS, MIPI DSI, RGB Display Output |
| Voltage – Supply | 12V DC |
| Power – Output | Depends on Application |
| Voltage – Output | 3.3V / 5V |
| Current – Output | Depends on Peripheral Load |
| Voltage – Input | 12V DC |
| Frequency – Switching | N/A |
| Platform | Allwinner T153 |
| Current – Output / Channel | N/A |
| Features | 3Gigabit Ethernet Dual CAN FD Long Term Supply |
| Channels Per IC | N/A |
| Regulator Type | On-board Power Management |
| -3db Bandwidth | N/A |
| Current – Supply (Main IC) | N/A |
| Voltage – Supply, Single/Dual (±) | 12V Single Supply |
| Sensor Type | N/A |
| Sensitivity | N/A |
| Module/Board Type | Embedded Linux Development Board |
| Maximum Number Of IC’S | 1 |
| Maximum Time | N/A |
| Sensing Range | N/A |
| Selling Units | Single item |
| Single Package Size | 30X16.5X11 cm |
| Single Gross Weight | 0.500 kg |
Product Details
Yes, we are the manufacturer. we can do both OEM and ODM as you required.
Q2. What is warranty for your boards?
Usually it is 18 months for all the boards and we can change the new board for you immediately if it's our problem. We can also supply the program updating free.
Q3. Can you do design and development for other machines control boards?
Yes,we can provide hardware design + software program + pcb layout + casing service for supplier and give a competitive price.
Q4. What are you specializing in?
We are specializing in the development board.
Q5. How long it takes to develop new boards?
Usually it takes about 1~45 days as it depends on the functions you required.
Generally, it will take 35 days after receiving your advance payment for mass order. If the products your ordered are the standard products we can send them within 3 days.If the customization products we will send within 45 days.
Q6. MOQ?
There is no MOQ is 1 pc.
Q7. Shipping cost?
The shipping cost is determined by shipping method you choose, the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
Q8. How to start for inquiry?
Please send us full manufacture requirements or documents for quotation, i.e. gerber files, BOM, samples if it is
necessary.
Q9. How is your quality?
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this plc controller?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Can the plc controller be supplied for my local voltage?
The standard configuration is 12V DC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Baijie Technology Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Baijie Technology Co., Ltd. range on HVACR Nexus.
