Plug Fan, PBM, IP44, Stainless, Steel, 380VAC, 304~456 VAC

This plug fan is published with the manufacturer’s full specification — voltage 380VAC, 8500 m3 /H. Made by Pbm Motor And Fan (suzhou) Co., Ltd. (8 years on the platform, typical reply ≤10h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Plug Fan

• Model Number: PK3N450B4EQM
• Input Power: 1250 W
• Voltage: 380VAC
• Operating Voltage: 304~456 VAC
• Air Flow: 8500 m3 /H
• Blade Material: Stainless Steel

Technical Specifications

Product Details

Products Description

Motor:BE138EC

PBM centrifugal fans with support bracket, adopt both metal rivetstructure or welding and single-piece plastic with glass fiber reinforcement aerodynamic impeller, compact energy-saving smart EC motor drives it with maintenance free ball bearing, installed into easy-mounting, anti-vibration, robust support bracket design to guarantee stable, quiet fan operation with maximum “η” up to 55% efficiency at ErP Directive satisfaction of customers in their ventilation, heating, refrigeration product or system.

Product Specification

General Characters

Rated Voltage	380VAC
Frequency	50/60 Hz
Operating Voltage	304~456 VAC
Rated Speed	1700 RPM
Input Current	2.15 A
Input Power	1250 W
Air Flow	8500 m3/H
Static Pressure	800 Pa
Sound Level	81 dB(A)
Life Expectance	50,000 Hours(L10) At 40℃ room, humidity 15%~65%RH
Direction of Rotation	Clockxise seen on rotor
Direction of Air Flow	All around
Insulation Class	Class B
Motor Protection	Locked rotor protection Polarity protection Automatic restart capability
Speed Control	Control input 0~10VDC / PWM
Protection Type	IP44
Voltage Output	+10VDC (Can be used as speed control input voltage or FG signal pull-up voltage，and need to be circumscribed in series with a pull –up resister, details as connection diagram.)
Signal Output	FG (Frequency Generator)

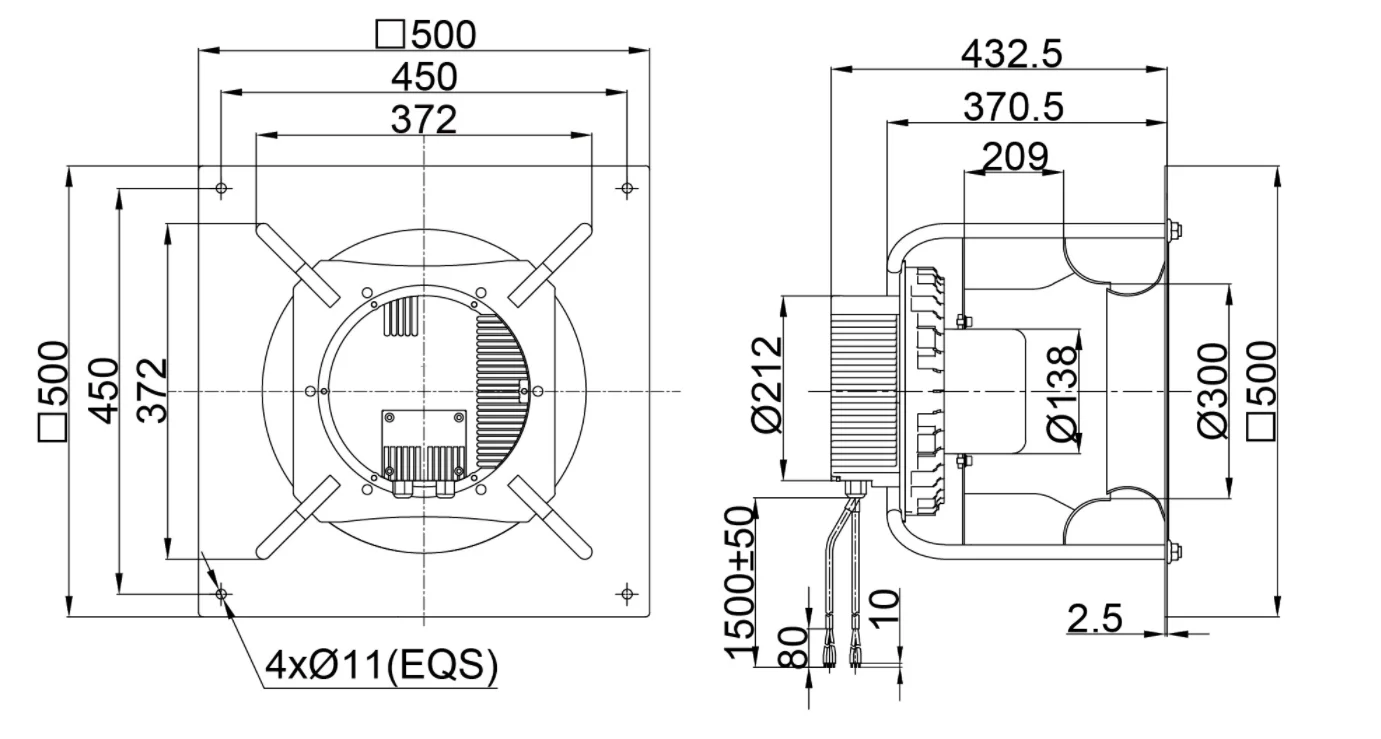

Outline Drawing

1.Connection line: AC(3×AWG18#), DC(4×AWG24#);
AC: Brown=Live Line, Blue=Null Line, Green & Yellow=Protecting Earthing;
DC: Red=Voltage Output +10VDC, Yellow=0-10VDC/PWM, White=FG, Blue=GND;

Application

Company Profile

PBM is a China mainland EC(Electronically Commutated) brushless motor manufacturing and technology consulting company offering an extensive range of EC motors, fans and intelligent ventilation solutions for air-moving precisely and constantly with maintenance-free throughout the life cycle of products in last decades.

Focus on EC fan only and protecting our world with intelligent energy efficient motor and fan solutions are our goal in an attempt to make tomorrow a greener & Healthier world.

FAQ

Q1. How about the delivery time ? A1: Within 25 days after we receive the order. Q2. What kind of payments do you support? A2: T/T & L/C, other types please contact us.

Q3. What's the MOQ? A3: Generally speaking, the MOQ is 100 pieces. Different products have different MOQ. Please contact us. Q4. Transportation A4: All available shipping ways could be applied, by courier, air or sea. Appointed shipping company or our own forwarders all could be used in shipment. Full-way tracking the cargos for you before the goods arrive. Q5. Global Market A5: Depending on advanced technology and knight service, we establish a good and diligent team and keep nice business relationship with a large amount of worthy clients in global market. We are prepared to provide the best EC Centrifugal Fan to clients at competitive price. In addition to control of cost and quality, our stipulated lead-time, variety of designs, capability of product development and flexibility of service bring convenience and value added services to the clients.

Ordering and Pricing

• Minimum order quantity: 100 piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this plug fan?

The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.

Can the plug fan be supplied for my local voltage?

The standard configuration is 380VAC. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Pbm Motor And Fan (suzhou) Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Pbm Motor And Fan (suzhou) Co., Ltd. range on HVACR Nexus.
