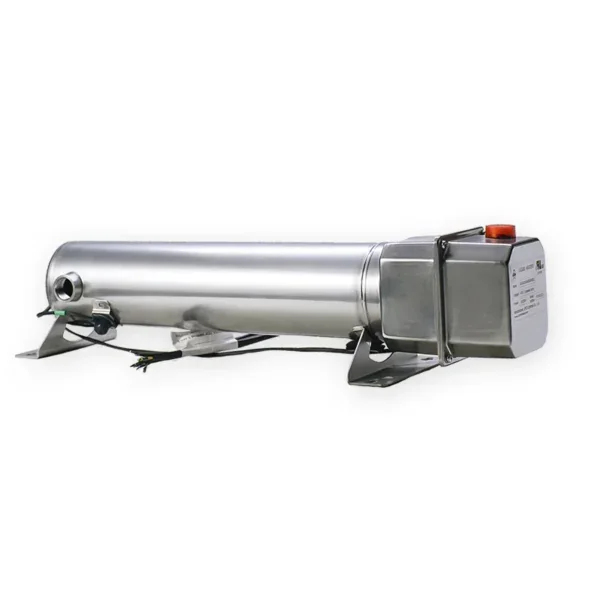

Power Electric Liquid Heater, 9.6kW, 9SU, Stainless, Steel

This power electric liquid heater is published with the manufacturer’s full specification — voltage 230-400V, capacity 5L(1.32gal). Made by Jpci Controls (Foshan Gaoming) Co., Ltd. (13 years on the platform, typical reply ≤5h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Power Electric Liquid Heater

• Model Number: 9SU
• Power (W): 7500
• Power Source: Electric
• Voltage: 230-400V
• Capacity: 5L(1.32gal)
• Housing Material: Stainless Steel

Technical Specifications

Product Details

Diameter of the heater: 8mm
Tubular heater material: 316L (lncolloy 800 optional)
Quantity of tubular heaters: 3
Body material: 304L stainless steel (316L optional)
Material fittings: 304L stainless steel (316L optional)
ln let connection: Male 1 "1/4 BSPP cylindrical (1" optional)
Outlet diameter: Male 1 "1 /4 BSPP cylindrical (1" optional)
Air vent thread: 3/8 BSPP (on models where it exists)
Thermowell (1 ): 304L stainless steel dia. 1 Ox8.5 mm, length 260 mm for thermal eut-out (See thermal eut-out sub assembly models at the end of this catalog). Copper thermowell is available on request. This thermowell can also be used for a thermostat bulb or a temperature sensor.
Dise thermostat mounting bracket (2): 1 bracket for thermostat with extended cup (see thermostat models at the end of this catalog).
Wall mounting brackets (3): 3 x 2 M5 feet, 170mm center line distance, for wall mounting on 3 different sides. M5 brackets that are not used for wall mounting can be used for grounding.
Accessories: see end of this catalog

Exhibitions

Certifications

Company Profile

JPCI Controls originated from the French family-owned company founded in 1972, our company was founded in 2000, headquartered in Gaoming District, Foshan City, Guangdong Province, China, which is specialized in the design and production of mechanical thermostats, safety devices and electric heating systems for domestic and industrial use. JPCI owns an internationally renowned brand, ULTIMHEAT, and has a subsidiary in Lyon, France.After more than 50 years of development, JPCI has become a research and development enterprise which is deeply exploring the international market.

JPCI Controls covers an area of 30,000 square meters, has more than 300 employees, including 30 professional R & D and laboratory employees, and produces more than 6 million products per year, with more than 10,000 product models. Our production has achieved full vertical integration to ensure quality control at each stage, our company has more than 1000 sets of testing equipment such as ultraviolet aging testing machine, motor loading machine, hydraulic hi-pot bursting testing machine to strictly monitor product quality.

JPCI Controls has always adhered to the values of innovation, listening, responding and continuous improvement to ensure that products can achieve the best quality. JPCI holds 250 patents and applies for an average of 20 patents per year. Won the national high-tech enterprises and passed the system certification ISO9001, ISO14001, ISO45001; It has a 750㎡ self-built laboratory and has passed the ISO17025 laboratory certification of TUV&UL.

JPCI Controls is driven by innovation, guaranteed by quality, and takes environmental protection as its responsibility，looking forward to working with you to create a better future.

Product packaging

Ordering and Pricing

• Minimum order quantity: 10 piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this power electric liquid heater?

The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the power electric liquid heater be supplied for my local voltage?

The standard configuration is 230-400V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Jpci Controls (Foshan Gaoming) Co., Ltd., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Jpci Controls (Foshan Gaoming) Co., Ltd. range on HVACR Nexus.
