Key specification for this brushless blower: 5V/12V/24V, power source Electric. Everything below is reproduced from the factory data sheet. Made by Shenzhen Yirongchuan Electronic Technology Co., Ltd. (10 years on the platform, typical reply ≤9h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Brushless Blower
- Model Number: YRB4015
- Power Source: Electric
- Voltage: 5V/12V/24V
- Blade Material: Plastic
- Material: Impeller: Plastic (Flammability: 94V-0)
- Warranty: 2 Years
Technical Specifications
| Voltage | 5V/12V/24V |
|---|---|
| Type | High-Temperature Axial Fan |
| Blade Material | Plastic |
| Mounting Type | Free Standing |
| Bearing Type | Sleeve/Ball Bearing |
| Power Source | Electric |
| Warranty | 2 Years |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Guangdong, China |
| Brand Name | YRC |
| Model Number | YRB4015 |
| Bearing | Ball/sleeve Bearing |
| Product Name | DC Brushless Fan |
| Function | Ventilaion |
| Feature | Low Noise Energy Saving |
| Application | Industrial Equipment |
| Material | Impeller: Plastic (Flammability: 94V-0) |
| Certification | Ce RoHS |
| Installation | Free-standing Ventilator |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

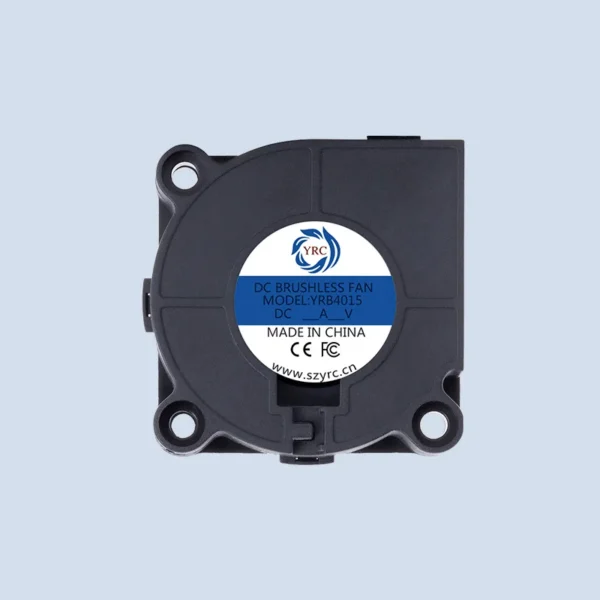

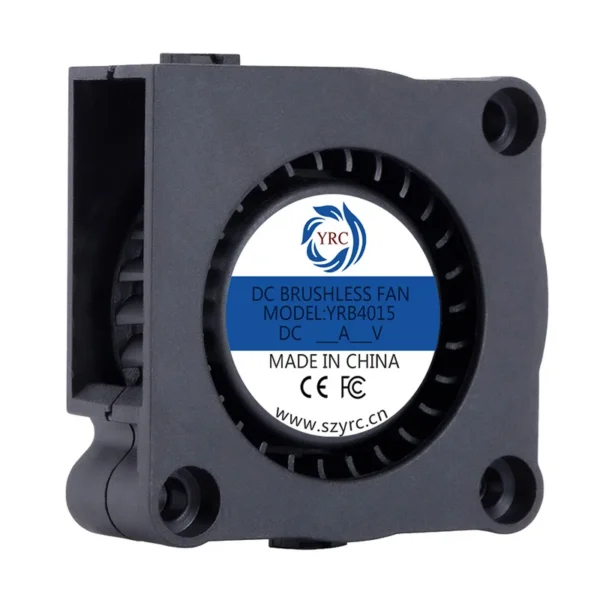

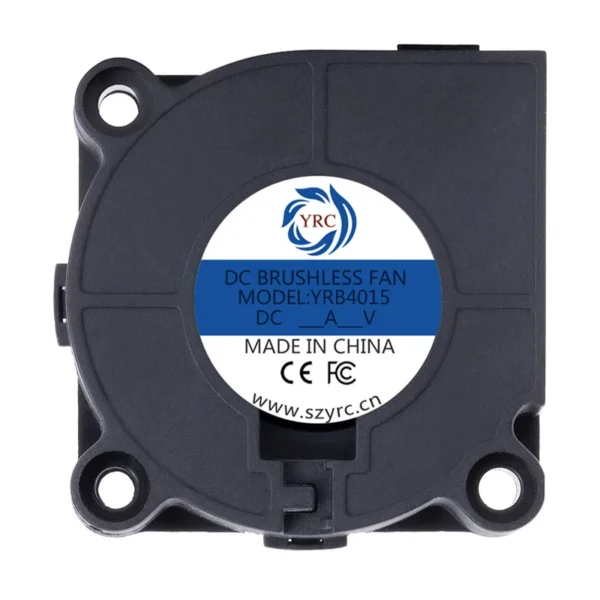

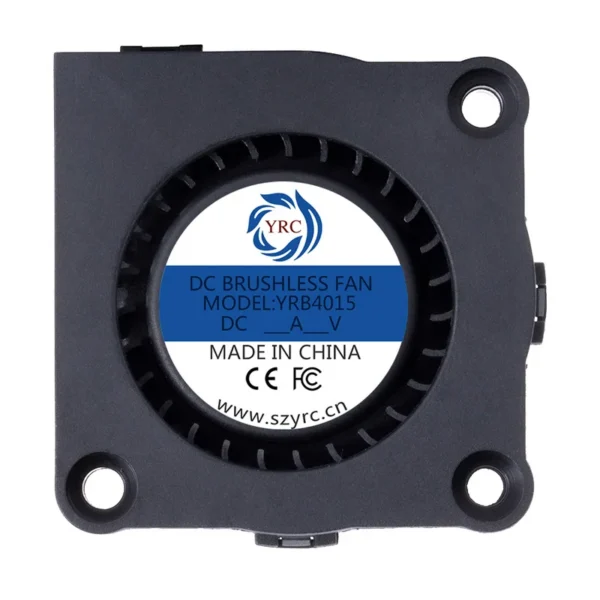

5V 4015 40x40x15 mm 12V 24V Dc Blower Fan Motor High Speed Wireless Charger Ventilation Low Noise
1.mini dc fan blower 5/12v/24 available.
2.FG,RD,PWM function can be customized as customers requirement.
3.OEM&ODM service acceptable.

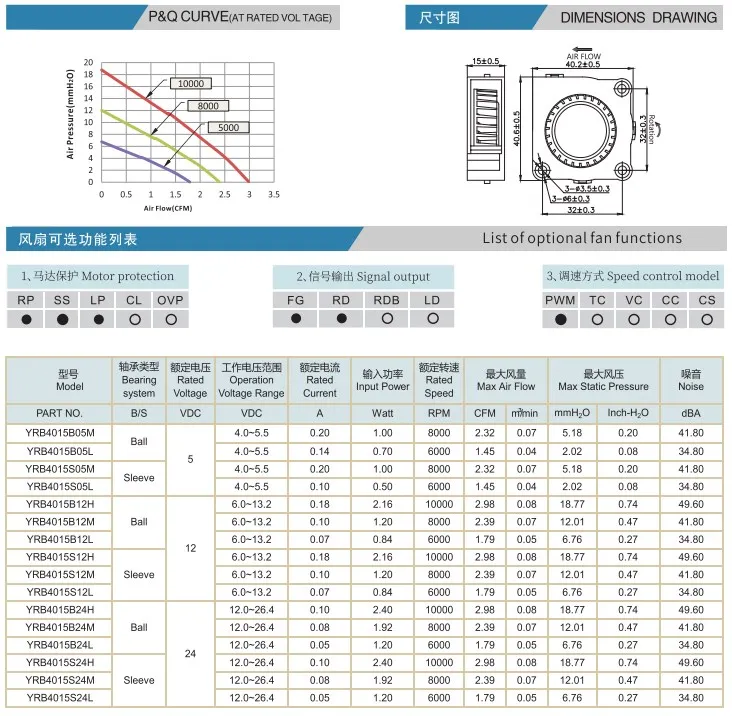

Specification
| Size | Air Volume | Size | Air Volume |
| 40*40*20mm | 1.7-2.9CFM | 75*75*25mm | 6.7-14.2CFM |
| 50*50*15mm | 3.1-4.8CFM | 75*75*30mm | 6.7-14.2CFM |
| 60*60*15mm Big outlet | 2.9-5.0CFM | 93*93*30mm | 16.8-28.4CFM |
| 60*60*15mm Small outlet | 2.6-4.7CFM | 97*97*33mm | 15-22.9CFM |
| 60*60*25mm Quiet | 3.1-7.3CFM | 120*120*32mm | 26.9-44.5CFM |
| 60*60*25mm | 3.6-7.8CFM | 130*130*40mm | 45.8-68.6CFM |
| 60*60*28mm | 4.1-9.3CFM | ||
| 70*70*15mm | 5.7-9.5CFM |
Shenzhen YiRongChuan Electronic Tech. Co., Ltd. was built in 2005. Our company is committed to becoming the first brand of cooling fan industry in China and is always focuses on the R&D, manufacture and sales of cooling fans since it was established. Our products mainly include DC fans, AC fans, AC centrifugal fans, Waterproof &Dustproof fans, EC inverter fans Brushless motor etc, which are all in high quality with fair price.
We had built a series of impeccable product R&D and production systems, such as Reliability Laboratory, Noise Testing Room, Air Flow & Pressure Testing System, High-precision Dynamic Balance Equipment and self-development Smart Production Management System. Meanwhile, we have passed the ISO9001 quality system certification and strictly adhere to the ISO9001 management system. Welcome to visit and cooperate with us.
1.How about the lifetime about fan?
| Life Expectancy |
| Dual Ball Bearing: 50000 hours |
| Sleeve Bearing: 30000 hours |
| Hydraulic Bearing: 30000 hours |
2.What effects the quoted price for the fan?
The specification(size), bearing type and voltage.
3.Certification?
CE, ROHS, ISO9001 Approved.
4.Delivery time?
Sample lead time: 3-5 days
Delivery lead time: 2 weeks
5.Terms of payment ?
Payment by T/T or Paypal.
100% payment for sample orders.
30% deposit and 70% balance before shipment.
6.Delivery ways ?
FedEx, DHL, UPS, TNT Door to Door service, By Air, By Sea, etc.
1. Warranty: 1 years with YRC Brand and 5 years with NMB-YRC.
2. Private Labeling: All of axial fans are able to be Private labeled.
3. Products Quality: 100% products inspection before delivery.
4. Customized Service: As we have our own molding department,
customized service can be provided.
5. Prompt customers Services: E-mail will be replied in 24 hours
6. Sample: available for you (low value sample is free, others is charged)
7. Finger protected cover or duct protect cover free for you with fans.
Ordering and Pricing
- Minimum order quantity: 100 piece
- Volume pricing:
- 100–49999 piece: US $1.44 / piece
- 50000+ piece: US $1.14 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this brushless blower?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this brushless blower carry?
It is supplied with Ce RoHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the brushless blower be supplied for my local voltage?
The standard configuration is 5V/12V/24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
