This product ideas hepa filter is published with the manufacturer’s full specification — 220V~230V, power source type Corded Electric. Made by Zhongshan Sentong Electromechanical Technology Co., Ltd. (2 years on the platform, typical reply ≤8h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Product Ideas Hepa Filter
- Model Number: DPT10-24B
- Power Source Type: Corded Electric
- Voltage: 220V~230V
- Blade Material: Metal
- Warranty: 3 Years
- Place Of Origin: Guangdong, China
Technical Specifications
| Duct Diameter | 4 in |
|---|---|
| Mounting | Duct Fan |
| Voltage | 220V~230V |
| Motor Type | AC Motor |
| Blade Material | Metal |
| Power Source Type | Corded Electric |
| Warranty | 3 Years |
| After-Sales Service Provided | Free Spare Parts |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | Nussun |
| Model Number | DPT10-24B |
| Feature | Low energy consumption, super quiet |

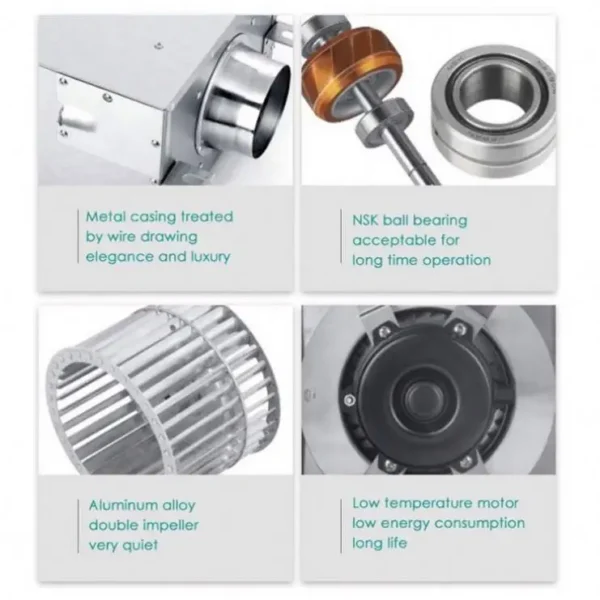

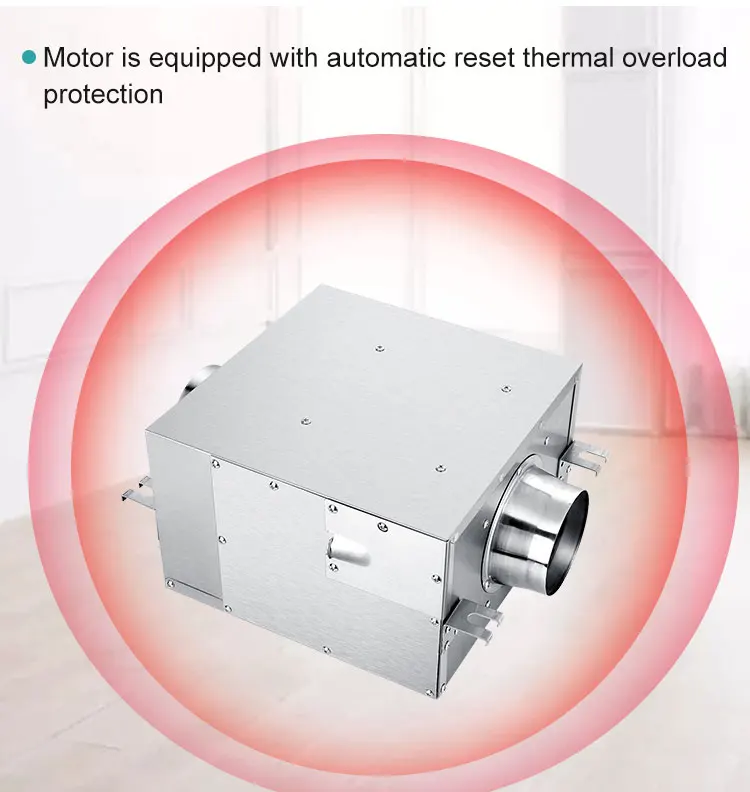

| Motor | External rotor motor, low terperature, long life. |
| Enclosure | IP 44 |
| Ball Bearing | Heavy-duty ball bearing |

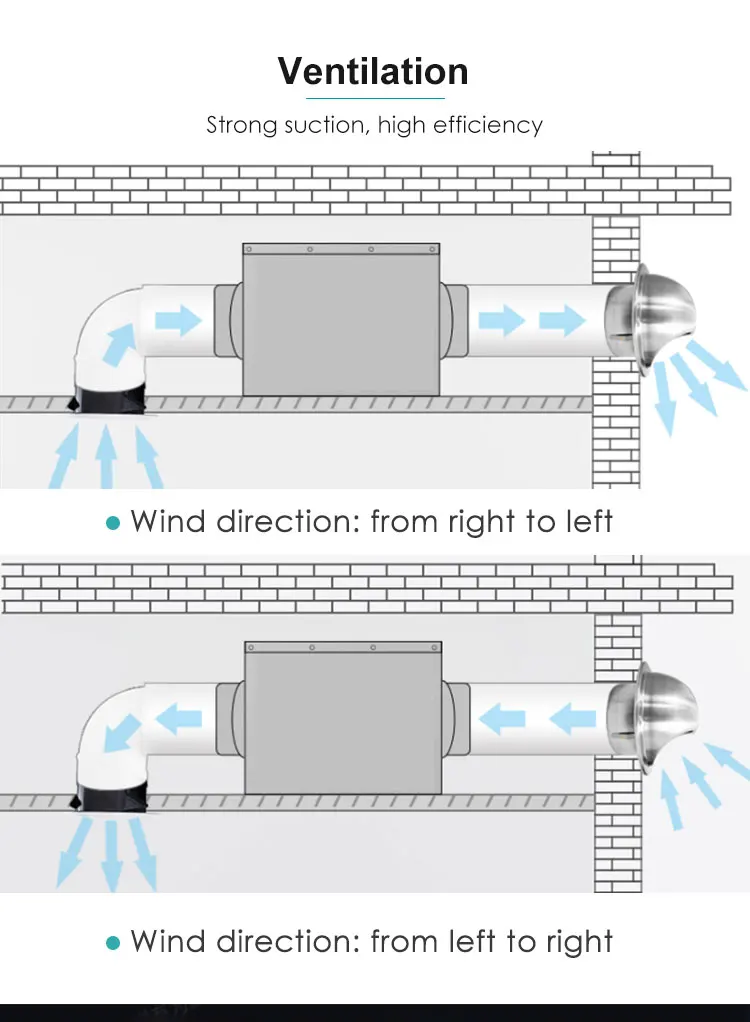

| Installation | Duct Install |

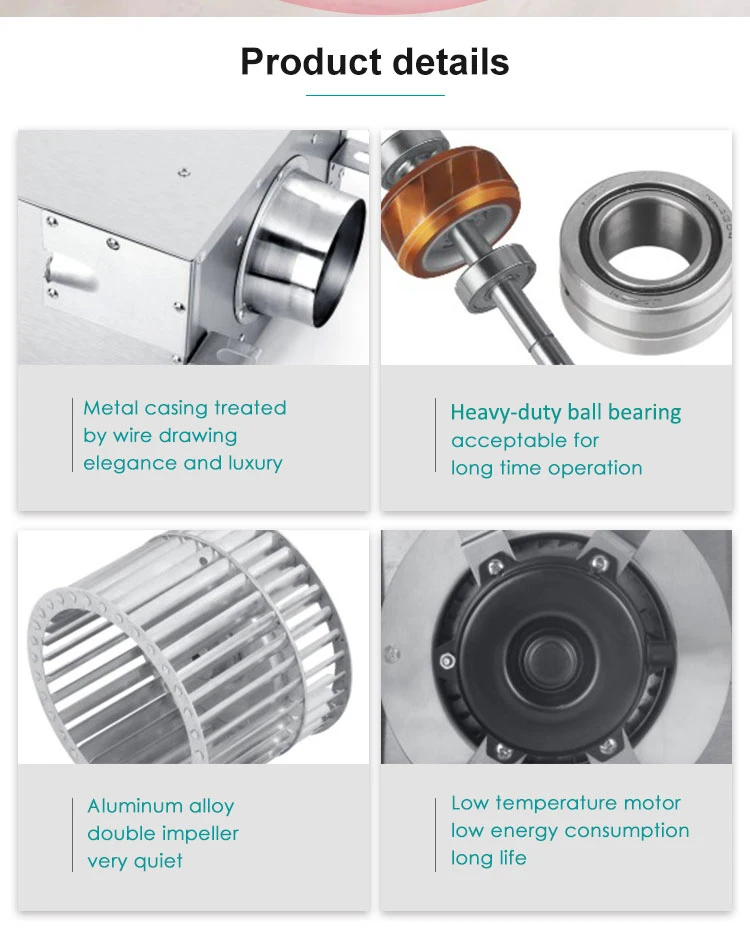

| Casing | Metal casing treated by wire drawing |
| Air Deflector | Patent air deflector device |

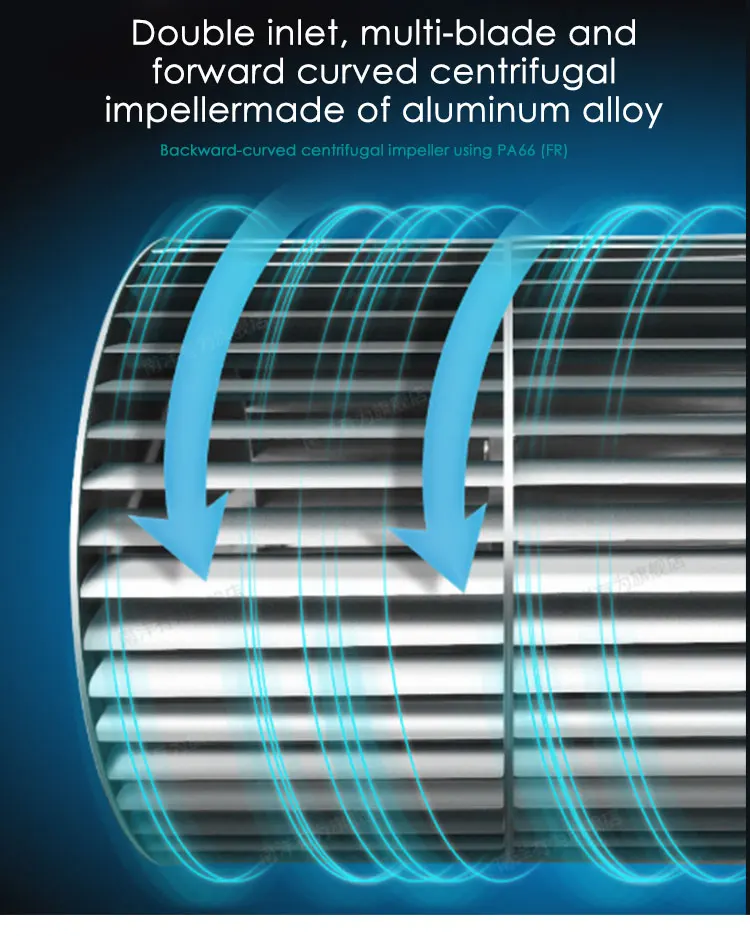

| Impeller | Forward-curved Centrifugal Impeller |
| Application | Air Ventilation |
| Keyword | Quiet Centrifugal Blower Ventilation Fan |
| Selling Units | Single item |
| Single Package Size | 46X34X24 cm |
| Single Gross Weight | 5.5 kg |
Product Details

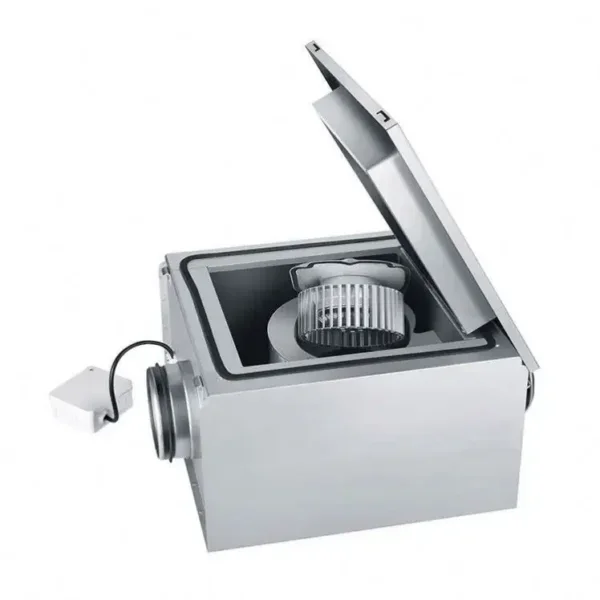

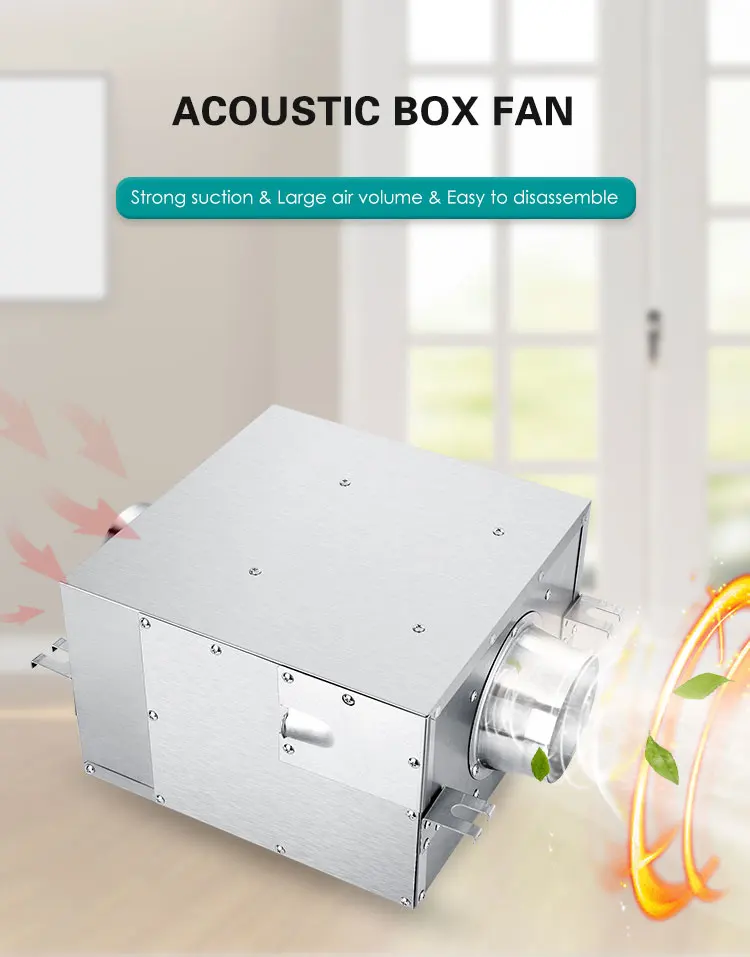

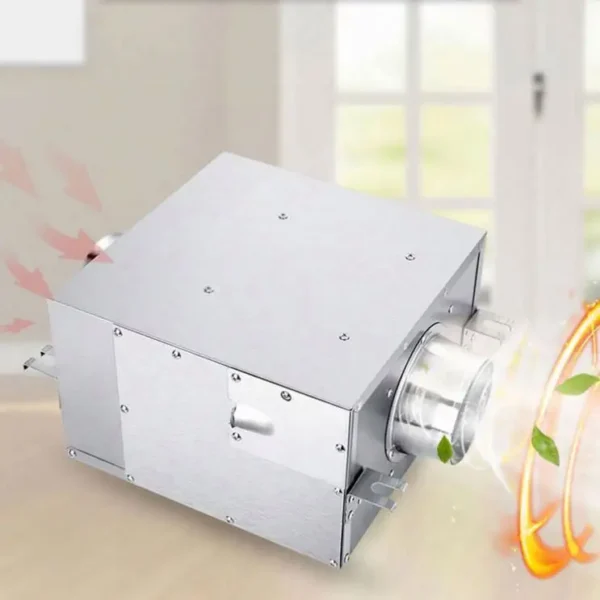

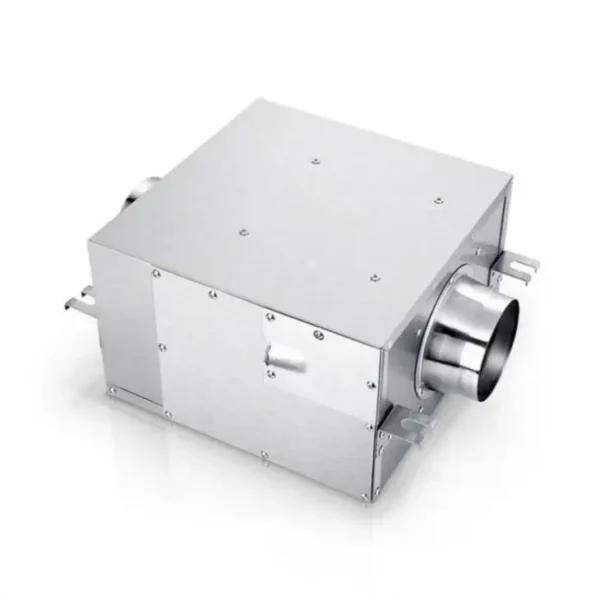

New product ideas air clean inline centrifugal duct acoustic box fan for household fresh air system

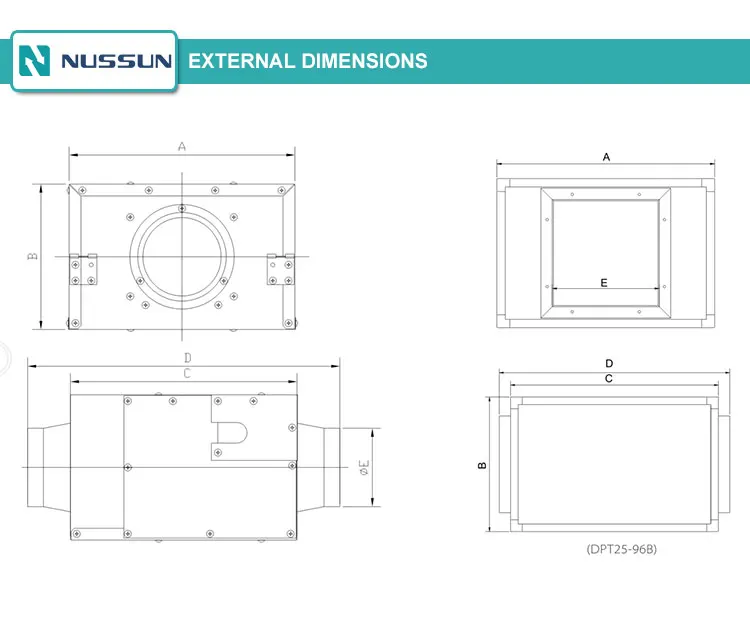

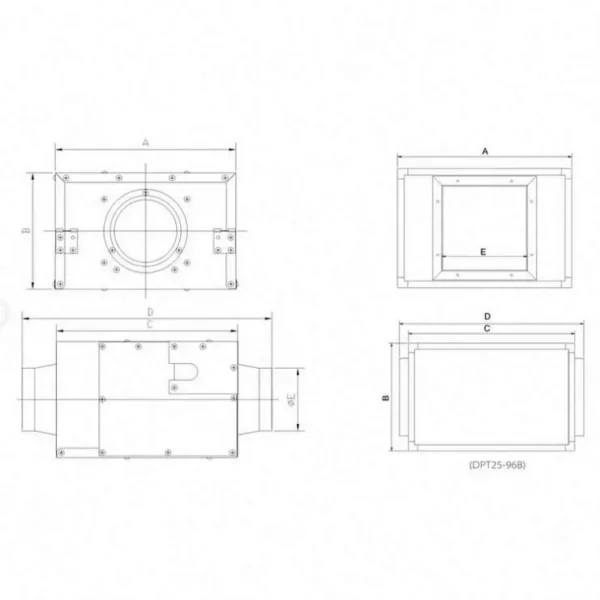

| Dimensions Table(mm) | |||||
| Model | A | B | C | D | E |
| DPT10-12B | 286 | 184 | 288 | 395 | 100 |
| DPT10-24B | 286 | 184 | 288 | 395 | 100 |
| DPT15-32A | 288 | 206 | 299 | 407 | 150 |
| DPT15-32C | 288 | 206 | 299 | 407 | 150 |
| DPT15-32B | 288 | 206 | 299 | 407 | 150 |
| DPT15-42B | 288 | 206 | 299 | 407 | 150 |
| DPT20-54B | 390 | 270 | 420 | 548 | 200 |
| DPT20-54C | 390 | 270 | 420 | 548 | 200 |
| DPT25-65B | 470 | 330 | 490 | 650 | 250 |
| DPT25-76B | 470 | 330 | 490 | 650 | 250 |
| DPT25-76C | 470 | 330 | 490 | 650 | 250 |
| DPT25-86B | 470 | 330 | 490 | 650 | 250 |
| DPT25-96B | 520 | 356 | 550 | 610 | 256 |
| performance parameter | ||||||||||
| Model | Voltage(V) | frequency (Hz) | Airflow | Static Pressure (Pa) | Noise (dB) | Speed (r.p.m) | Power (W) | current (A) | weight (kg) | |
| CMH | CFM | |||||||||
| DPT10-12B | 220~230 | 50 | 1153 | 68 | 85 | 18 | 860 | 13.8 | 4.4 | 2.3 |
| DPT10-24B | 220~230 | 50 | 185 | 110 | 110 | 21 | 1180 | 24.5 | 0.11 | 2.3 |
| DPT15-32A | 220~230 | 50 | 250 | 148 | 105 | 24 | 1000 | 45 | 0.22 | 2.4 |
| DPT15-32C | 220~230 | 50 | 300 | 178 | 115 | 25 | 1140 | 47 | 0.23 | 2.4 |
| DPT15-32B | 220~230 | 50 | 360 | 212 | 125 | 26 | 1250 | 48 | 0.22 | 3.4 |
| DPT15-42B | 220~230 | 50 | 500 | 295 | 190 | 28 | 1360 | 98 | 0.45 | 3.4 |
| DPT20-54B | 220~230 | 50 | 772 | 455 | 230 | 35 | 1180 | 155 | 0.72 | 3.6 |
| DPT20-54C | 220~230 | 50 | 920 | 543 | 245 | 37 | 1280 | 163 | 0.75 | 3.6 |
| DPT25-65B | 220~230 | 50 | 1200 | 708 | 230 | 40 | 820 | 185 | 0.84 | 3.8 |
| DPT25-76B | 220~230 | 50 | 1700 | 1003 | 350 | 43 | 880 | 198 | 0.88 | 3.8 |
| DPT25-76C | 220~230 | 50 | 1900 | 1121 | 380 | 46 | 1060 | 385 | 1.75 | 3.9 |
| DPT25-86B | 220~230 | 50 | 2500 | 1475 | 440 | 48 | 1230 | 440 | 2.00 | 3.9 |
| DPT25-96B | 220~230 | 50 | 3000 | 1780 | 400 | 49 | 1280 | 420 | 1.90 | 4.0 |
Q: Are you trading company or manufacture?
A:We are the factory and manufacture for ventilation fans with top high quality and competitive price.
Q:How long is your delivery time?
A:For samples order, 3-5 working days, For mass production, 20-25 working days.
Q:Do you provide the sample? Is it free to extra.
A:Yes, we would like to support you one free sample, but not support the actually freight cost.
Q:What is your terms of payment?
A:TT and Ali trade assurance.
New product ideas Hepa filter air cLean inline centrifugal duct acoustic box fan for household fresh air system
New product ideas Hepa filter air cLean inline centrifugal duct acoustic box fan for household fresh air system
New product ideas Hepa filter air cLean inline centrifugal duct acoustic box fan for household fresh air system
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–19 piece: US $38.73 / piece
- 20–199 piece: US $37.8 / piece
- 200+ piece: US $33.68 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this product ideas hepa filter?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the product ideas hepa filter be supplied for my local voltage?
The standard configuration is 220V~230V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
