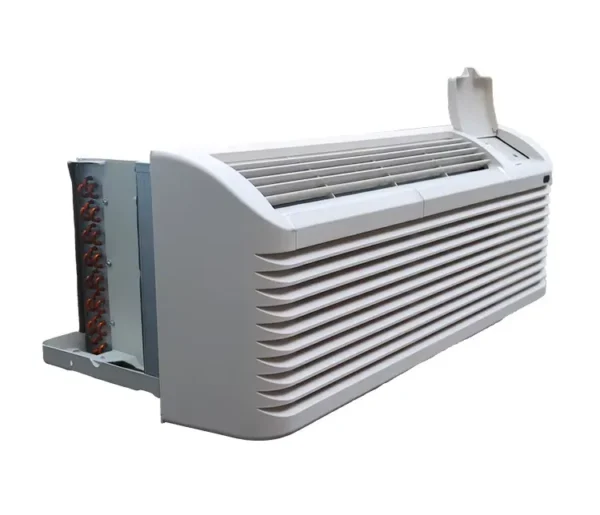

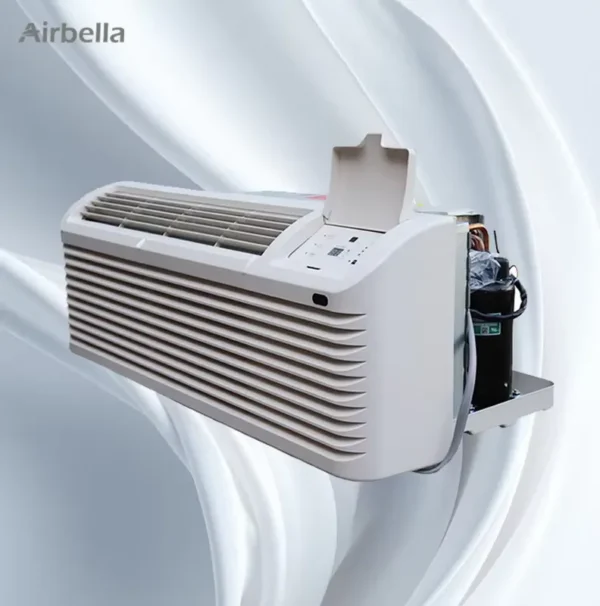

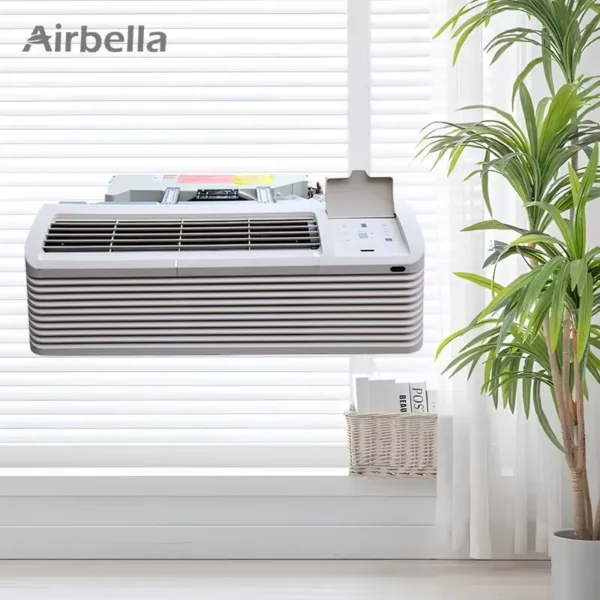

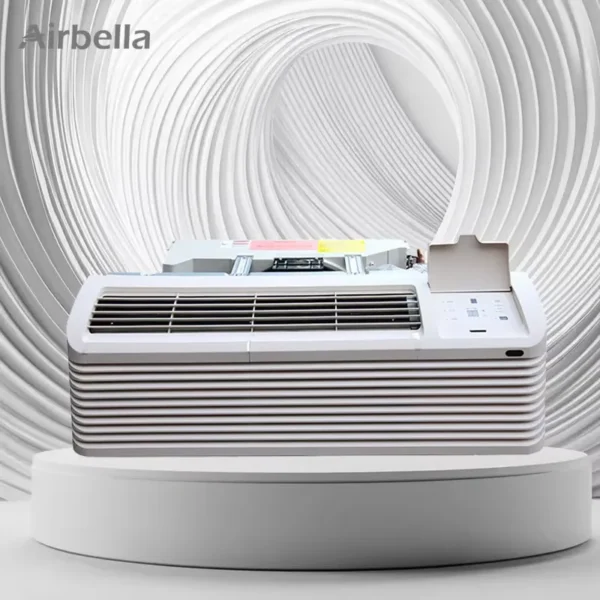

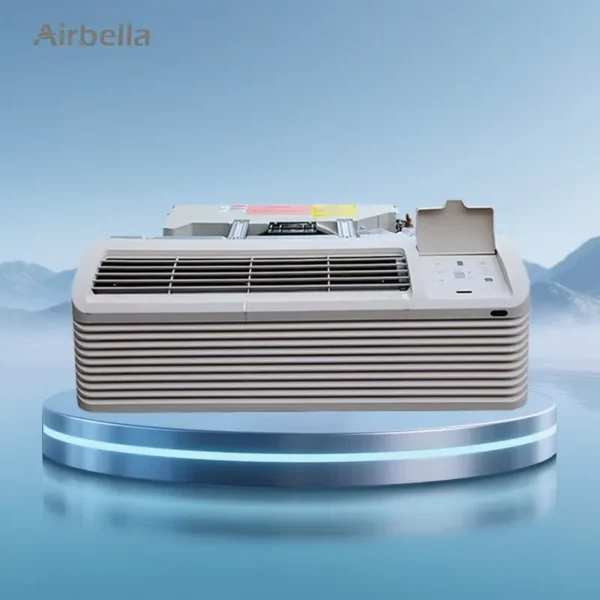

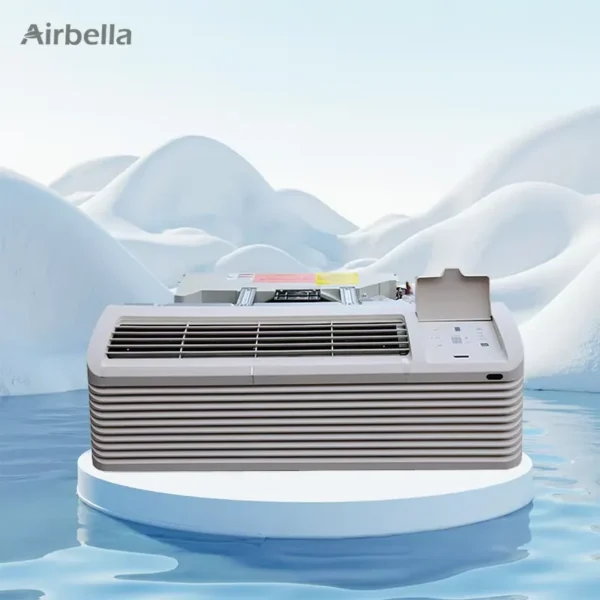

Ptac Air Conditioner, 220V, 9000BTU

Key specification for this ptac air conditioner: 220V /60Hz, capacity 9000. Everything below is reproduced from the factory data sheet. Made by Foshan Peile Engineering Technology Co., Ltd. (3 years on the platform, typical reply ≤7h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Ptac Air Conditioner

• Model Number: APS-09ANR1-F
• Power Source: Electric
• Power Type: AC
• Power (W): 1080
• Power Supply: 220V /60Hz
• Capacity (Btu): 9000

Technical Specifications

Product Details

Sale Model					APS-07ANR1-F	APS-09ANR1-F	APS-12ANR1-F	APS-15ANR1-F
Code					821020300060	821020500114	821020800095	821021100073
Factory model					CPS-07ANR1-F	CPS-09ANR1-F	CPS-12ANR1-F	CPS-15ANR1-F
Product name					PTAC-F series	PTAC-F series	PTAC-F series	PTAC-F series
Power supply			V-Ph-Hz	230/208V /60Hz	230/208V /60Hz	230/208V /60Hz	230/208V /60Hz
Power supply type				Single-phase power supply	Single-phase power supply	Single-phase power supply	Single-phase power supply
Cooling	Capacity	Btu/h	7200/6800	9200/9000	12000/11800	14700/14500
		Input	W	605/570	805/790	1130/1110	1470/1450
		EER	Btu/h.W	11.9/11.9	11.4/11.4	10.6/10.6	10.0/10.0
Heating	Capacity	Btu/h	6000/5800	8300/8100	10800/10500	13600/13400
		Input	W	520/500	715/700	960/930	1245/1210
		COP	Btu/h.W	3.4/3.4	3.4/3.4	3.3/3.3	3.2/3.2
Electric heating (standard)	Capacity (230/208V)	Btu/h	10200/8300	10200/8300	10200/8300	17000/13900
		Power input (230/208V)	kW	3050/2500	3050/2500	3050/2500	5050/4135
		Rated current (230/208V)	A	13.2/12	13.2/12.0	13.2/12.0	21.9/19.8
Cooling power factor				0.992/0.994	0.987/0.990	0.956/0.963	0.985/0.991
Heating power factor				0.990/0.991	0.987/0.988	0.936/0.940	0.983/0.991
Max. input consumption			W	775	1080	1460	1760
Max. current			A	3.4	4.8	7.3	7.8
Starting current			A	/	/	/	/
Dehumidification	230V	kg/h	0.02	0.65	1.2	1.72
				pint/hr	0.04	1.37	2.54	3.64
		208V	kg/h	0.11	0.8	1.32	1.84
				pint/hr	0.23	1.69	2.79	3.89
Compressor	Model		ASN58N	ASN82N	ASM113N1UDZ	ASM135N
		Type		Rotary	Rotary	Rotary	Rotary
		Brand		GMCC	GMCC	GMCC	GMCC
		Supplier		GMCC	GMCC	GMCC	GMCC
		Capacity	Btu/h	6500/6550 ± 5 %	9550/9600± 5 %	11500/11450±5%	13700/13850±5%
		Input	W	480/492 ± 5 %	675/690 ± 5 %	1090/1075 ±5%	1275/1300 ±5%
		Rated current(RLA)	A	2.30/2.15	3.25/3.05	4.9/5.3 ±5%	6.35/5.75
		Locked rotor Amp(LRA)	A	17±10%	20±10%	28.5±10%	34.5±10%
		Thermal protector	℃	135±5(Built-in)	135±5(Built-in)	135±5(Built-in)	135±5(Built-in)
		Capacitor	uF	20	20	40	40
		Refrigerant oil	ml	270	280	320	300
Indoor fan motor	Model		YDK-25-4P2	YDK-25-4P2	YDK-30-4P2	YDK-30-4P2
		Type		Single-axis fan motor	Single-axis fan motor	Single-axis fan motor	Single-axis fan motor
		Brand		KB/Chigo	KB/Chigo	KB/Chigo	KB/Chigo
		Insulation class		A	A	A	A
		Safe class		IP20	IP20	IP20	IP20
		Input	W	55	55	64	64
		Output	W	25	25	30	30
		Rated current	A	0.25	0.25	0.29	0.29
		Capacitor	uF	1.5	1.5	1.5	1.5
		Speed(hi/lo)	r/min	900/650	900/650	1050/850	1050/950
Indoor fan	material		Metal	Metal	Metal	Metal
		Type		Cross-flow fan blade	Cross-flow fan blade	Cross-flow fan blade	Cross-flow fan blade
		Diameter	mm	120	120	120	120
		Height	mm	706	706	706	706
Indoor coil	a.Number of rows		2	2	2	3
		b.Tube pitch(a)x row pitch(b)	mm	21*13.37	21*13.37	21*13.37	21*13.37
		c.Fin spacing	mm	1.4	1.4	1.4	1.6
		d.Fin type (code)		Window type fins	Window type fins	Window type fins	Window type fins
		e.Tube outside dia.and type	mm	φ7×0.24+0.18×C	φ7×0.24+0.18×C	φ7×0.24+0.18×C	φ7×0.24+0.18×C
						Threaded pipe	Threaded pipe	Threaded pipe	Threaded pipe
		f.Coil length x height	mm	704*252	704*252	704*252	704*252
		g.Number of circuits		2	2	2	2
Indoor air flow (Hi/Lo)			m3/h	720/620	700/620	800/700	800/700
				CFM	424/365	412/365	471/412	471/412
Indoor external static pressure (Hi)			Pa	0	0	0	0
Indoor sound level (sound pressure level)			dB(A)	48/39	48/39	52/46	51/48
Outdoor fan motor	Model		YDK-55-4P2-4	YDK-55-4P2-4	YDK-AI-55-4P2	YDK-55-4P2-4
		Type		Single-axis iron motor	Single-axis iron motor	Single-axis iron motor	Single-axis iron motor
		Brand		GI	GI	GI	GI
		Insulation class		A	A	A	A
		Safe class		IPX4	IPX4	IPX4	IPX4
		Input	W	104	104	104	104
		Output	W	55	55	55	55
		Rated current	A	0.46	0.46	0.46	0.46
		Capacitor	uF	3	3	3	3
		Speed	r/min	1600	1600	1600	1600
Outdoor fan	material		ABS+G15	ABS+G15	ABS+G15	ABS+G15
		Type		Axial flow	Axial flow	Axial flow	Axial flow
		Diameter	mm	348	348	348	348
		Height	mm	104	104	104	104
Outdoor coil	Number of rows		2	2	2	3
		Tube pitch(a)x row pitch(b)	mm	14.5*12.56	14.5*12.56	14.5*12.56	21*13.37
		Fin spacing	mm	1.3	1.3	1.3	1.5
		Fin type (code)		Hydrophilic window fins	Hydrophilic window fins	Hydrophilic window fins	Hydrophilic window fins
		Tube outside dia.and type	mm	φ5	φ5	φ5	φ7
						φ4.9×0.2+0.15×C	φ4.9×0.2+0.15×C	φ4.9×0.2+0.15×C	φ7×0.24+0.18×C
		Coil length x height	mm	676×348	676×348	676×348	676×336
		Number of circuits		4	2	2	4
Outdoor air flow			m3/h	1200	1200	1200	1200
Outndoor sound level(sound pressure level )			dB(A)	66	66	66	66
Unit	Dimension(W*H*D)	mm	1066*535*408	1066*535*408	1066*535*408	1066*535*408
				inch	42*21*16	42*21*16	42*21*16	42*21*16
		Packing (W*H*D)	mm	1150*630*480	1150*630*480	1150*630*480	1150*630*480
				inch	45*25*19	45*25*19	45*25*19	45*25*19
		Net/Gross weight	Kg	44/49	44/49	46.5/51.5	49/54
Charged refrigerant type			g	540	550	750	970
				oz	19	19.4	26.5	34.2
Throttle type				Capillary	Capillary	Capillary	Capillary
Design pressure			MPa	3.1/1.6	3.1/1.6	3.3/1.6	3.6/1.6
Connection wiring	Power wiring	mm2	3.3081（LCDI-20A）	3.3081（LCDI-20A）	3.3081（LCDI-20A）	5.2615（LCDI-30A）
		Signal wiring	mm2	0.3243	0.3243	0.3243	0.3243
Controller				Button control/ Remote control /24V wired control	Button control/ Remote control /24V wired control	Button control/ Remote control /24V wired control	Button control/ Remote control /24V wired control
Operation temp			℃	16~32	16~32	16-32	16-32
Ambient temp(Outdoor)	Cooling	℃	12-48	12-48	12-48	12-48
				℉	53.6-118	53.6-118	53.6-118	53.6-118
		Heating	℃	5-27	5-27	5-27	5-27
				℉	41-80.6	41-80.6	41-80.6	41-80.6

Q:Are you a manufacturer or trading company? A:We are a manufacturer that specialized in refrigeration equipment. And we will do our best to show you the best quality, fastest delivery and highest credit to you.

Q: How about the delivery time? It depends on your quantity. Generally, it takes 45-60 days after receiving your deposit.

Q:How is your afer-sales service? A: We provide 1 year warranty, and 3 years for compressor, and we always provide 1% spare parts For Free.And we will supply the technical supportafer the warranty time. You can contact us 24 hours each day online.

Q:How can l get some samples? A: We welcome sample order to test and check quality. We can't offer free sample.please pay the sample and express fee.

Q: How about the packing? A: packed in carton, can customized different logo according to customers' requirements.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–49 piece: US $355 / piece
  • 50+ piece: US $335 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this ptac air conditioner?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the ptac air conditioner be supplied for my local voltage?

The standard configuration is 220V /60Hz. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
