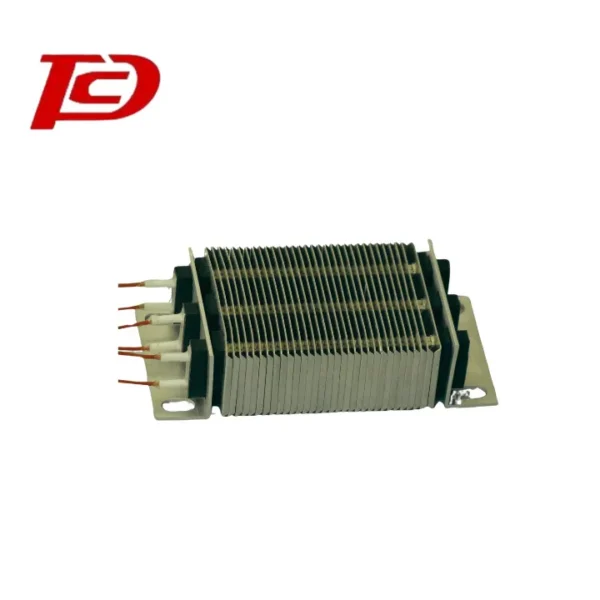

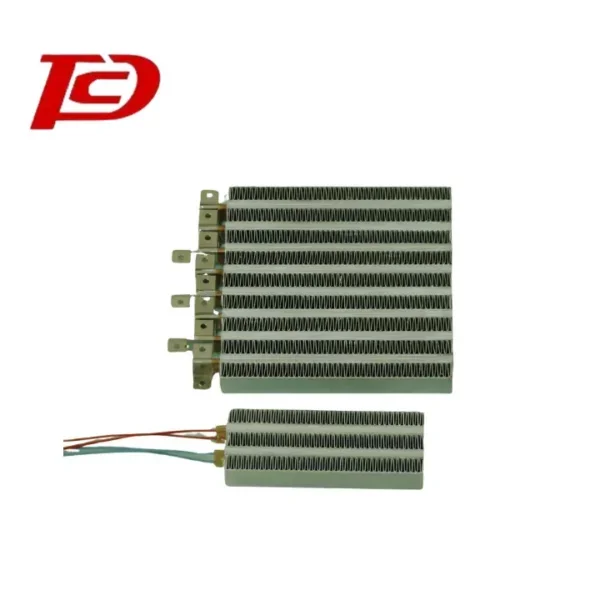

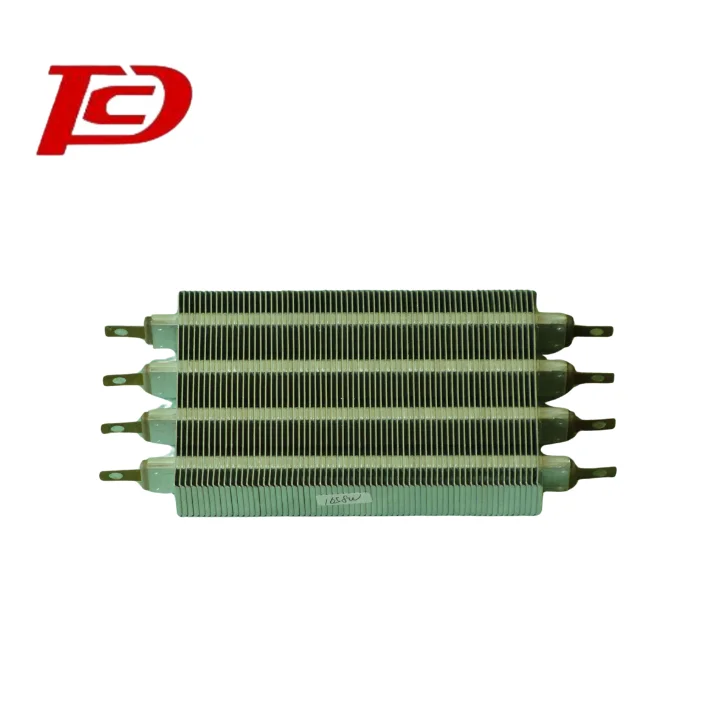

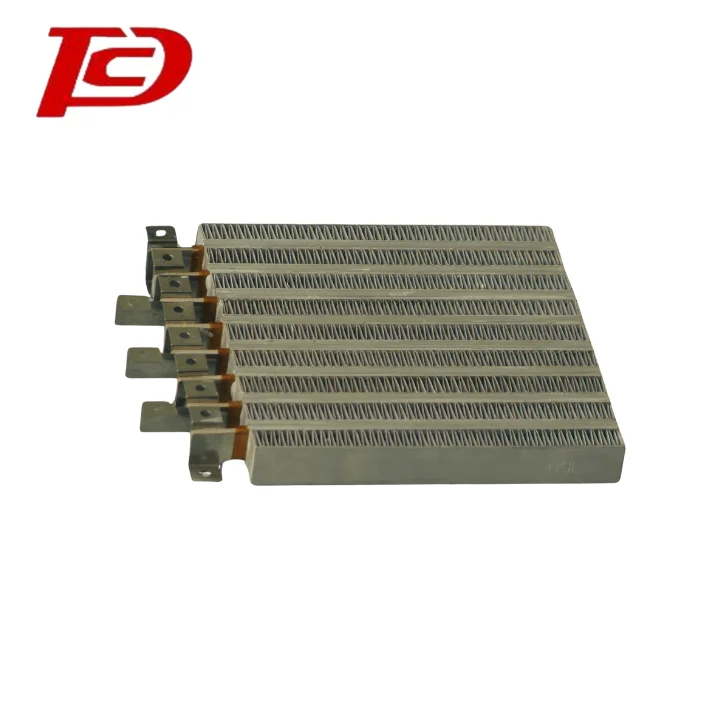

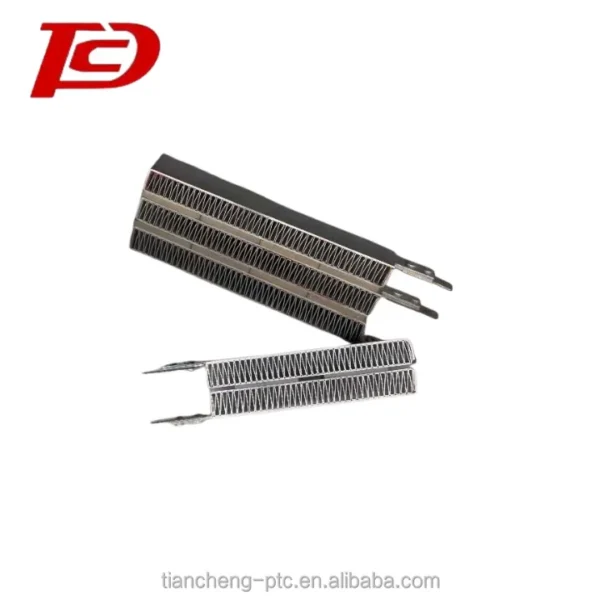

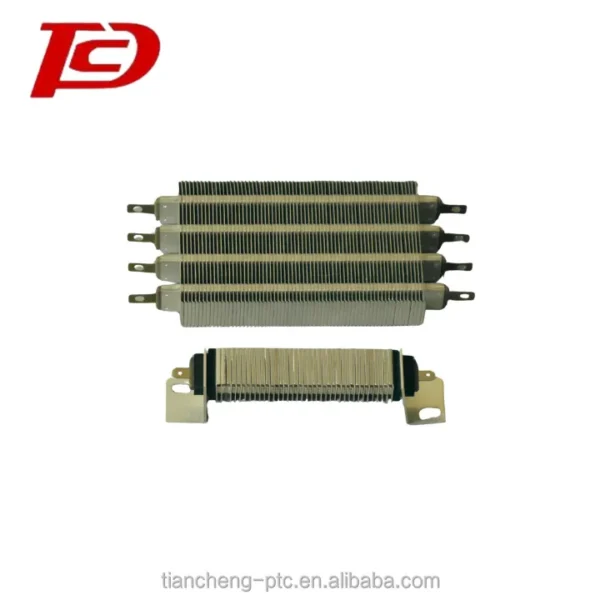

Ptc Wing Radiator, 220V, 220 V, 2100W@5m

This ptc wing radiator is published with the manufacturer’s full specification — 220 V, 2100W@5m/s (220V AC). Made by Dongguan Tiancheng Thermistors Co., Ltd. (18 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Ptc Wing Radiator

• Model Number: MZFR
• Power Source: Electric
• Voltage: 220 V
• Heating Capacity: 2100W@5m/s (220V AC)
• Material: Metal
• Warranty: 1 Year

Technical Specifications

Product Details

Company Introduction

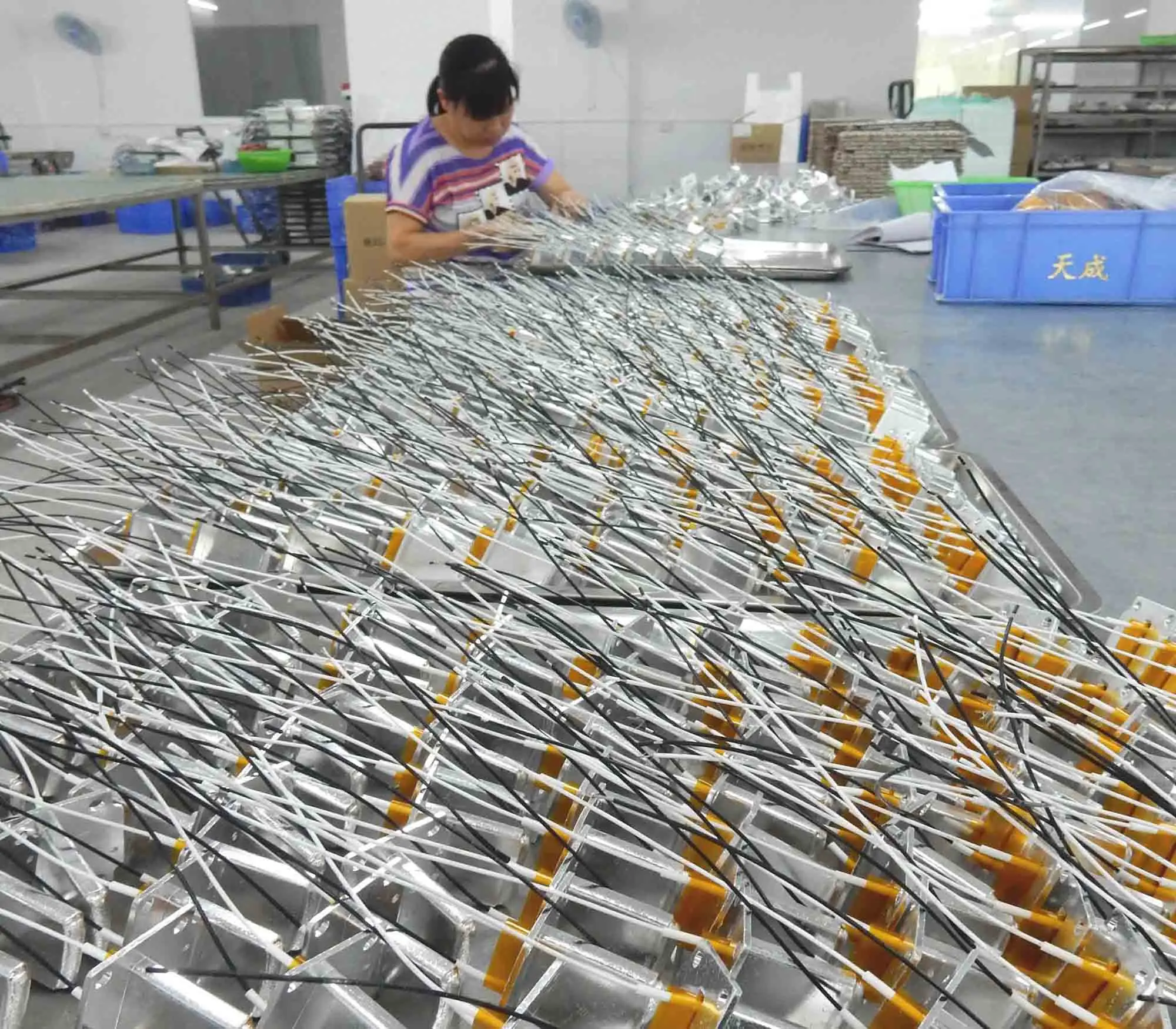

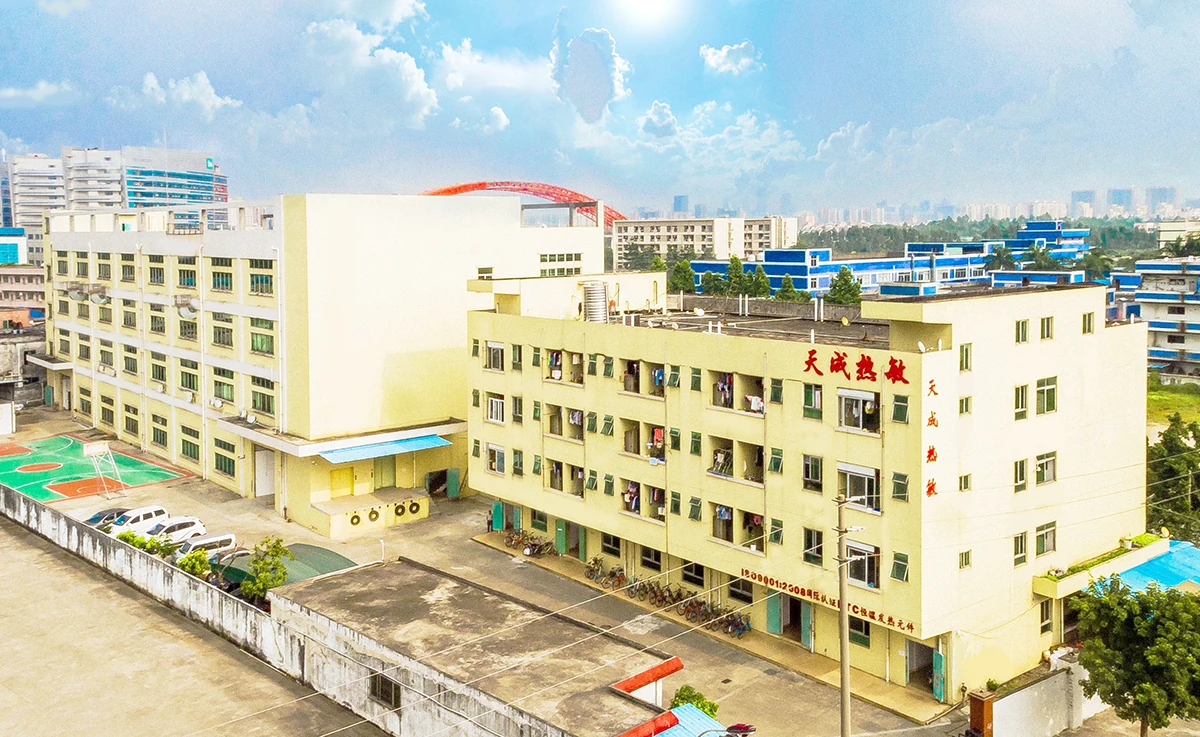

Dongguan Tiancheng Thermistor Co., Ltd., established in 1993, is a national high-tech enterprise. It specializes in manufacturing.PTC heating elements and sells its products both at home and abroad. In 2000, the company passed the ISO 9001 certification,strictly controlling product quality. With excellent aging performance, small power attenuation and stable quality, its productshave obtained a number of safety and environmental protection certifications. The company also owns more than 20 national patents.Its products include various PTC constant temperature heaters, ceramic heating plates and products developed with PTC. The companyhas an annual output of 50 million pieces, a factory building area of 7,000 square meters and 180 to 220 employees. It can provide professional advice to customers.

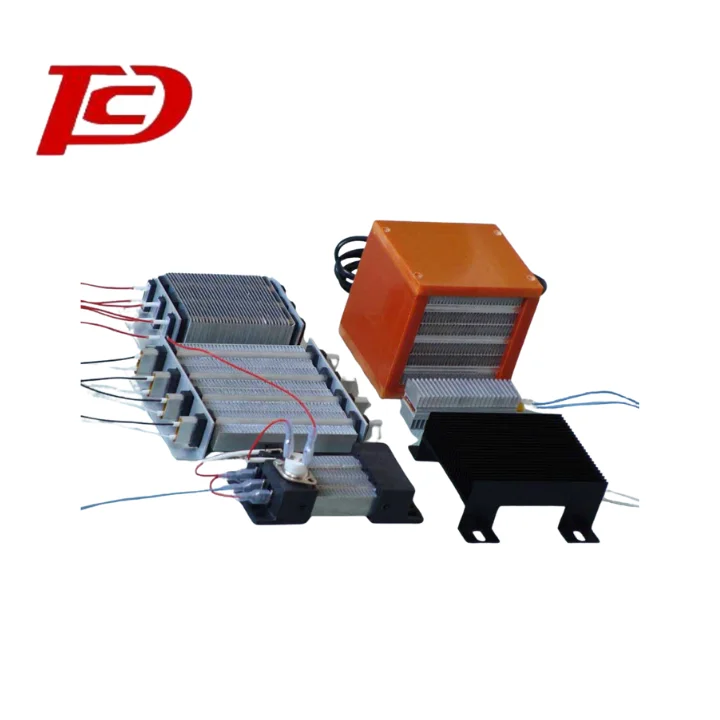

Blowing air heater

1）This type of PTC air heater need a fan to blow, usually the faster is the air blowing speed, the larger is the power.

2）Please tell us, if PTC heater is intended to use in very low ambient temperature, or in very strong air blowing. 3）PTC heater does not be damaged without air blowing, but the power is very low. 4）The power could be adjusted by air blowing speed, applied voltage, or the number of heaters. 5）The surface temperature on heater without blowing would be very higher than with blowing. A thermostat could be assembled on the heater, preventing the damage of the holder. 6）The outlet air temperature depends on surface temperature on heater, intake air temperature air speed. Normally outlet air temperature is between 80~110℃; Other outlet air temperature could be special made. 7）The radiator of non-insulated PTC air heater is electriferous. 8）Higher is the surface temperature of PTC, the larger is the power; but the reliable, and life time are worse.

Type	Describe
Blowing PTC air heate	Insulated heater with wave radiator, non-insulated heater with wave radiator, insulated heater with inserted foil radiator, insulated heater with comb radiator, heater for compressed air.
PTC air heater with fan:	Non-insulated heater with fan, insulated heater with fan.
Convection PTC air heater	There is no a fan, the heat is dispersed by air convection.
Temperature controlled PTC air heater	A temperature control unit is assembled, the temperature can be controlled within a tolerance of ±2℃.

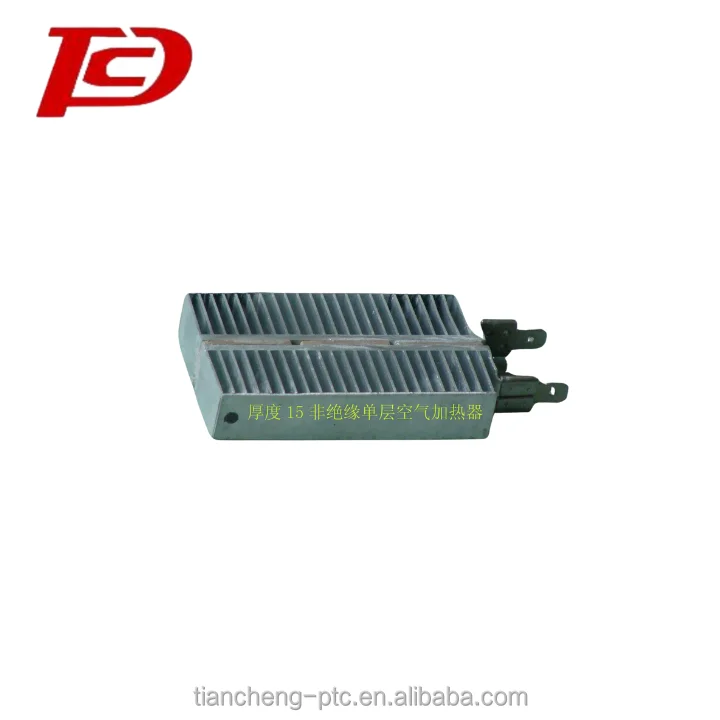

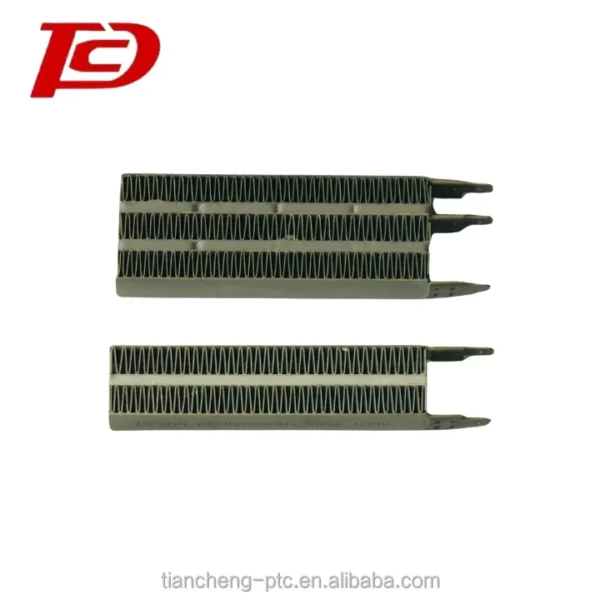

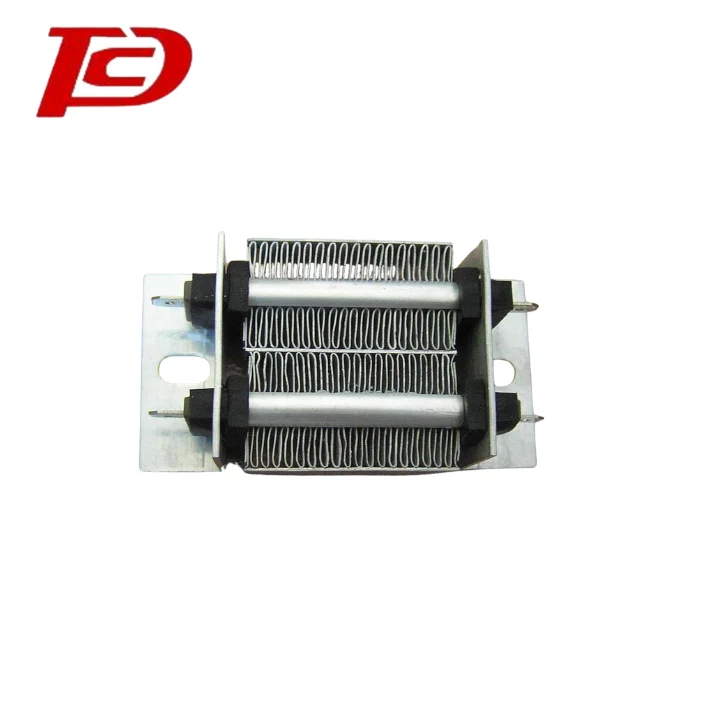

Non-insulated air heater
Part number	Length /mm	Width /mm	Thickness /mm	Quantity of PTC ceramic	Switch temperature /℃	Power /W (5m/s, airflow)
MZFRB-850L96W44T15-220V1	96	44	15	8	250	850
MZFRB-1K06L120W44T15-220V1	120	44	15	10	250	1060
MZFRB-1K28L96W66T15-220V1	96	66	15	12	250	1280
MZFRB-1K6L120W66T15-220V1	120	66	15	15	250	1600
MZFRB-2K1L120W72T15-220V1	120	72	15	25	250	2100
MZFRB-3K2L120W120T15-220V1	120	120	15	40	250	3200
MZFRB-3K2L120W120T15-220V1	800	440	15	660	250	50000
MZFRB-4K8L120W120T30-220V1	120	120	30	80	250	4800
MZFRB-75KL120W120T30-220V1	800	440	30	1320	250	75000

Notice:

 1) Customer’s required power, and dimensions, outlet air temperature were possible, the thickness can be 15mm, 20mm, 24mm, 30mm; for larger area of radiator, thicker, more PTC ceramic, larger air speed, lower inlet air temperature, the heating power would be larger; 2) 6~600V of rated voltage, DC or AC, are possible; 3) UL file for PTC pellet is E207611; 4) 80~250℃ of switch temperature is possible; the power is proportional to temperature difference (ΔT = switch temperature－inlet air temperature). 5) This type of heater is with low wind drag, and low noise, but the power density is lower.

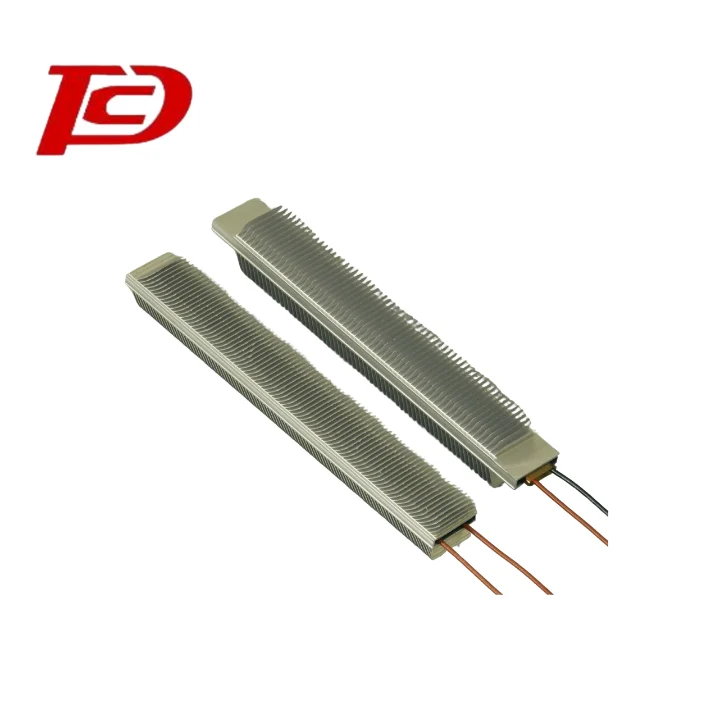

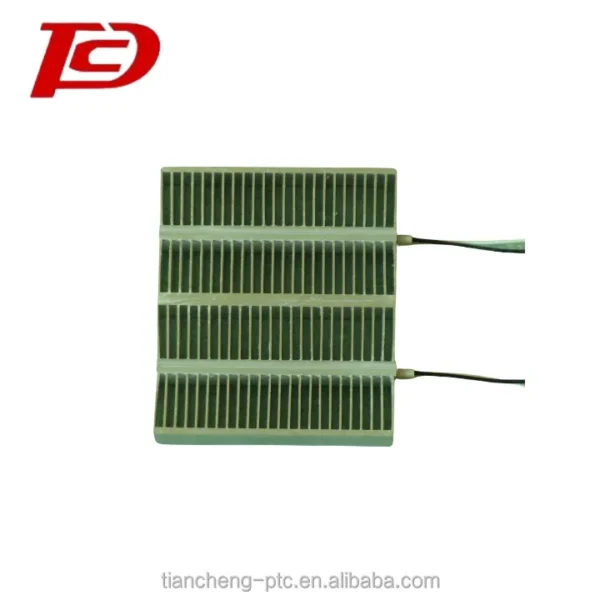

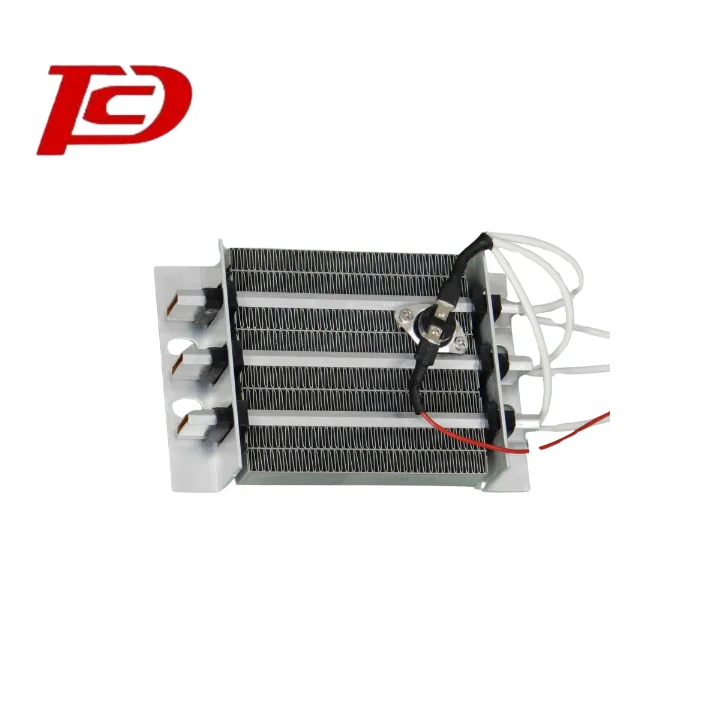

Insulated air heater

1) Customer’s required power, and dimensions, outlet air temperature were possible, the thickness can be 15mm, 20mm, 24mm, 30mm; for larger area of radiator, thicker, more PTC ceramic, larger air speed, lower inlet air temperature, the heating power would be larger; 2) 6~600V of rated voltage, DC or AC, are possible; 3) UL file for PTC pellet is E207611;

4) 80~250℃ of switch temperature is possible; the power is proportional to temperature difference (ΔT = switch temperature－inlet air temperature).

Insulated air heater
Part number	Length /mm	Width /mm	Thickness /mm	PTC quantity	High pot Voltage /V	Switch temperature /℃	Power /W (5m/s, airflow)
MZFRJB-200L50W50T15-220V1	50	50	15	4	3750	250	200
MZFRJB-400L75W75T15-220V1	75	75	15	9	3750	250	400
MZFRJB-700L100W75T15-220V1	100	75	15	12	3750	250	700
MZFRJB-2K5L200W110T15-220V1	200	110	15	42	3750	250	2500
MZFRJB-640L96W50T20-220V1	96	50	20	8	3750	250	640
MZFRJB-800L120W50T20-220V1	120	50	20	10	3750	250	800
MZFRJB-960L96W75T20-220V1	96	75	20	12	3750	250	960
MZFRJB-1K2L120W75T20-220V1	120	75	20	15	3750	250	1200

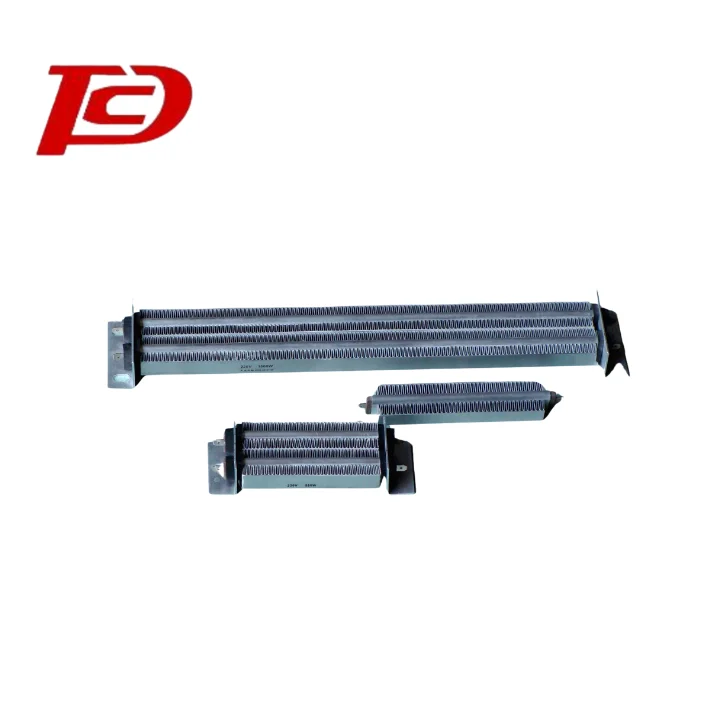

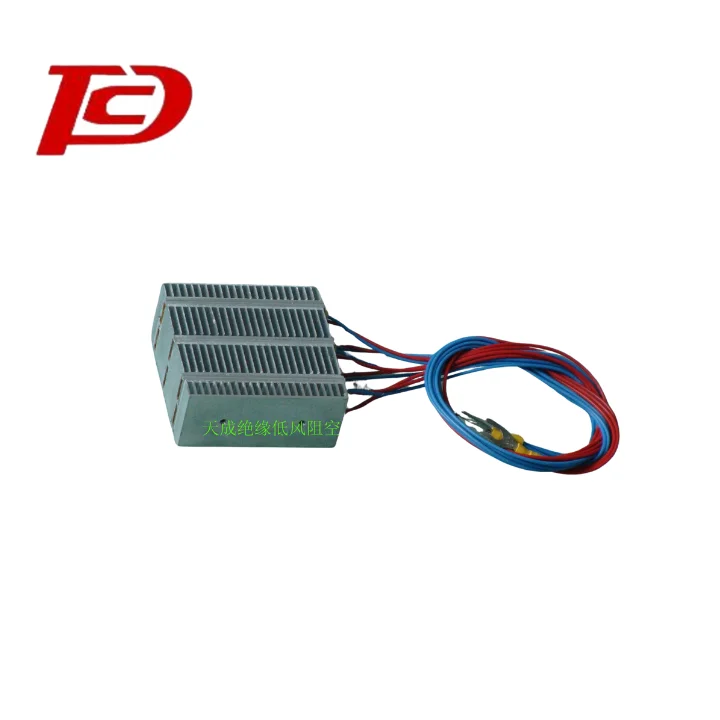

Insulated air heater with low wind drag

1) Customer’s required power, and dimensions, outlet air temperature were possible, the thickness can be 15mm, 20mm, 24mm, 30mm; for larger area of radiator, thicker, more PTC ceramic, larger air speed, lower inlet air temperature, the heating power would be larger;

2) 6~400V of rated voltage, DC or AC, are possible; 3) UL file for PTC pellet is E207611; 4) 80~250℃ of switch temperature is possible; the power is proportional to temperature difference (ΔT = switch temperature－inlet air temperature).

Part number	Length /mm	Width /mm	Thickness /mm	High pot Voltage /V	Switch temperature /℃	Power /W (5m/s, airflow)
MZFRJL-220L77H28T15-220V1	72	28	15	3750	250	220
MZFRJL-400L77H56T15-220V1	72	56	15	3750	250	400
MZFRJL-1K2L150H84T15-220V1	150	84	15	3750	250	1200
MZFRJL-500L77H56T20220V1	72	56	20	3750	250	500
MZFRJL-1K5L150H84T20220V1	150	84	20	3750	250	1500
MZFRJL-600L77H56T30220V1	72	56	30	3750	250	600
MZFRJL-3K2L300H84T30220V1	300	84	30	3750	250	3200

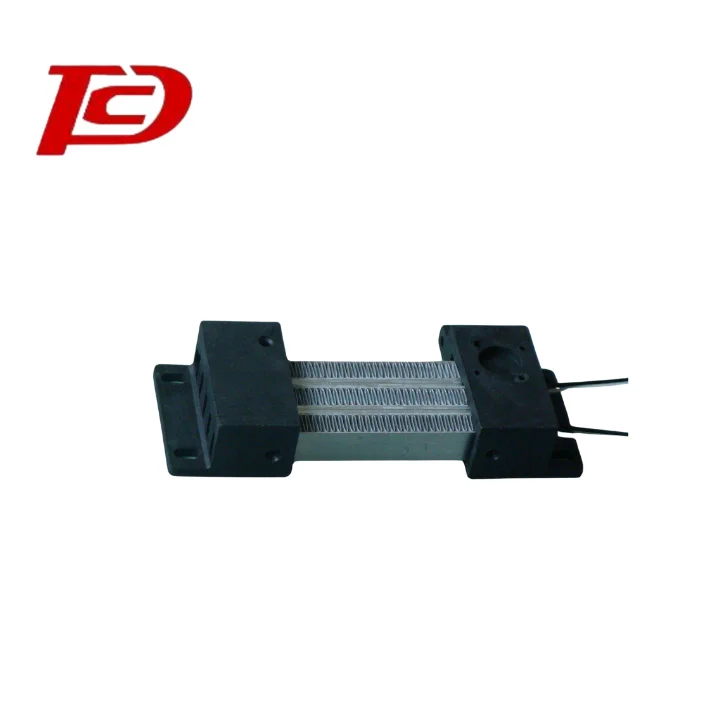

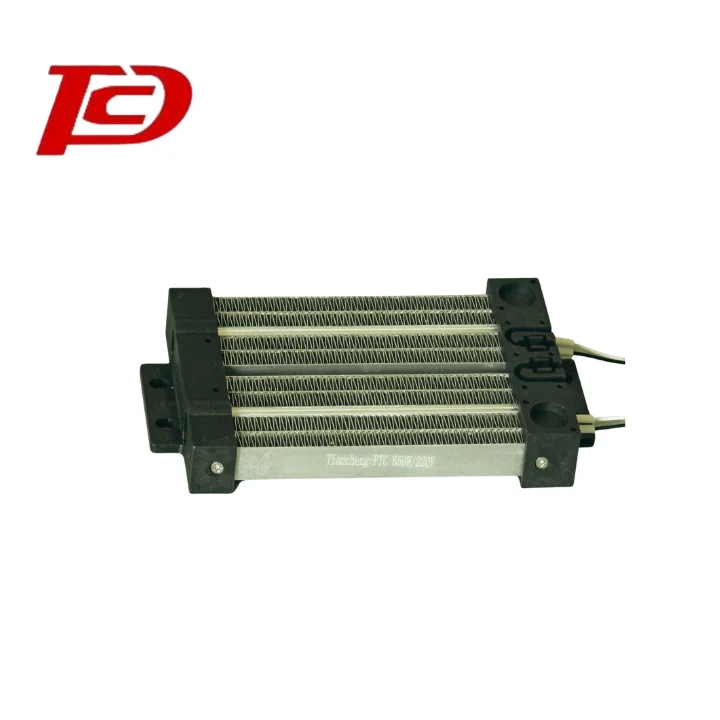

Insulated multi-slice heater

1) Customer’s required power, and length were possible; for larger area of radiator, more PTC ceramic, larger air speed, lower inlet air temperature, the heating power would be larger; 2) 100~400V of rated voltage, DC or AC, are possible;

3) UL file for PTC pellet is E207611; 4) 80~250℃ of switch temperature is possible; the power is proportional to temperature difference (ΔT = switch temperature－inlet air temperature).

Part number	Length /mm	Width /mm	Thickness /mm	High pot Voltage /V	Switch temperature/℃	Power /W (5m/s, airflow)
MZFRJC-900L100W60T30-220V1	100	60	30	3750	250	900
MZFRJC-1K8L200W60T30-220V1	200	60	30	3750	250	1800
MZFRJC-2K5L300W60T30-220V1	300	60	30	3750	250	2500
MZFRJC-2K4L300W90T26-220V1	300	90	26	3750	250	2400
MZFRJC-3K3L400W90T26-220V1	400	90	26	3750	250	3300
MZFRJC-1K1L100W82T26-220V1	100	82	26	3750	250	1100
MZFRJC-2K2L200W82T26-220V1	200	82	26	3750	250	2200
MZFRJC-200L100W17T26-220V1	100	17	26	3750	250	200
MZFRJC-400L100W17T26-220V1	200	17	26	3750	250	400

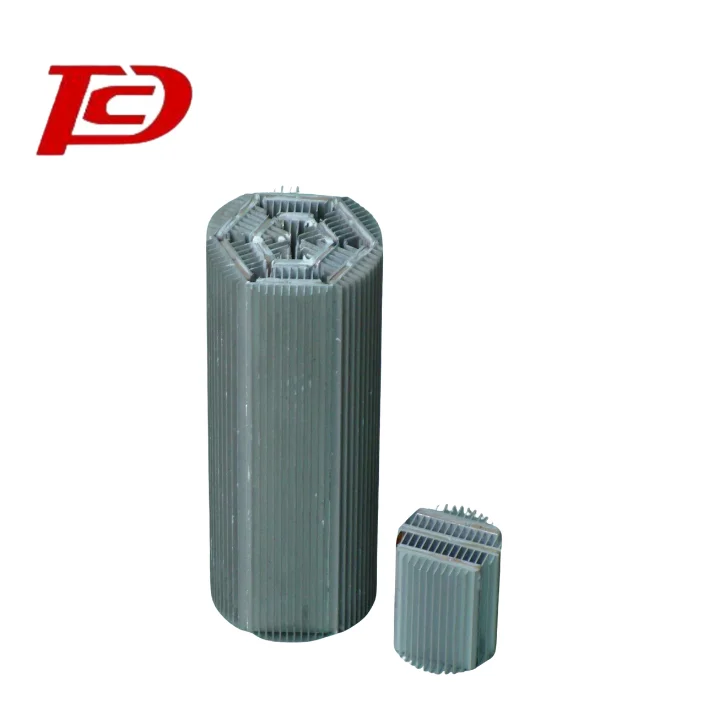

Convecting type of air heater

1) Customer’s required power, and length were possible; for larger length of radiator, more PTC ceramic, higher surface temperature, the heating power would be larger; 2) 6~600V of rated voltage, DC or AC, are possible; 3) UL file for PTC pellet is E207611; 4) 80~200℃ of surface temperature is possible; the power is proportional to temperature difference (ΔT = switch temperature－air temperature).

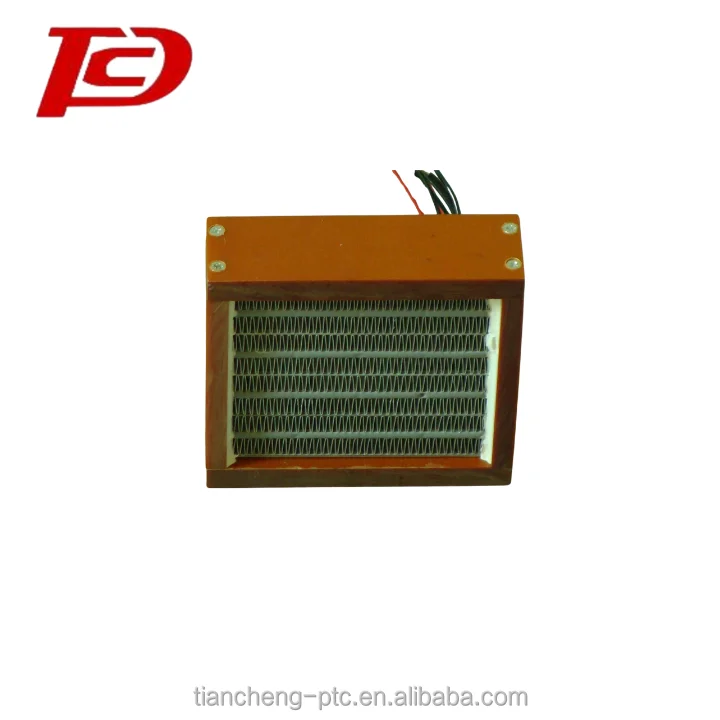

Air heater with a fan

1) Customer’s required power was possible; 2) 6~600V of rated voltage, DC or AC, are possible; 3) UL file for PTC pellet: E207611; 4) A thermostat or temperature fuse could be assembled as customer’s required.

Convecting type of air heater
Part number	Length /mm	Width /mm	height /mm	High pot Voltage /V	Surface temperature /℃	Power /W
DL-P20L100W58T20-220V1	100	58	20	3750	80	20
DL-P35L100W58T20 -220V1	100	58	20	3750	130	35
DL-P300L1000W58T20 -220V1	1000	58	20	3750	130	300
DL-P50L100 58T20 -220V1	100	58	20	3750	180	50
DL-P65L100W58T20 -220V1	100	58	20	3750	240	65
DL-P15L50W71T40 -220V1	50	71	40	3750	80	15
DL-P60L200W71T40 -220V1	200	71	40	3750	80	60
DL-P30L50W71T40 -220V1	50	71	40	3750	130	30
DL-P110L200W71T40 -220V1	200	71	40	3750	130	110
DL-P45L50W71T40 -220V1	50	71	40	3750	180	45
DL-P160L200W71T40 -220V1	200	71	40	3750	180	160

Air heater with a fan
Models	Power /W
RF-2K5F130A-220V1	2500
RF-1K0F90A-220V1	1000
RF-P350F55A-220V1	350
RF-P200F42A-220V1	200
RFJ-1K5F130A-220V1	1500
RFJ-P600F90A-220V1	600
RFJ-P180F55A-220V1	180
RFJ-P100F42A-220V1	100

Ordering and Pricing

• Minimum order quantity: 500 piece
• Volume pricing:
  • 500–999 piece: US $7 / piece
  • 1000+ piece: US $6.5 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this ptc wing radiator?

The standard minimum order quantity is 500 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the ptc wing radiator be supplied for my local voltage?

The standard configuration is 220 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
