This push pull exhaust fan is published with the manufacturer’s full specification — 380V,220V,230V,415V or as your request, air flow 18000-50000m3/h. Made by Qingzhou Huayi Temperature Control Equipment Co., Ltd. (5 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Push Pull Exhaust Fan
- Model Number: HYL-1380
- Power Source: Electric
- Power: 180w- 1100w
- Voltage: 380V,220V,230V,415V or as your request
- Air Flow: 18000-50000m3/h
- Blade Material: Stainless Steel
Technical Specifications
| Voltage | 380V,220V,230V,415V or as your request |
|---|---|
| Type | exhaust fan |
| Blade Material | Stainless Steel |
| Mounting Type | Free Standing |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 2 Years |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Shandong, China |
| Brand Name | HUAYI |
| Model Number | HYL-1380 |
| Product Name | Poultry Farm Fan Greenhouse cooling system Fan |
| Application | greenhouse fan farm fan poultry fan |
| Size | 1380*1380*450mm and Oth |
| Usage | Industrial Agricultural Animal Husbandry |
| Motor Type | AC Cooper Motor |
| Motor | 100% Copper Motor |
| Power | 180w- 1100w |
| Air Flow | 18000-50000m3/h |
| Certification | CE CCC ISO |
| Selling Units | Single item |
| Single Package Size | 90X45X45 cm |
| Single Gross Weight | 45.000 kg |
Product Details
Product Description

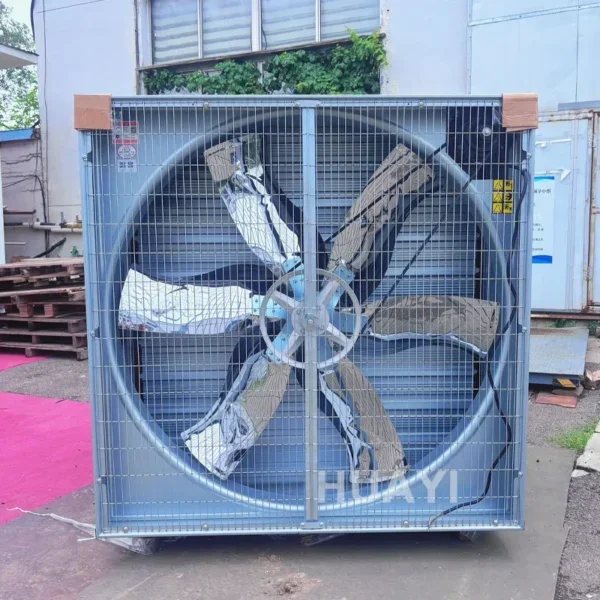

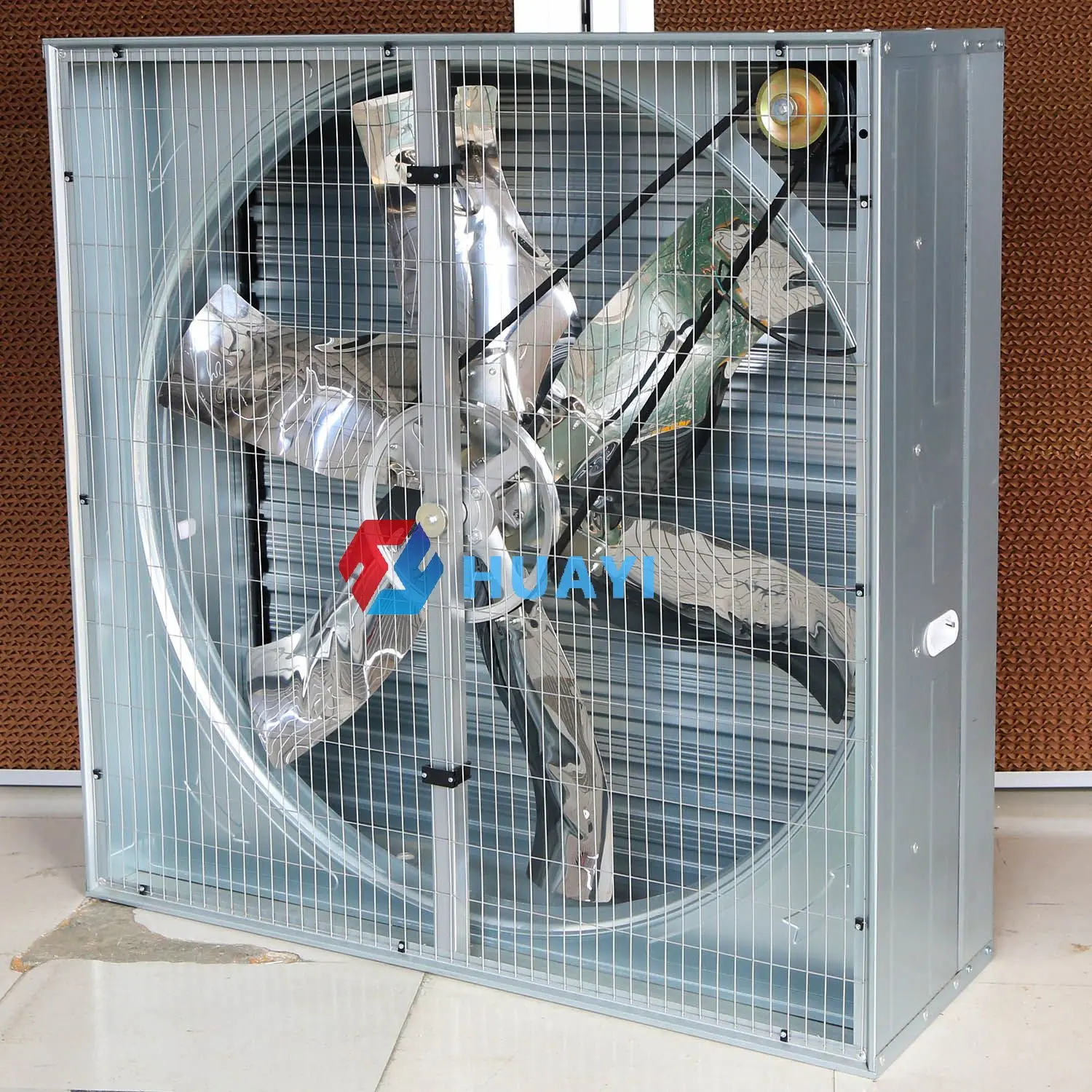

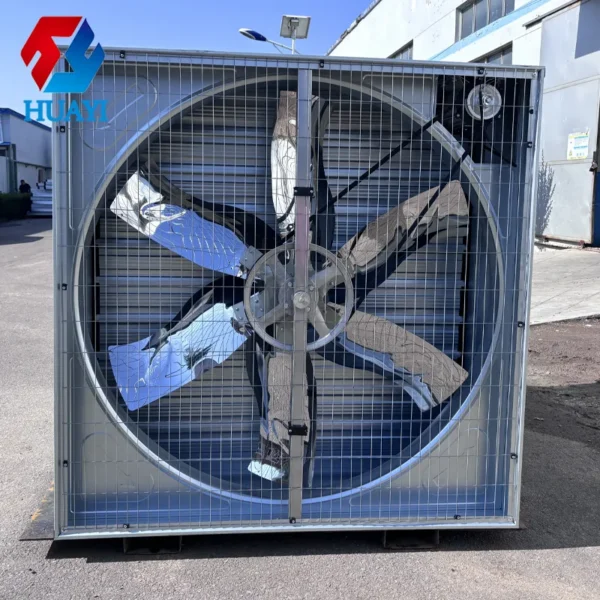

275g 1000*1000mm SS304 Ball Axial Flow Push Pull Exhaust Fan 0.75KW Greenhouse/Poultry Chicken House Cooling Fan with CE
Main features 1)Special push-pull mechanism can open and close the shutter automatically. 2)The frame adopts 275g/㎡ galvanized layer, no rust. 3) Stainless steel blade adopts one punch forming technology. Big air flow, no broken, no dust, attractive and durable. 4) Wall-Mounting fan , easy installation and maintenance 5) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured. 6) Installed efficient and energy-saving motor with CCC certification. Protection level：IP55. Insulation F grade.
Model | Blade Dia(mm) | Blade （rpm） | Motor （rpm） | Airflow （M3/h） | Noise （db） | Power (KW) | LWH (mm) |
HY-800 | 710 | 660 | 1400 | 17500 | ＜65 | 0.37 | 800*800*450 |
HY-1000 | 900 | 610 | 1400 | 24800 | ＜65 | 0.55 | 1000*1000*450 |
HY-1100 | 1000 | 600 | 1400 | 32000 | ＜65 | 0.75 | 1100*1100*450 |
HY-1220 | 1100 | 460 | 1400 | 38000 | ＜63 | 0.75 | 1220*1220*450 |
HY-1380 | 1250 | 457 | 1400 | 42000 | ＜63 | 1.1 | 1380*1380*450 |
HY-1530 | 1400 | 320 | 1400 | 55000 | ＜63 | 1.5 | 1530*1530*450 |
Details
Poultry Farm Chicken House Ventilation Exhaust Fan industrial exhaust Fan with CE
HUAYI has advanced production technology with automatic equipment. profeeional production line, NC-based professionalequipment.Auto punching and bending. Highly-accurated. Materials is made by 275g coating weight galvanized sheet.
Poultry Farm Chicken House Ventilation Exhaust Fan industrial exhaust Fan with CE

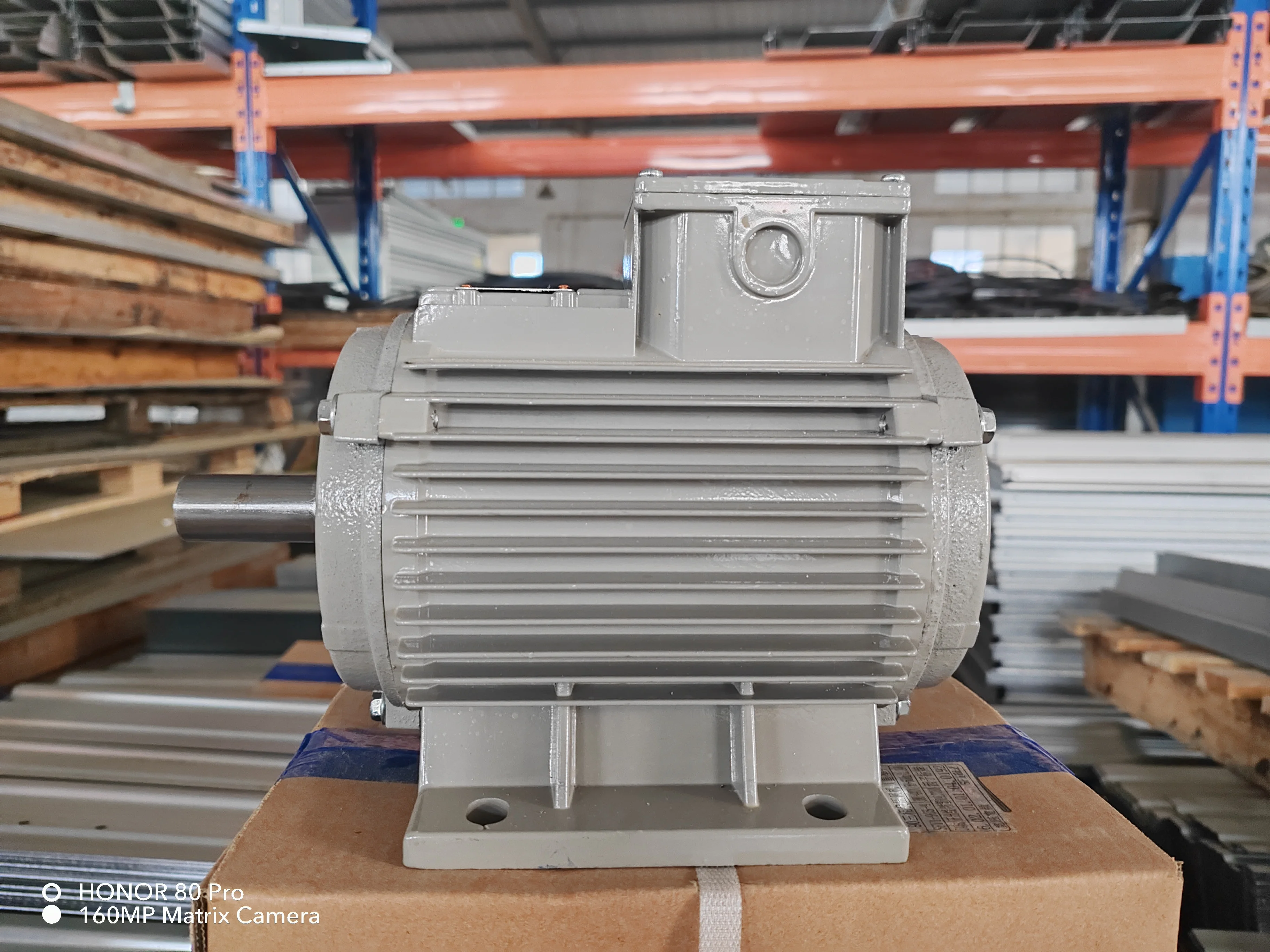

100% pure copper wire, high efficiency and energy saving .Motor Protection Grade: IP55 Insulation Class: F grade. Motor voltage and frequency can be customized.Both Chinese famous motor and Siemens motor are available.
Poultry Farm Chicken House Ventilation Exhaust Fan industrial exhaust Fan with CE
The material of the blade is Krupp stainless steel, thickness 1.2mm. Large air flow, no deformation, no fracture, no dust, attractive and durable. Note: Blade material also have galvanized sheet, aluminum alloy for option.
Poultry Farm Chicken House Ventilation Exhaust Fan industrial exhaust Fan with CE
Poultry Farm Chicken House Ventilation Exhaust Fan industrial exhaust Fan with CE

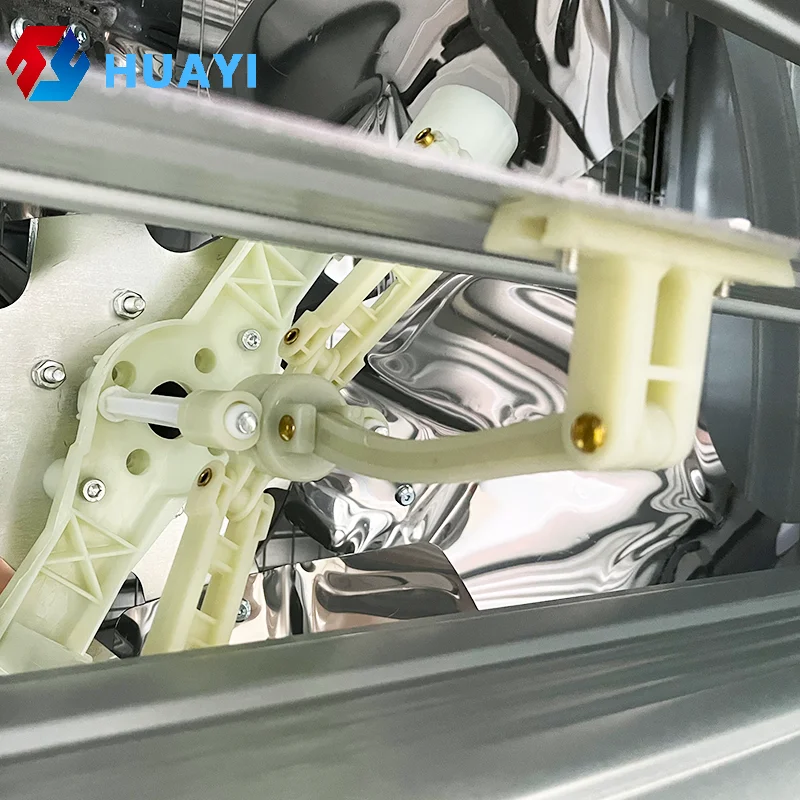

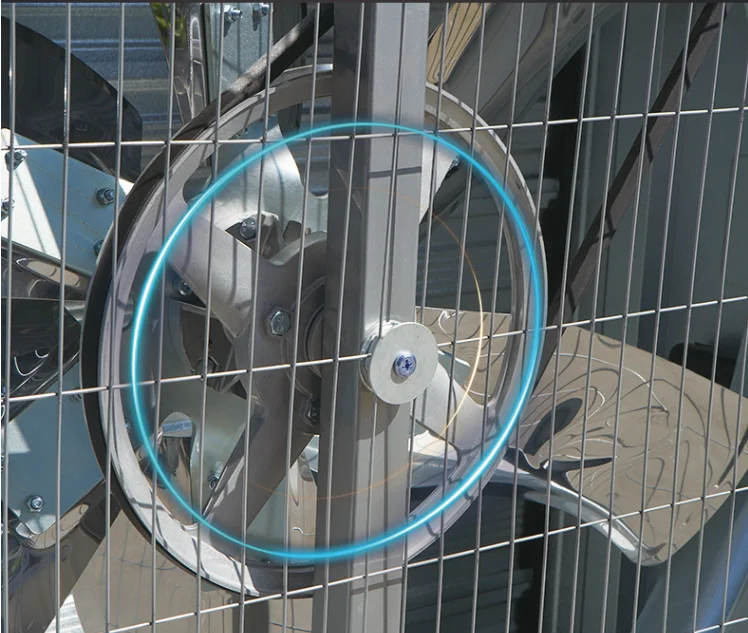

Centrifugal system
It is made of high quality Nylon PA66 to ensure the long service life. The fasteners of centrifugal system are copper rivets,wear-resisting and no rust, flexible. Guide Rod is made of 304 stainless steel with special material outside . high strength, norust, reduce friction. It can keep the shutters open at complete 90 degree to ensure the lowest air resistance and biggest air volume.

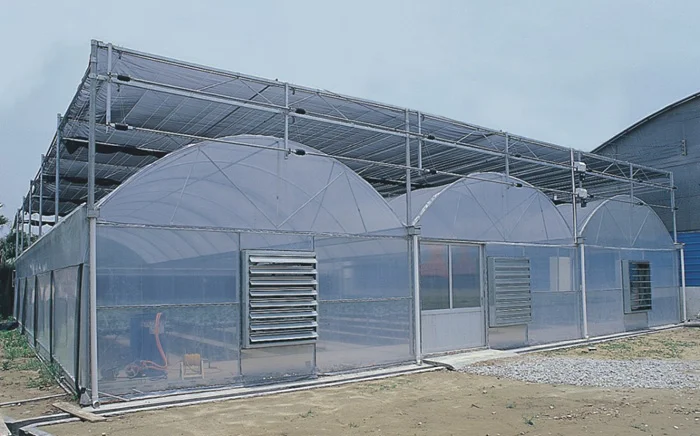

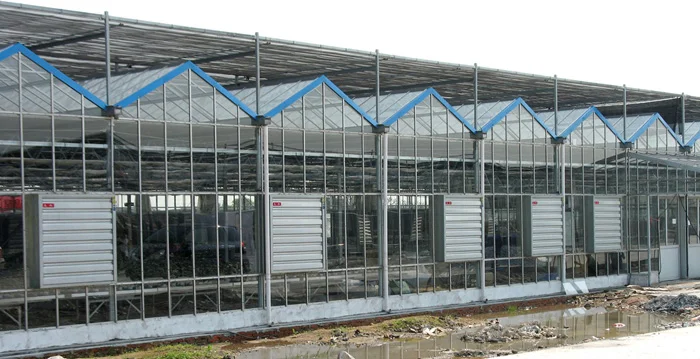

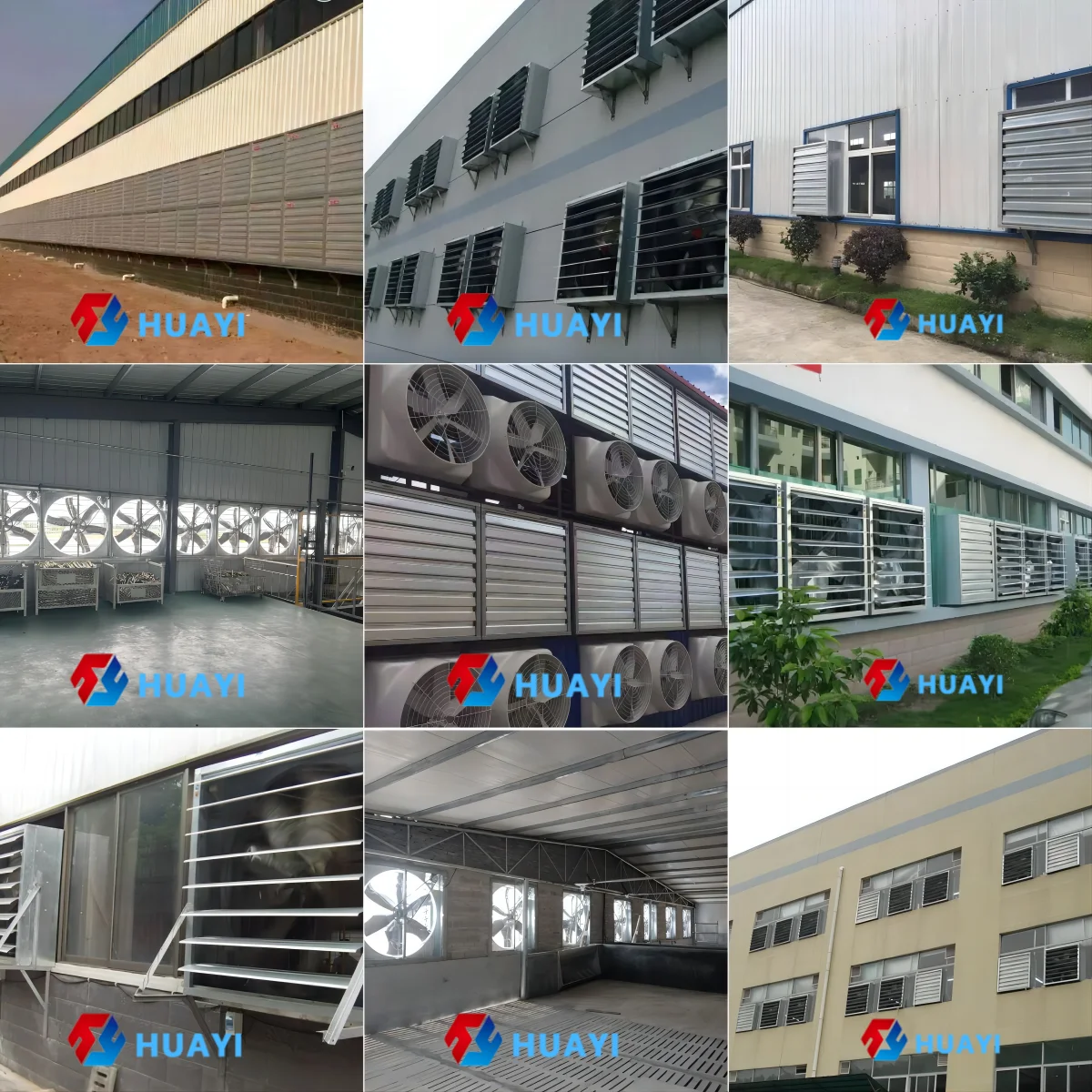

Case Display

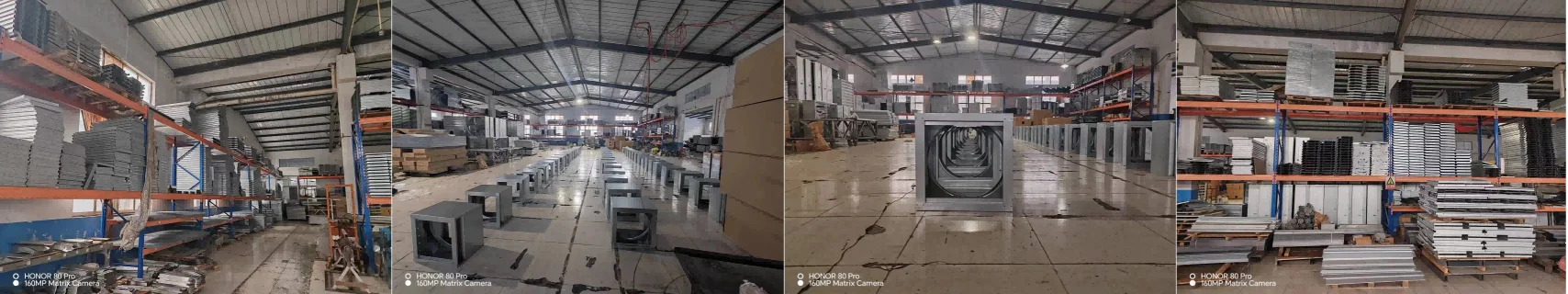

Our Factory
WHY CHOSE HUAYI?
HUA YI Temperature Control Equipment Co., Ltd. is a company specializing in the design and development of temperature control equipment. We are committed to the scientific and technological development of ventilation and refrigeration equipment, heating equipment and livestock machinery. We produce six series of "Huayi" brand products with more than 20 specifications, including evaporative cooling pads, poultry and greenhouse exhaust fans, circulating fans,axial flow fans, heaters,water coolers,etc.which are widely used in agriculture, greenhouse, animal husbandry and other industries. Huayi has a professional international trade team, complete testing equipment and strong technical advantages, integrating R&D, production, sales and maintenance services. At the same time, we provide OEM or ODM services for customers.Huayi has laid the foundation for cooperation with customers with excellent products, low prices and considerate services. The series of products have served all walks of life in the world, and have been exported to Asia, Africa, North America, including the United States, India, Vietnam, the Philippines,Thailand and other countries. We will recommend our best products to more countries and develop more distributors in many countries around the world.
We are honored to with more international friends develop our glorious business.
We are honored to with more international friends develop our glorious business.

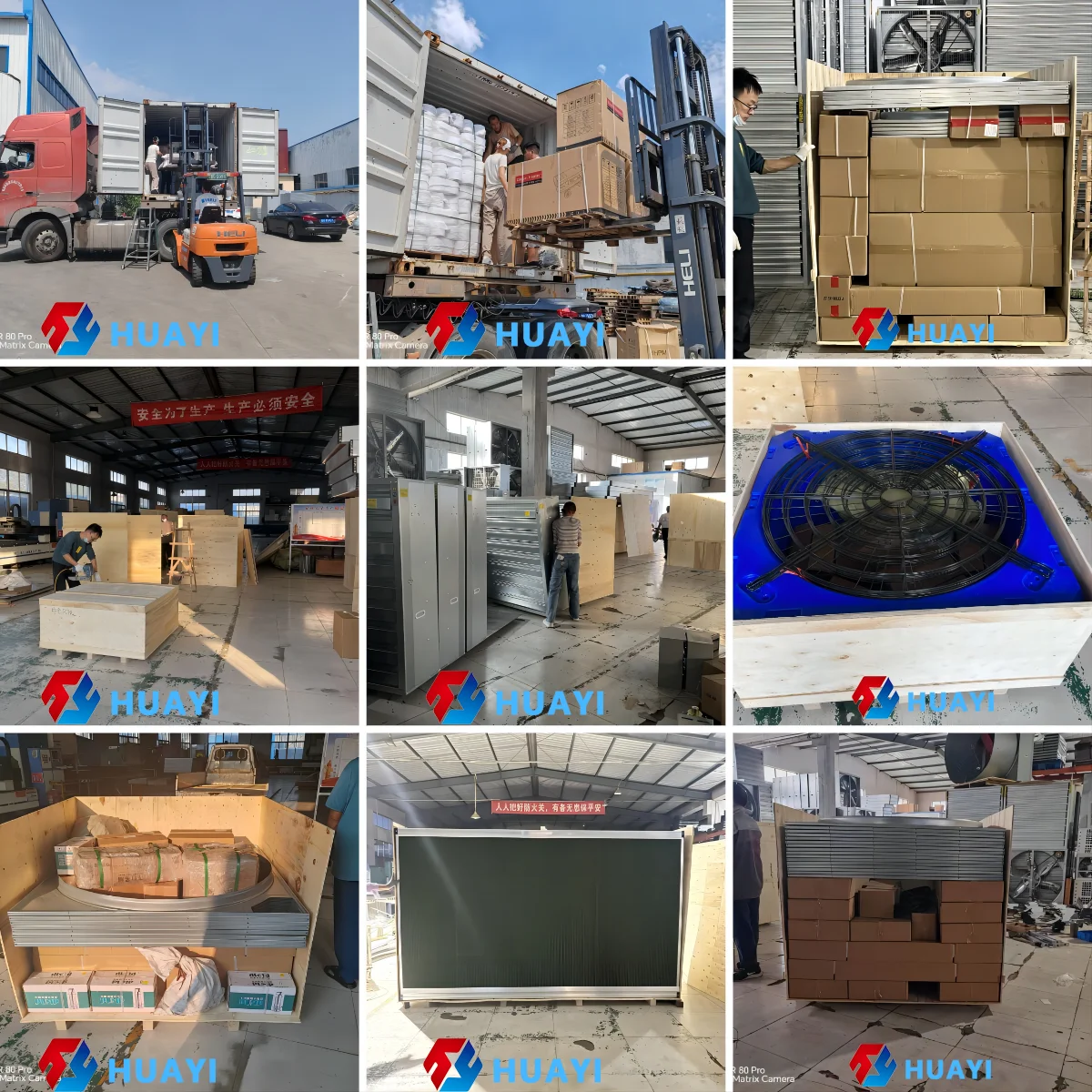

Transportation packaging
FAQ
Q1. Are you a factory or trading company? A1:We are a professional and acomprehensive poultry farm equpment supplier integrating R&D, production and sales founded on 2015. OEM and ODM are welcomed. Q2:What about the delivery time? A2: Usually for sample order 3-5 days, for mass order 15-20 days,but If you need it urgently, it can be completed within 15 days after receiving your payment. Q3:Do you provide free sample? A3:Yes, we can provide free sample . You only need to take the express fee. If you are satisfied with our samples and order again, we will return the last sample freight. Q4: How do you ensure my right if I’m going to place the order? A4: Customers are recommended to place the order online through Alibaba to ensure your side of right as much as possible. Besides, 12 months FREE GUARANTEE,never need to worry about the after-sale service,we will always be here to support your business!
Ordering and Pricing
- Minimum order quantity: 10 set
- Volume pricing:
- 10–99 set: US $130 / set
- 100+ set: US $120 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this push pull exhaust fan?
The standard minimum order quantity is 10 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this push pull exhaust fan carry?
It is supplied with CE CCC ISO documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the push pull exhaust fan be supplied for my local voltage?
The standard configuration is 380V,220V,230V,415V or as your request. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Qingzhou Huayi Temperature Control Equipment Co., Ltd., based in China. The company 5 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Qingzhou Huayi Temperature Control Equipment Co., Ltd. range on HVACR Nexus.
