Key specification for this electric air heater: 380 V, 220 V, heating capacity High Productivity. Everything below is reproduced from the factory data sheet. Made by Qingzhou Huayi Temperature Control Equipment Co., Ltd. (5 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Electric Air Heater
- Power Source: Electric
- Fan Power: 550w
- Voltage: 380 V, 220 V
- Heating Capacity: High Productivity
- Material: Stainless Steel
- Warranty: 1 Year
Technical Specifications
| Type | Electric Heater |
|---|---|
| Power Source | Electric |
| Voltage | 380 V, 220 V |
| Material | Stainless Steel |
| Core Components | Motor, Other |
| Key Selling Points | High Productivity |
| Temperature Range | medium-temperature |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Heating Capacity | High Productivity |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 30 |
| Brand Name | HUAYI |
| Dimension(L*W*H) | 800*1200*770MM |
| Working Temperature Range | 35 – 75 ℃ |
| Provided Product Name | Brood Heating Drying Heating Equipment Machine |
| Application | Farm |
| Fuel | Electrtic |
| Air Output | 7000m3/h |
| Fan Power | 550w |
| Max Temperature | 75 |
| Advantage | High Speed Heating |
| MOQ | 1 Piece |
| Packaging | Wooden box |
| Selling Units | Single item |
| Single Package Size | 80X120X77 cm |
| Single Gross Weight | 25.0 kg |
Product Details
Product Description
Model | HY-5 | HY-10 | HY-15 | HY-20 | HY-30 | HY-40 | HY-50 |
Heating power(KW) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
Voltage(v) | 380/220 | 380/220 | 380 | 380 | 380 | 380 | 380 |
Air flow(m3/h) | 1000 | 2000 | 2000 | 3000 | 5800 | 9000 | 11000 |
Heating area(m2) | 30-50 | 100-150 | 150-200 | 200-250 | 300-350 | 400-500 | 500-600 |
Motor power(W) | 90 | 120 | 370 | 370 | 550 | 550 | 1500 |
Number of heating tubes | 2KW*3 | 2KW*6 | 2.5KW*6 | 3.3KW*6 | 3.3KW*9 | 3.5KW*12 | 3.5KW*15 |
Copper wire(m2) | 4 | 6 | 10 | 10 | 16 | 25 | 25 |
Dimension (cm) | 49*45*57 | 75*50*65 | 75*50*65 | 75*50*65 | 90*58*68 | 117*69*78 | 117*69*78 |
Electrical Air Heater fan

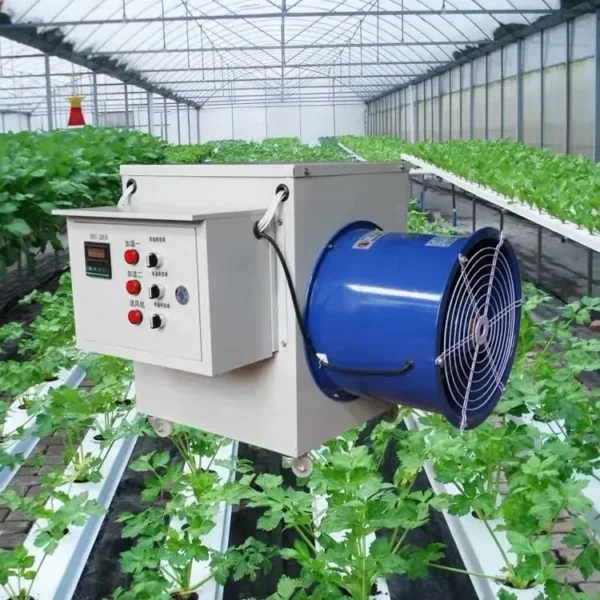

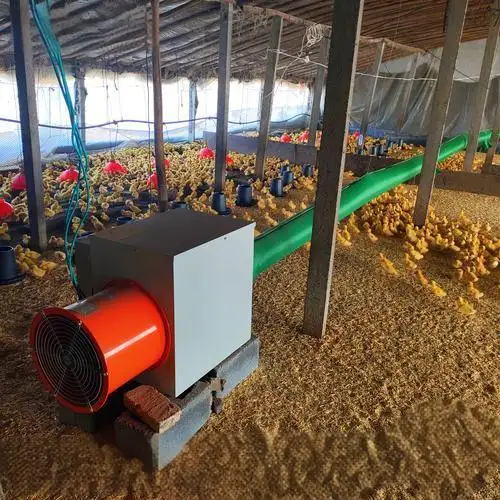

Air heater is widely used in Animal husbandry, Greenhouse, Factory workshop, Pipeline heating, Log drying, Decoration quickly drying,and can customized the model for swine fever disinfection.Start delay air supply, to ensure that the temperature of the outlet is not less than 60 degrees Celsius, after the shutdown of the fan will blow away the indoor hot air, cooling after closing, to avoid overheating caused by fire.Details Images
Heating pipe
Fan heating effect is better
Heating tube misalignment
Spray molding chassis
The outer casing is made of electrostatic powder whthout plastic spraying.High temperature curing,strong adhesion.
Long service life.

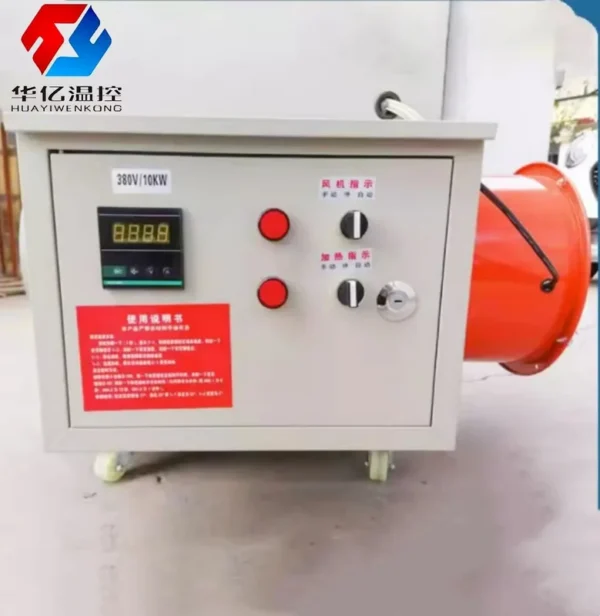

Temperature control display
.
Interior design
Neat and nest cable arrangement and long service life.
Mobile casters
Flexible,light and easy to move.
Pure copper coil
The coil uses new national standard copper wire to ensure stable operation of the motor.
Application
Company Profile
WHY CHOSE HUAYI?
HUA YI Temperature Control Equipment Co., Ltd. is a company specializing in the design and development of temperature control equipment. We are committed to the scientific and technological development of ventilation and refrigeration equipment, heating equipment and livestock machinery. We produce six series of "Huayi" brand products with more than 20 specifications, including evaporative cooling pads, poultry and greenhouse exhaust fans, circulating fans,axial flow fans, heaters,water coolers,etc.which are widely used in agriculture, greenhouse, animal husbandry and other industries. Huayi has a professional international trade team, complete testing equipment and strong technical advantages, integrating R&D, production, sales and maintenance services. At the same time, we provide OEM or ODM services for customers.Huayi has laid the foundation for cooperation with customers with excellent products, low prices and considerate services. The series of products have served all walks of life in the world, and have been exported to Asia, Africa, North America, including the United States, India, Vietnam, the Philippines,Thailand and other countries. We will recommend our best products to more countries and develop more distributors in many countries around the world. We are honored to with more international friends develop our glorious business.
Our services
Professional Trustworthy
The products of our company have been granted certificates such as CE,ISO and the company has been passed the approved mark and test reports. We have authoritative and well-known brands ”HUAYI''
Packaging&Shipping
If the order is not large, we can send it to you by express delivery, such as TNT, DHL, UPS or EMS.If the order volume is large we will recommend you to use air or sea transportation through the designated freight forwarder. We also have long-term cooperative agents.
FAQ
Q1. Are you a factory or trading company?
A1:We are a professional and acomprehensive poultry farm equpment supplier integrating R&D, production and sales founded on 2015. OEM and ODM are welcomed.
Q2. What payment methods do you accept?
A2:We accept T/T,Paypal, LC,Western Union and we will try our best to meet your needs If you have special requirements.
Q3:What about the delivery time?
A3: Usually for sample order 3-5 days, for mass order 15-20 days,but If you need it urgently, it can be completed within 15 days after receiving your payment.
Q4:Do you provide free sample?
A4:Yes, we can provide free sample . You only need to take the express fee. If you are satisfied with our samples and order again, we will return the last sample freight.
Q5.May I visit your factory?
A5:Sure, welcome any time. We can also pick you up at airport and station. We welcome partners both at home and abroad contact and visit us.
Q6: Can you guarantee your quality?
A6: Of course. We have more than 10 years experiences in this filed. We have powerful team, special design, skillful production, fastidious materials ,exquisite workmanship as well as strict QC. we puta high value on our reputation.
Q7: How do you ensure my right if I’m going to place the order?
A7: Customers are recommended to place the order online through Alibaba to ensure your side of right as much as possible. Besides, 12 months FREE GUARANTEE,never need to worry about the after-sale service,we will always be here to support your business!
Q2. What payment methods do you accept?
A2:We accept T/T,Paypal, LC,Western Union and we will try our best to meet your needs If you have special requirements.
Q3:What about the delivery time?
A3: Usually for sample order 3-5 days, for mass order 15-20 days,but If you need it urgently, it can be completed within 15 days after receiving your payment.
Q4:Do you provide free sample?
A4:Yes, we can provide free sample . You only need to take the express fee. If you are satisfied with our samples and order again, we will return the last sample freight.
Q5.May I visit your factory?
A5:Sure, welcome any time. We can also pick you up at airport and station. We welcome partners both at home and abroad contact and visit us.
Q6: Can you guarantee your quality?
A6: Of course. We have more than 10 years experiences in this filed. We have powerful team, special design, skillful production, fastidious materials ,exquisite workmanship as well as strict QC. we puta high value on our reputation.
Q7: How do you ensure my right if I’m going to place the order?
A7: Customers are recommended to place the order online through Alibaba to ensure your side of right as much as possible. Besides, 12 months FREE GUARANTEE,never need to worry about the after-sale service,we will always be here to support your business!
Ordering and Pricing
- Minimum order quantity: 10 set
- Volume pricing:
- 10–99 set: US $100 / set
- 100+ set: US $90 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this electric air heater?
The standard minimum order quantity is 10 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the electric air heater be supplied for my local voltage?
The standard configuration is 380 V, 220 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Qingzhou Huayi Temperature Control Equipment Co., Ltd., based in China. The company 5 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Qingzhou Huayi Temperature Control Equipment Co., Ltd. range on HVACR Nexus.
