Quartz Tube, Explosion-proof, SS, B49H-25

The quartz tube listed here carries material SS, model number B49H-25, documented exactly as the manufacturer publishes it. Made by Beijing Zhian Automation Equipment Co., Ltd (3 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Quartz Tube

• Model Number: B49H-25
• Material: SS
• Warranty: 1 Year
• Place Of Origin: Beijing, China
• Customized Support: OEM, ODM
• Brand Name: ZHIAN

Technical Specifications

Product Details

Product Description：

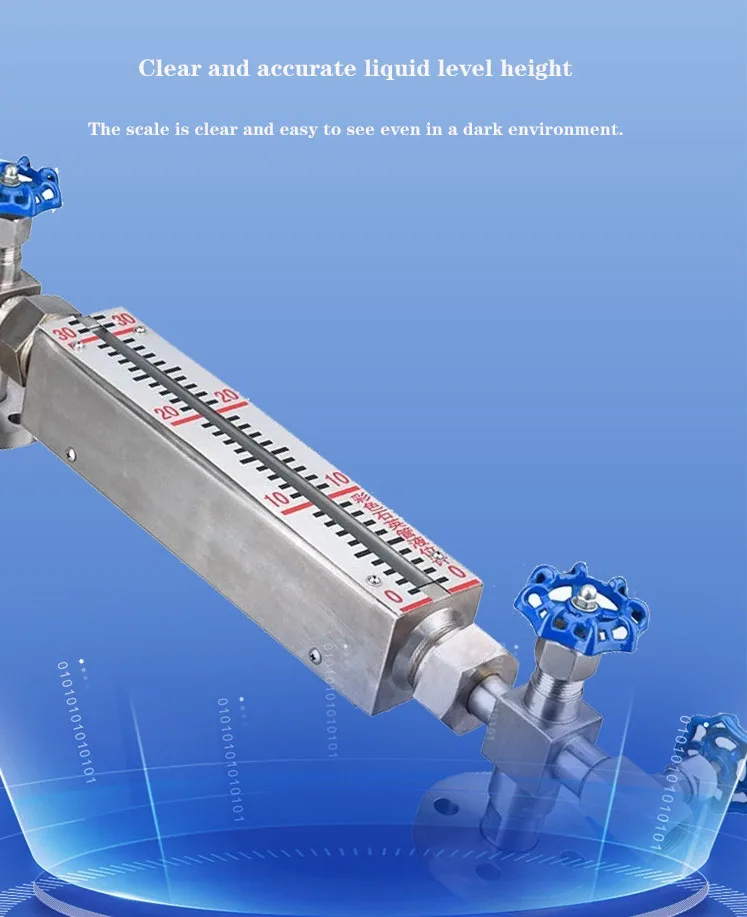

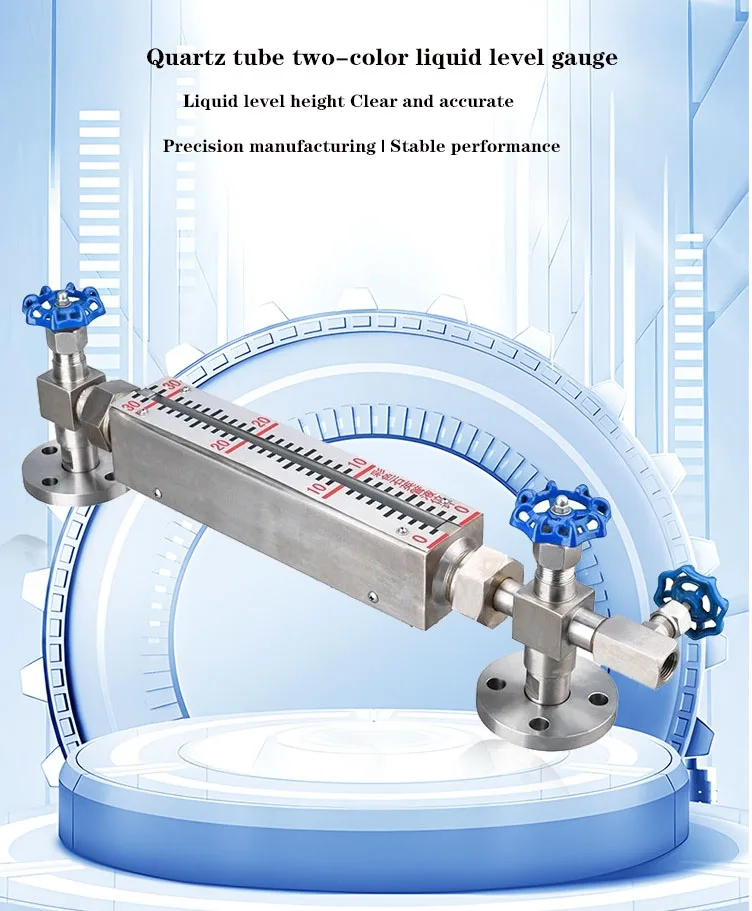

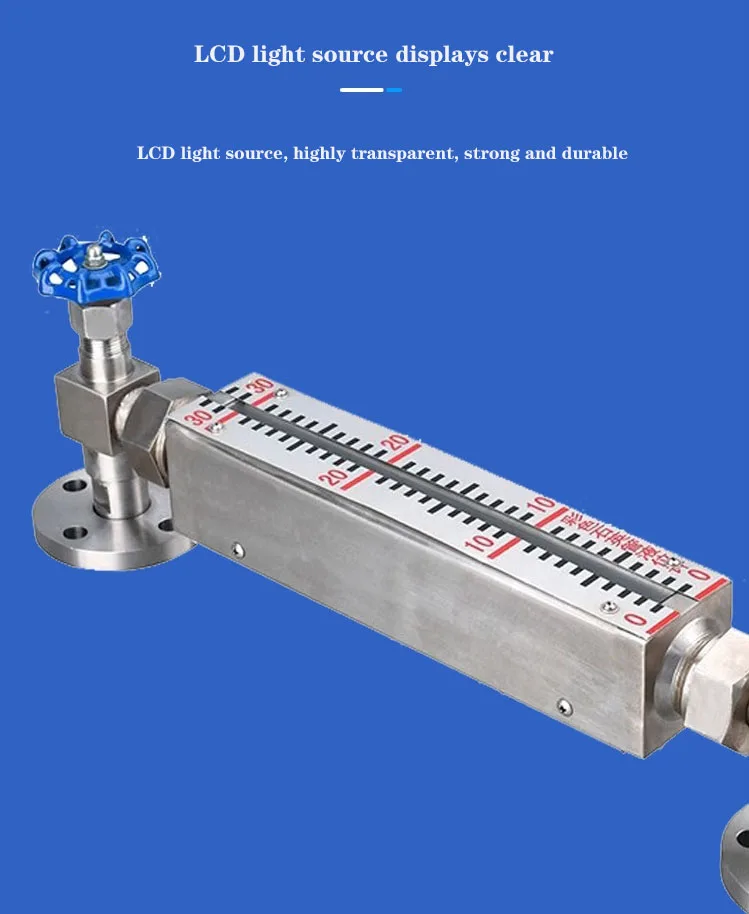

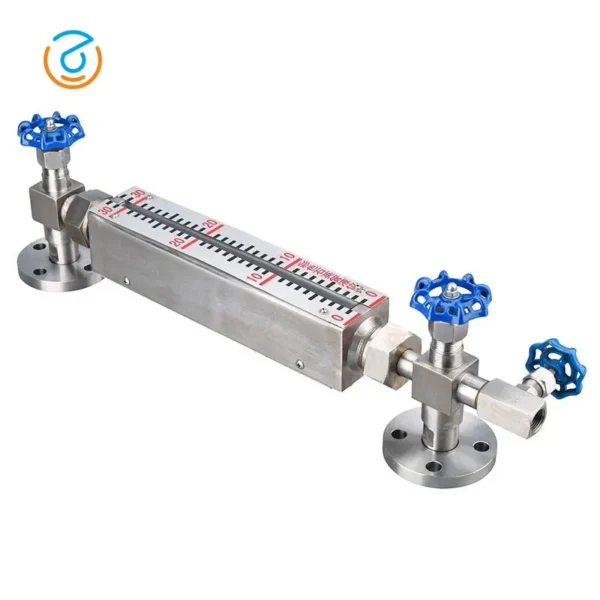

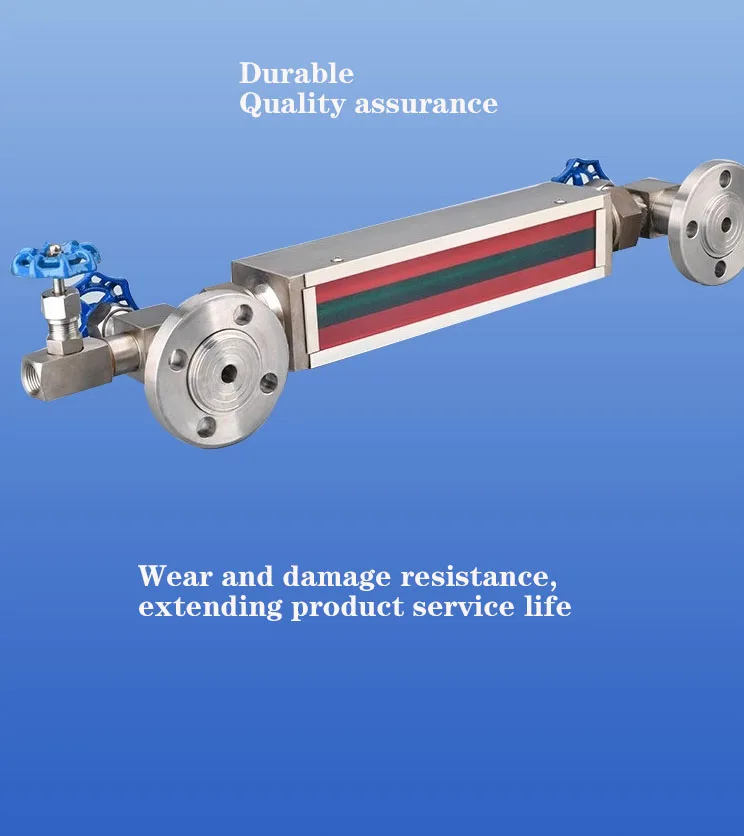

The quartz glass tube level gauge is an instrument that displays the liquid level on site. The mechanical, electrical and optical properties of the quartz glass tube are better than those of ordinary glass tubes. Due to a special refraction and reflection effect, it has a two-color display effect. It is more superior than ordinary glass tube level gauges and can be widely used to measure the liquid level of various tanks, towers, tanks and boxes in industrial equipment. It is especially suitable for the level measurement of high temperature, high temperature difference, high pressure and acidic solutions, and because of its two-color display effect, it is particularly suitable for direct two-color display of the water level of high and medium pressure boilers.

(1) Before the color level gauge leaves the factory, all parts have been tested at 1.5 times the marked pressure. Please do not remove the quartz tube by yourself to prevent damage. (2) The installation center distance has been manufactured according to the user's required dimensions before leaving the factory. If you need to adjust the observation direction, please contact the factory in advance. Try not to adjust it on site to avoid reducing the pressure resistance of the entire level gauge.

(3) The red and green glass behind the two-color level gauge are installed and not installed (due to transportation distance). If not installed, please install them in the following order: the green glass in the middle and the red glass on both sides are glued (provided by the manufacturer), arranged in sequence in the glass slot of the level gauge, and then tightened with metal sheets and screws. (4) The two-color level gauge is a precision instrument. Be careful when transporting, handling, unpacking, and installing it. Do not hit or knock it to prevent the quartz glass tube and red and green glass from breaking.

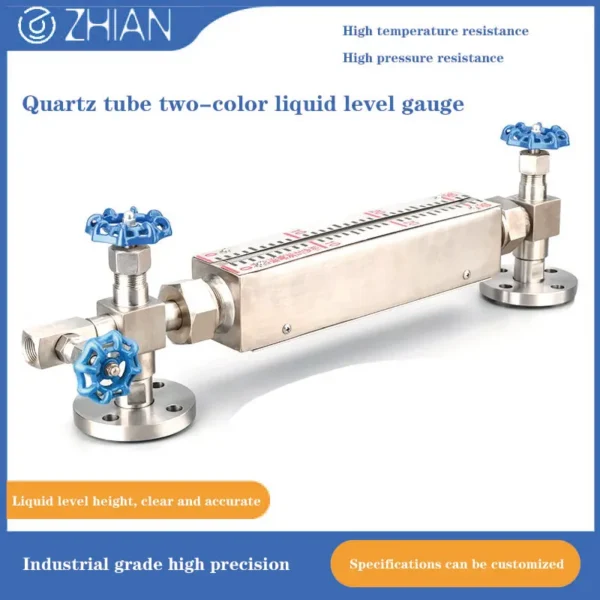

Product Name	Quartz tube two-color liquid level meter
Product Model	UGS24
Nominal pressure	1.6~6.4(MPa)
Nominal diameter	20~25(mm)
Nominal length	350~600(mm)
Medium temperature	≤250°C
Main Materials	Flange connection, pipe connection, welding
Main material	Stainless steel 304

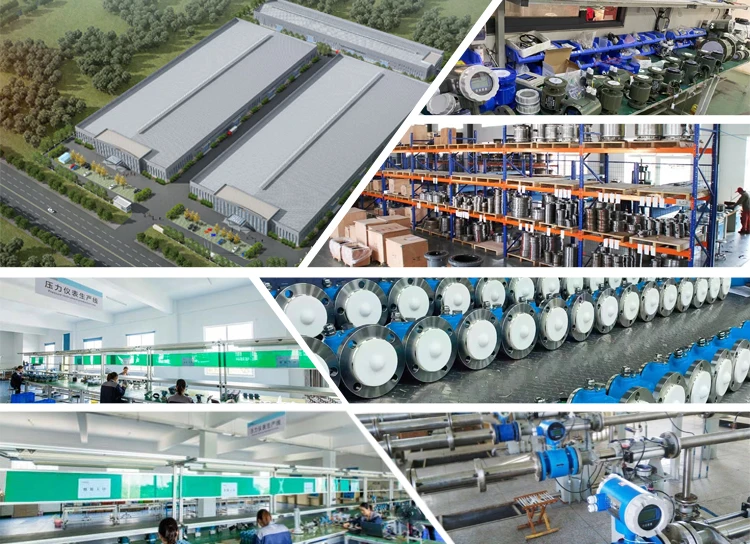

Beijing Zhian Automation Equipment Co., Ltd. is a professional manufacturer specializing in the research, development, production and sales of electromechanical automation, instrumentation and measurement and control products, mainly serving the automation control equipment in the electric power industry, food and pharmaceutical industry, chemical industry, metallurgical industry,water treatment and other industries. It provides flow meters, temperature meters, pressure meters and level meters for enterprises in various industries. At the same time, in order to meet the needs of users, it also acts as an agent for the products of well-known foreign enterprises such as the United States, Japan and Germany, and provides sales and after-sales service for a full range of products of Emerson, VEGA, Yokogawa, E+H and Cologne brands.

FAQ

1. Who are we?
Beijing Zhian Automation Equipment Co., Ltd. is a professional manufacturer specializing in the research, development, production and sales of electromechanical automation, instrumentation and measurement and control products

2. How can we guarantee quality?
The company is equipped with professional instrument maintenance center and advanced testing equipment, which can provide customers with various instrument testing, fault diagnosis, product maintenance and other services.

3.What can you buy from us?
flow meters, temperature meters, pressure meters and level meters

4. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union,Cash;
Language Spoken:English,Chinese

Ordering and Pricing

• Minimum order quantity: 1 piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this quartz tube?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
