This quick freezing air cooler is published with the manufacturer’s full specification — cooling capacity 10-200kw, refrigerant R22/R404a/R134a/R507a. Made by Jiangsu Victory Hot-Cooling Technology Co., Ltd. (11 years on the platform, typical reply ≤10h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Quick Freezing Air Cooler
- Cooling Capacity: 10-200kw
- Fan Material: Aluminum/Stainless steel
- Refrigerant: R22/R404a/R134a/R507a
- Warranty: 1 Year
- Place Of Origin: Jiangsu, China
- Application: Meat Cold Room
Technical Specifications
| Type | EVAPORATIVE AIR COOLER |
|---|---|
| Mounting Type | Ceiling Mount |
| Fan Motors Type | AC |
| Key Selling Points | High Productivity |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, Evaporator coil |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 560 |
| Brand Name | WKDL |
| Dimension(L*W*H) | Customized made |
| Cooling Capacity | 10-200kw |
| Refrigerant | R22/R404a/R134a/R507a |
| Cover | Stainless Steel/ Galvanized |
| Evaporator Coil | Stainless Steel / copper / aluminum tube and fin |
| Defrosting | Water/Hot gas/Electric |
| Application | Meat Cold Room |
| Fin Space | 5mm/7mm/10mm/8-16mm |
| Fan Material | Aluminum/Stainless steel |
| Product Name | Industrial Portable Evaporative Air Cooler |
| Installation | Ceiling Mounted |
| Selling Units | Single item |
| Single Package Size | 250X111X80 cm |
| Single Gross Weight | 50.0 kg |
Product Details
evaporative air cooler is a suitable for a variety of cold storage cooling equipmet, it has the advantages of compact structure,
light weight, no occupation of the use of cold storage area, high efficiency, the cold storage food rapid cooling, greatly
improving the storage of food freshness.
Axical Fan
| Blade material: | Aluminum or stainless steel or Nylon |
| Casing material: | Stainless steel or Galvanized steel |
| Motor voltage: | According customer's requirement |
| Bearing: | NSK or SKF |
| Protection Grade: | IP55 |
| Original: | China brand or International brand |
External Fan
| Blade material: | Coated steel or Aluminum |
| Grille material: | Coated steel or Stainless steel |
| Advantages: | Lower noise, Large air volume,Saving room space, Energy efficiency Erp2015 |
| Original: | Germany Ziehlabegg or China |
High Efficiency Tube
| Material: | Copper |
| Tuber OD: | 5/8'' |
| Inside type: | Inner grooved tube |
| Advantages: | Increase inside heat exchange areas of tube and intensity of refrigerant. At least 15% heat transfer efficiency increased |
High Strength Tube
| Material: | 304 or 316L stainless steel |
| Tube OD: | 5/8'' |
| Test pressure: | 5.0Mpa |
| Expanding pressure: | 40Mpa |
| Advantages: | Running more safty, Better corrosion resistance, Good welding quality |
Why choose us ? — Good Quality and Good Design.
 | Coil Block·Φ15.88mm Copper tube or stainless steel tube. |
 | Germany imported heat exchange design software· Tailor made and accurate technical data sheet |
 | Guarantee of Safe Running·Stainless steel Pipe running pressure to 5.0Mpa, *Water tube expanding pressure to 30Mpa. |
 | Welding technology imported from Germany·seamless connection and good appearance |

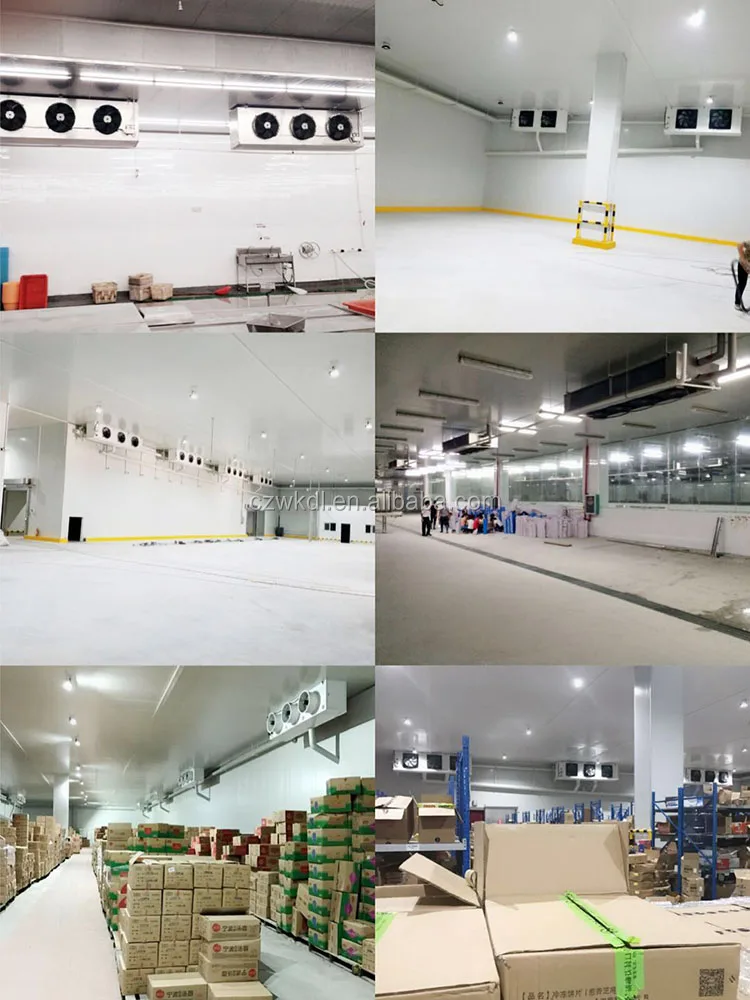

Our evaporative air cooler is widely used in cold storage refrigeration, such asfruit / vegetable / seafood / meat /fish cold storage; walk-in workshop; cold chain logistics; it also can bring fresh cool air to enterprise's workshop, public places, business and entertainment places, such as supermarket, rice factory, sauce factory and so on.
1.What is your delivery time?
10—40days.
2.What are the payment terms?
30% T/T before production and balance before shipment
3.What is your warranty?
One year for the whole unit.
4.What is the valid time of the quotation?
One month.
5.Can we do our OEM logo?
Yes,we can do OEM logo for you.
6.Can you do our country plug?
Yes,we can do the plug according to your request without extra cost.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–9 unit: US $800 / unit
- 10+ unit: US $600 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this quick freezing air cooler?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Jiangsu Victory Hot-Cooling Technology Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Jiangsu Victory Hot-Cooling Technology Co., Ltd. range on HVACR Nexus.
