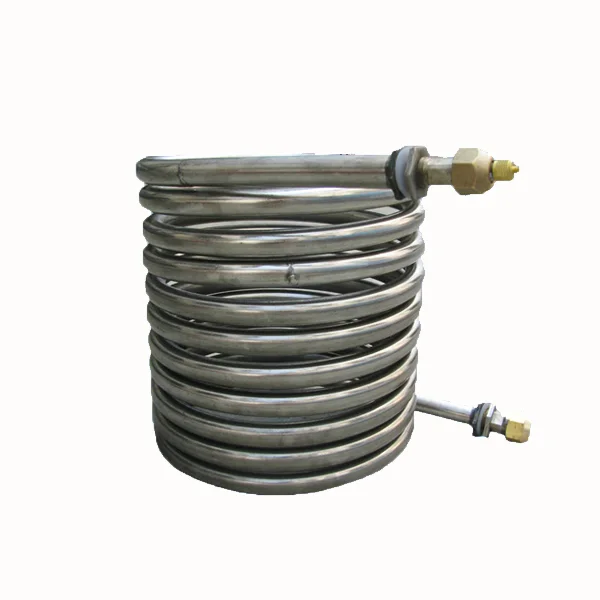

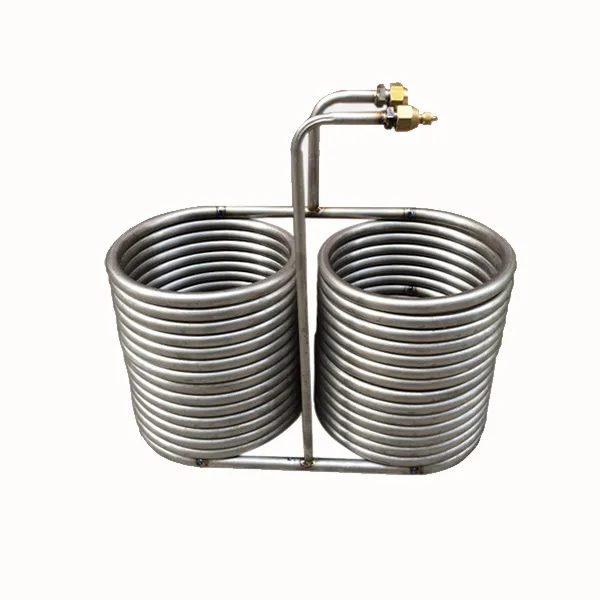

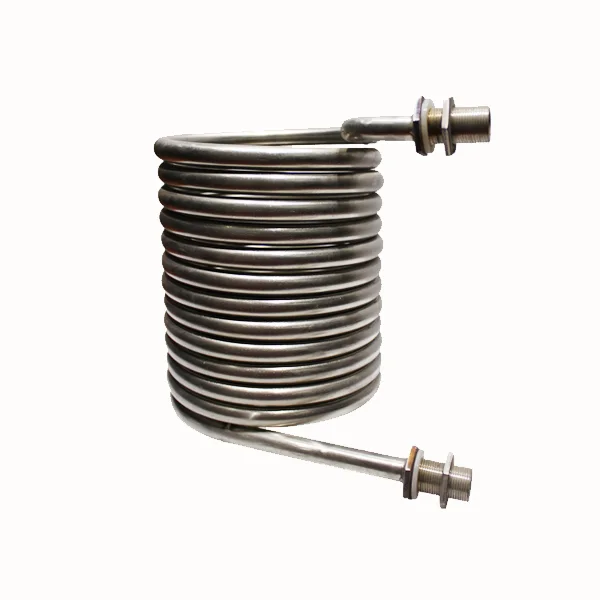

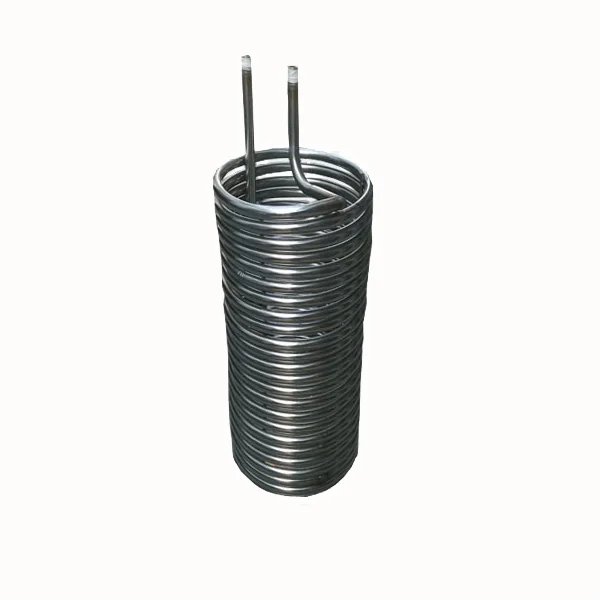

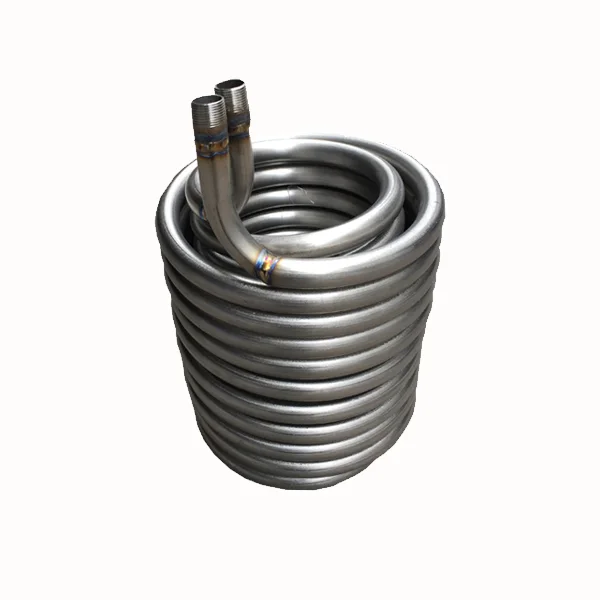

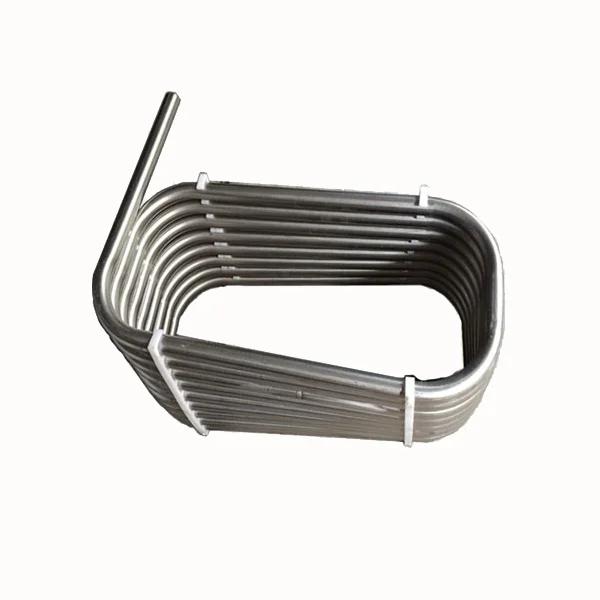

R22r407c Stainless Immersion Chiller, R22/R407C, 220V

R22r407c stainless immersion chiller — 220V/50Hz, material Pure Titanium. The complete factory specification follows. Made by Wuxi Lvjie Machinery Co., Ltd. (5 years on the platform, typical reply ≤5h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This R22r407c Stainless Immersion Chiller

• Voltage: 220V/50Hz
• Material: Pure Titanium
• Warranty: 1 Year
• Certification: ce/ISO9001:2008
• Place Of Origin: Jiangsu, China
• Application: Cooling and heating

Technical Specifications

Product Details

Products Description

Coil Heat Exchanger

Processing various coils,bent pipes/bending pipe,bent heads,U-tubes,rings,snake-shaped tubes, cooling tubes,steam tubes,condensers
,steam tubes for heat exchangers,heat exchanger,evaporator,cooling tube fins,Profiled bending pipe,profiled tubes, radiators
etc.according to customer requirements

the product material and shape are customized according to customer requirements

Support customization, complete specifications, large quantity and excellent price, high quality, precision production

Coil Evaporator/Condenser

Work Condition

1)Refrigerant: R22,R134a,R407c,R410a etc.
2)Water side: fresh water, nature water, drink water, seawater,saltwater, ground water etc .

Material

Pure Titanium 、316L/304 Stainless Steel、Copper

Cooling Capacity

10-850 kw,Support customization

Quantity:4.5-18.5 circles

Diameter:16 or 19

Specs for the exchanger range from 1-60 HP

Please contact us with your drawings and samples for manufacturing

Corrosion Resistant

Coil Heat Exchanger

1.Fast heat exchange

2.Compact structure and small footprint

3.Flexible design+complete specifications

4.Strong practical pertinence

5.Energy saving

6.Light weight

7.Wide range of application conditions

8.Wide range of applications

9.Easy to install

10.Easy to clean,long cleaning cycle

11.Easy to operate

12.Removable

13.Anti-corrosion

Product Paramenters

CE standard R22/R407C stainless immersion chiller evaporator coil tube heat exchanger for sea water cooling

Model

Quantity (e)

Diameter (d)

Freon Out (a1)

Freon In (a2)

External Dimensions A     B      C

WHC-0.5DG

4.5 Circle

φ19

φ12.7

φ12.7

370         165        φ150mm

WHC-1.0DG

6.5 Circle

φ19

φ12.7

φ12.7

375         240       φ150mm

WHC-1.5DG

8.5 Circle

φ19

φ12.7

φ12.7

375         305       φ150mm

WHC-2.0DG

10.5 Circle

φ19

φ12.7

φ12.7

375         370        φ150mm

WHC-3.0DG

13.5 Circle

φ19

φ19.5

φ12.7

375         475        φ150mm

WHC-5.0DG

18.5 Circle

φ19

φ19.5

φ12.7

375         645        φ150mm

Our Advantages

Professional Technical Team

 1:1 3D Design drawings

Our company has a mature technical team, which can customize heat exchangers of various specifications according to customer requirements, provide 3D design drawings, and the effect is intuitive

Factory Shipment,

Quality Stable and Reliable

Our own factory covers an area of 5,000 acres,direct shipment, cost-effective
Our Product:Mature design,rigorous production process,Factory inspection, strict control,Long service life and stable performance.

Complete certificates

Our company has CE certificate，Our company's products have also applied for many patents.

All products of our company strictly follow pressure vessel manufacturing specifications

Support Customization

Heat exchanger products of various specifications can be customized and can be matched with many programs
Tube material:aluminum brass,316L stainless steel,SS304 stainless steel,pure titanium
Outer Shell material:PP platsic, Carbon steel, Stainless steel

Company Profile

Wuxi Lvjie Engery Machinery Co.,Ltd.

Wuxi Lvjie Engery Machinery Co.,Ltd. is a comprehensive company specializing in the development, production and trade of refrigeration equipment and accessories.
Main production: shell and tube evaporator, pure titanium evaporator (Titanium Cannon, titanium barrel，titanium Coil in shell heat exchanger), stainless steel evaporator, corrosion-resistant evaporator, titanium tube heat exchanger, special-shaped titanium tube and other refrigeration & heat exchange parts.Our evaporators and condensers can be manufactured with different materials and can work with all types of fluids and with duty up to 6000 kW.
Widely used in: electroplating chillers, laser chillers, seafood machines, heat pump units, ice machines, marine air conditioners and other special industries to produce high-quality products in the fields of cooling and heating, Providing good after-sales service and establishing a sincere reputation , In order to further meet the needs of the majority of users, we continue to develop and develop high-efficiency, energy-saving new products.

The products are sold all over the country, especially the pure titanium evaporators sell well all over the country, Hong Kong, Europe, America and Southeast Asia.

Certifications

Exhibition

FAQ

Q1: Are you factory?

A1: Yes,we are one of the largest corrosion resistant heat exchanger manufactory in China.

Q2: Are there any discount for the heat exchangers?

A2: Yes. Bigger quantity will enjoy lower discount!

Q3: What information needed if I want a quotation?

A3: Please advise us the Type of heat exchangers, Material , Heat Exchanger Capacity, Water Flow, Water Temperature in and out Refrigrant Freon Type, Quantity, or any requirements in size.

Q4: What is the MOQ?

A4: We accept loose quantity order,mixed order,any trial orders.

Q5: When can I get the price?

A5: We usually quote within 8 hours after we get your inquiry.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–9 set: US $45 / set
  • 10+ set: US $35 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this r22r407c stainless immersion chiller?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this r22r407c stainless immersion chiller carry?

It is supplied with ce/ISO9001:2008 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the r22r407c stainless immersion chiller be supplied for my local voltage?

The standard configuration is 220V/50Hz. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Wuxi Lvjie Machinery Co., Ltd., based in China. The company 5 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Wuxi Lvjie Machinery Co., Ltd. range on HVACR Nexus.
