Reciprocating chiller — type Cooler. The complete factory specification follows. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Reciprocating Chiller
- Warranty: 1 Year
- Place Of Origin: Henan, China
- Application: Cold Storage Room Freezer Room
- Type: Cooler
- Weight (Kg): 110
- Single Gross Weight: 0.0 kg
Technical Specifications
| Core Components | Pump |
|---|---|
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Weight (Kg) | 110 |
| Place Of Origin | Henan, China |
| Brand Name | HD |
| Type | Cooler |
| Application | Cold Storage Room Freezer Room |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
We were established in 2015. Our company focuses on the field of instrument and equipment, pursuing professional technical levels and product quality. After ten years of hard work and development, we have achieved a certain scale and strength. Our company attaches great importance to cooperation with suppliers, distributors, scientific research institutions, etc. By establishing good cooperative relationships, we achieve resource sharing and complementary advantages, jointly explore the market, and realize common development and mutual benefit in cooperation.
Integrated magnetic stirrer: A dual – purpose water and oil bath pot that can be used for water bath or oil bath heating. It is equipped with a magnetic stirring system inside the bath groove to ensure uniform temperature of the stirred materials. It adopts a PID intelligent temperature – control mode, featuring fast heating speed and high temperature – control accuracy.

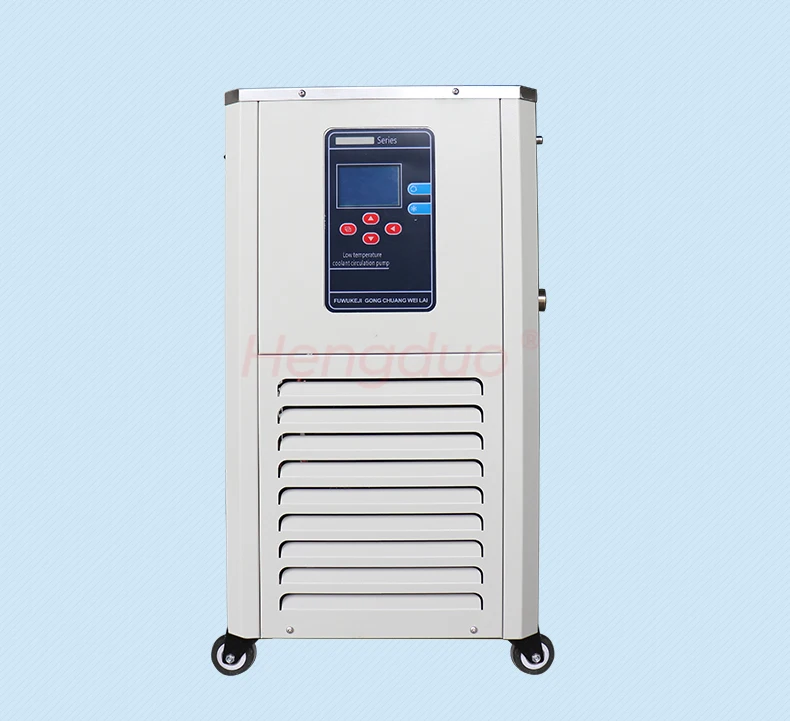

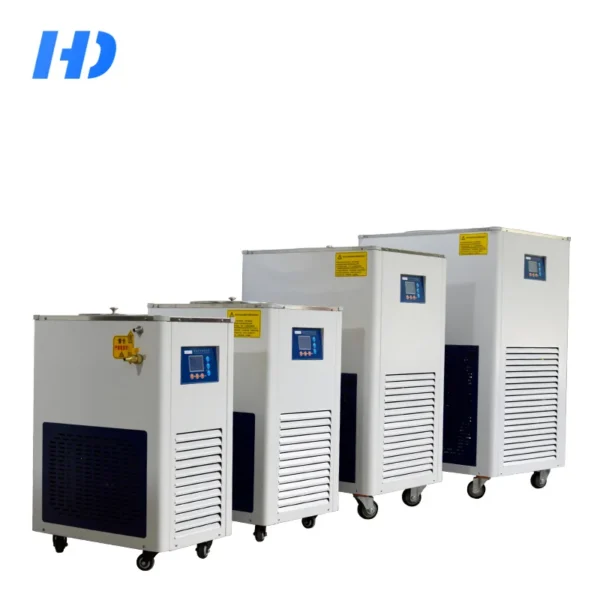

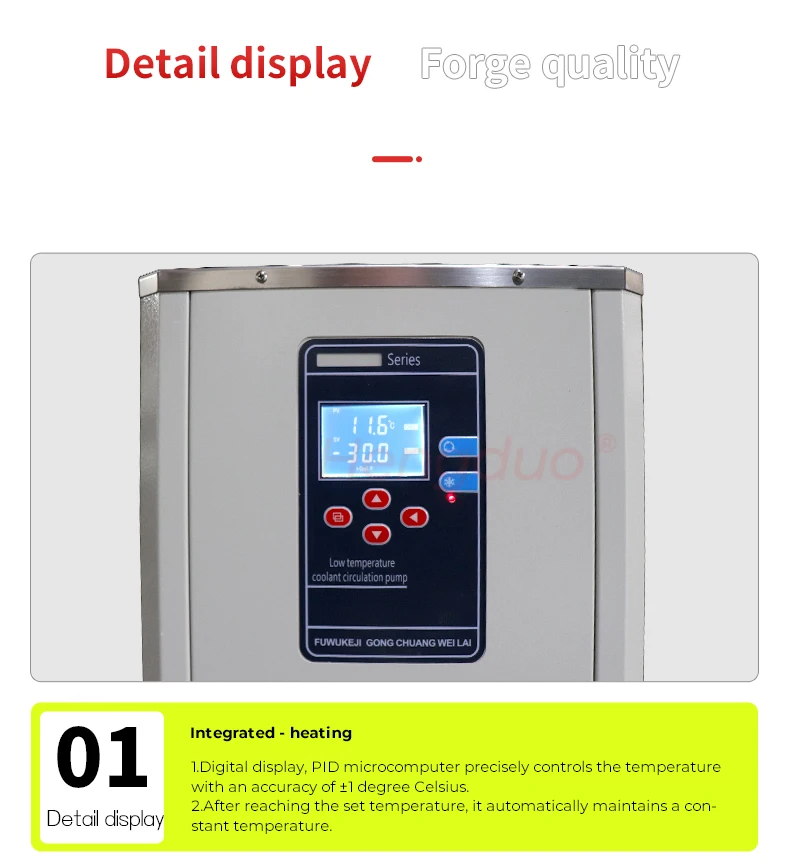

Low-temperature coolant circulating pump

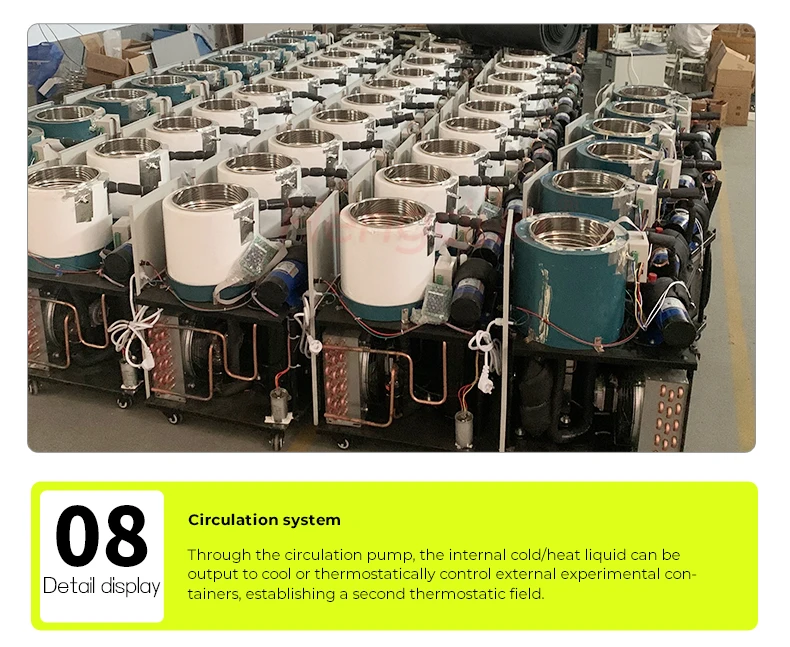

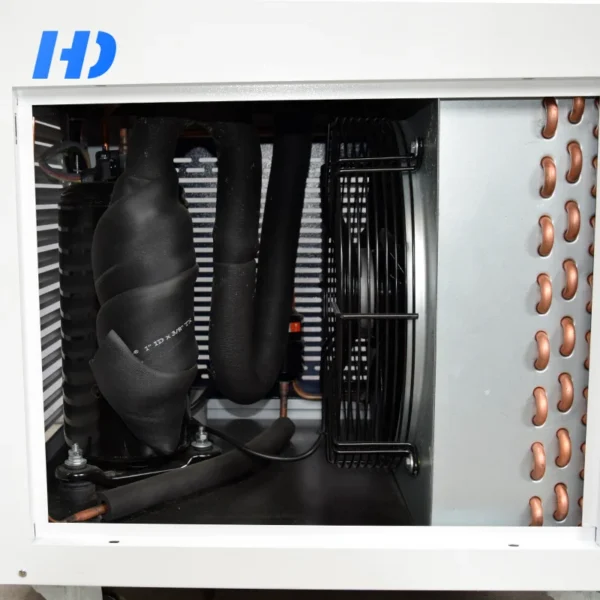

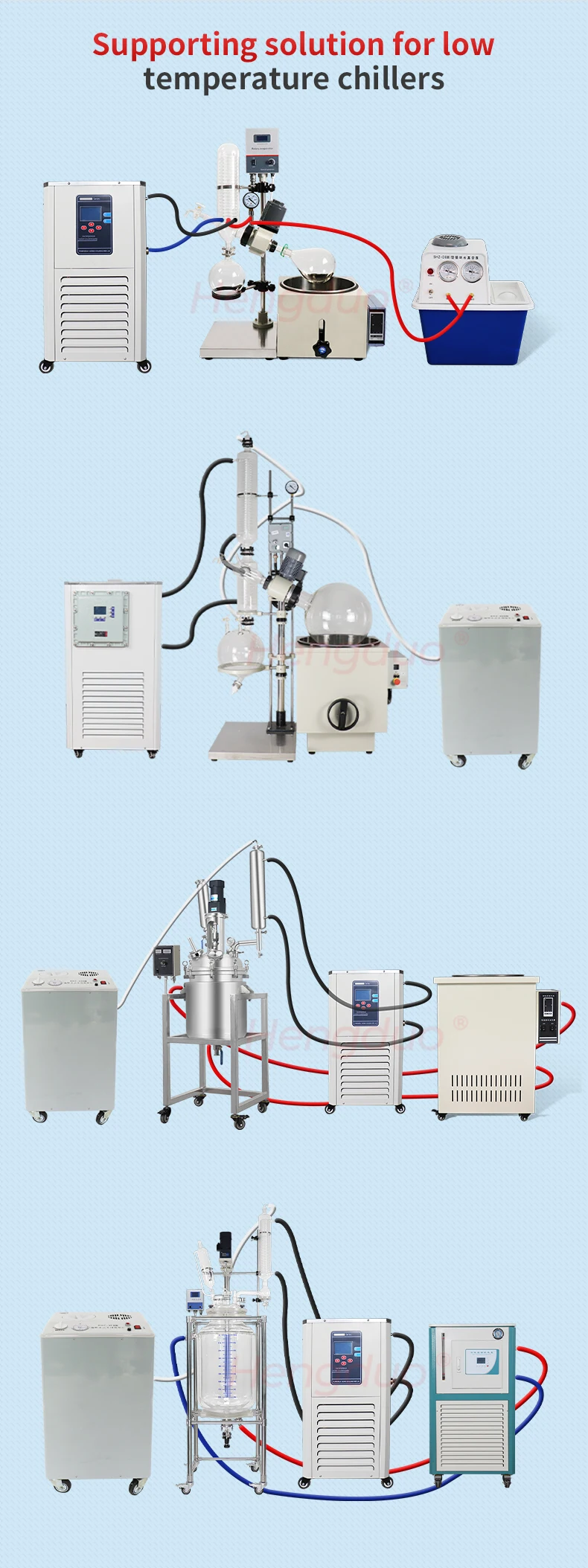

It uses a compressor for refrigeration and the conveying function of a circulating pump to provide a cold source and maintain a constant temperature. It can be used to cool test tubes, glass reaction kettles, condensers, rotary evaporators, etc., meeting the conditions for low – temperature reactions or storage.

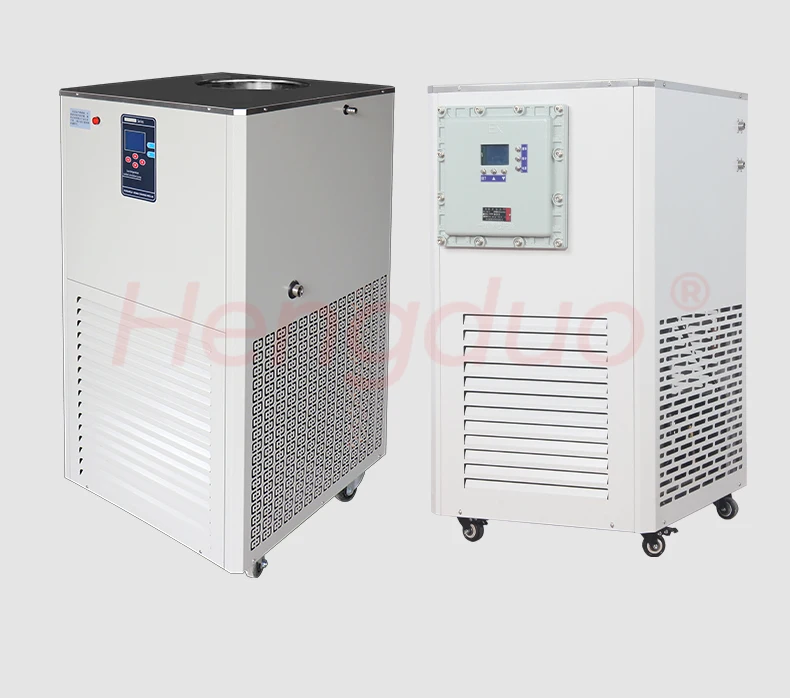

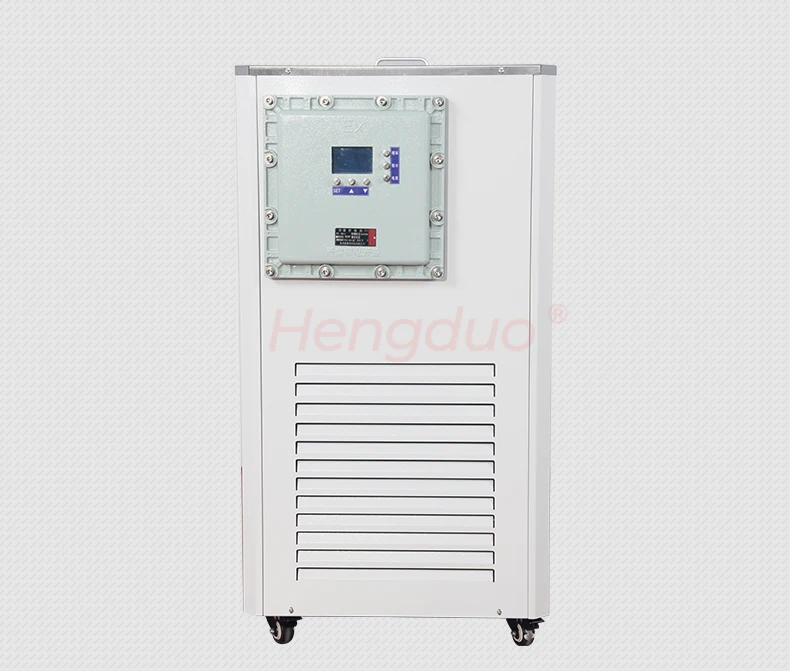

Electrical explosion – proof Low-temperature coolant circulating pump
The outer shell is integrally die – cast from raw materials using molds, featuring high strength, high hardness. With a plastic – sprayed surface, it is made of high – toughness low – carbon aluminum alloy, creating all – around explosion – proof performance for enhanced safety.
| Product model | Volume | Temperature range | Cooling capacity | flow rate | Head | Power supply voltage | Electric current | Power | Cold tank dimensions | Opening size | Equipment size |
| 5/10 |
5L | -15℃—Room temperature | 550-275 |
25 L/min | 3M | 220V50HZ | 1.2A | 230W | 180*160MM |
180MM | 400*280*540MM |
| 5/30 | -30℃—Room temperature | 875-225 | 8M | 2.8A | 470W |
220*180MM | 370*470*680MM | ||||
| 5/40 | -40℃—Room temperature | 1900-170 | 3.7A | 900W | 370*470*680MM | ||||||
| 5/80 | -80℃—Room temperature | 2544-170 | 6.5A | 1700W | 600*480*770MM | ||||||
| 5/120 | -120℃—Room temperature | 2250-150 | 380V50HZ | 11A | 2400W | 690*510*1010MM | |||||
| 10/30 |
10L | -30℃—Room temperature | 2010-150 | 220V50HZ | 5.2A | 1000W | 250*250MM | 240MM | 450*520*800MM | ||
| 10/40 | -40℃—Room temperature | 2800-550 | 5.8A | 1300W | 300*220MM | 570*490*820MM | |||||
| 10/80 | -80℃—Room temperature | 3650-950 | 380V50HZ | 10A | 2500W | 730*580*890 | |||||
| 10/120 | -120℃—Room temperature | 4380-550 | 10A | 3600W | 970*770*1100MM | ||||||
| 20/30 | 20L | -30℃—Room temperature | 2800-600 |
220V50HZ | 6.3A | 1300W | 570*490*860MM | ||||
| 20/40 | -40℃—Room temperature | 7300-1200 | 7A | 3200W |
350*250MM |
320MM | 640*540*1000MM | ||||
| 20/80 | -80℃—Room temperature | 8760-950 |
380V50HZ | 12A | 6000W | 860*660*1030MM | |||||
| 20/120 | -120℃—Room temperature | 9000-550 | 18A | 9500W | 970*770*1150MM | ||||||
| 30/30 | 30L | -30℃—Room temperature | 4600-600 |
220V50HZ | 11A | 2100W |
350*350MM | 640*540*1000MM | |||
| 30/40 | -40℃—Room temperature | 7300-900 | 7A | 3200W | 640*540*1000MM | ||||||
| 30/120 | -120℃—Room temperature | 9000-550 | 380V50HZ | 18A | 9500W | 970*770*1190MM | |||||
| 50/20 | 50L | -20℃—Room temperature | 6300-900 | 220V50HZ | 10A | 2500W | 400*400MM |
740*640*1190MM | |||
| 50/30 | -30℃—Room temperature | 10500-900 |
380V50HZ | 8A | 4000W | ||||||
| 50/40 | -40℃—Room temperature | 12775-650 | 11A | 5500W | |||||||
| 50/80 | -80℃—Room temperature | 15330-550 | 20A | 10800W | 980*770*1240MM | ||||||
| 100/30 | 100L | -30℃—Room temperature | 15750-1600 |
35L/min |
12M | 11A | 5600W |
500*500MM | 960*760*1330MM | ||
| 100/40 | -40℃—Room temperature | 15750-550 | 11A | 5600W | |||||||
| 100/80 | -80℃—Room temperature | 15750-450 | 20A | 11000W | |||||||
| 100/120 | -120℃—Room temperature | 18375-450 | 33A | 16150W | 1620*930*1580MM |

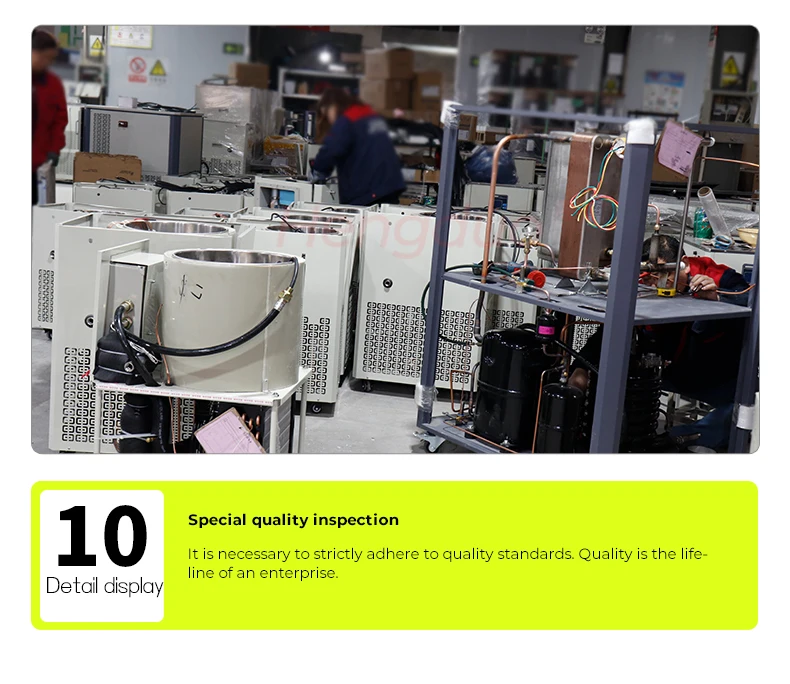

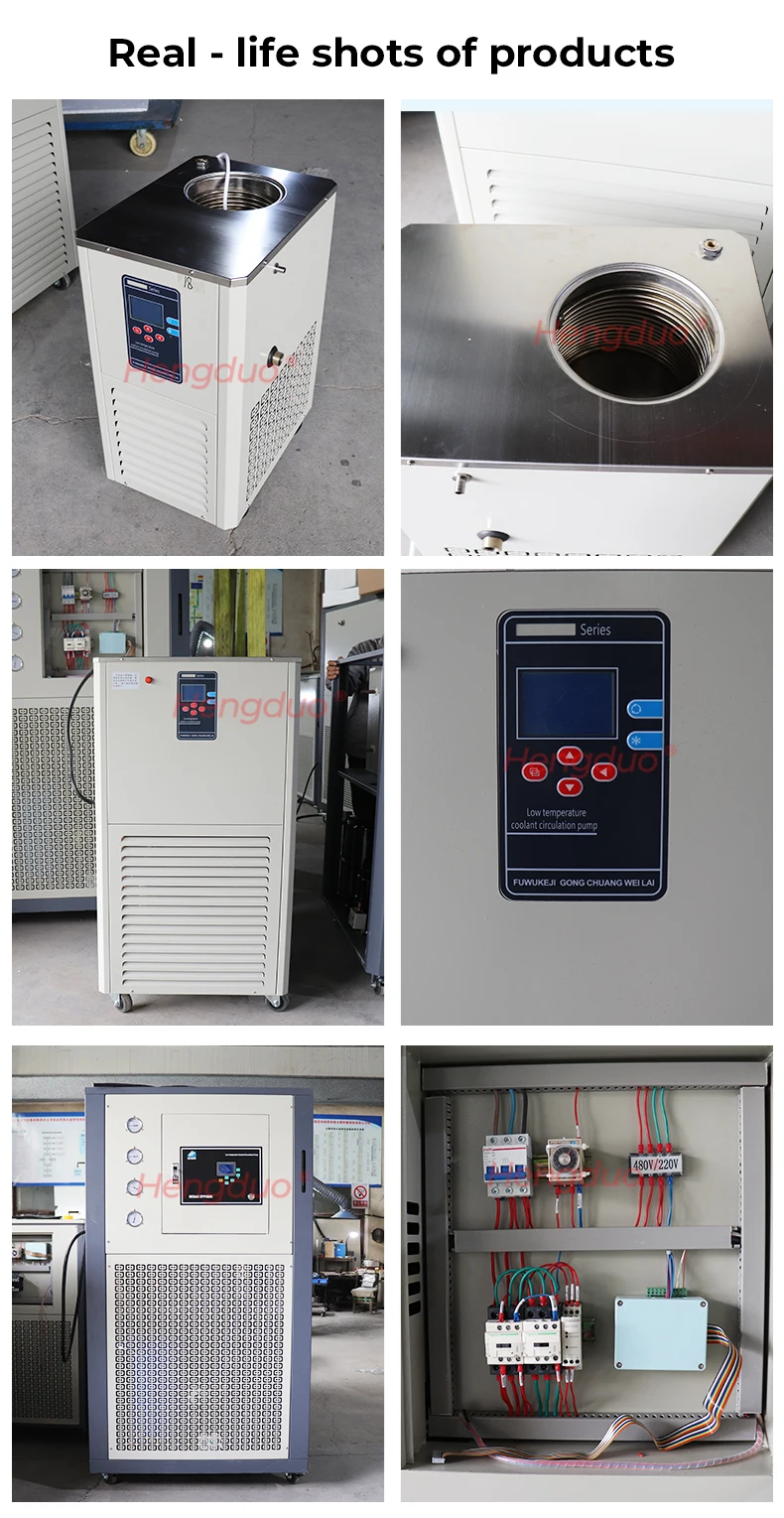

Having undergone a number of strict quality inspections, the product ensures reliable quality.
Q1:What are your payment terms?
A:Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment. (If you are concerned about payment security for the first order, we advise you can place Trade Assurance Order via Alibaba. you will get 100% payment refund if we can't meet agreed delivery time.)
Q2:Are you trading company or manufacturer?
A:We are professional manufacture of lab equipment and we have our own factory.
Q3:What are your main products?
A:Our main products include Rotary Evaporator, Double Layer Jacketed Glass Reactor, Double Layer Jacketed Stainless Steel Reactor, Single Layer Glass Reactor, Circulating Water /Oil Bath, Recirculating Cooling Chiller, Heating and Cooling Circulator, Short Path Distillation, Vacuum Pump, Hydrothermal Synthesis Reactor and Other Supporting Apparatus.
Q4:Can I customize products?
A:Yes, a full customization is available. Please let me know your specific customization requirements
and I will get back to you as soon as possible.
Q5:How about the delivery time?
A:Delivery within 5 working days for products in stock, and within 10 working days for customized ones.
Q6:Do you offer after-sales service?
A:Yes, all Hengduo products have 12 months warranty. In the warranty period, we will give the maintenance or replacement of all quality problems in time under normal conditions of use, and also provide wear parts and
glassware at cost price.
Q7:What kind of packaging options do you offer?
A:First of all, both neutral and customized packaging is available.If there is no special requirements, usually the glassware iswrapped carefully in bubble packs and put into a carton suitable for export. Other main parts are packed in strong wooden cases.
Q8:Which shipping methods do you use?
A:We offer sea, air, and land freight as well as express delivery.The specific options
depend on the quantity of the order.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this reciprocating chiller?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Zhengzhou Hengduo Instrument Equipment Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Zhengzhou Hengduo Instrument Equipment Co., Ltd. range on HVACR Nexus.
