The chilling machineindustrial water chiller listed here carries 380v/3phase/50hz, 500 W, 1.35KW(1.81hp), documented exactly as the manufacturer publishes it. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Chilling Machineindustrial Water Chiller
- Power: 500 W, 1.35KW(1.81hp)
- Voltage: 380v/3phase/50hz
- Warranty: 1 Year
- Place Of Origin: Zhejiang, China
- Weight (Kg): 26000
- Single Gross Weight: 0.0 kg
Technical Specifications
| Voltage | 380v/3phase/50hz |
|---|---|
| Power | 500 W, 1.35KW(1.81hp) |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | High Productivity |
| Core Components | Bearing, Motor |
| Place Of Origin | Zhejiang, China |
| Weight (Kg) | 26000 |
| Dimension(L*W*H) | 1250*800*1400MM(49.21*31.50*55.12in) |
| Working Temperature Range | 7 to 50 ℃ |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Product Description
Specification

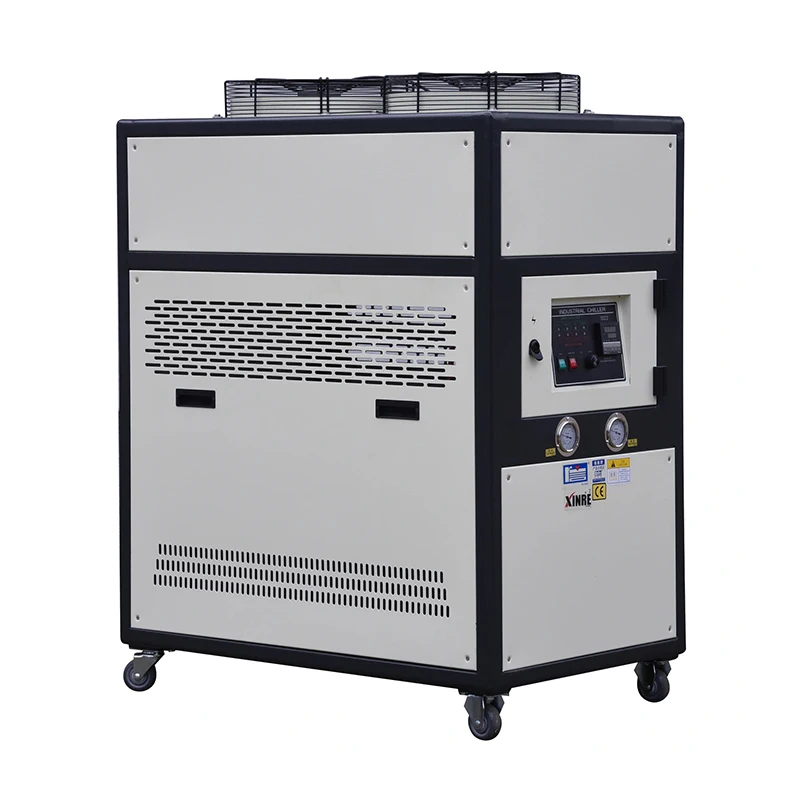

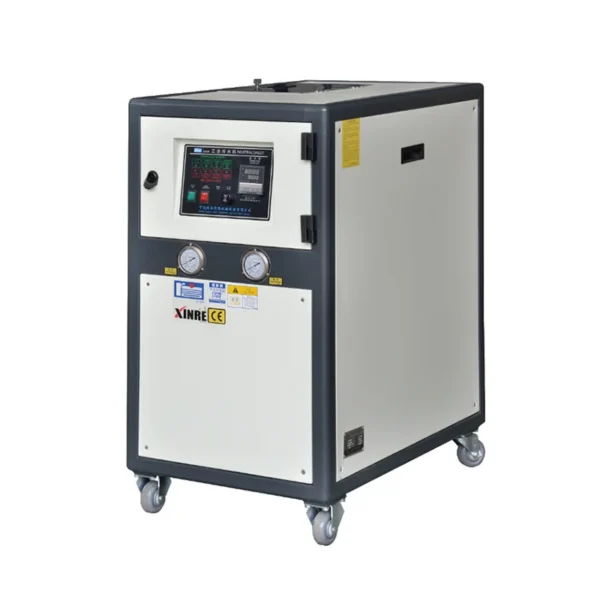

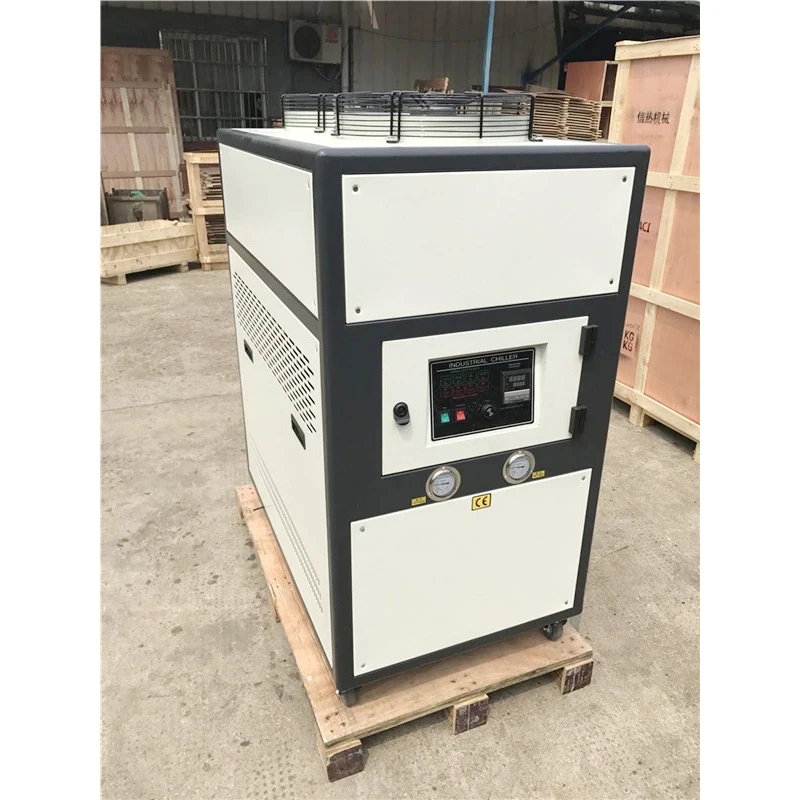

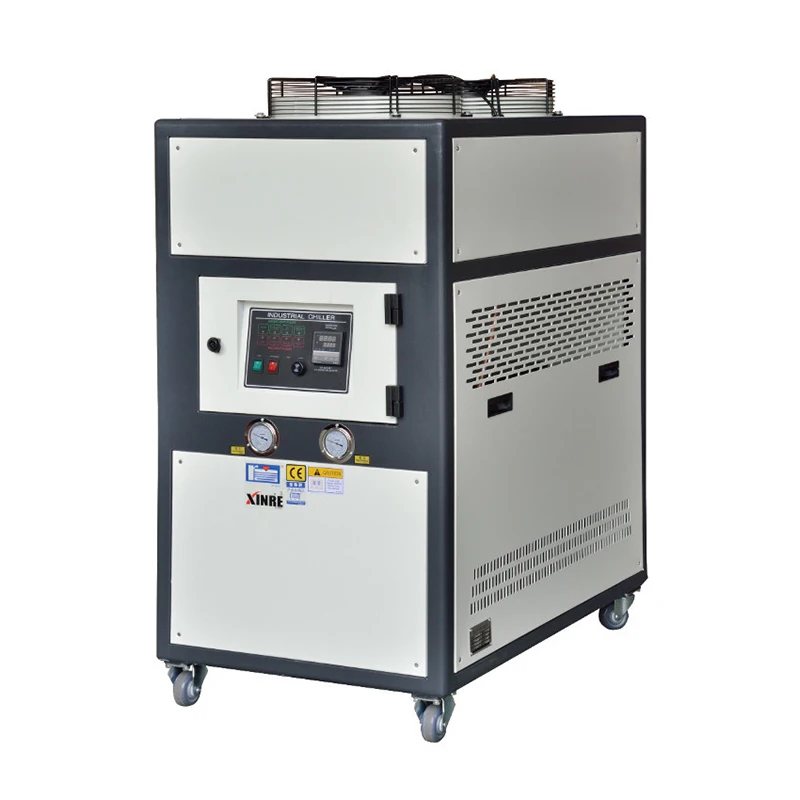

XC-ACI series of industrial chillers are capable of controlling precisely the mold temperature in plastic molding process as so to shorten molding cycle and speed product formalization. The principle of heat exchange is adopted for cooling. They can achieve rapid cooling, stable temperature controlling, and will be little effected by the surounding factors. Therefore they are necessary good equipments in modern industry.
Compressor is used "COPELAND" brand which made in the USA. The inside safety protection can guarantee the long lasting of the chiller well. The pump is used made in Taiwan and all parts of cooling system are imported from the USA, Mexico. Denmark and Japan.
Equipped with shellpipe condenser and stainless steel cased evaporator, which are quite easy to be cleaned and maintained.
Equipped with automatic water supply device in the water- tank. Air cooled cased chiller with board type evaporator is suitable for the district of lack of water resource and district of poor water quality.
Larger than model XC-20 are assembled 2 sets or 4 sets of compressors, so they are able to used as separate or together to reduce the resource waste.
Complete with safety protection and error indication system, including compressor over load protection, pump over load protection, high pressure and low pressure protection and phase failure protection,
Air cooled chiller Equipped with figure intellectualized temperature controls, which can accurately measure and control water temperature within the range of 5℃-35℃.
Applied Machinery: Cooling system of oil temperature, ultrasonic, high frequency machinery. Cooling
System of injection molding machinery. Cooling system of blow molding machinery. Cooling system of extruder.
Additional equipment for option:
Compressor is used "COPELAND" brand which made in the USA. The inside safety protection can guarantee the long lasting of the chiller well. The pump is used made in Taiwan and all parts of cooling system are imported from the USA, Mexico. Denmark and Japan.
Equipped with shellpipe condenser and stainless steel cased evaporator, which are quite easy to be cleaned and maintained.
Equipped with automatic water supply device in the water- tank. Air cooled cased chiller with board type evaporator is suitable for the district of lack of water resource and district of poor water quality.
Larger than model XC-20 are assembled 2 sets or 4 sets of compressors, so they are able to used as separate or together to reduce the resource waste.
Complete with safety protection and error indication system, including compressor over load protection, pump over load protection, high pressure and low pressure protection and phase failure protection,
Air cooled chiller Equipped with figure intellectualized temperature controls, which can accurately measure and control water temperature within the range of 5℃-35℃.
Applied Machinery: Cooling system of oil temperature, ultrasonic, high frequency machinery. Cooling
System of injection molding machinery. Cooling system of blow molding machinery. Cooling system of extruder.
Additional equipment for option:
1. Starter of timer switch.
2. Large type of water filter.
3. Protection switch for prove the electric leakage.
4. Cooling tower and pump.
Model | XC-03ACl | XC-05ACl | XC-08ACl | XC-10ACl | XC-12ACl | XC-15ACl |
Cooling capacity (Kcal/h) | 6800 | 12040 | 19000 | 25200 | 34400 | 37000 |
Compressor power (Kw) | 2.5 | 4.4 | 7 | 9 | 10.2 | 13.4 |
Chiler water pump power (Kw) | 0.37 | 0.75 | 0.75 | 1.5 | 1.5 | 2.2 |
Max Flow rate of chilled water (L/min) | 55 | 120 | 120 | 200 | 200 | 217 |
Cooling fan power (Kw) | 0.25 | 0.5 | 0.5 | 0.5 | 0.5 | 1 |
Size (m) | 1.03×0.68×1.27 | 1.1×0.7×1.4 | 1.22×0.8×1.45 | 1.22×0.93×1.6 | 1.22×0.93×1.6 | 1.22×1.05×1.6 |
Water tank capa (L) | 53 | 88 | 120 | 200 | 200 | 240 |
Weight (Kg) | 210 | 290 | 400 | 450 | 500 | 550 |

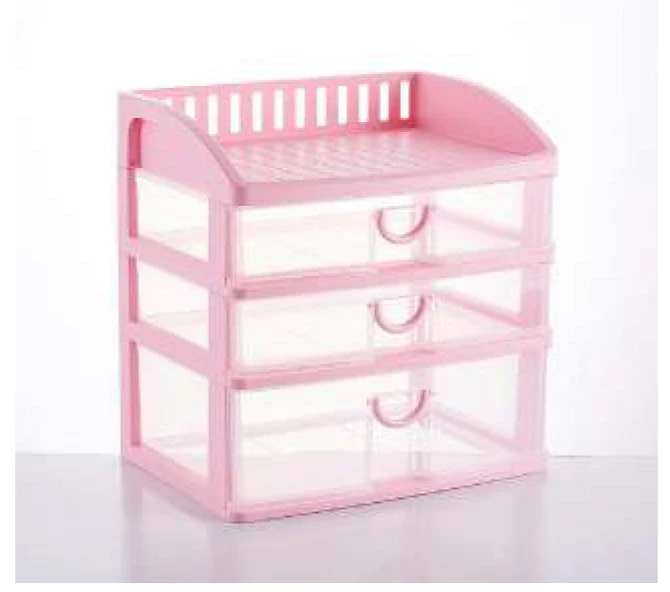

Application

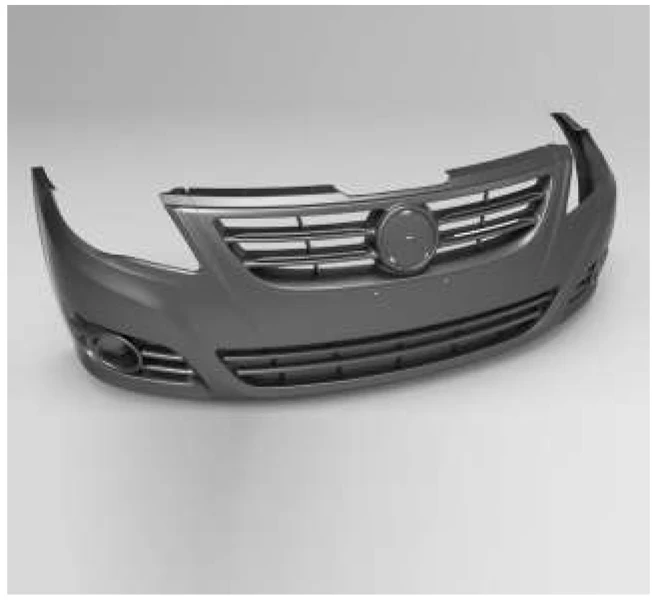

Auto parts
Sanitation products

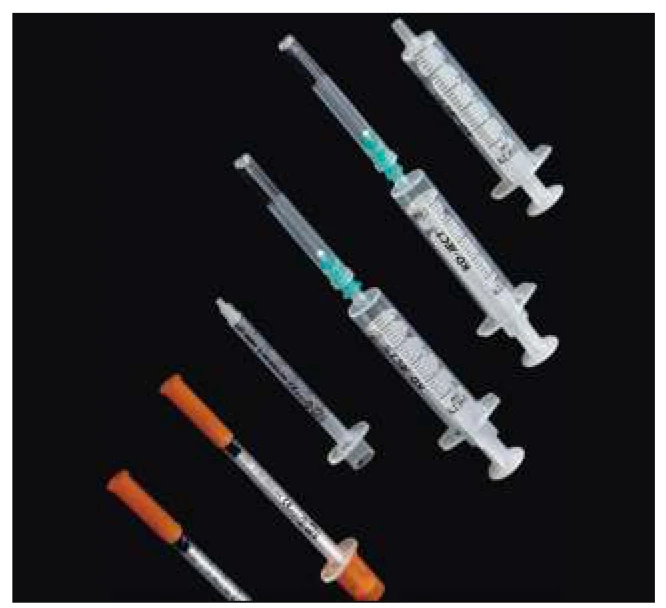

Medical field

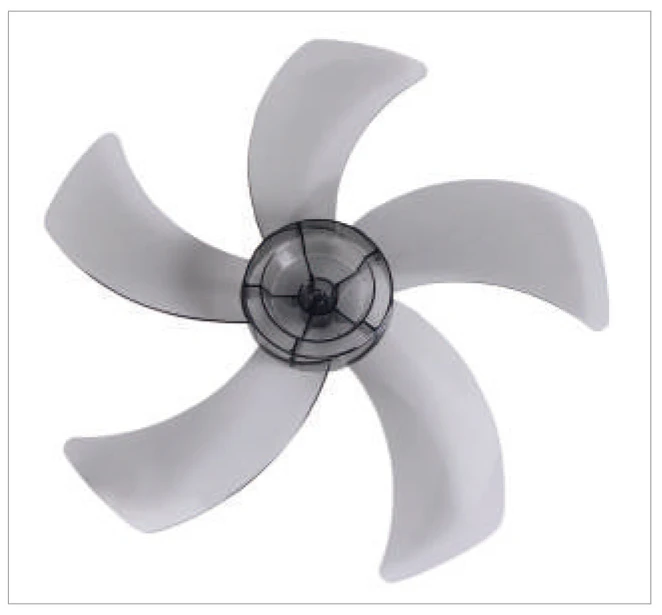

Black and white household appliance

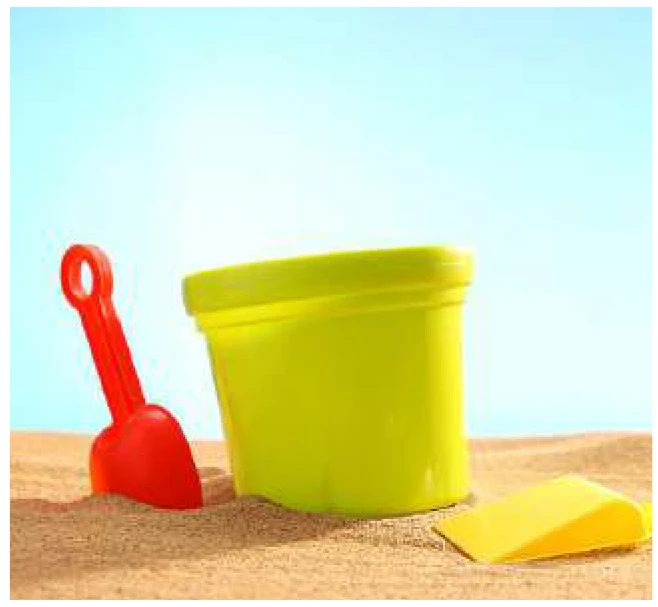

Toy industry
Home appliances
Powder box
Lipstick
Shoes material products

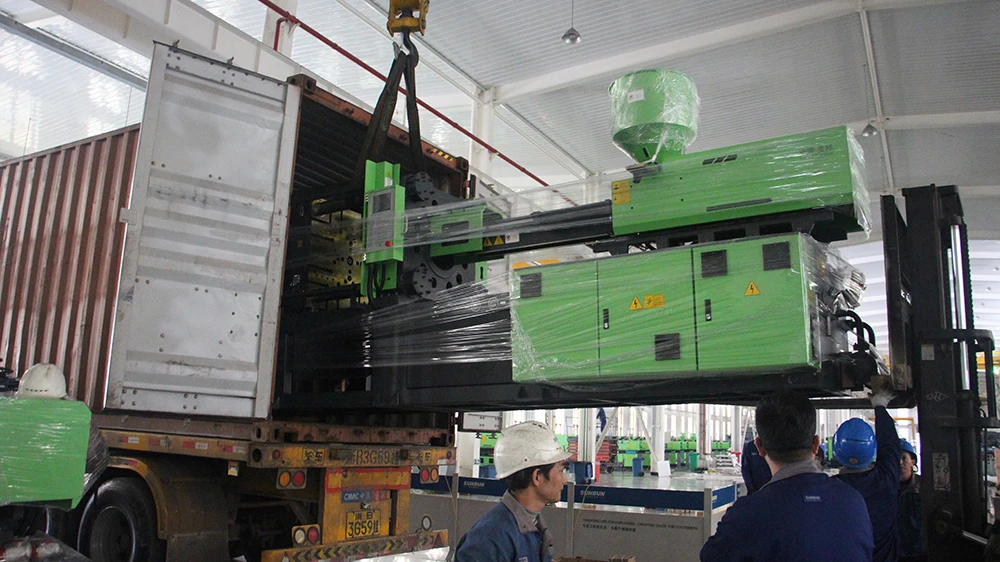

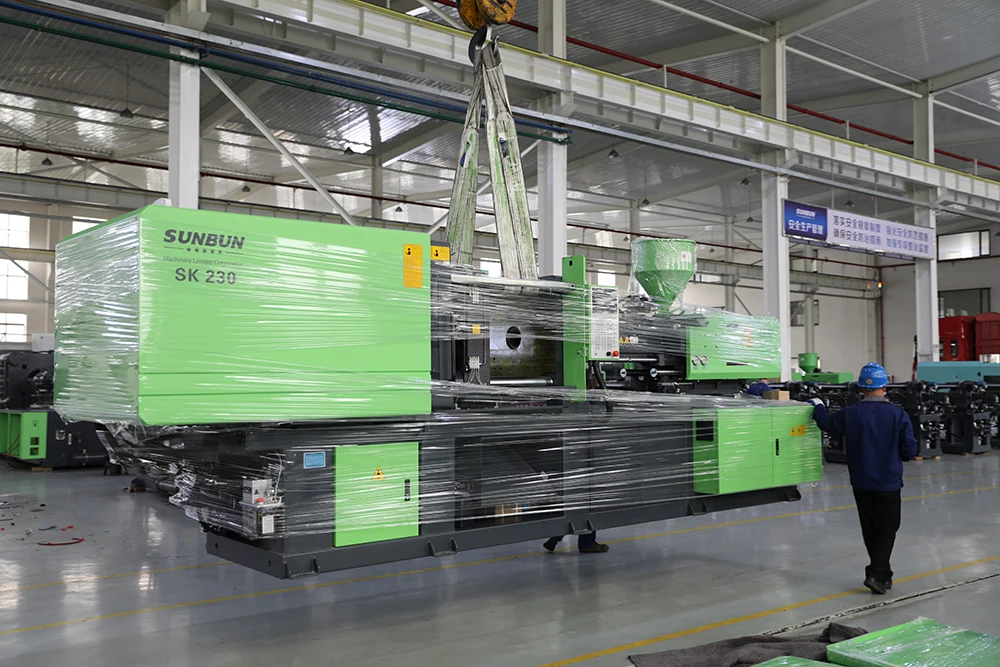

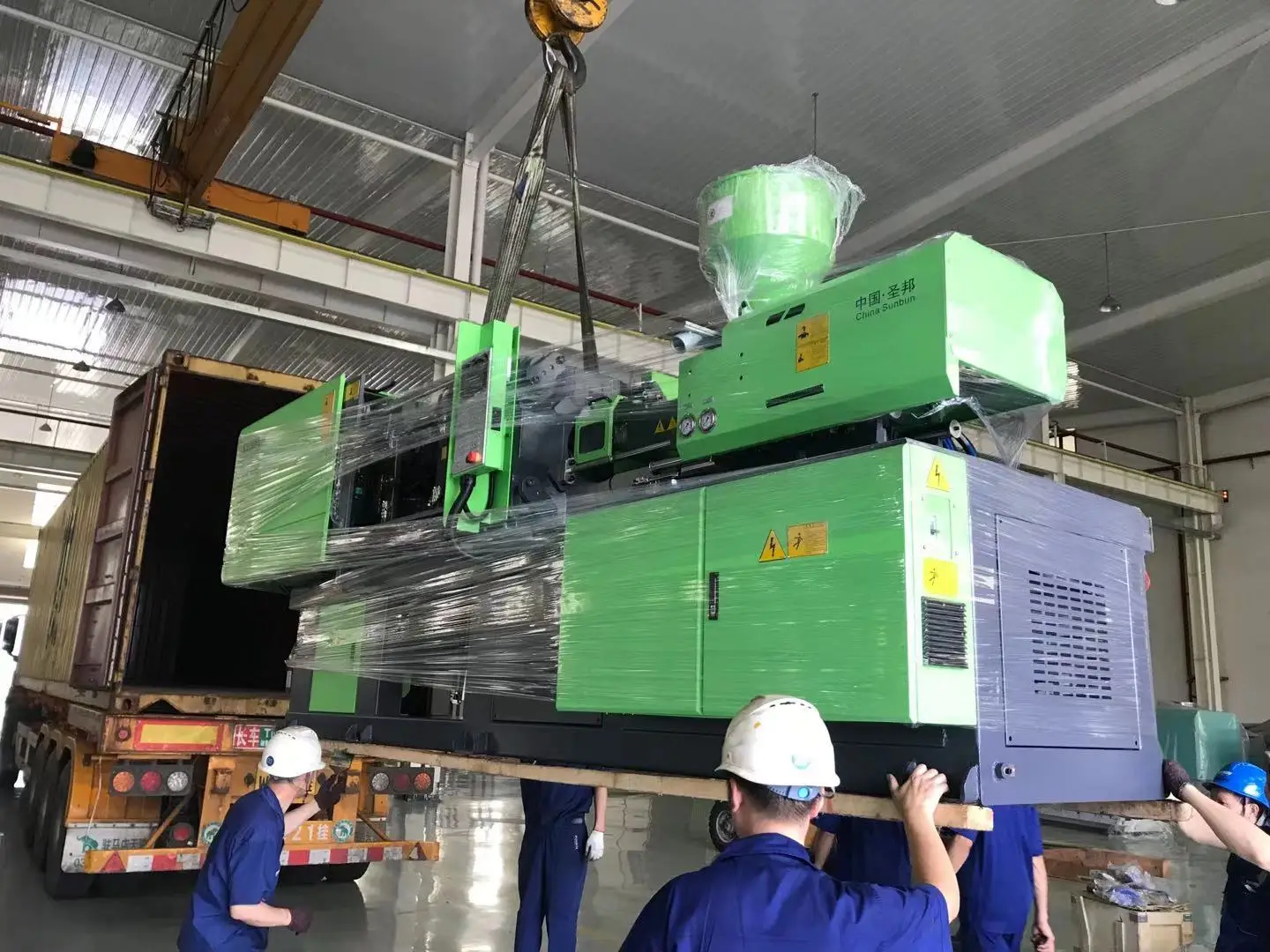

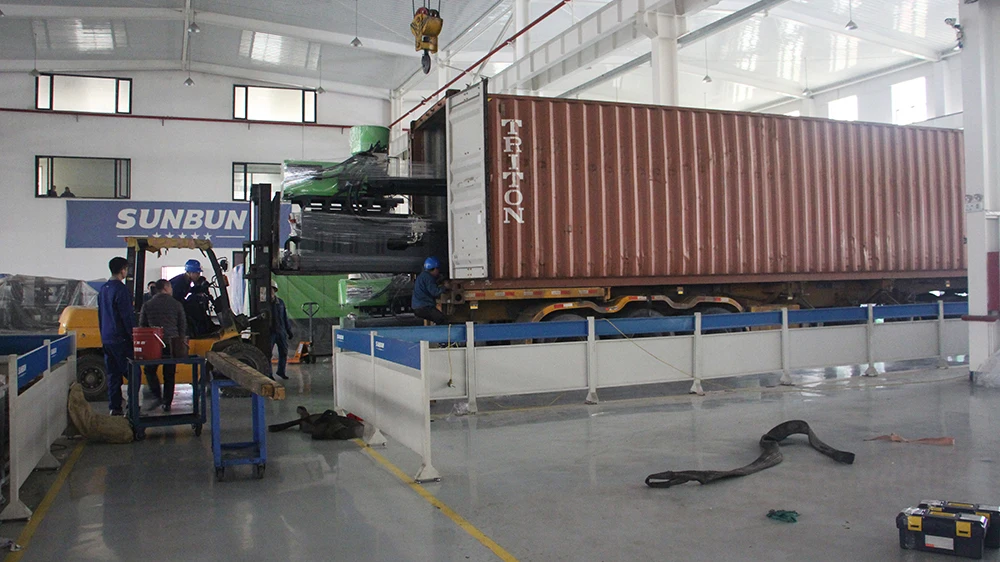

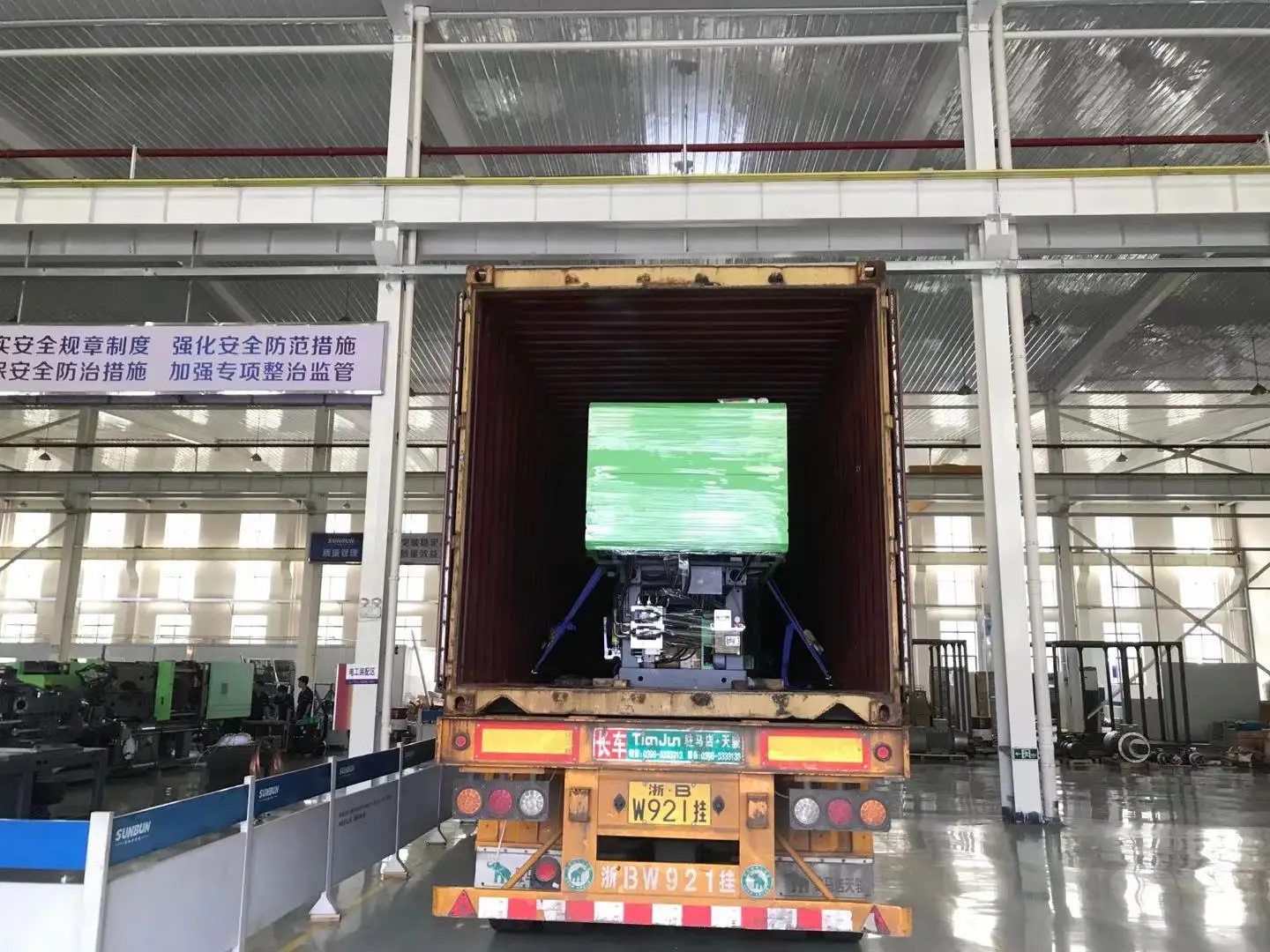

Packing & Delivery

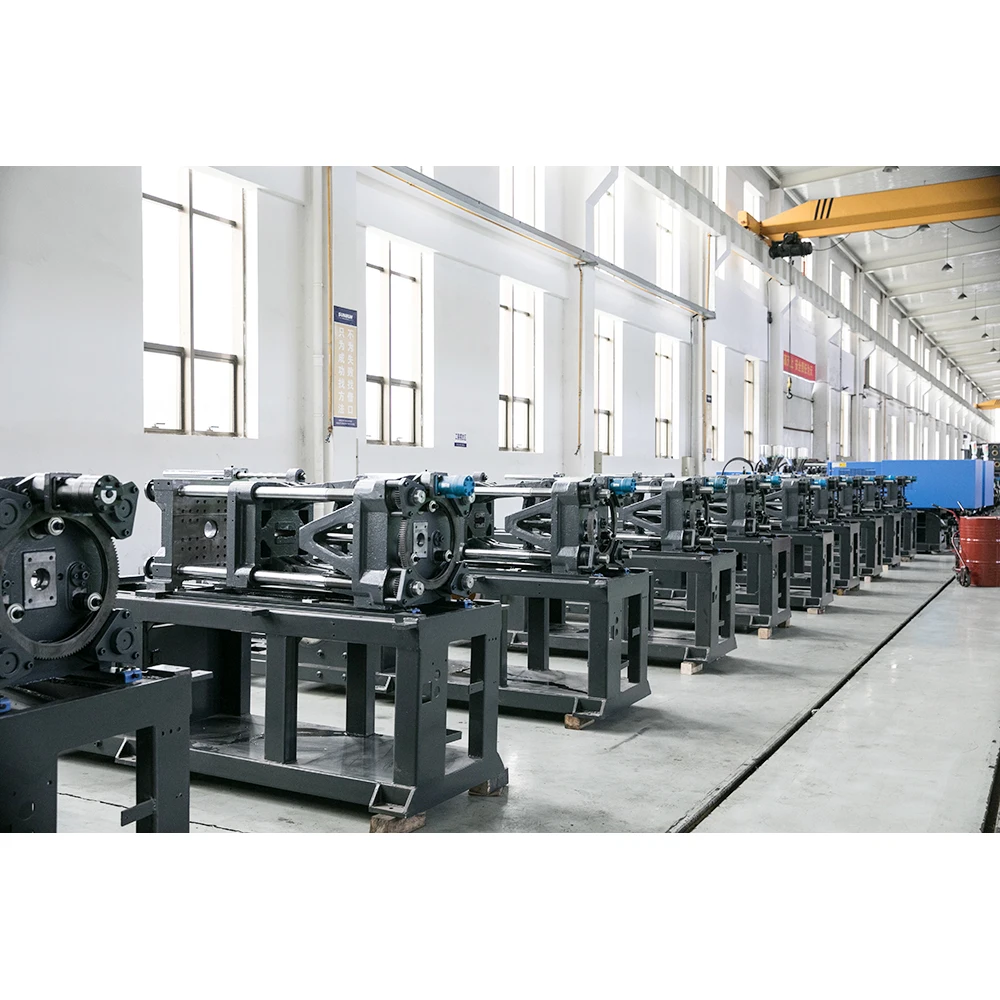

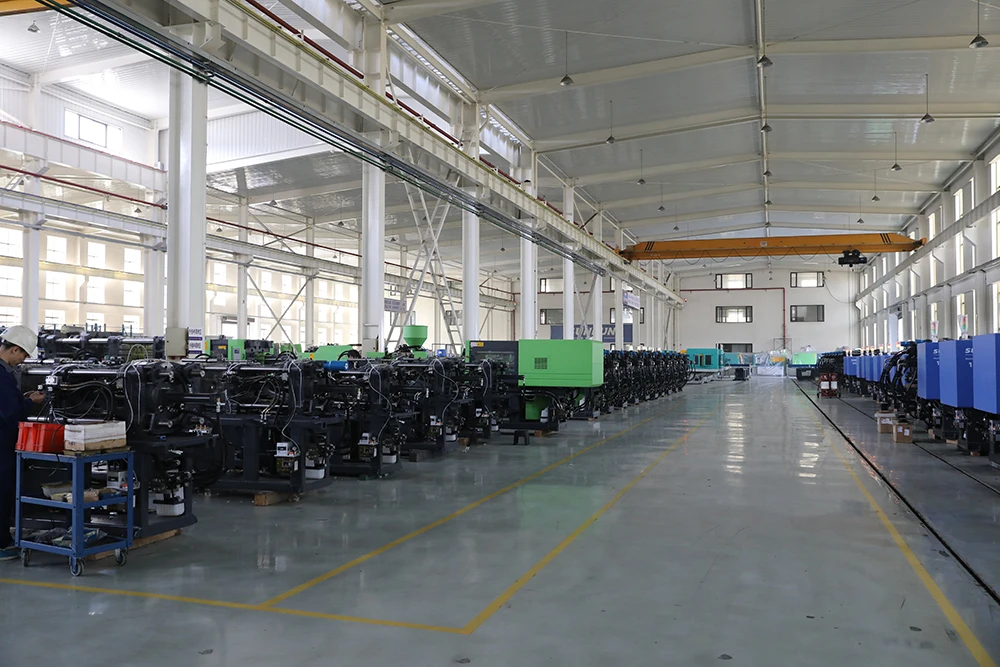

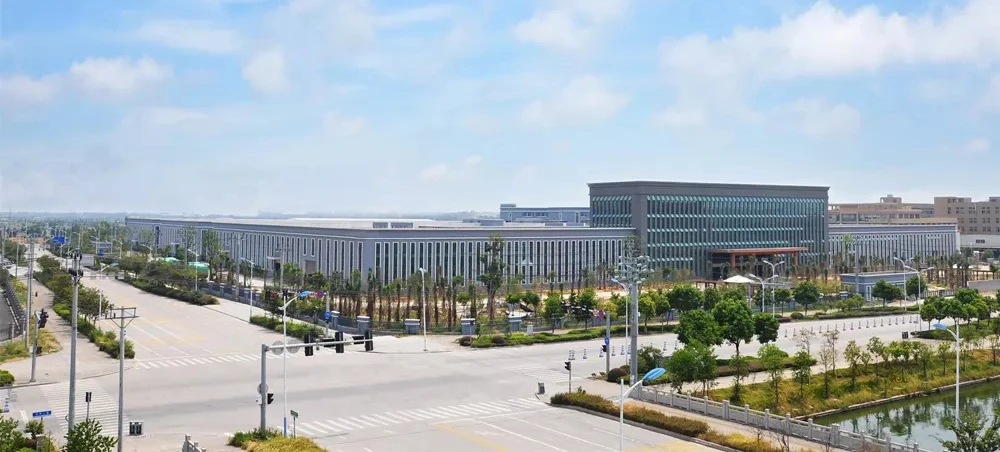

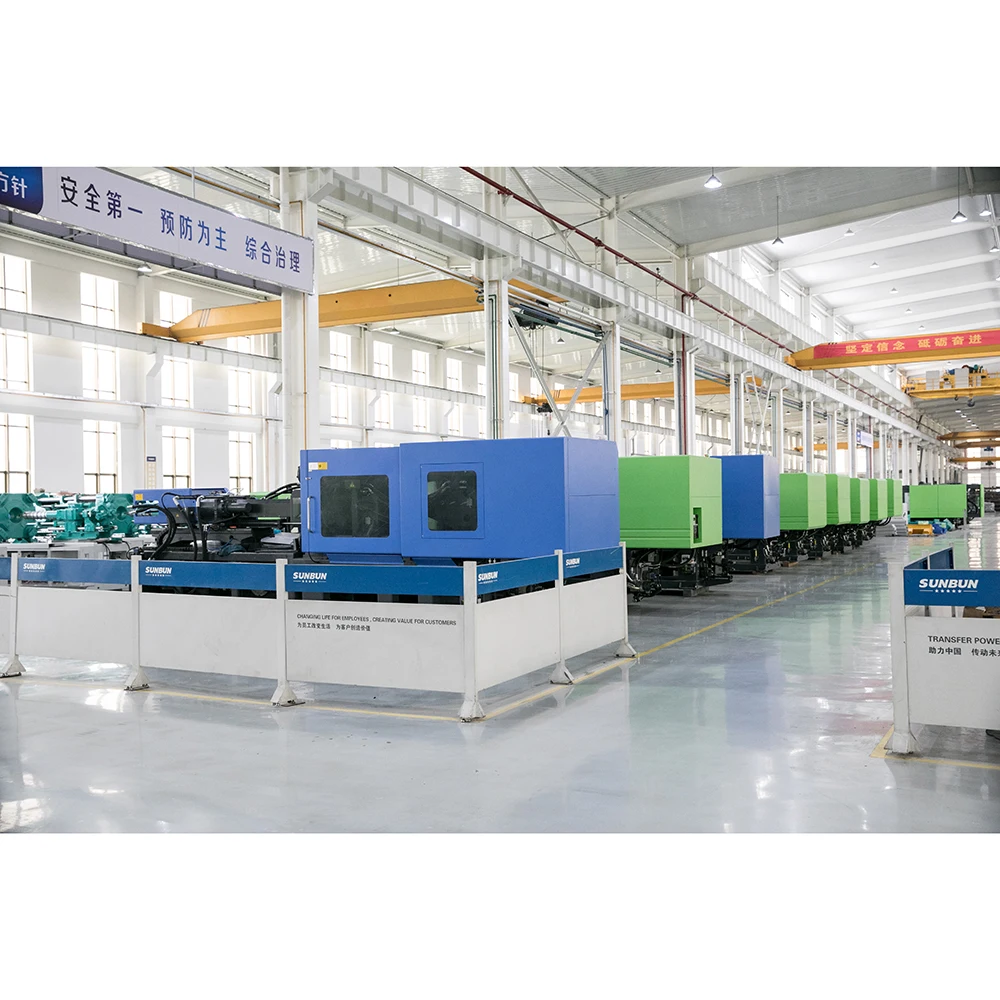

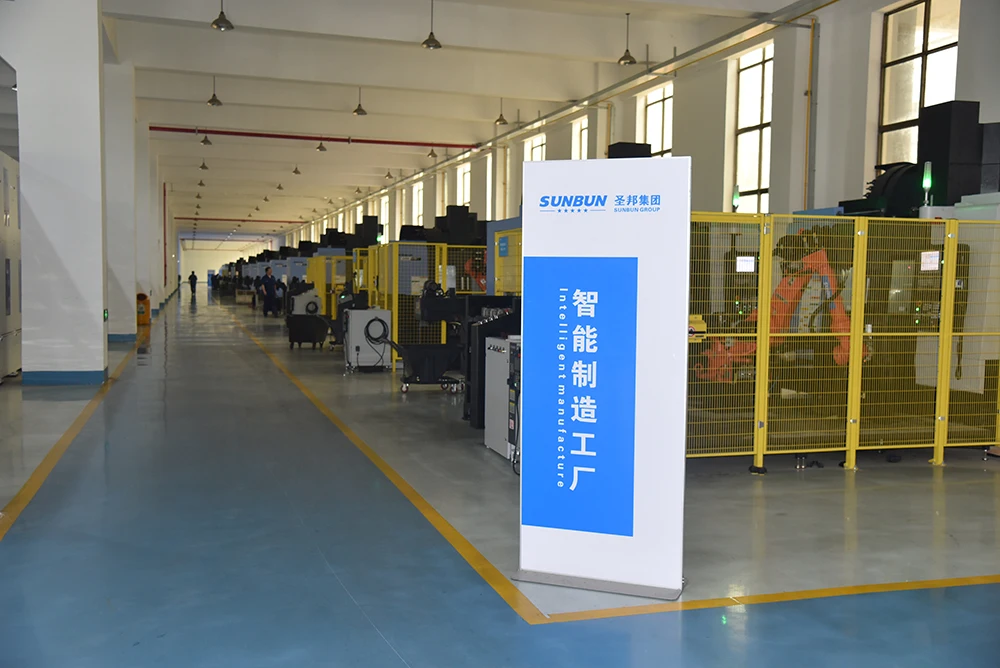

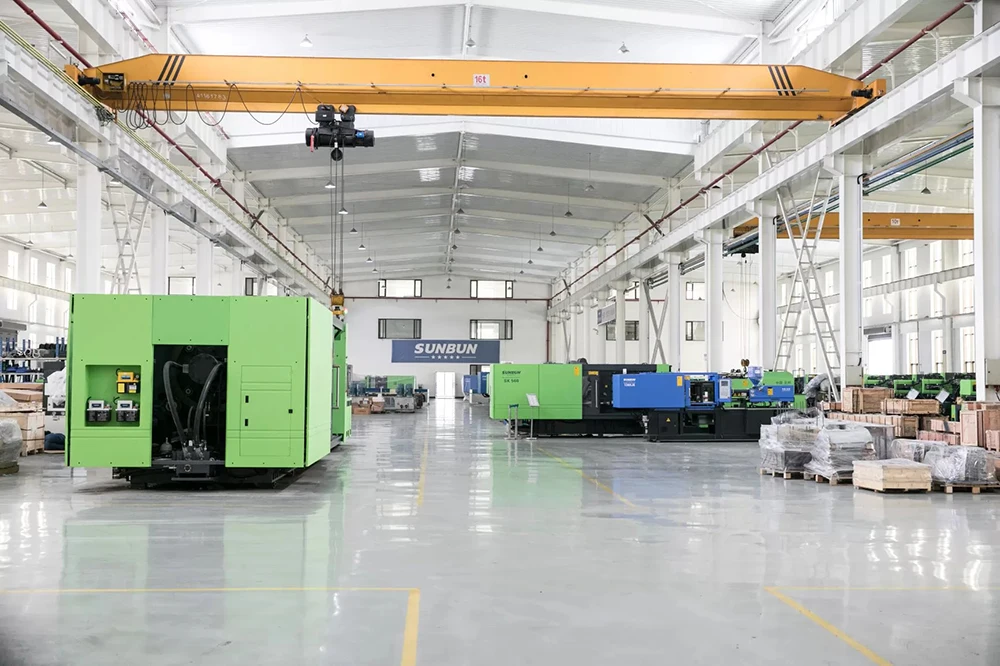

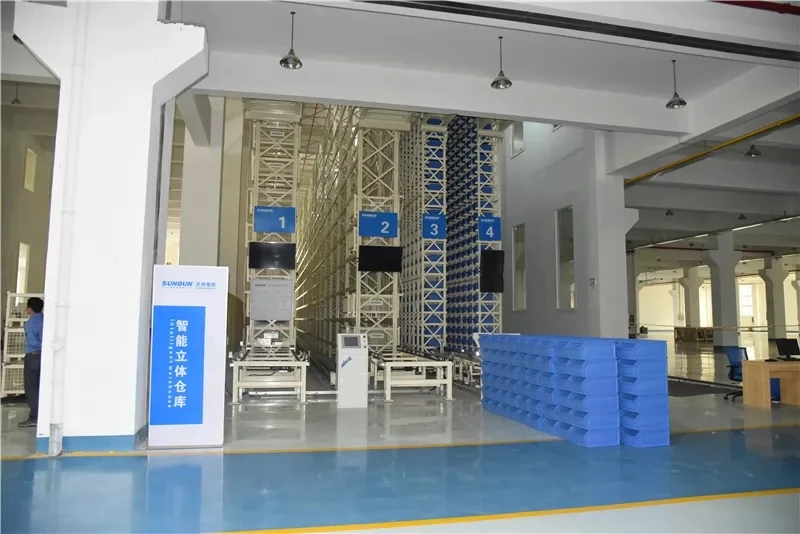

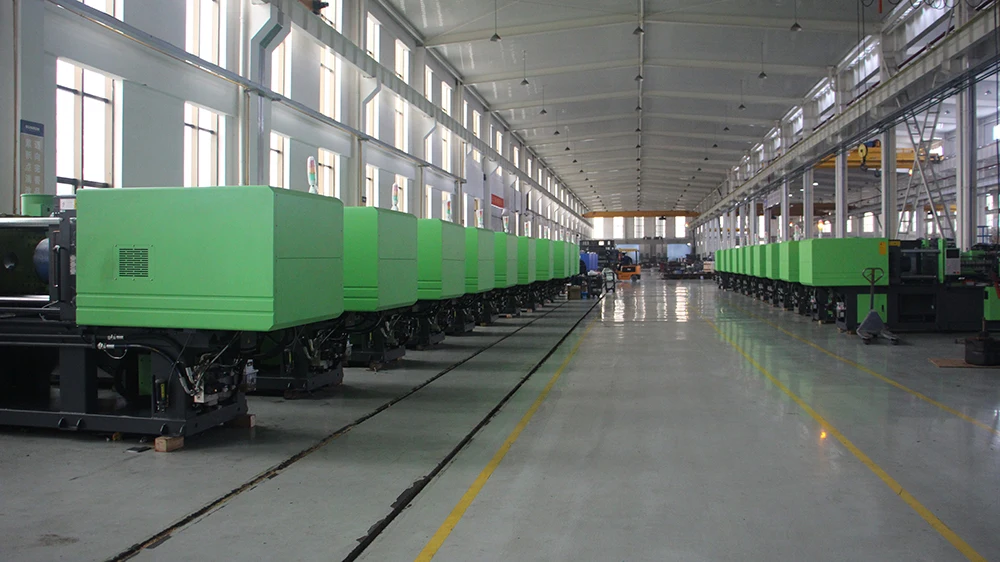

Company Profile

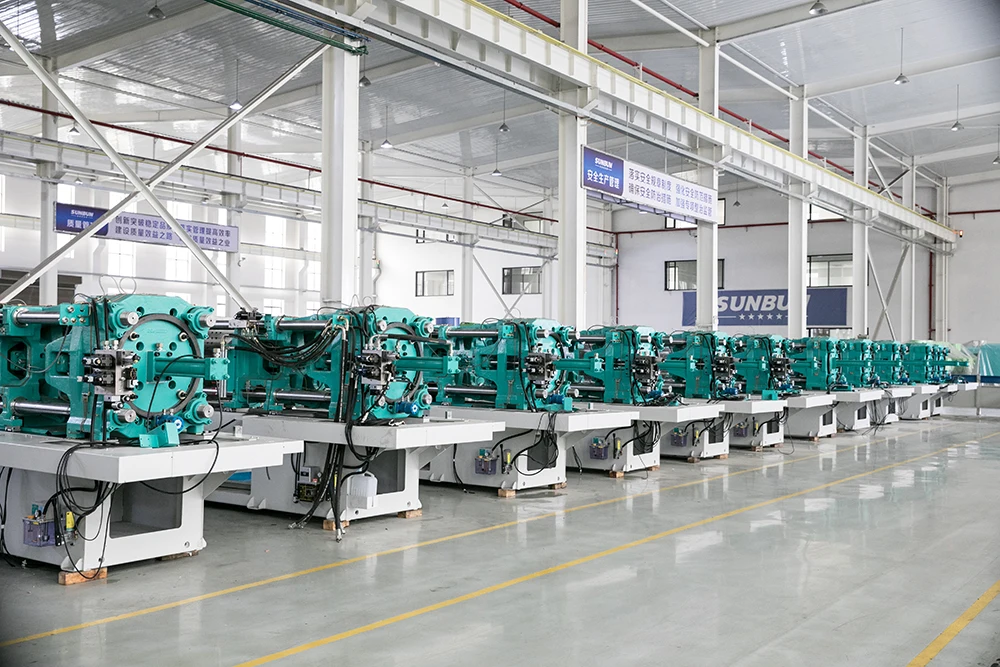

Zhejiang Sunbun Intelligent Equipment Co., Ltd （Sunbun Machine）is the branch of Sunbun Group. Which Founded in 1993. Through nearly 30 years development Sunbun Group now have Wenzhou, Hangzhou, Shanghai , Xuzhou ,Quzhou 7 Production Base.
Group specialized in scientific research , design and production of hydraulic components , Valve ,Systems and actuators of
construction machinery. As national level high-tech enterprise. Sunbun group have participated in R&D and implementation of “China Torch Program” and “Spark Program”

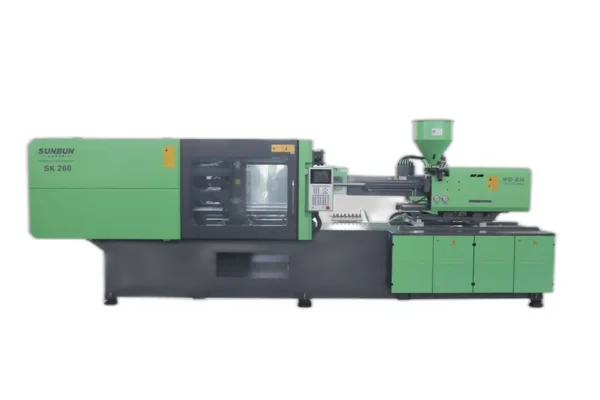

Sunbun Machine established in 2000 mainly engages in R&D manufacture and sales of automation intelligent equipment and plastic injection molding machine etc. Through the unceasing innovation and development of more than 30 researchers and technicians Sunbun succeeded in launching various injection molding machines and some special use machine (e.g. Medical machine , Sole Making Machine, Tie making machine , Pen Making machine )
Group specialized in scientific research , design and production of hydraulic components , Valve ,Systems and actuators of
construction machinery. As national level high-tech enterprise. Sunbun group have participated in R&D and implementation of “China Torch Program” and “Spark Program”
Sunbun Machine established in 2000 mainly engages in R&D manufacture and sales of automation intelligent equipment and plastic injection molding machine etc. Through the unceasing innovation and development of more than 30 researchers and technicians Sunbun succeeded in launching various injection molding machines and some special use machine (e.g. Medical machine , Sole Making Machine, Tie making machine , Pen Making machine )
FAQ
Q1：What is your machine warrenty ?
A1： For the whole machine we provide 12 month , For the Pull Rod. We provie 24 month For the Mold Platen we provide 36 month Q2: Are you provide auxiliary machine for the whole project ? A2: Yes We provide many brand auxiliary machine also provide turnkey solustation. Q3: How about the quality control in your factory? A3: We have full set testing control files. Every part testing have full record . Before shipment small machine need shot over 7000 times. and big machine shot for 5000 times. Q4: What is your lead time ? A4: If we have stock we can deliver in 3 days. For normal production we need around 30-60 Days depends on machine tonnage. Q5 : Mold trial will be available in your factory ? A5： Yes, Customer can send the mold to our factory and test. If clients buy mold together, we will testing and send sample to clients for final confirmation then shipment. Q6 . Do you provide any spare parts with machine? A6: Yes, We will provide one set standard spare parts to customer including heater ,filter, noozle ,tool box etc. Q7: What about your after sales service A7: we have many experience technical engineers for oversea service, they would help you install machine and provide basic training.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–4 piece: US $700 / piece
- 5+ piece: US $350 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this chilling machineindustrial water chiller?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the chilling machineindustrial water chiller be supplied for my local voltage?
The standard configuration is 380v/3phase/50hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ningbo Bocheng Intelligent Equipment Co., Ltd., based in China. The company 6 years as a verified Alibaba.com supplier, Trading Company. Browse the full Ningbo Bocheng Intelligent Equipment Co., Ltd. range on HVACR Nexus.
