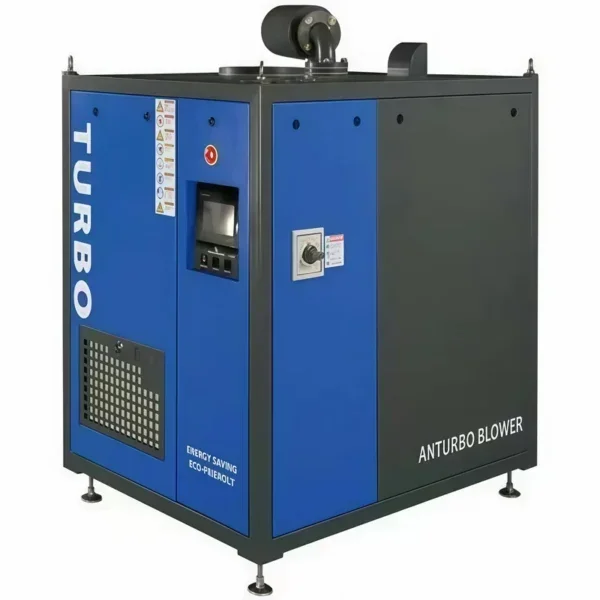

This regenerative air turbo blower is published with the manufacturer’s full specification — 380 V, max air flow 15-440m³/min. Made by Shanghai Anturbo Machinery Technology Co., Ltd. (1 year on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Regenerative Air Turbo Blower
- Model Number: TB20-600
- Power Source: Electric
- Rated Power: 20-600KW
- Rated Voltage: 380 V
- Max Air Flow: 15-440m³/min
- Material: Aluminum Alloy
Technical Specifications
| Application | Air Blower |
|---|---|
| Power Source | Electric |
| Rated Voltage | 380 V |
| Electric Current Type | AC |
| Motor Type | high speed permanent magnet motor |
| Speed | 2000RPM, 4500RPM |
| Material | Aluminum Alloy |
| Blade Material | Aluminium Alloy |
| Noise Level | <80dB |
| Pressure | High Pressure |
| Warranty | 1 Year |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Jiangsu, China |
| Brand Name | Anturbo |
| Model Number | TB20-600 |
| Color | blue,grey |
| Types | Turbo blower |
| Rated Power | 20-600KW |
| Max Air Flow | 15-440m³/min |
| Export Caliber (A) | 150-500 |
| Weight (Kg) | 600-2100kg |
| Cooling Method | AIR |
| Certification | CE |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Product Parameters
Model | TB120-0.6 |
Colour | blue,grey |
Key Words | air suspension centrifugal blower |
Motor | permanent magnet motor |
Application Occasions | municipal sewage treatment, paper making industry, chemical industry, cement and other industries |
Certification | CE ISO |
Types Of | industrial ventilation |
Noise | low |
Weight | 600~1500kg |
difference | Roots blower | Multistage centrifugal blowers | Air suspension centrifugal turbo blower |
picture | |||
Principle | capacity type | Centrifugal type | Centrifugal type |
Driving Method | V-belt | overdrive gear | Direct Attach |
outlet pressure | 0.6bar | 0.6bar | 0.6bar |
Air flow | 70m³/min | 70m³/min | 70m³/min |
power | 102kw | 90kw | 75kw |
noise（@1m) | 95~110dB | 85dB | 80dB below |
vibration | max | less | none |
lubricating oil | need | need | No need |
Service life | 10years | 5~15years | semi-permanent |

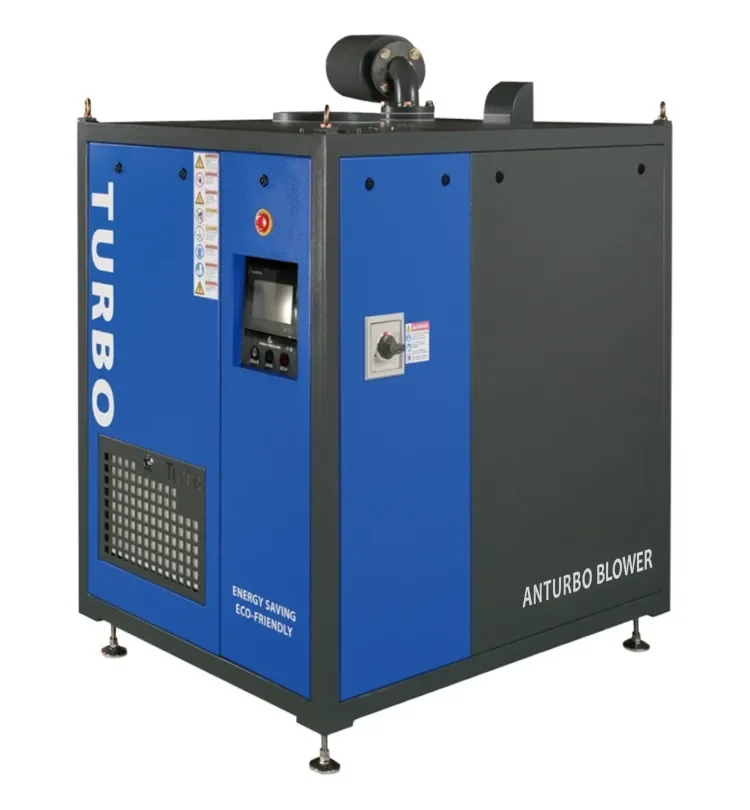

Products Description

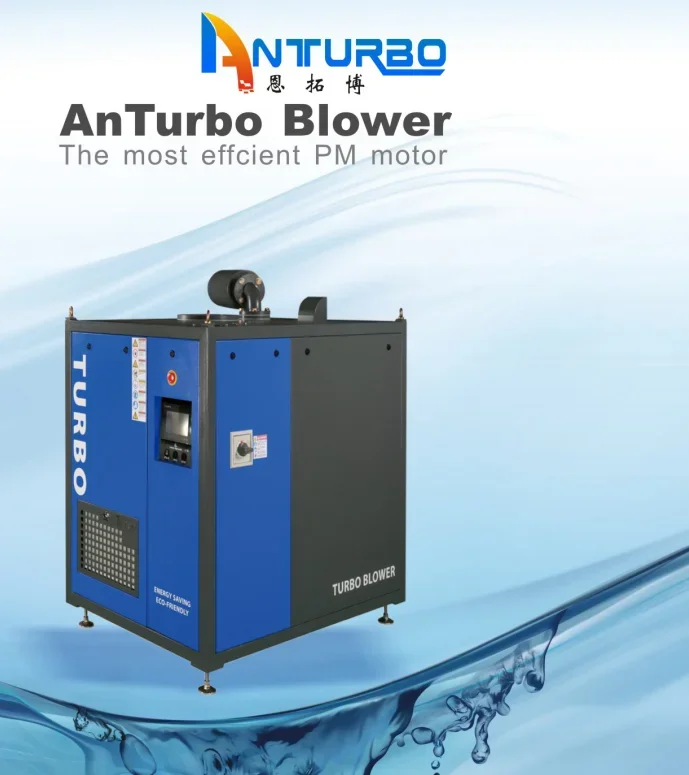

Anturbo air suspension centrifugal turbo blower is a kind of high-tech green energy saving and environmental friendly products. We adopt air foil bearing, high speed permanent magnet synchronous motor, ternary flow impeller, frequency converter speed regulation, intelligent monitoring and control and other core technologies. Due to its no vibration, no friction and no lubricating oil, the transmission loss is reduced. The ternary flow impeller adopts high-strength heat treatment of aluminum alloy AL7075, which improves accuracy and durability through 5-axis machining.
The air suspension centrifugal turbo blower realizes the intelligent control of frequency conversion, which can realize the local and remote control. We now have different models from TB10、TB15、TB20、TB25、TB30、TB50 to TB75、TB100、TB120、TB150、TB200、TB250、TB300、TB400、TB600, the air flow varies from 7m³/min to 440m³/min, the pressure ranges from 30kPa to 200kPa, to meet the needs of different users. Compared with the traditional roots blower, air suspension blowers can save energy up to 30%-50%, the performance is more stable , and have a noise of less than 80 decibels. Widely used in sewage treatment, cement, paper, textile, aquaculture, steel, food, brewing, petrochemical, thermal power and other industries.
Advantage
Economical efficiency
Energy consumption can be saved by 20%~50% Procurement costs can be recovered within two and a half year Simple and convenient
maintenance, reasonable maintenance cost Air filter cotton quick-wear part
Environmental-friendly performance
100% oil-free system Low vibration, the noise is less than 80dB The operating environment is more peaceful
Convenience
Optimized motor speed control, with lower energy consumption to achieve ideal gas volume Various control modes and communication
modes Provide a full range of management solutions
Features
The air suspension blower adopts high speed permanent magnet motor air suspension bearing. The running speed of the blower can reach more than 40000 RPM, so the mechanical efficiency is high. Compared with the traditional fan, the energy saving rate can reach 35-45 percent.
The air suspension blower adopts three dimensional flow impeller, the vortex shell adopts aviation aluminum alloy
material, and the air bearing is directly connected, with no mechanical friction, and the noise is only 75 dB to 80 dB (1 meter)
without the need for sound insulation cover.
material, and the air bearing is directly connected, with no mechanical friction, and the noise is only 75 dB to 80 dB (1 meter)
without the need for sound insulation cover.
Air suspension blower has the advantages of simple structure, small volume, space saving, easy to move and install, can be
operated remotely, monitoring, without going to the fan site, you can monitor the motor speed, air pressure, air volume, power,
temperature, filter dust and so on.
operated remotely, monitoring, without going to the fan site, you can monitor the motor speed, air pressure, air volume, power,
temperature, filter dust and so on.
Company Introduction

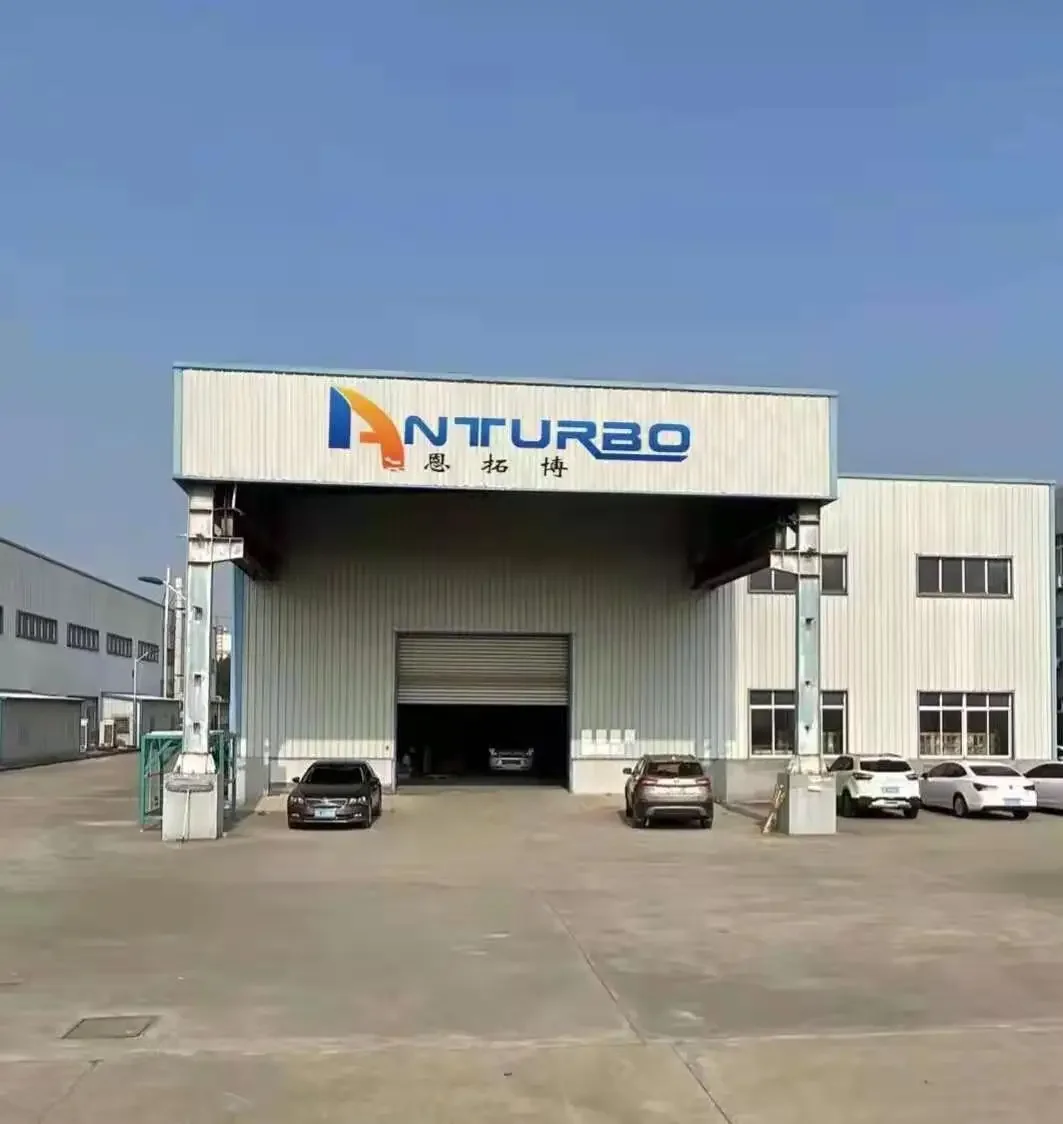

Shanghai Anturbo Machinery Technology Co., Ltd., headquartered in No. 1, Yucheng Middle Road, Kunshan, Suzhou City, Jiangsu Province, China., is a professional manufacturer of air suspension centrifugal blower integrating research and development, production and sales. The equipments are exported to dozens of countries around togetherthe world, the company has more than 50 professional employees to provide customers around the world with rapid, accurate service.
The company's main products are TB series air suspension blowers and supporting filters. Compared with traditional blowers, air suspension blowers can save energy up to 30%-50%, the performance is more stable , and have a noise of less than 80 decibels.

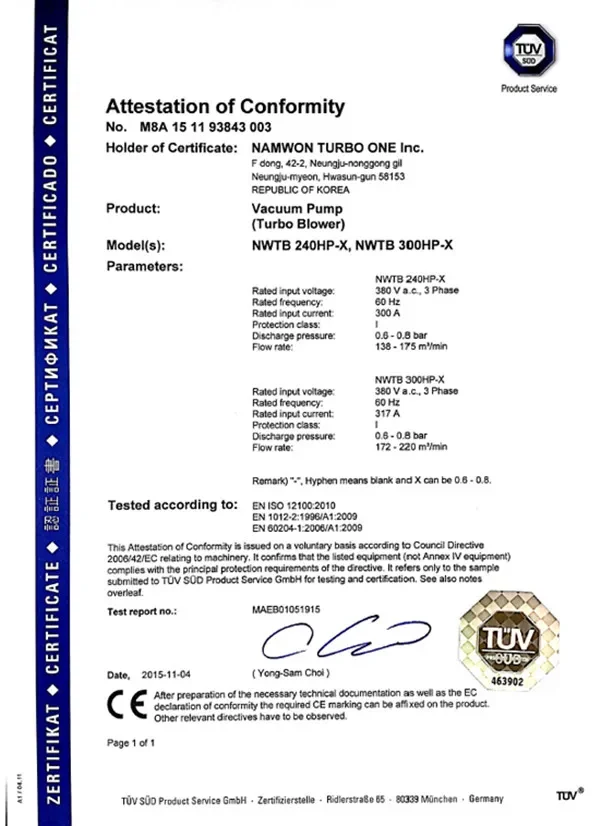

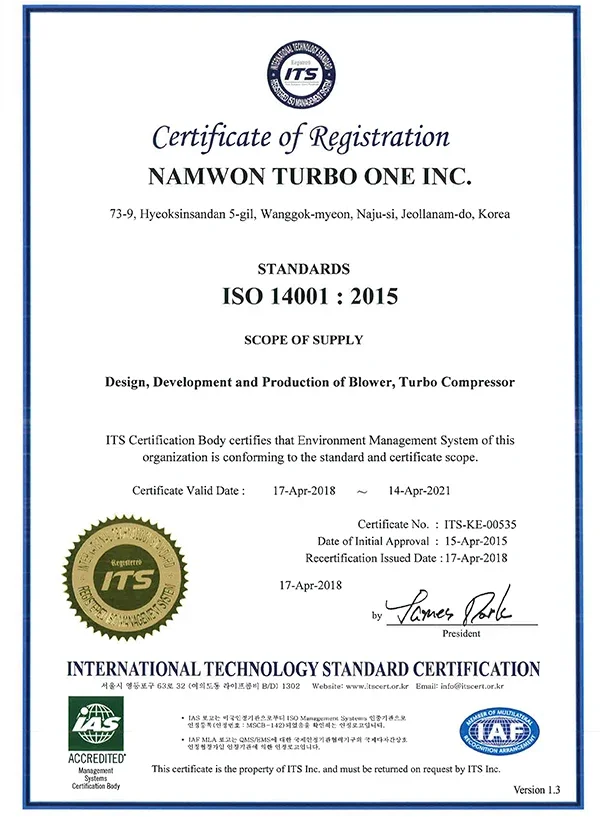

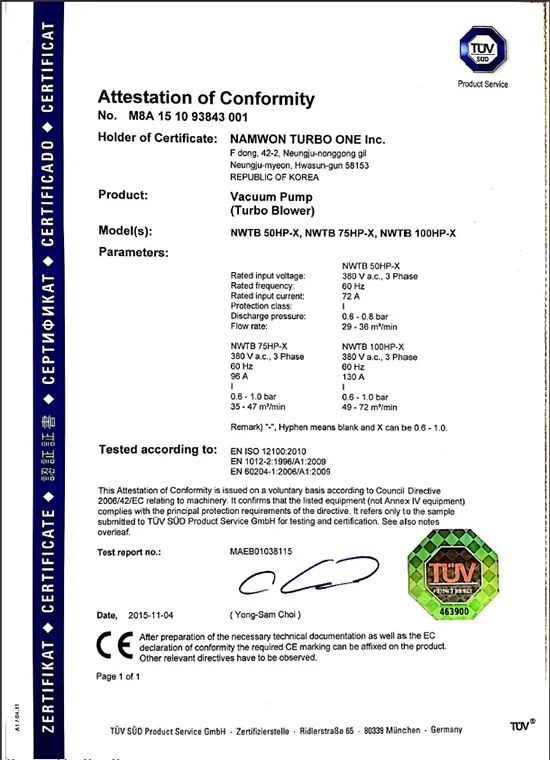

Certificate
Exhibition
Our core values are honesty and altruism, sharing and win-win, benefiting the industry and the society. Our company possesses the first-class expert team , strong R&D strength to support the development and innovation of the product, and the global purchasing service. We also have the best technology development and sales team in the region. * MORE PROFESSIONAL PRODUCTION CAPACITY Professional blower production, research and development and service supplier, covering an area of 20,000 square meters, with advanced equipment such as fully automatic plasma cutting machine, CNC boring machine, Roots blower processing center, CNC lathe, etc. * HIGHER COST PERFORMANCE The company purchases raw materials in batches, produces large-scale production, and deals with zero links in the middle; continuously develops new products to meet the production needs of various industries in response to new needs * CUSTOMIZED SOLUTIONS The technical team has a wealth of project experience, and can customize product energy-saving solutions for customers through on-site inspections, comprehensive data collection, comprehensive evaluation and diagnosis, and recommend reasonable models. * PROVIDE TECHNICAL SUPPORT We have foreign installation and debugging experience, and technicians can come to service; if customers want to save costs, we can also guide the installation online and remotely connect to assist in the debugging
FAQ
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this regenerative air turbo blower?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this regenerative air turbo blower carry?
It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the regenerative air turbo blower be supplied for my local voltage?
The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
