This regulator voltage chassis fan comes from Shenzhen Xinlifa Electronics. The specification below is the factory’s own. Supplier profile: 4 years on the platform. For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Regulator Voltage Chassis Fan
- Model Number: –
- Warranty: 3 Months
- Place Of Origin: Guangdong, China
- Functional Application: –
- Single Gross Weight: 0.0 kg
- Brand Name: original
Technical Specifications
| Functional Application | – |
|---|---|
| Model Number | – |
| Place Of Origin | Guangdong, China |
| Brand Name | original |
| Lead Time | 1-3days |
| Shipping | DHL FEDEX TNT UPS |
| Payment | Accept Trade Assurance |
| Packing | Normal Stand Packing |
| MOQ | Sample |
| Warranty | 3 Months |
| Color | Picture |
| Condition | Brand-new |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
24hours Online Contact
| Contact: | Daisy Lin |
| Whatsapp: | +8618928402594 |
| Wechat : | +8618928402594 |
| E-mail/ Skype: | xlf_electronic1@ 163.com |
| Our Website: | https://xlfelectronic.en.alibaba.com |

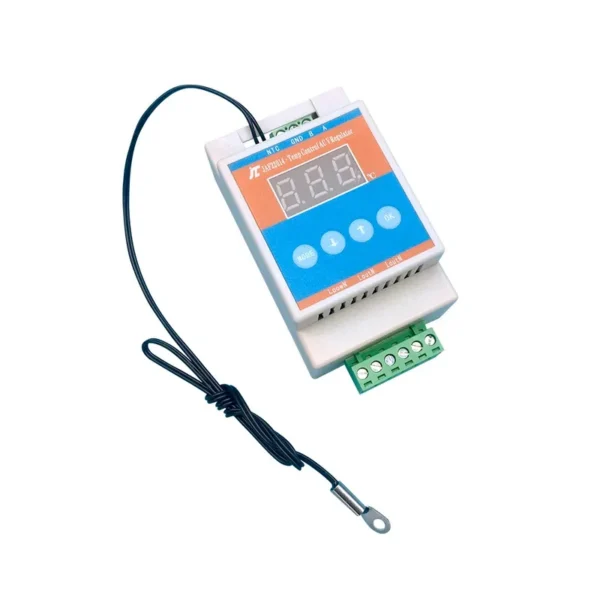

110V 220V AC thermostat temperature control Regulator voltage Chassis FAN motor governor Speed regulation dimming heating RS485
1. Function overview:
The temperature-controlled AC voltage regulator integrates digital silicon controlled voltage regulation technology, with 1000W super power output,
The voltage regulating output is completely controlled by the temperature automatically, and the relationship between temperature and output voltage can be freely set (positive/negative ratio),
Support RS485 communication function (Modbus-RTU protocol), industrial standard, reliable quality, stable and durable.
It is applicable to temperature-controlled heat dissipation/heating of various indoor and outdoor cabinets and other occasions based on temperature-controlled AC voltage regulation output.
2. Product performance/technical parameters
1. Industrial-grade scheme, integrated with high-voltage high-current thyristor chip, with maximum output power of 1000W
2. Wide voltage design, adaptive 220V/110V/50HZ/60HZ AC
3. With LED nixie tube indication, real-time display of temperature, with keys, convenient setting of various parameters
4. Built-in fuse, RC surge absorption current, power supply short-circuit protection circuit
5. Support positive/negative temperature control logic
6. Support RS485 serial communication and Modbus-RTU protocol
7. Temperature measurement range – 9~99 ° C, temperature measurement accuracy ± 1 ° C
8.35mm guide rail installation
The temperature line is 50cm long by default
Guide rail installation, standard DN-35MM

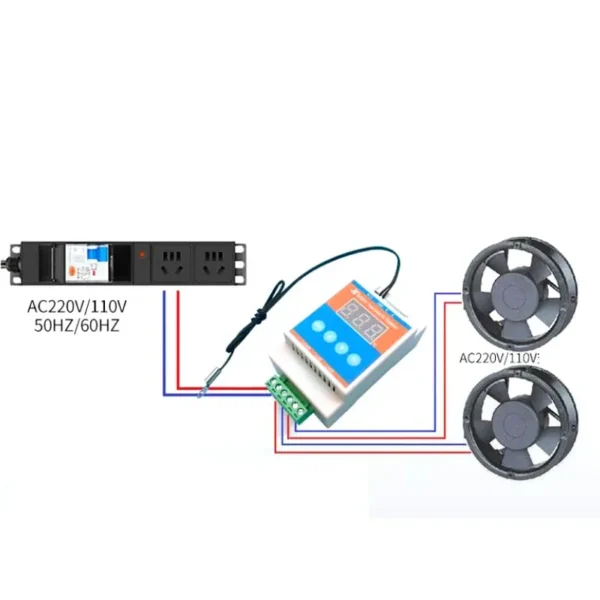

Wiring use
1. Connect the power supply and load wiring according to the interface instructions
2. Plug the temperature probe into the voltage regulator and fix the metal part of the probe on the heating part
3. Turn on the power, and the voltage regulator will adjust the fan speed according to the temperature detected by the temperature probe
4. Pay attention to check whether the wiring is correct during installation
*Take the factory default parameters of the voltage regulator as an example:
The factory default temperature lower limit of voltage regulator=30 ° C, upper limit=50 ° C, proportional output, shutdown mode: when the temperature is greater than 30 ° C,
The voltage regulator adjusts the output voltage in a linear proportion. The higher the temperature, the higher the output voltage. When the temperature is greater than 50 ° C, the output voltage=output
When the temperature drops to 28 ° C (L-2), the voltage regulator outputs 0V
*The power supply voltage of the voltage regulator should be consistent with the rated voltage of the load. The power supply should use as many volts as the load is!
Shenzhen Xinlifa Electronics Co.,Ltd located in Shenzhen,huaqiangbei.leading independent wholesale distributor of electronics components . We supply Amplifier board,LCD Display,Soldering iron ,Temperature controller ,mppt solar controller,charger,Active balancer,BMS,battery tester,indicator ,esp8266 and so on. to major OEM/ODM. We have extensive industry knowledge and sufficient inventory. This enables us to provide a complete and versatile technical supports to our customers.

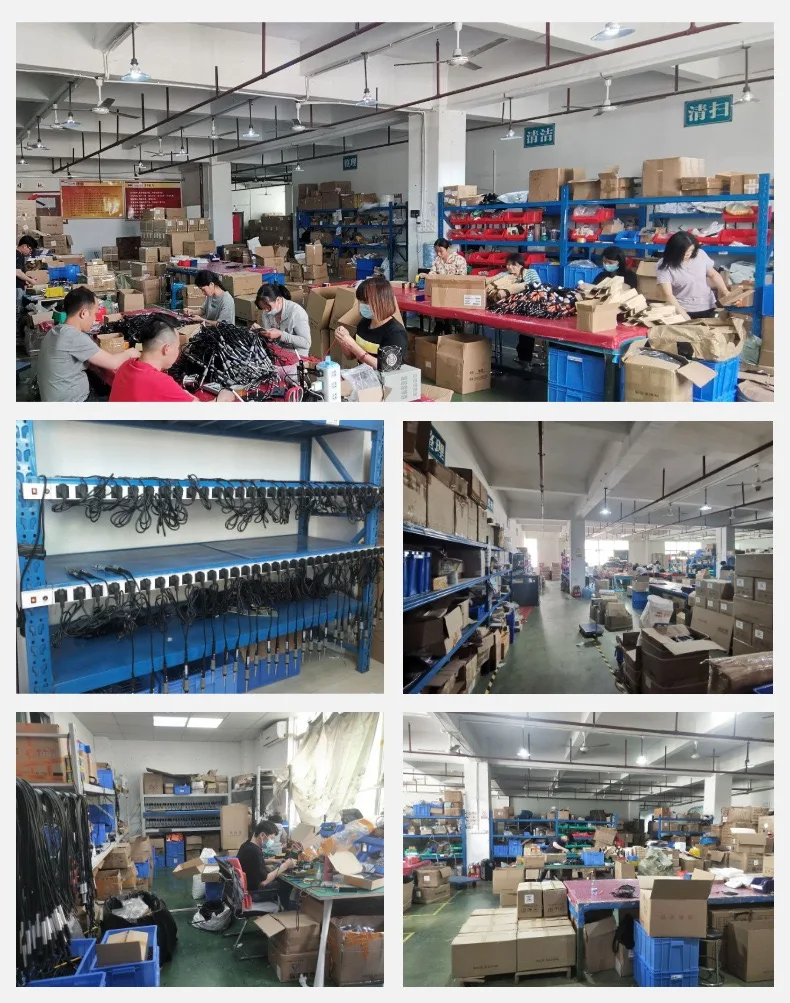

Workshop
Certifications
1. We will pack and send your goods within 2-3 working days after we confirmed your payment. For quickly packing and sending, please let us know if you finished the payment.
2. We will inform you the lead time if we have to purchase from manufactory.
3. We usually ship by DHL, UPS, TNT, FedEx, Aramex or EMS. It usually takes 3-7 days to arrive. Air cargo and sea shipping are aslo optional.
4. We are not responsible for any accidents, delays or other issues that are the responsibility of shipping service.
5. We need your shipping information including your name, address and phone number for shipping your parcel.
6. Tracking number will be shared with you when we got it from the logistics company.
About Payment Terms:
1. You can pay for your purchase order by PayPal, T/T, Western Union, Ali-escrow or Cash.
2. The unit price we provided not included any shipping fees or payment charges.
3. We are not responsible for any import fees or customs taxes.
About Quality Warranty:
1. Our products are all original and new from manufacturer. It must be work if the model number is correct.
2. We offer 30-90 days warranty to our products.
3. During the guarantee period, if the items you purchased from our store are out of perfected quality, pls notify us within 3 days after delivery, we will return the new products when we got your message.
Others:
1. MOQ: Low MOQ! We welcome 1pcs as sample order to test and check quality. Mixed samples are acceptable.
2. Unit Price: The prices we provided are based on the new and original parts. We can offer a discount according to your purchase order quantity.
Ordering and Pricing
- Minimum order quantity: 2 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this regulator voltage chassis fan?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Months warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Xinlifa Electronics Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, Trading Company,Agent,Distributor/Wholesaler. Browse the full Shenzhen Xinlifa Electronics Co., Ltd. range on HVACR Nexus.
See more in Speed Controllers & Regulators on HVACR Nexus.
