Replacement Aluminium Microchannel Evaporator, 220 V, R744

This replacement aluminium microchannel evaporator is published with the manufacturer’s full specification — 220 V, 380 V, Customized, material Aluminium. Made by Hubei Aesima Heat Exchange Equipment Co., Ltd. (1 year on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Replacement Aluminium Microchannel Evaporator

• Voltage: 220 V, 380 V, Customized
• Flow Capacity: Max 56 M3/h
• Material: Aluminium
• Tube-Fins Material: Aluminum/Copper/Stainless/Titanium/Hybrid Configurations
• Refrigerant/Side Pressures: 45 bar
• TypicalRefrigerant: R744/R32/R410a/R513a/Low-GWP

Technical Specifications

Product Details

1. What It Is & What It Does

AESIMA Microchannel Heat Exchangers use flattened aluminum tubes with internal passages measuring just 1-2 mm in width, allowing refrigerant to flow through dozens of mini-channels in parallel. The result: dramatically more surface area in an incredibly small package. Vehicle air conditioning and modern heat pump systems rely exclusively on microchannel designs.
What it does: Multiple tiny parallel channels maximize refrigerant contact with tube surfaces while minimizing refrigerant charge volume (less fluid needed). Combined with fins, achieves extreme compactness.
Typical uses: Vehicle AC systems, heat pump condensers/evaporators, residential mini-split AC, commercial rooftop units,
automotive thermal management.Key specifications: design pressures 30-50 bar, temperatures -40°C to +150°C, with refrigerant charge 20-60% lower than traditional coils.

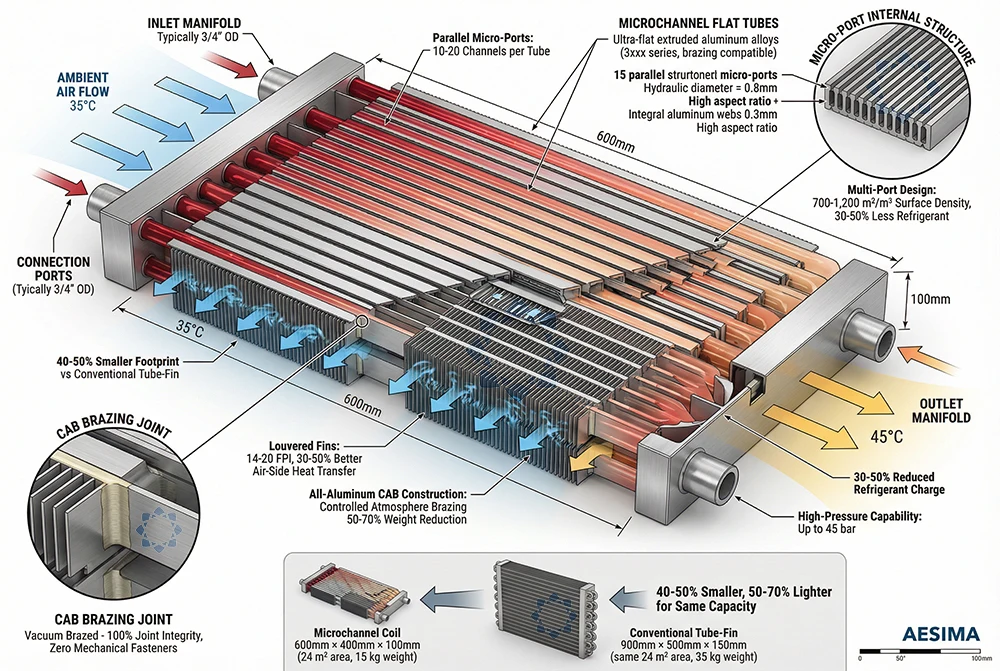

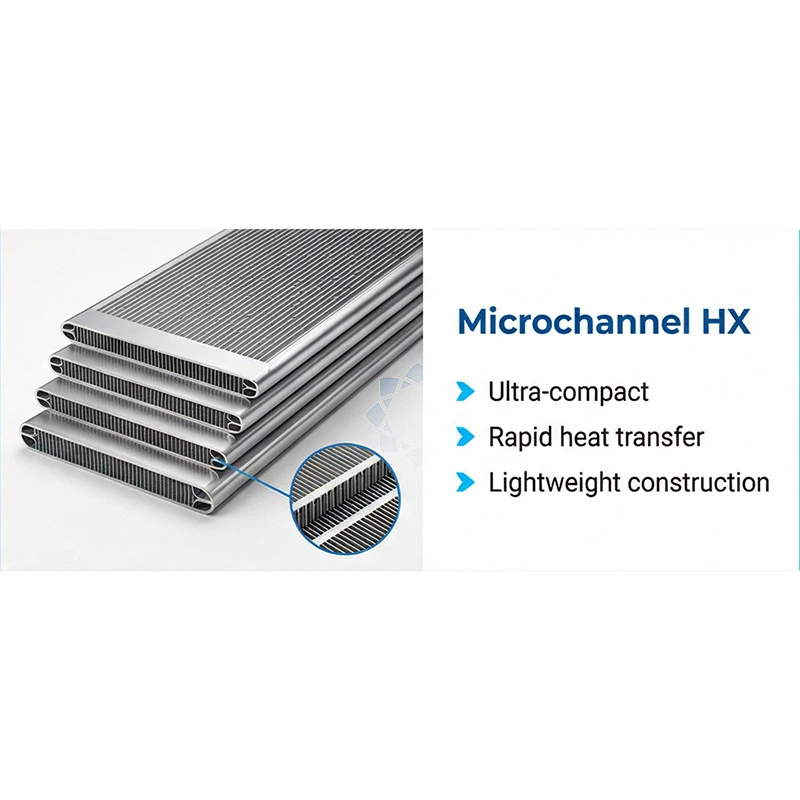

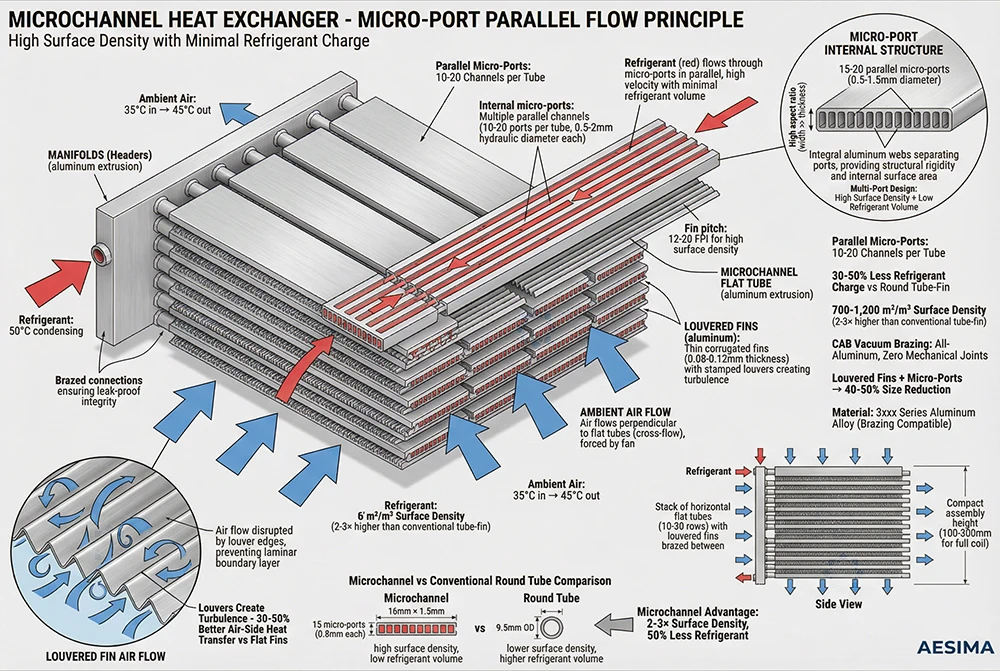

Microchannel Heat Exchanger micro-port parallel flow principle: isometric exploded view showing flat tube aluminum extrusion (16-25mm wide × 1.2-1.8mm thick rectangular profile) with internal micro-ports (10-20 parallel channels 0.5-1.5mm hydraulic diameter), louvered aluminum fins (0.08-0.12mm thickness with stamped louvers, 14-20 FPI) brazed to flat tubes, inlet/outlet aluminum manifolds with internal baffles distributing refrigerant, refrigerant (red) flowing through parallel micro-ports, ambient air (blue arrows) flowing perpendicular through louvered fins (cross-flow), micro-port internal structure detail inset (15-20 parallel channels with integral aluminum webs, high surface density 700-1,200 m²/m³, 30-50% less refrigerant), louvered fin air flow detail (louvers creating turbulence, 30-50% better heat transfer), side view showing stacked flat tubes with manifolds, 30-50% less refrigerant charge, CAB vacuum brazing, bottom comparison (microchannel flat tube 16mm×1.5mm with 15 micro-ports vs round tube 9.5mm OD single passage, microchannel advantage 2-3× surface density 50% less refrigerant)

2.Why Choose Us

Microchannel Heat Exchanger micro-port parallel flow principle: isometric exploded view showing flat tube aluminum extrusion (16-25mm wide × 1.2-1.8mm thick rectangular profile) with internal micro-ports (10-20 parallel channels 0.5-1.5mm hydraulic diameter), louvered aluminum fins (0.08-0.12mm thickness with stamped louvers, 14-20 FPI) brazed to flat tubes, inlet/outlet aluminum manifolds with internal baffles distributing refrigerant, refrigerant (red) flowing through parallel micro-ports, ambient air (blue arrows) flowing perpendicular through louvered fins (cross-flow), micro-port internal structure detail inset (15-20 parallel channels with integral aluminum webs, high surface density 700-1,200 m²/m³, 30-50% less refrigerant), louvered fin air flow detail (louvers creating turbulence, 30-50% better heat transfer), side view showing stacked flat tubes with manifolds, 30-50% less refrigerant charge, CAB vacuum brazing, bottom comparison (microchannel flat tube 16mm×1.5mm with 15 micro-ports vs round tube 9.5mm OD single passage, microchannel advantage 2-3× surface density 50% less refrigerant)

3. Where to Use It

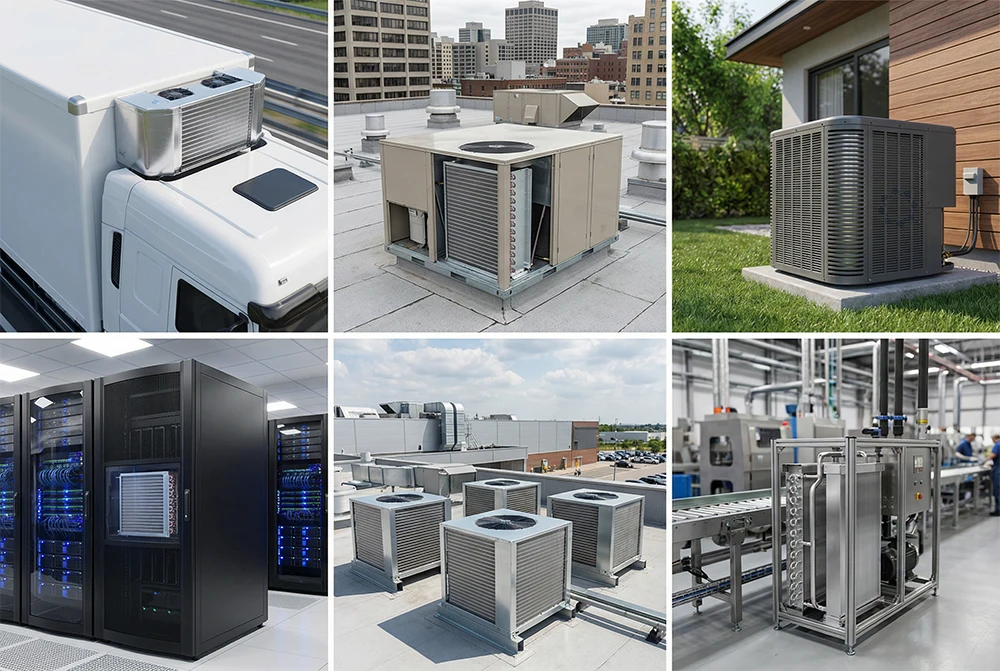

Six industry applications for Microchannel Heat Exchangers: automotive/transport refrigeration truck unit with compact aluminum condenser, commercial HVAC rooftop package unit (RTU) with microchannel coil, residential air conditioning split system outdoor condenser in modern backyard, data center precision air conditioning (PAC) units with high-density server cooling, food retail supermarket refrigeration condensing rooftop units, industrial process cooling compact chillers on manufacturing floor with space-saving modular design
