The ring blower listed here carries 380V, power source Electric Blower, documented exactly as the manufacturer publishes it. Made by Jiangxi Sop Precision Intelligent Manufacturing Technology Co., Ltd. (9 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Ring Blower
- Model Number: 2LG830-7AH17
- Power Source: Electric Blower
- Power: Electric
- Rated Voltage: 380V
- Material: Aluminum Alloy
- Warranty: 1 YEAR
Technical Specifications
| Application | Industrial Blower |
|---|---|
| Power Source | Electric Blower |
| Rated Voltage | 380V |
| Pressure | High Pressure |
| Warranty | 1 YEAR |
| Customized Support | OEM, ODM |
| Place Of Origin | China |
| Brand Name | LIONGOAL |
| Model Number | 2LG830-7AH17 |
| Usage | Air Pump |
| Power | Electric |
| Material | Aluminum Alloy |
| Frequency | 50 /60 Hz |
| Motor | 100% Copper Wire |
| Inlet Dia | 2 1/2 inch |

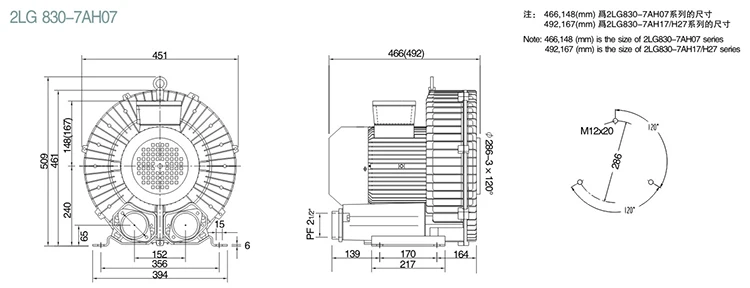

| Dimension | 492*451*501mm |
| Certificate | CE Certificate |
| Feature | Blow and Suck |
| Fuel | Electric |
| Packaging Details | To be packed with a wooden case |
| Selling Units | Single item |
| Single Package Size | 58X54X51 cm |
| Single Gross Weight | 68.000 kg |
| Supply Ability | 100 pieces per Day |
Product Details
Why choose us :
2. OEM highly welcome; With the strong R&D team, we can meet various needs
3. Rapid reply; Any inquiry or question will be replied within 24 hours
4. Strict quality control; Every product will be checked before shipment
5. Competitive price and considerate service; Factory direct sale with competitive price

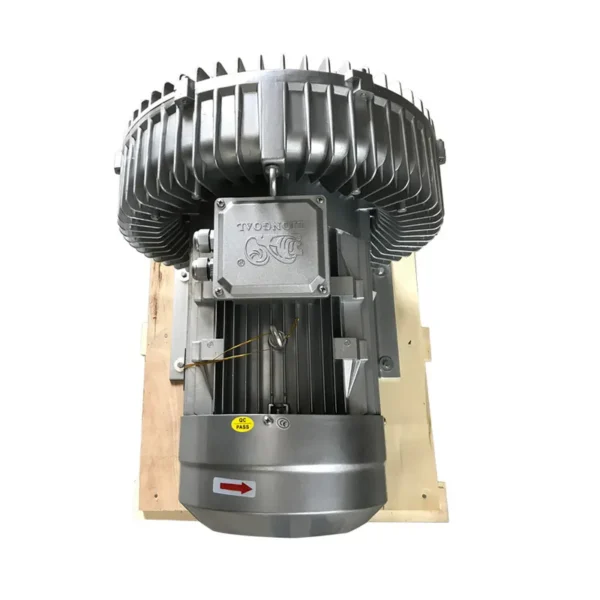

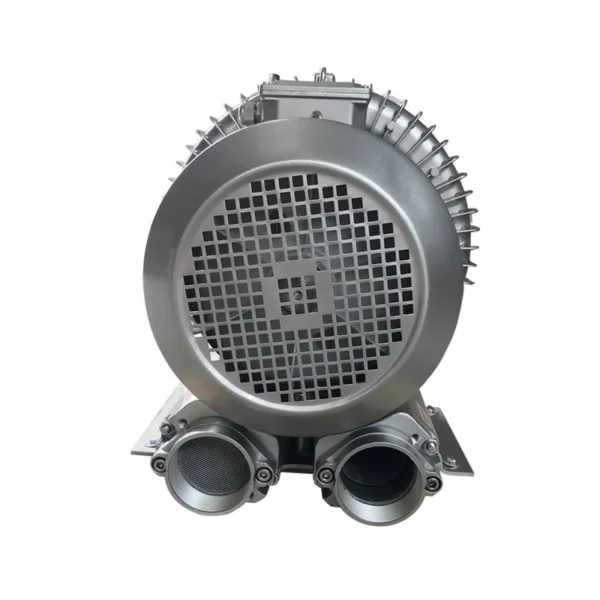

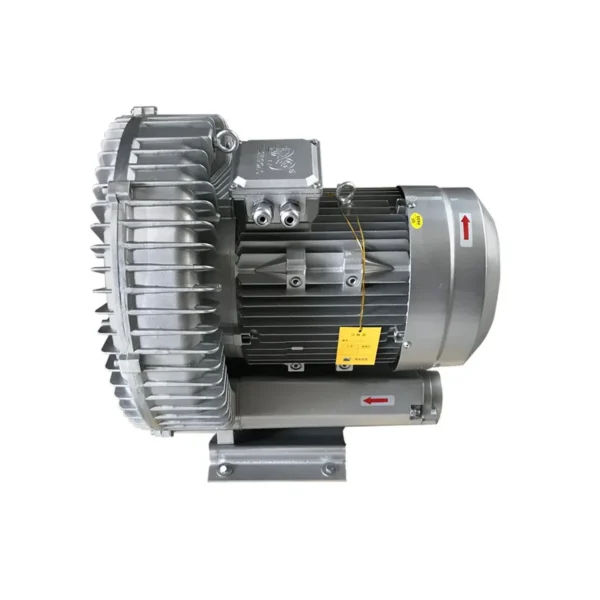

Side Channel Ring blower
vertically, for air compressing or vacuum and application.
Ultra-quiet; Direct drive by low-noise motor and built-in silencer are used to reduce the noise produced by running blowers.
No oily odor, Environmental protection; The blade does not contact with any other parts when rotating, free of lubrication and ensuring blowers free from contamination.

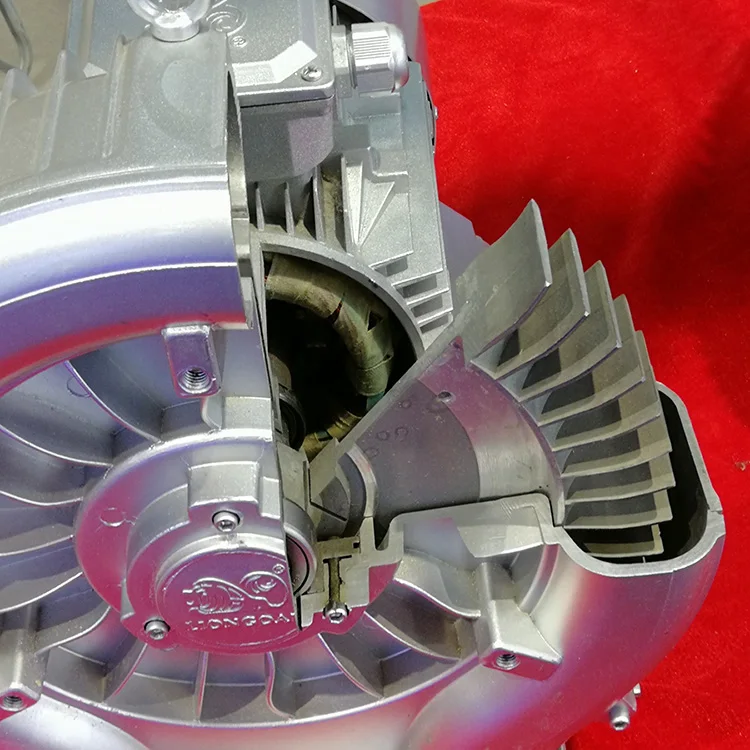

High Quality; The high precision processing and testing equipment and technologies enable all parts to conform to the strictest quality requirements, with IP 55 protection and insulation class F and H, which greatly reduce many kinds of breakdown. Since the motor and blower are separated by bearing, foreign matters can be prevented from entering. To ensure the quality, each blower has been tested strictly before delivery besides 3C, CE and ISO certifications.
High Performance; High compression rate, Low temperature of bearing rotation, Long longevity of lubricant, Easy to maintain except blade, Liongoal high pressure blowers have no any parts move, highly reliable and almost maintenace-free. Besides, the unique precise outside bearing with excellent heat radiation is adopted to enable the above features.

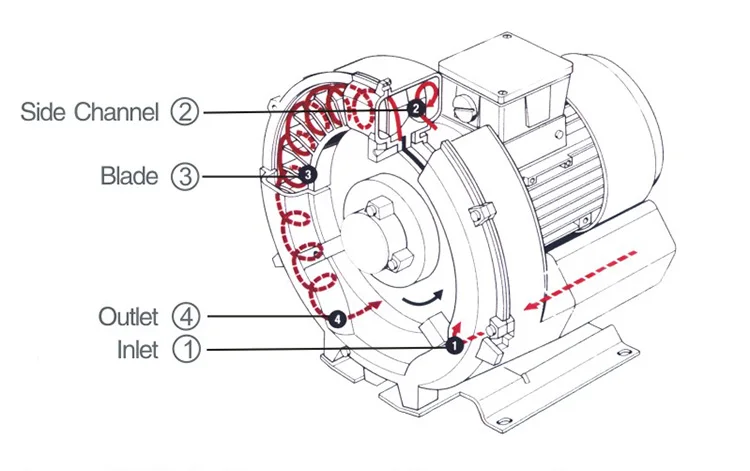

The air between impeller blades speeds up rotation and the gases outside the pump body are pushed into side slot (through inlet), The gases are compressed upon entering side channel, and go back between impeller blades for another speeding-up rotation.
When air goes through blade and side slot along a spiry track, each blade increases its compressing and speeding-up level. As the blade rotates, the kinetic energy of gases is increased, which in turn increases the pressure of gases that go through the side channel.
When air arrives the connection between side slot and release flange (the side channel becomes narrow at the outlet), gases will be immediately extruded out of vanes and released from the pump body through silencer at the outlet.
Model number | 2LG830-7AH17 | ||||||
Frequency | 50Hz | 60Hz | |||||
Power | 5.5kw | 6.3kw | |||||
Voltage | 345-415/600-690v | 380-480/660-720v | |||||
Current | 13.3/7.7A | 13.3/7.7A | |||||
Weight | 66kg | ||||||
Noise | 70db | 74db | |||||
Max airflow | 700m3/h | 840m3/h | |||||
Max vacuum | -200mbar | -180mbar | |||||
Max compressor | 190mbar | 180mbar | |||||

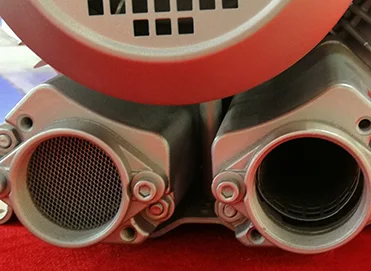

Caliber | 2-1/2 inch | 2-1/2 inch | |||||
efficient 2-pole motors with IP55 protection and insulation class F and H. And all Liongoal blowers are CE approved.

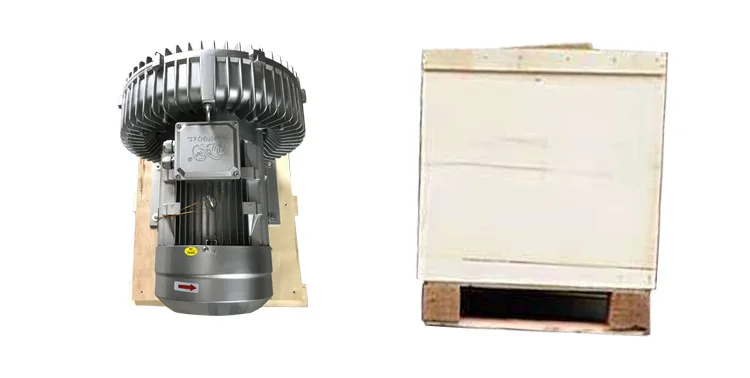

Packing: 1 set to a carton box or wooden case
Note: there is a extra cost for export wooden case
-Fastest delivery but expensive freight, such as express. 4-7 working days
-Faster delivery but cheaper freight, such as air cargo. 6-15 working days
-Cheapest freight but slower delivery, such as by sea. 45-50 days
Finished Products
Parts Warehouse

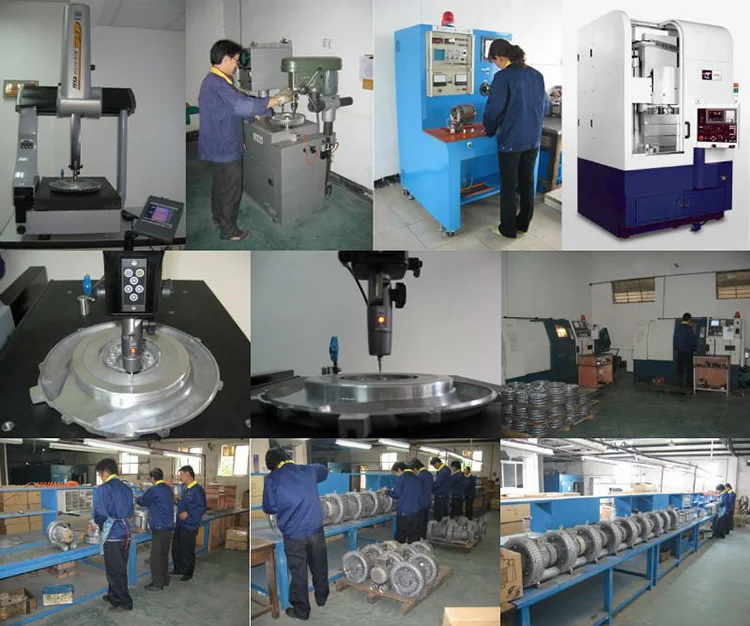

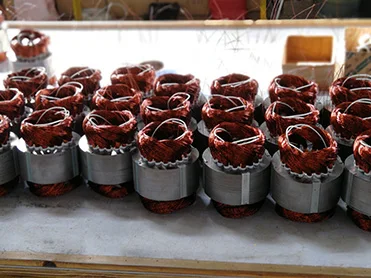

Production Line
A1: Yes, it is. Liongoal blowers are both vacuum and compressor blower.
Q2: Are you a manufacturer or trading company?
A2: We are absolutely a manufacturer and looking for wholesalers or distributors through the world.
Q3: Can you also supply centrifugal blowers?
A3: Yes, we can. Welcome to send inquiries to us.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $459 / piece
- 10–49 piece: US $457 / piece
- 50+ piece: US $455 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ring blower?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 YEAR warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this ring blower carry?
It is supplied with CE Certificate documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the ring blower be supplied for my local voltage?
The standard configuration is 380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
