The rooftop air conditioner listed here carries type Central Air Conditioners, model number DHF-D-R-5, documented exactly as the manufacturer publishes it. Made by Rife (Beijing) Artificial Environment Technology Co., Ltd. (1 year on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Rooftop Air Conditioner
- Model Number: DHF-D-R-5
- Warranty: 2 Years
- Certification: CE ISO
- Place Of Origin: Beijing, China
- Application: factories, fire stations, lecture halls, sports halls, service stations, garages, shopping malls, swimming pools
- Feature: Environment-friendly
Technical Specifications
| Type | Central Air Conditioners |
|---|---|
| Mounting Type | Ceiling Mount |
| Fan Motors Type | AC |
| Motor Type | Axial or centrifugal fan |
| Application | factories, fire stations, lecture halls, sports halls, service stations, garages, shopping malls, swimming pools |
| Key Selling Points | Fast heating and rapid temperature rise |
| Warranty | 2 Years |
| Place Of Origin | Beijing, China |
| Weight (Kg) | 137 |
| Brand Name | Rife |
| Model Number | DHF-D-R-5 |
| Dimension(L*W*H) | 800*800*1055mm |

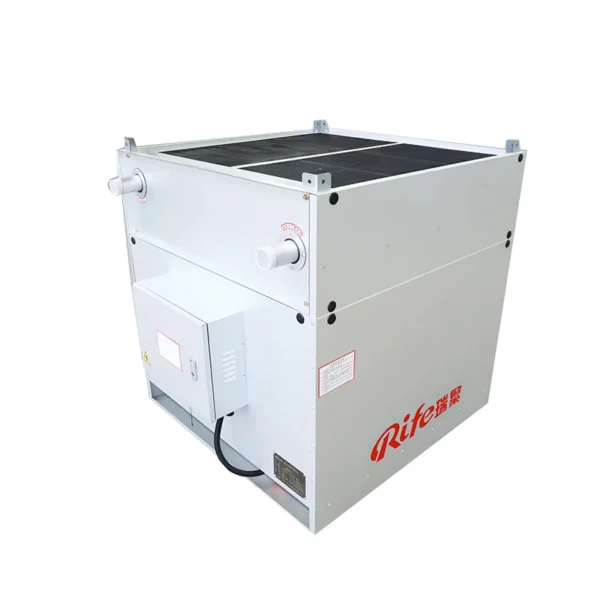

| Product Name | ROOFTOP AIR CONDITIONER UNIT |
| Function | CoolingHeating |
| Keyword | System Hvac |
| Certification | CE ISO |
| Feature | Environment-friendly |
| Control | Touch Screen Panel |
| Brand | Rife |
| MOQ | 1 set |
| OEM | welcomed |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Cool People. Protect Equipment. Cut Costs.

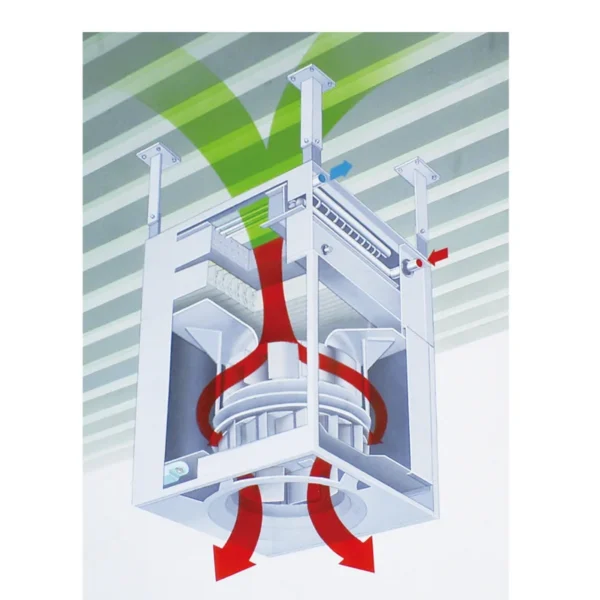

Industrial Strength. Intelligent Airflow.

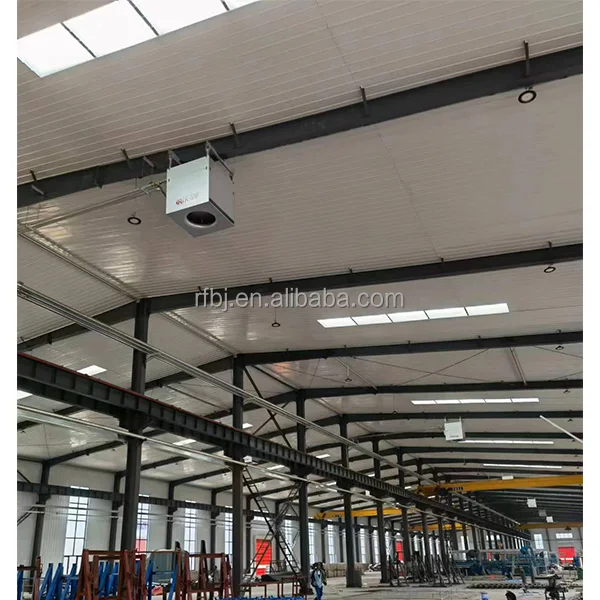

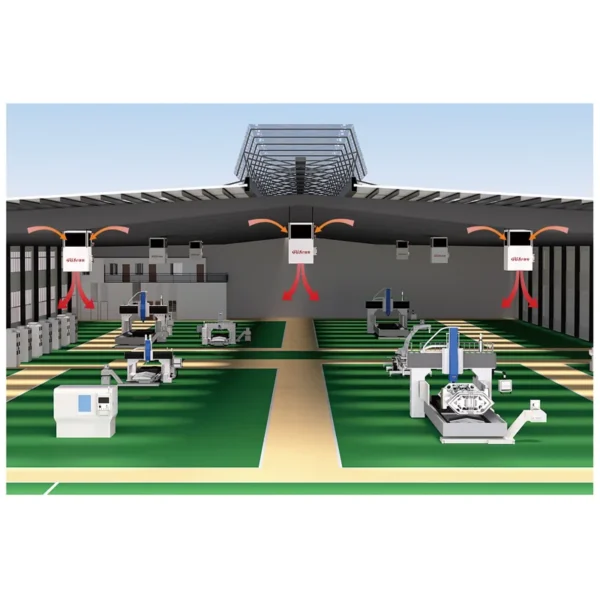

Manufacturing & Assembly Plants
Logistics Hubs & Loading Bays
Gymnasiums & Sports Facilities
Agricultural Buildings & Barns
Large Retail & Commercial Spaces
Built from corrosion-resistant materials with reinforced hubs and precision-balanced blades, our fans perform reliably in
demanding environments—dust, humidity, and heavy use included.
Item | DHF-D/R-5 | ||||
Rated Voltage | V | 380 | |||
Rated Frequency | Hz | 50 | |||
Rated Air Flow / Rated Air Volume | m³/h | 0 ~ 5500 | |||
Fan Type | Axial Fan | Centrifugal Fan | |||
Rated Power | kW | 0 ~ 0.42 | 0 ~ 0.7 | ||
Rated Current | A | 0 ~ 0.85 | 0 ~ 1.4 | ||
Cable Specification | mm² | 1.5 | 1.5 | ||
Rated Speed / Rated RPM | r/min | 0 ~ 900 | 0 ~ 1200 | ||
Air Outlet Height / Supply Air Height | m | 4 ~ 13 | 14 ~ 30 | ||
Noise Level | dB(A) | 0 ~ 59 | 0 ~ 60 | ||
Air Velocity at Floor Level / Floor Level Wind Speed | m/s | ≤ 0.5 | |||
Operating Environment | ℃ | -40 ~ +20 | |||
Max. Heating Coverage | m² | Approx. 560 | |||
Unit Spacing | m | 10 ~ 20 | |||
Cooling Medium | – | Water | |||
Supply/Return Pipe Size | – | DN32 | |||
Dimensions (L×W×H) | mm | 800×800×1055 | |||
Weight | kg | 137 | |||

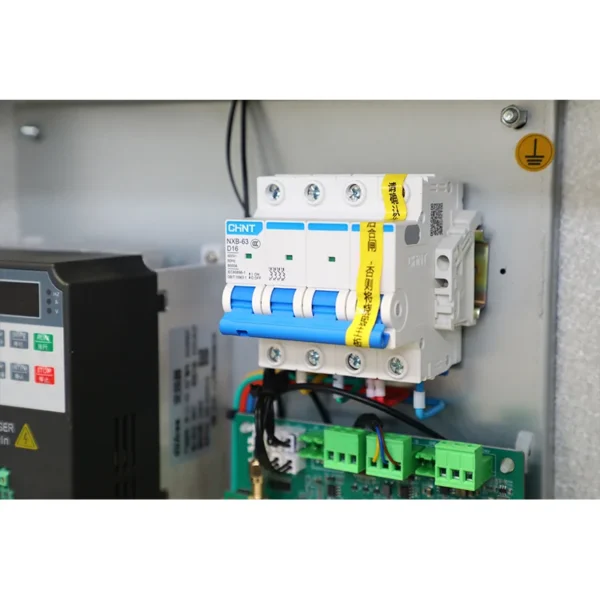

Electric Control System | Wireless / Wired;Centralized Control / Standalone Control;Stepless Speed Regulation;Adjustable Air Temperature and Louver Angle;Touch Scree | ||||
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $4500 / piece
- 10–49 piece: US $3875 / piece
- 50+ piece: US $3500 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this rooftop air conditioner?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this rooftop air conditioner carry?
It is supplied with CE ISO documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Rife (Beijing) Artificial Environment Technology Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Rife (Beijing) Artificial Environment Technology Co., Ltd. range on HVACR Nexus.
