This rooftop central air conditioner is published with the manufacturer’s full specification — type Central Air Conditioners, model number DHF-D-R-6. Made by Rife (Beijing) Artificial Environment Technology Co., Ltd. (1 year on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Rooftop Central Air Conditioner
- Model Number: DHF-D-R-6
- Warranty: 2 Years
- Certification: CE
- Place Of Origin: China
- Application: factories, fire stations, lecture halls, sports halls, service stations, garages, shopping malls, swimming pools
- Type: Central Air Conditioners
Technical Specifications
| Type | Central Air Conditioners |
|---|---|
| Mounting Type | Ceiling Mount |
| Fan Motors Type | AC |
| Motor Type | Axial or centrifugal fan |
| Application | factories, fire stations, lecture halls, sports halls, service stations, garages, shopping malls, swimming pools |
| Key Selling Points | Fast heating and rapid temperature rise |
| Warranty | 2 Years |
| Place Of Origin | China |
| Weight (Kg) | 141 |
| Brand Name | Rife |
| Model Number | DHF-D-R-6 |
| Dimension(L*W*H) | 800*800*1055mm |
| Product Name | ROOFTOP AIR CONDITIONER UNIT |
| Keyword | Package Unit Air Conditioner |
| Certification | CE |

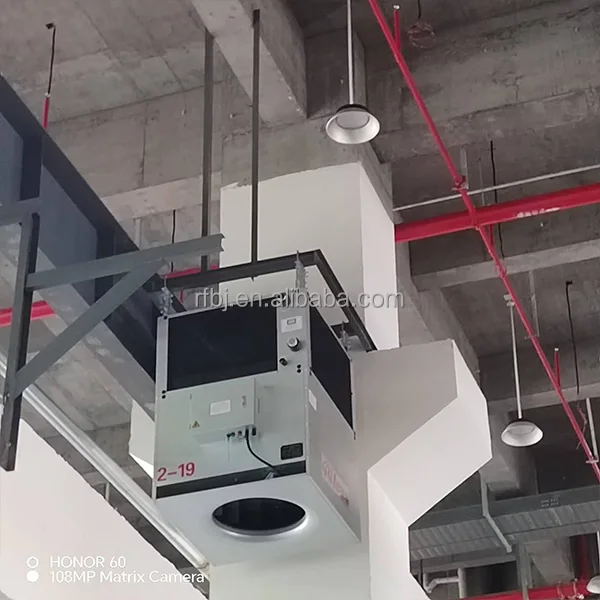

| Installation | ceiling easy install |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Item | DHF-D/R-6 | ||||
Rated Voltage | V | 380 | |||
Rated Frequency | Hz | 50 | |||
Rated Air Flow / Rated Air Volume | m³/h | 0 ~ 6900 | |||
Fan Type | Axial Fan | Centrifugal Fan | |||
Rated Power | kW | 0 ~0.85 | 0 ~ 1.5 | ||
Rated Current | A | 0 ~ 1.7 | 0 ~ 3.0 | ||
Cable Specification | mm² | 1.5 | 1.5 | ||
Rated Speed / Rated RPM | r/min | 0 ~ 900 | 0 ~ 1200 | ||
Air Outlet Height / Supply Air Height | m | 4 ~ 13 | 14 ~ 30 | ||
Noise Level | dB(A) | 0 ~ 59 | 0 ~ 60 | ||
Air Velocity at Floor Level / Floor Level Wind Speed | m/s | ≤ 0.5 | |||
Operating Environment | ℃ | -40 ~ +20 | |||
Max. Heating Coverage | m² | Approx. 700 | |||
Unit Spacing | m | 12 ~ 24 | |||
Cooling Medium | – | water | |||
Supply/Return Pipe Size | – | DN32 | |||
Dimensions (L×W×H) | mm | 800×800×1055 | |||
Weight | kg | 141 | |||

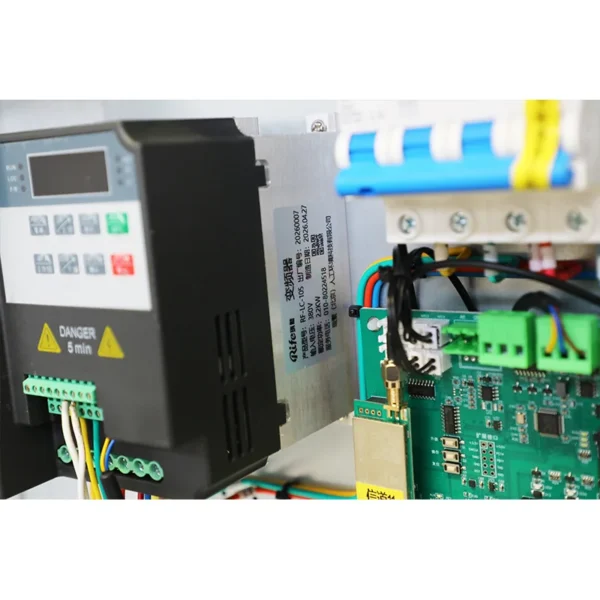

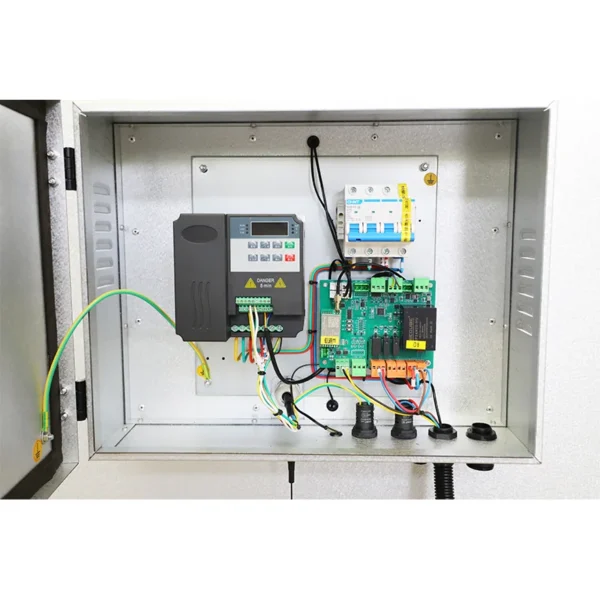

Electric Control System | Wireless / Wired;Centralized Control / Standalone Control;Stepless Speed Regulation;Adjustable Air Temperature and Louver Angle;Touch Scree | ||||
Cool People. Protect Equipment. Cut Costs.
Industrial Strength. Intelligent Airflow.

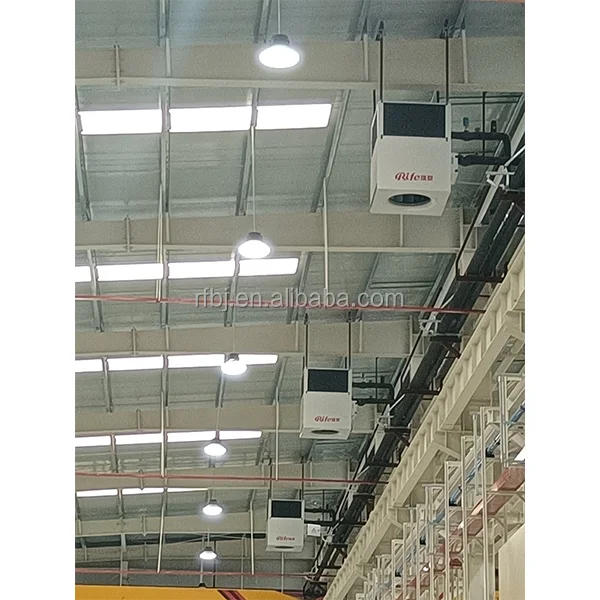

Manufacturing & Assembly Plants
Logistics Hubs & Loading Bays
Gymnasiums & Sports Facilities
Agricultural Buildings & Barns
Large Retail & Commercial Spaces
Built from corrosion-resistant materials with reinforced hubs and precision-balanced blades, our fans perform reliably in
demanding environments—dust, humidity, and heavy use included.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $4500 / piece
- 10–49 piece: US $3875 / piece
- 50+ piece: US $3500 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this rooftop central air conditioner?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this rooftop central air conditioner carry?
It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Rife (Beijing) Artificial Environment Technology Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Rife (Beijing) Artificial Environment Technology Co., Ltd. range on HVACR Nexus.
