Rotary compressor — voltage DC12V/24V, 2200W;2000W. The complete factory specification follows. Made by Ningbo Anchor Auto Parts Co., Ltd. (13 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Rotary Compressor
- Model Number: AC.161.822;AC.161.822.01
- Power: 588W;768W
- Voltage: DC12V/24V
- Cooling Capacity: 2200W;2000W
- Refrigerant: R134A
- Certification: CE
Technical Specifications
| Purpose | for replace/repair |
|---|---|
| Condition | New |
| Place Of Origin | Zhejiang, China |
| Brand Name | ACTECmax |
| Model Number | AC.161.822;AC.161.822.01 |
| Cooling Capacity | 2200W;2000W |
| Power | 588W;768W |
| Product Name | Parking Air Conditioner |
| Voltage | DC12V/24V |
| Application | Auto Air Conditioning System |
| MOQ | 2PC |
| OEM | Acceptaple |
| Packing | Neutral Packing |
| Quality | High-Quality |
| Certification | CE |
| Refrigerant | R134A |
| Selling Units | Single item |
| Single Package Size | 89.3X33X53 cm |
| Single Gross Weight | 52.000 kg |
Product Details
PRODUCT HIGHLIGHTS

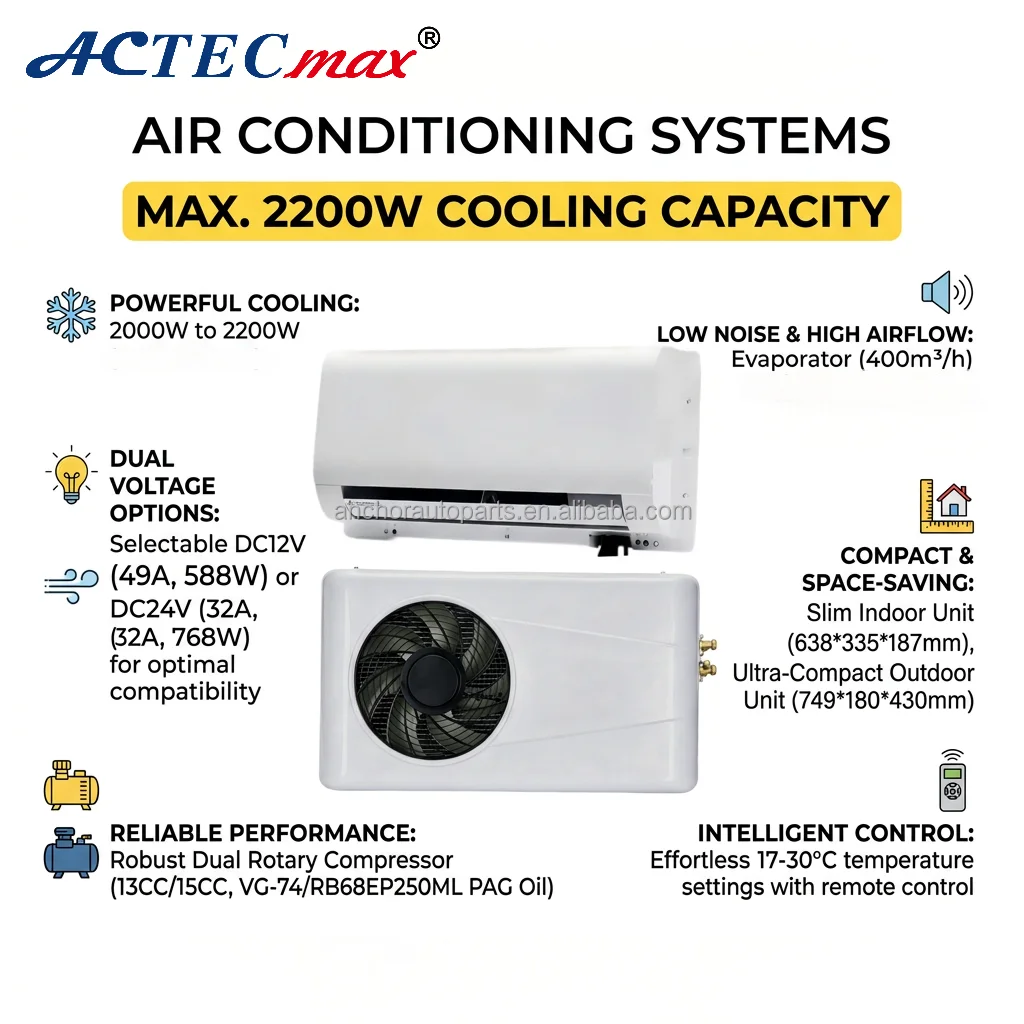

- Designed For Long Haul Transportation Fleets This Split Truck Parking Air Conditioner Provides Independent Cabin Cooling Without Engine Idling Helping Logistics Operators Reduce Fuel Consumption Improve Driver Comfort And Increase Vehicle Productivity Across North America Europe And South America.
- Available In DC12V And DC24V Configurations This Battery Powered Truck Air Conditioner Supports Various Commercial Vehicles Including Semi Trucks Tractor Units Cargo Trucks And Heavy Duty Fleet Applications With Flexible Installation Options.

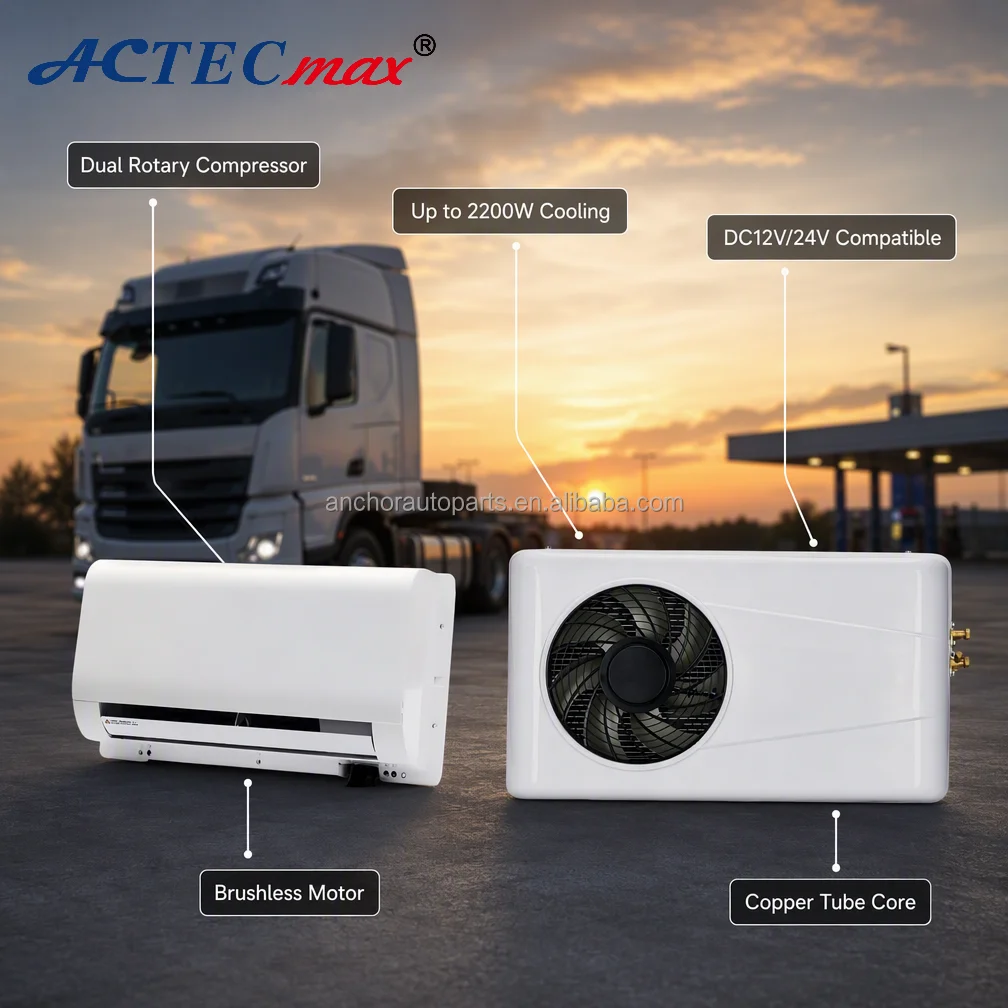

- Powered By A Dual Rotary Compressor The System Delivers Stable Cooling Performance Faster Temperature Reduction Lower Vibration And Reliable Operation During Continuous Driving Or Overnight Parking In Extreme Summer Conditions.
- The Parallel Flow Condenser Maximizes Heat Dissipation Efficiency Improving Cooling Capacity While Reducing Refrigerant Pressure Making The System Suitable For High Ambient Temperatures Across Middle Eastern Desert Regions.
- Brushless Evaporator And Condenser Fans Deliver Powerful Airflow With Reduced Power Consumption Helping Fleet Operators Lower Maintenance Costs While Extending Service Life During Continuous Commercial Operation.
- Providing Up To 2200W Cooling Capacity The Unit Quickly Creates A Comfortable Sleeping Environment For Drivers During Rest Breaks Supporting Long Distance Freight Transportation And Cross Border Logistics.
- Engineered For Southeast Asian Tropical Climates The Air Conditioner Maintains Stable Cooling Performance Even Under High Temperature High Humidity Conditions Common In Coastal And Urban Distribution Networks.
- Built For Mining Construction Agriculture And Industrial Vehicles The Split Cooling System Performs Reliably In Dusty Challenging Working Environments Where Continuous Cabin Cooling Is Essential.
- Compatible With Sleeper Cab Trucks Commercial Transport Vehicles Logistics Fleets Mobile Workshops And Specialty Vehicles Requiring Independent Parking Air Conditioning Solutions.

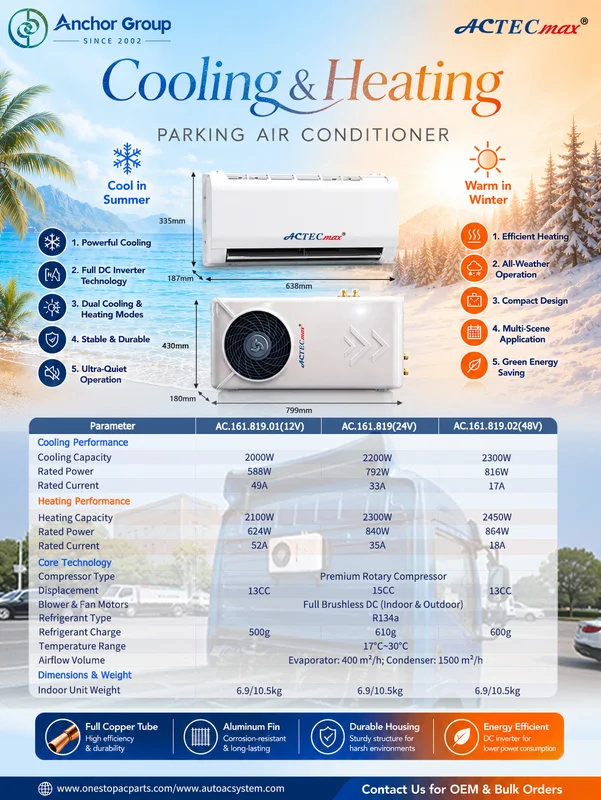

Model Number | AC.161.822.01 | AC.161.822 |
Rated Voltage (V) | DC12V | DC24V |
Rated Current (A) | 49A | 32A |
Rated Power (W) | 588W | 768W |
Cooling Capacity (W/BTU) | 2000W | 2200W |
Refrigerant (Supplement Charge, g) | R134A | R134a |

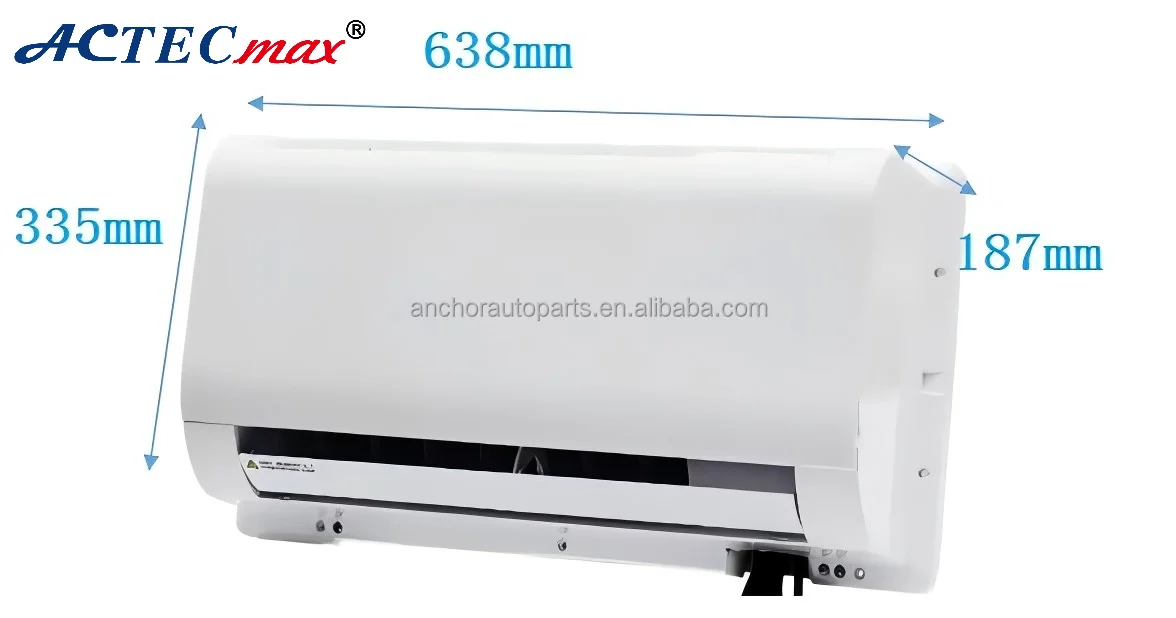

Indoor Unit Net Dims (mm) | 638*335*187 | 638*335*187 |
Indoor Unit Packing Dims (mm) | 695*485*295 | 695*485*295 |

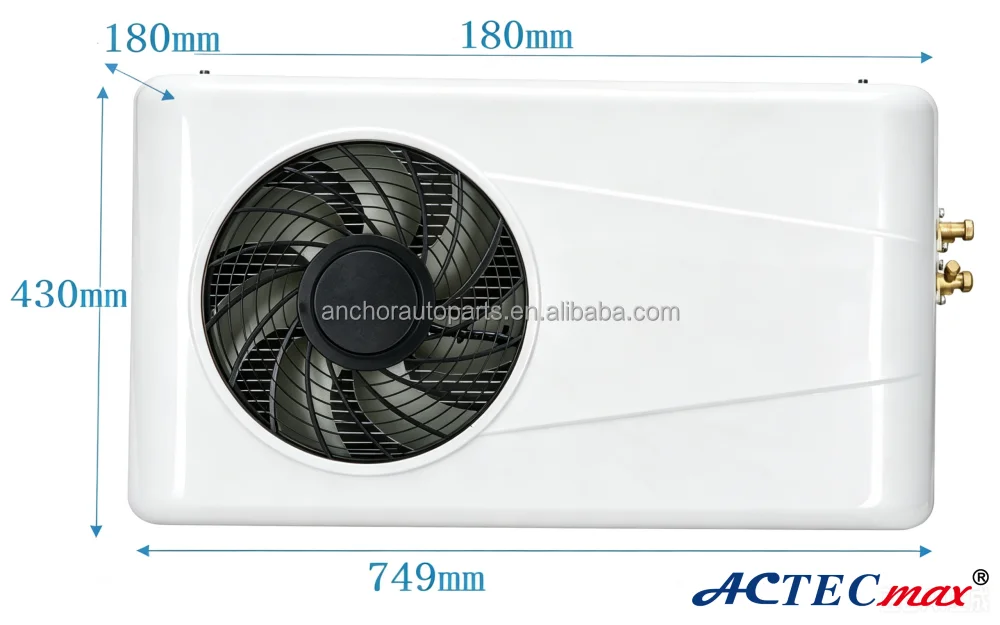

Outdoor Unit Net Dims (mm) | 749*180*430 | 749*180*430 |
Outdoor Unit Packing Dims (mm) | 893*330*530 | 893*330*530 |
Evaporator Airflow (m³/h) | 400m³/h | 400m³/h |
Condenser Airflow (m³/h) | 1500m³/h | 1500m³/h |
Compressor Type | Dual rotary compressor | Dual rotary compressor |
Compressor Displacement (cc) | 13CC | 15CC |
Compressor Power (W) | 645W | 742W |
PAG Oil Type & Volume (ml) | RB68EP 250ML | VG-74 250ML |
Evaporator Fan | Brushless | Brushless |
Condenser Fan | Brushless | Brushless |
Evaporator Dims & Copper Tube Qty | 435*26*300mm/12U（Copper） | 435*26*300mm/12U（Copper） |
Condenser Dims (mm) | 371*397*25(Parallel Flow） | 371*397*25(Parallel Flow） |
Power Cord Length & Wire Gauge (mm²) | 12sqm*4.5M | 8sqm*4.5M |
Remote Temp Setting Range (°C) | 17-30℃ | 17-30℃ |
Indoor Unit Net/Gross Weight (kg) | 6.9/10.5Kg | 6.9/10.5Kg |
Net/Gross Weight (kg) | 23/27Kg | 21/25Kg |
Refrigerant Charge (g) | 550g | 630g |
40HQ Container Qty (Units) | 262 | 262 |
标题
Optimized Cooling Technology Supports Cross Border Freight International Logistics Port Transportation And Heavy Cargo Delivery Where Driver Comfort Directly Impacts Operational Efficiency.
Premium Components Including Brushless Motors Copper Evaporator And Parallel Flow Condenser Provide Excellent Durability Even Under Continuous High Load Commercial Applications.
Suitable For Regional Distributors Seeking Truck Air Conditioner Solutions Covering Semi Trucks Tractor Heads Construction Equipment Agricultural Machinery And Utility Vehicles.
Factory Supports OEM ODM Custom Voltage Product Branding Packaging Design Technical Documentation And Bulk Production To Meet Diverse International Procurement Requirements.
The Efficient Refrigeration System Helps Reduce Downtime Improve Driver Satisfaction And Enhance Fleet Productivity Making It An Ideal Investment For Transportation Businesses.
FAQs
who are we?
We are based in Zhejiang, China, start from 2007,sell to South America(28.00%),Eastern Europe(18.00%),Western Europe(13.00%),Eastern Asia(9.00%),Southeast Asia(8.00%),North America(5.00%),Central America(5.00%),Africa(5.00%),Southern Europe(3.00%),Northern Europe(2.00%),South Asia(1.00%),Oceania(1.00%),Domestic Market(1.00%),Mid East(1.00%). There are total about 11-50 people in our office.
how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
what can you buy from us?
Parking Air Conditioner,Refrigeration Unit,Refrigerated Truck Body,Bus Air Conditioner,RV Air Conditioning,Portable Generator,Car Fridge/Cooler Box,Reefer Freezer Cold Storage Box,Parking Heater,Portable Air Conditioner,Lithium Battery
why should you buy from us not from other suppliers?
With a team of engineers having over 24 years of experience in Energy storage solutions,we are an advanced corporation dedicated to the concept of providing simple, efficient, and effective solutions for all of our clients world-wide.
what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES Accepted Payment Currency:USD,EUR,CNY,CHF Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Cash,Escrow Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,Russian,Korean,Arabic, Indonesian, French,Thai
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–99 piece: US $352.66 / piece
- 100–299 piece: US $326.54 / piece
- 300+ piece: US $300.42 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this rotary compressor?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Which certifications does this rotary compressor carry?
It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the rotary compressor be supplied for my local voltage?
The standard configuration is DC12V/24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

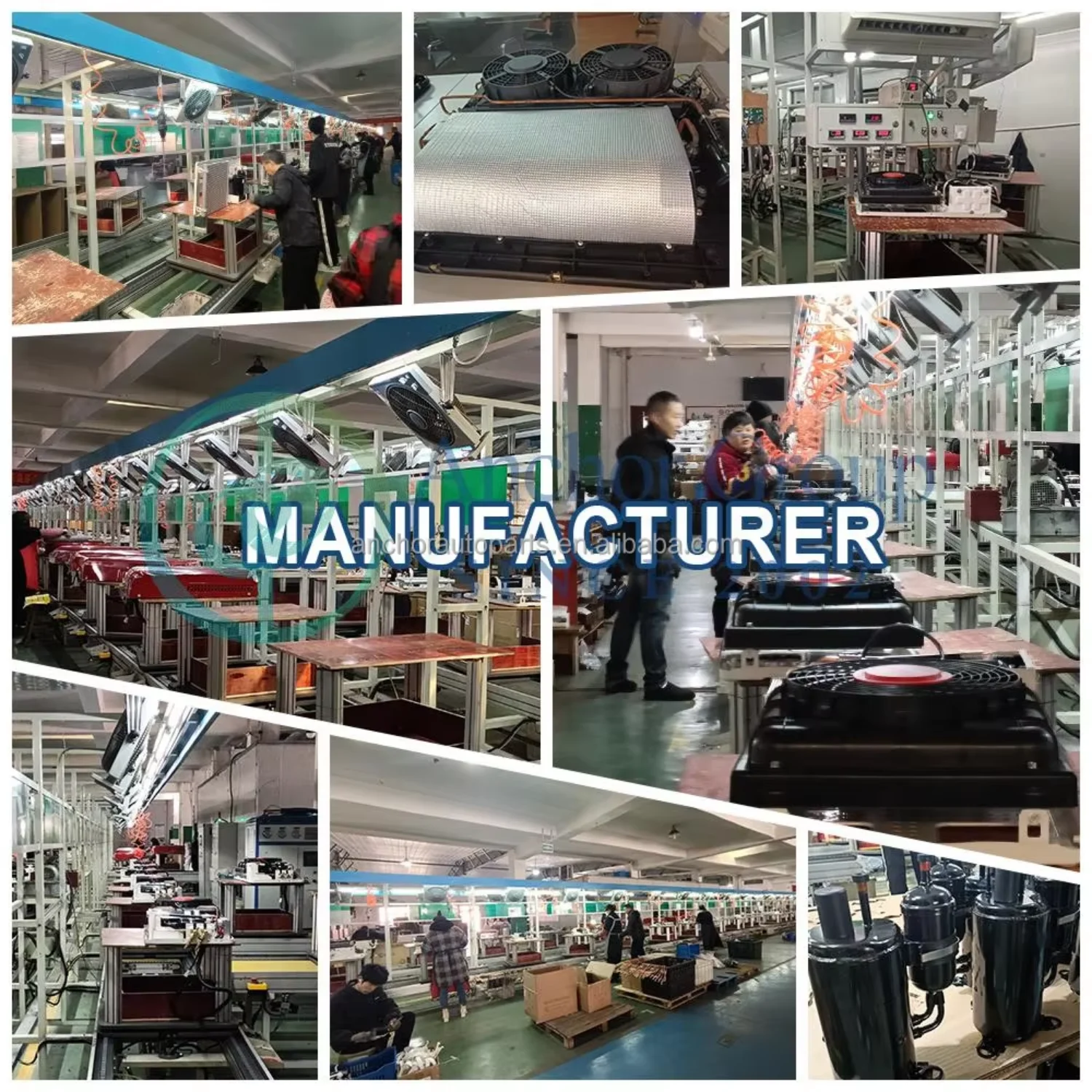

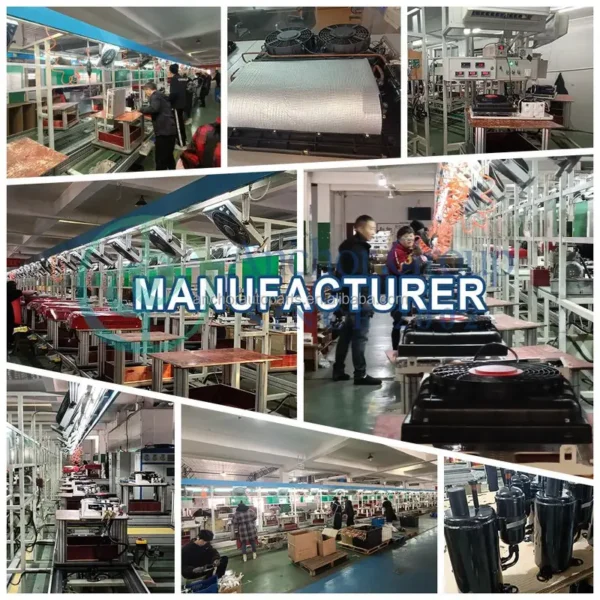

About the Manufacturer
