Rotary evaporator — 220V/50HZ or Customized, power source Electric. The complete factory specification follows. Made by Zhengzhou Mino Scientific Instruments Co., Ltd. (5 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Rotary Evaporator
- Power Source: Electric
- Power(W): 40W
- Voltage: 220V/50HZ or Customized
- Glassware Materials: High Borosilicate Glass
- Rotation Speed: 0-120rmp
- Speed Controller: Frequency Converter
Technical Specifications
| Processing | Vacuum Distillation |
|---|---|
| Power Source | Electric |
| Core Components | Motor |
| Voltage | 220V/50HZ or Customized |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Fast Evaporation |
| Power(W) | 40W |
| Place Of Origin | Henan, China |
| Brand Name | Mino Science |
| Dimension(L*W*H) | 670mm*320mm*940mm |

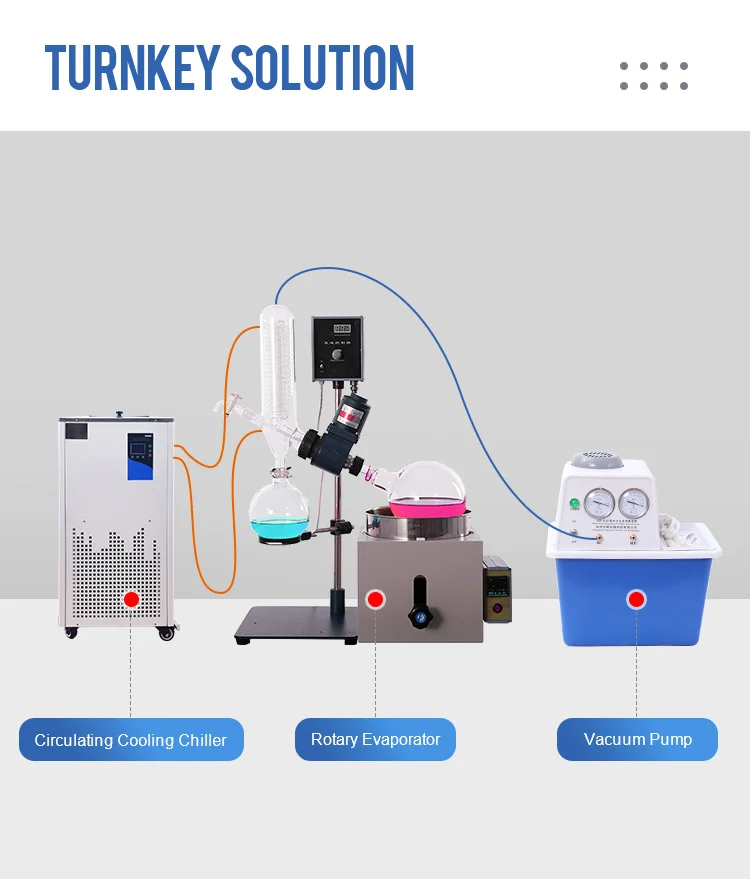

| Product Name | 5L Rotary Evaporator With Cooling Chiller And Vacuum Pump |
| Rotary Flask Volume | 1L-5L |
| Collection Flask Volume | 1L-3L |
| Rotation Speed | 0-120rmp |

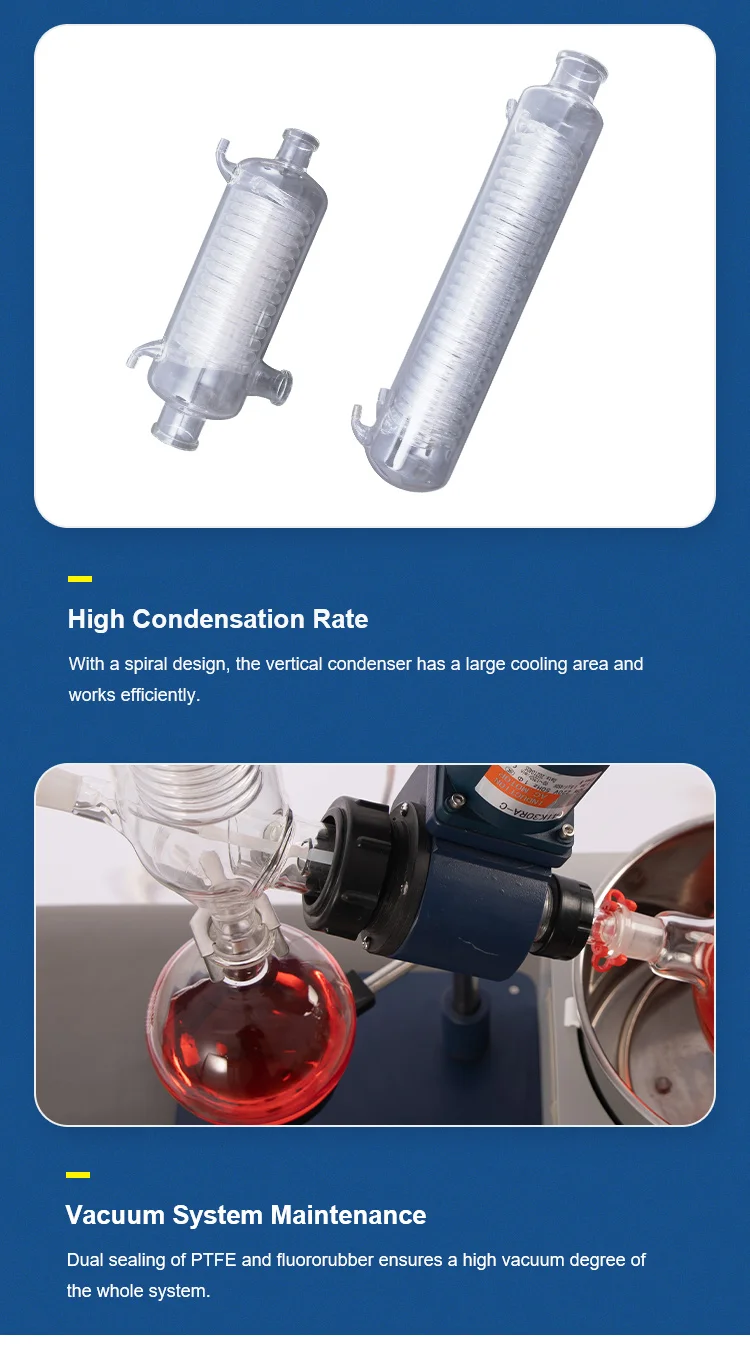

| Condenser Pipe | Main Condenser and Assistant Condenser Optional |

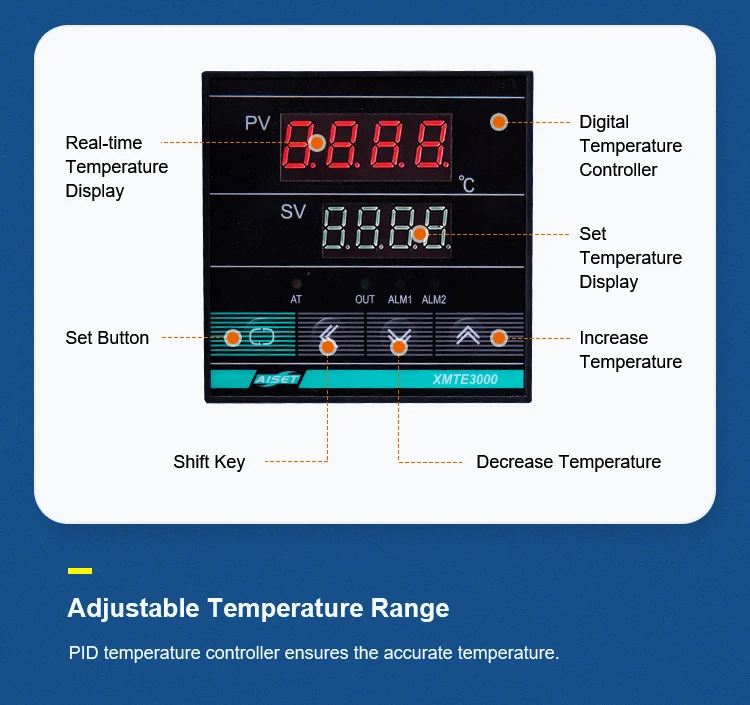

| Static Temperature Control Range | Water Bath RT – 99℃ and Oil Bath RT – 200℃ |

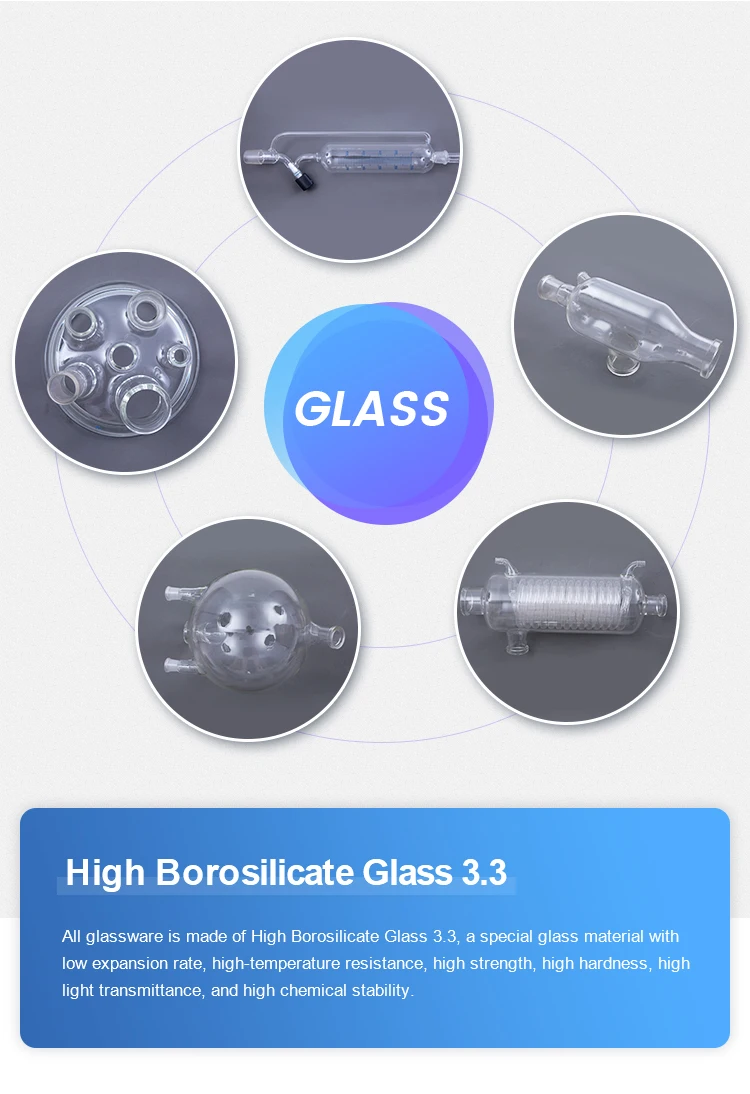

| Glassware Materials | High Borosilicate Glass |

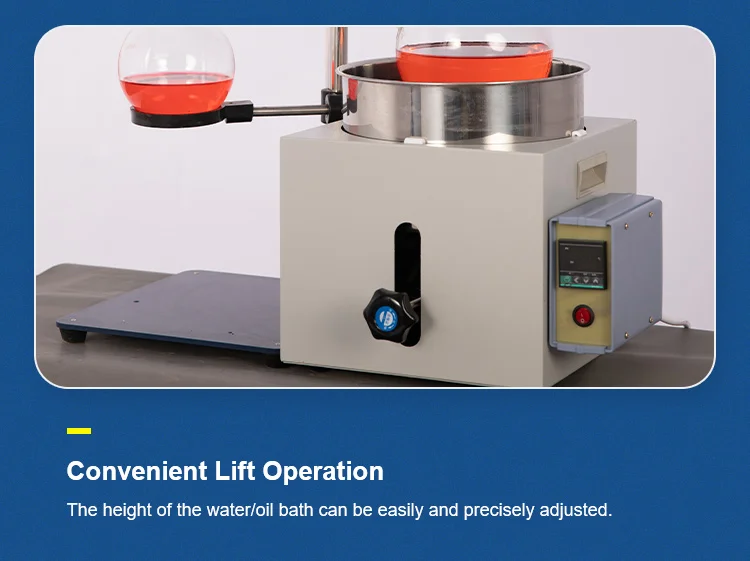

| Heating Bath | Hand/Motor Lift |
| Speed Controller | Frequency Converter |
| Customization | Available |
| Selling Units | Single item |
| Single Package Size | XX cm |
Product Details

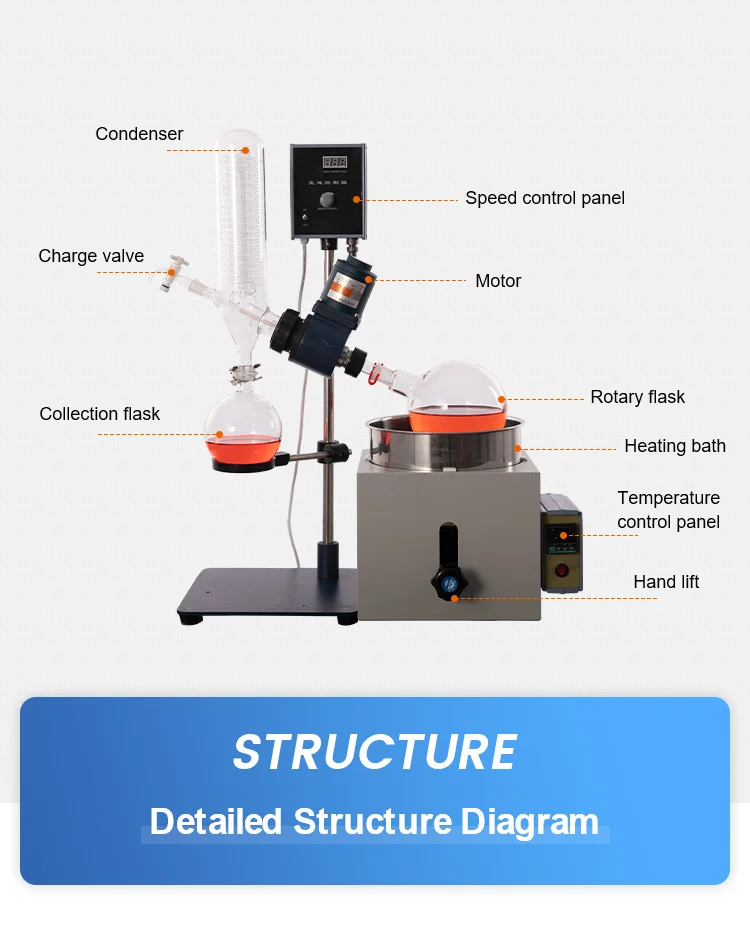

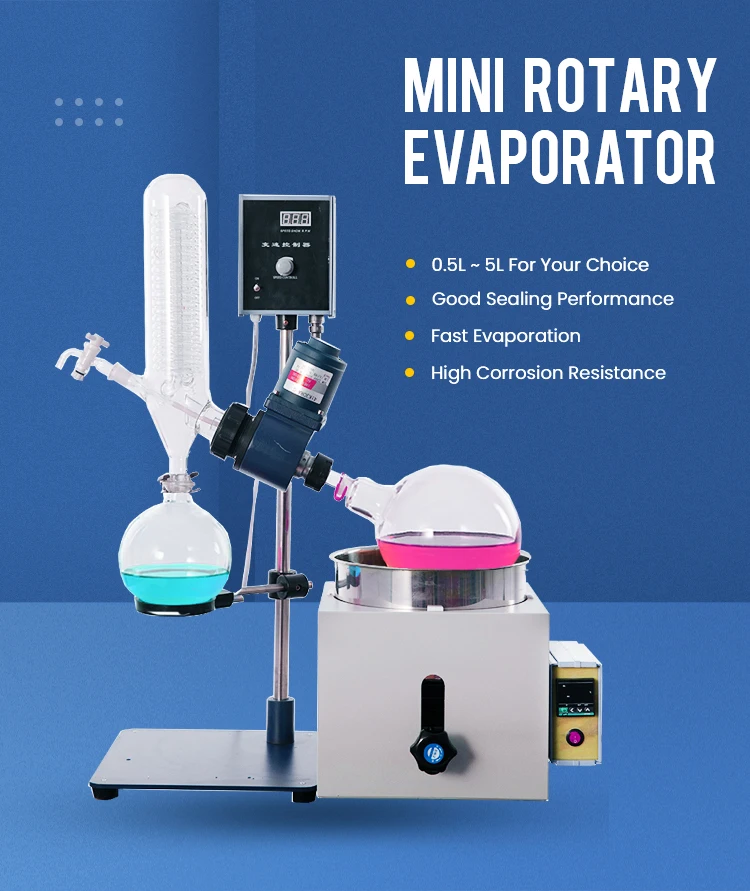

5L Rotary Evaporator With Cooling Chiller And Vacuum Pump
Mino Rotary Evaporators series are perfectly designed for many different distilling processes, from standard evaporation without vacuum control to complex distillation processes with vacuum control. During the development of evaporators, Mino focuses on the features and functions of safety, convenience, and cost savings.
| 0.5L~50L Rotary Evaporator With Hand Lift | ||||||
| Model | RE-1L | RE-3L | RE-5L | RE-10L | RE-20L | RE-50L |
| Rotary Flask | 1L | 3L | 5L | 10L | 20L | 50L |
| Collection Flask | 1L | 2L | 3L | 5L | 10L | 20L |
| Reachable Vacuum | -0.098MPA | |||||
| Motor Power | 40W | 120W | 180W | |||
| Rotation Speed | 0-120rmp | |||||
| Heating Power | 1.5KW | 2KW | 2KW | 4KW | 4KW | 6KW |
| Overall Dimension (L*W*H)(cm) | 68*30 *83 | 67*32 *94 | 70*33.5 *101 | 105*54 *180 | 115*54 *187 | 125*54 *200 |
| Static Temperature Control Range | Water Bath: RT-99°C; Oil Bath: RT-200°C±0.2°C | |||||
| Voltage | 220V/50HZ or Customized | |||||
| Heating Bath | Stainless Steel; Hand Lift | |||||
| Glass Material | High Borosilicate Glass 3.3 | |||||
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this rotary evaporator?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the rotary evaporator be supplied for my local voltage?
The standard configuration is 220V/50HZ or Customized. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
