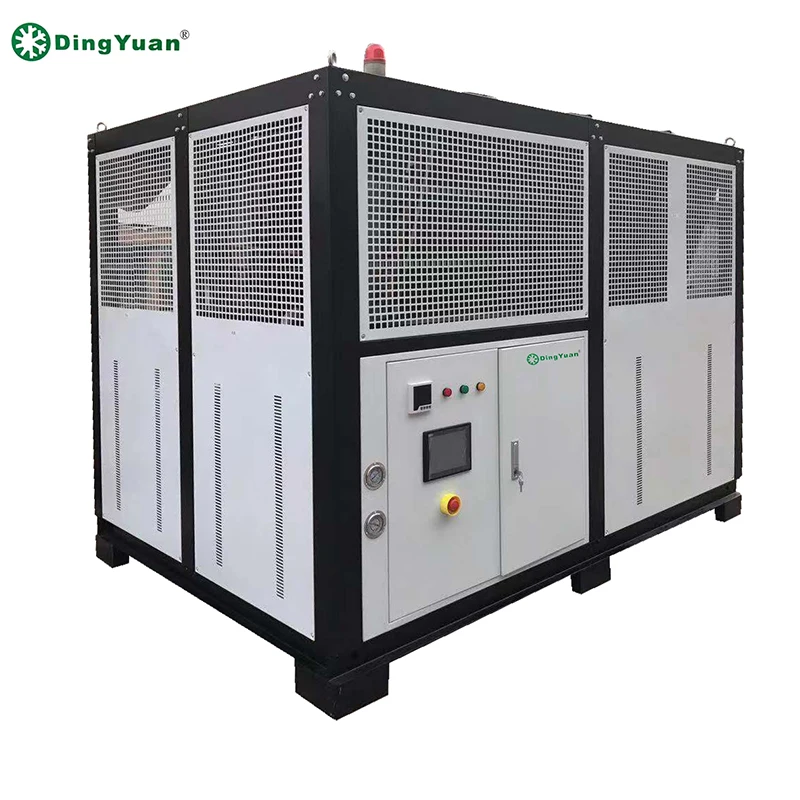

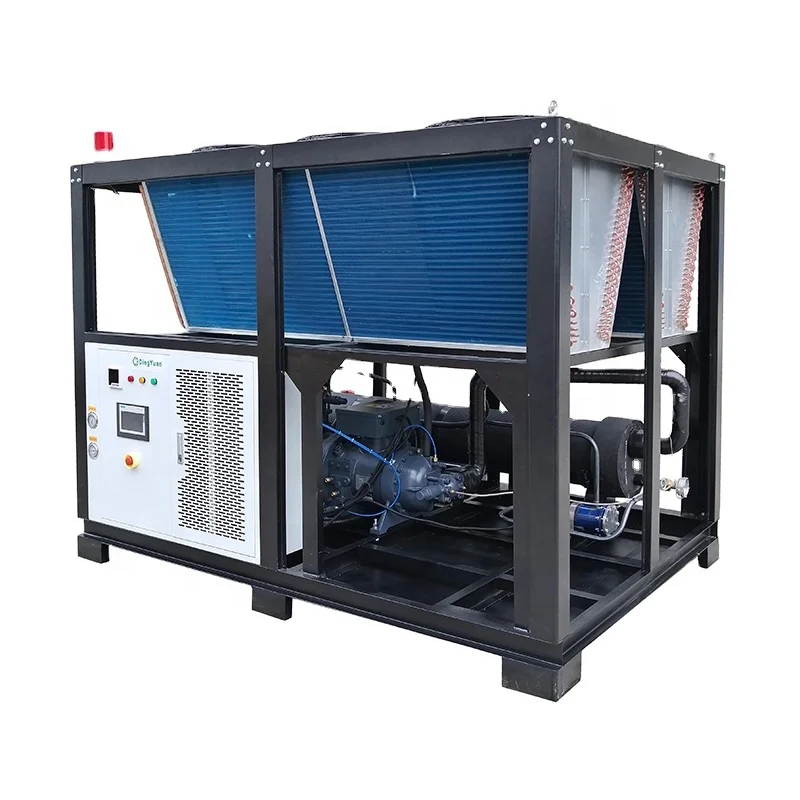

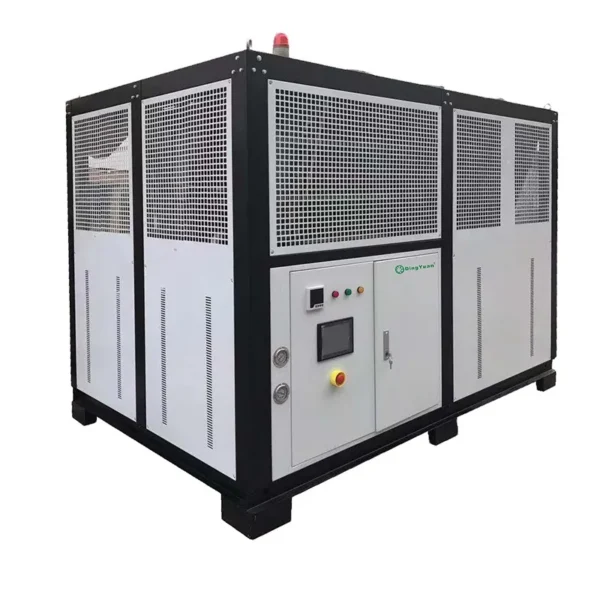

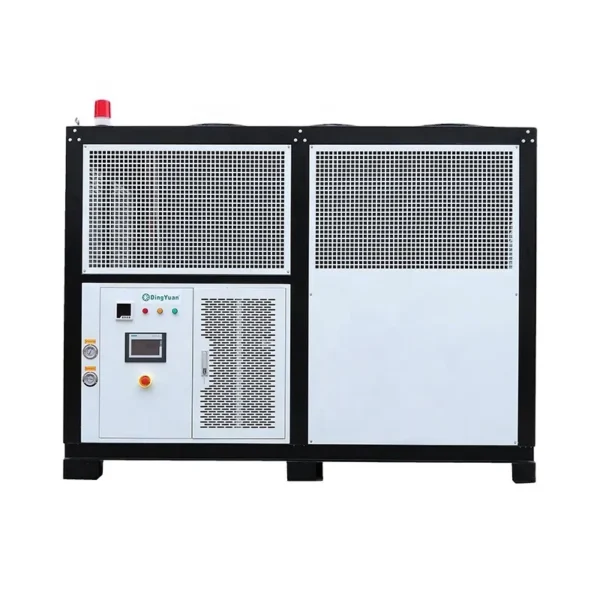

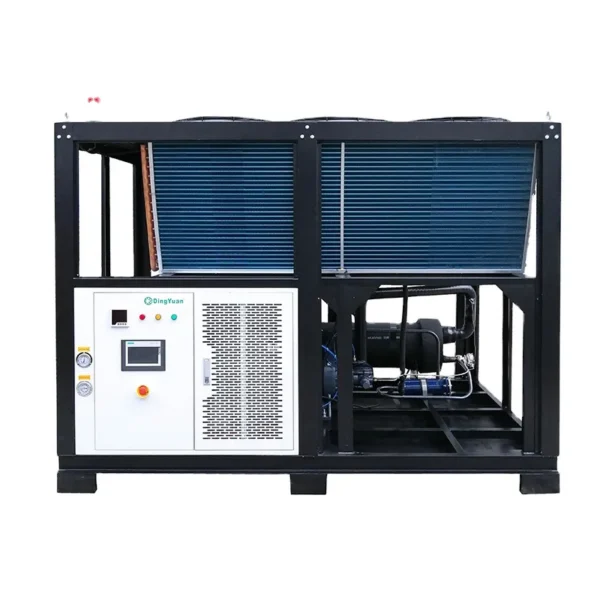

This saving air cooled chiller is published with the manufacturer’s full specification — 380 V, 102.9 KW. Made by Dongguan Dingyuan Industrial Co., Ltd. (9 years on the platform, typical reply ≤3h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Saving Air Cooled Chiller
- Model Number: DY-FSQ40A
- Power: 33.8 KW
- Compressor Power: 29.6KW
- Voltage: 380 V
- Cooling Capacity: 102.9 KW
- Refrigerant Type: R22/R407C
Technical Specifications
| Voltage | 380 V |
|---|---|
| Power | 33.8 KW |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | High Productivity |

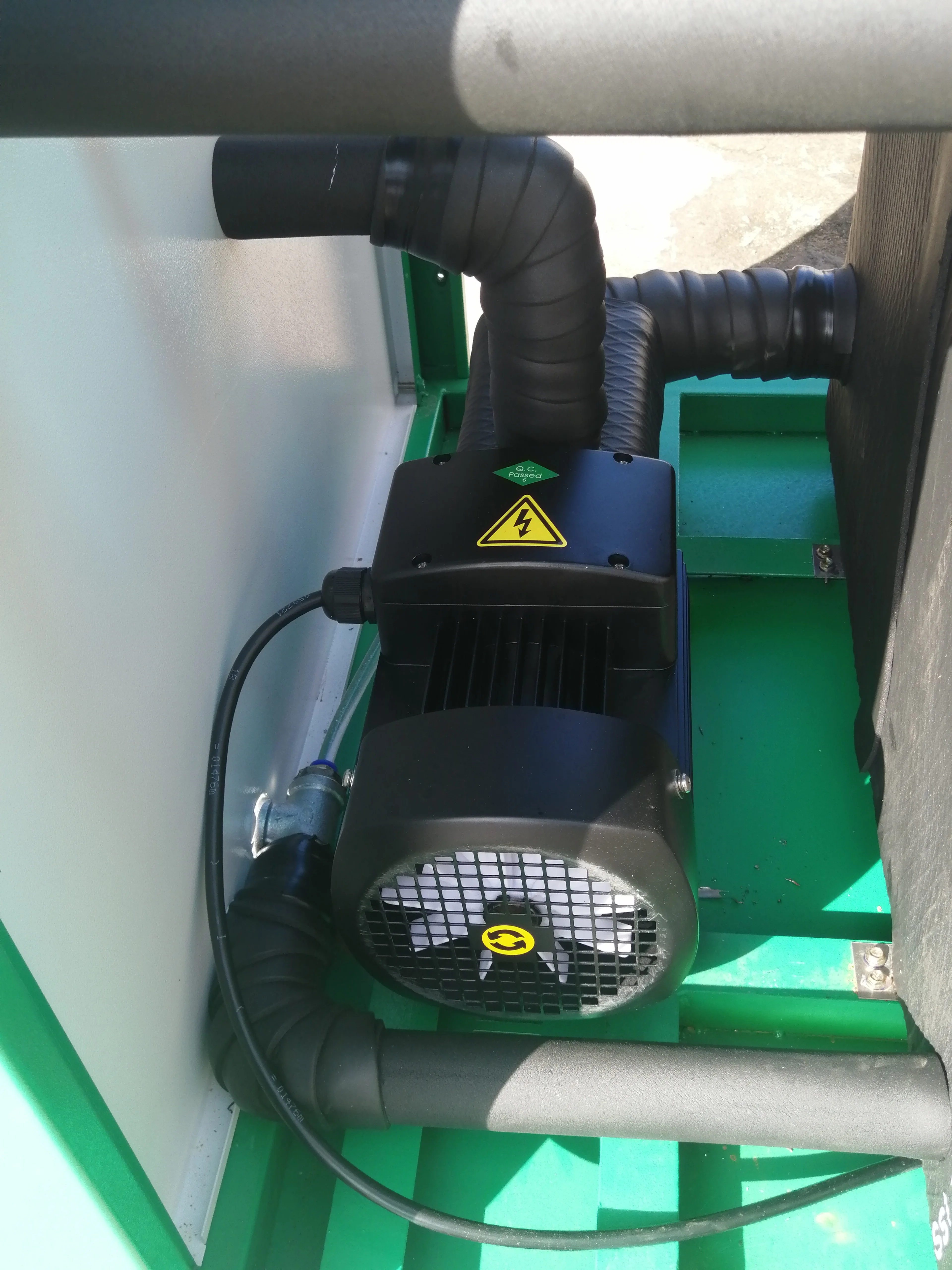

| Core Components | Motor, Pump, Compressor |
| Model Number | DY-FSQ40A |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 1300 |
| Brand Name | Ding Yuan |
| Dimension(L*W*H) | 2200*1560*2150 MM |
| Working Temperature Range | 0~45°C |
| Product Name | Air Cooled Screw Chiller |
| Function | Provide Cooling Air |
| Cooling Capacity | 102.9 KW |
| Refrigerant Type | R22/R407C |
| Compressor Power | 29.6KW |
| Evaporator Type | Shell and Tube Evaporator |
| Condenser Fan Type | High-power axial fan |
| Unit Weight | 1300KG |
| Max Running Current | 58.5A |
| Keyword | Air Cooled Single-head Screw Chiller |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Model | DY-FSQ40A |
Cooling capacity | 102.9KW |
Total input power | 33.8KW |
Refrigerant type | R22/R407C |
Max running current | 58.5A |
Power supply | 3Phase 380V 50HZ (200V/220V/415V 460V 50HZ/60HZ) |
Compressor power | 29.6KW |
Compressor capacity control | 0~33%~66%~100% |
Evaporator type | Shell and tube |
Condensor type | High Efficiency Copper Aluminum Fins |
Condenser heat exchange | 123.4KW |
Condenser cooling air flow rate | 70800M³/H |
Inlet/Outlet pipe diameter | 80MM |

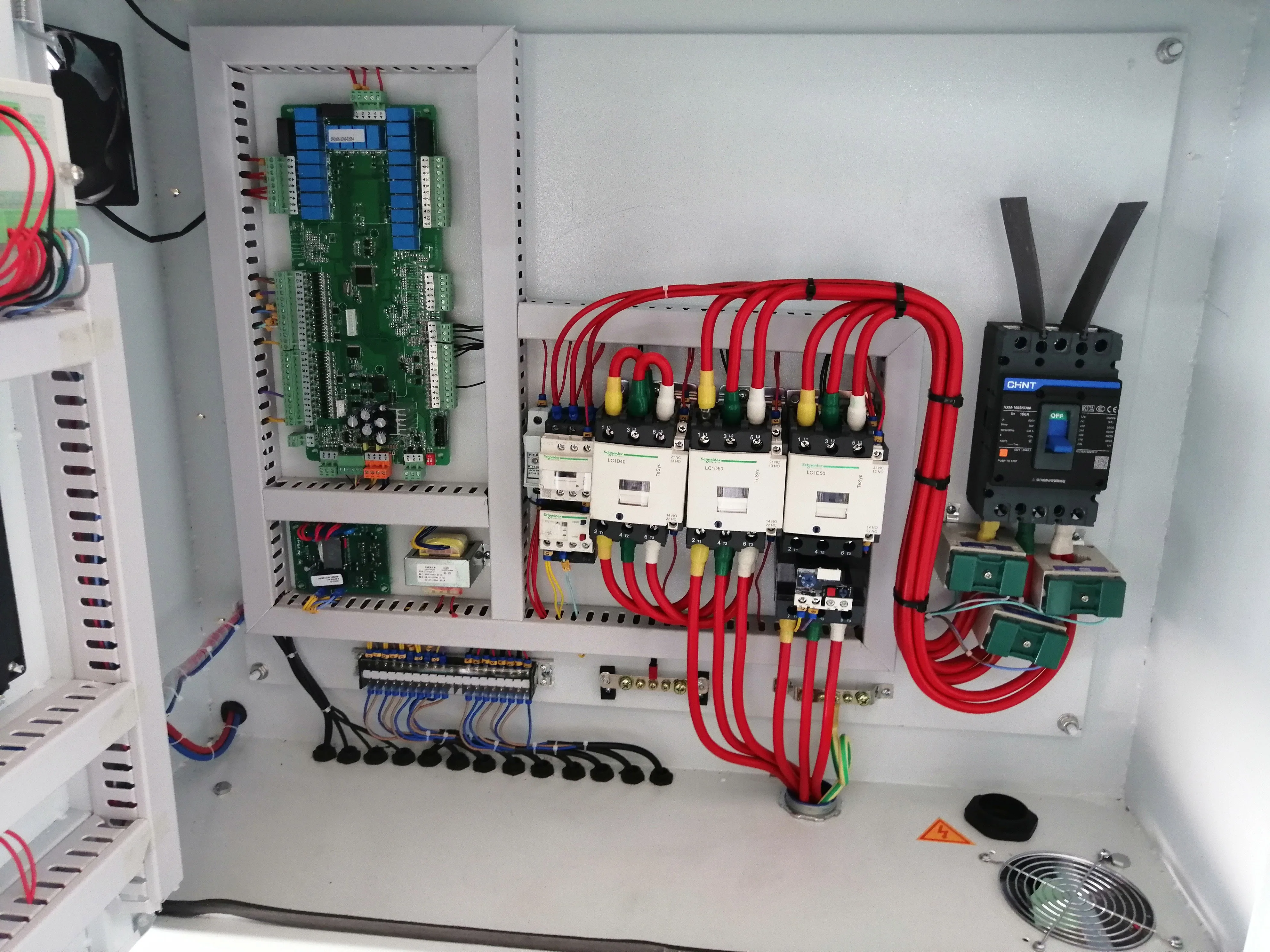

Security devices | Compressor overheating protection, overload protection, high and low-pressure protection device, antifreeze protection, power supply reverse phase protection, water flow switch. |
Dimension | 2200*1560*2150MM |
Unit weight | 1300KG |
Operating weight | 1390KG |
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $11500 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this saving air cooled chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the saving air cooled chiller be supplied for my local voltage?
The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Dongguan Dingyuan Industrial Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Dongguan Dingyuan Industrial Co., Ltd. range on HVACR Nexus.
