Key specification for this screw compressor: 380v-420v /3 Ph / 50Hz, refrigerant R22,R134a,R404a,R507C. Everything below is reproduced from the factory data sheet. Made by Taizhou Chuangsheng Refrigeration Equipment Manufacturing Co., Ltd. (10 years on the platform, typical reply ≤9h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Screw Compressor
- Voltage: 380v-420v /3 Ph / 50Hz
- Refrigerant: R22,R134a,R404a,R507C
- Warranty: 1 Year
- After Warranty Service: Online support
- Warranty Of Core Components: 1 Year
- Certification: ce
Technical Specifications
| Core Components | compressor |
|---|---|
| Machinery Test Report | Not Available |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Not Available |
| Weight (Kg) | 335 |
| Place Of Origin | Jiangsu, China |
| Brand Name | REFCOMP |
| Product Name | SRC-S-163-L4 Italy brand Refcomp semi-hermetic screw compressor |
| Compressor | REFCOMP |
| Refrigerant | R22,R134a,R404a,R507C |
| Voltage | 380v-420v /3 Ph / 50Hz |
| Usage | air conditioning,chiller |
| After Warranty Service | Online support |
| Local Service Location | None |
| Certification | ce |
| Warranty Of Core Components | 1 Year |
| Type | Compressor |
| Selling Units | Single item |
Product Details

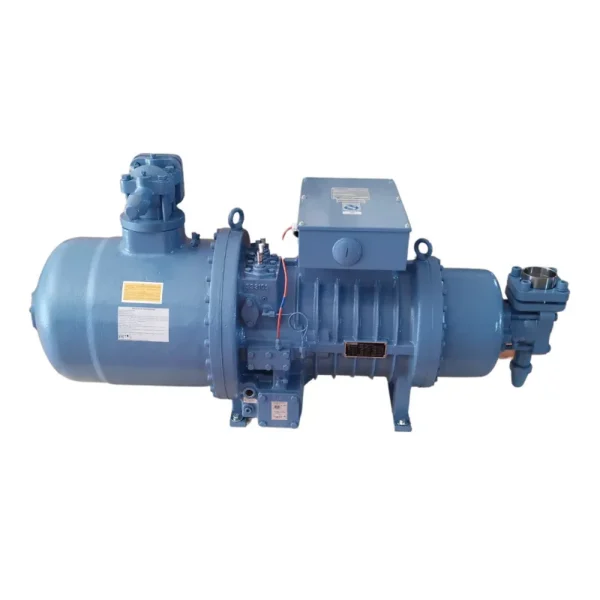

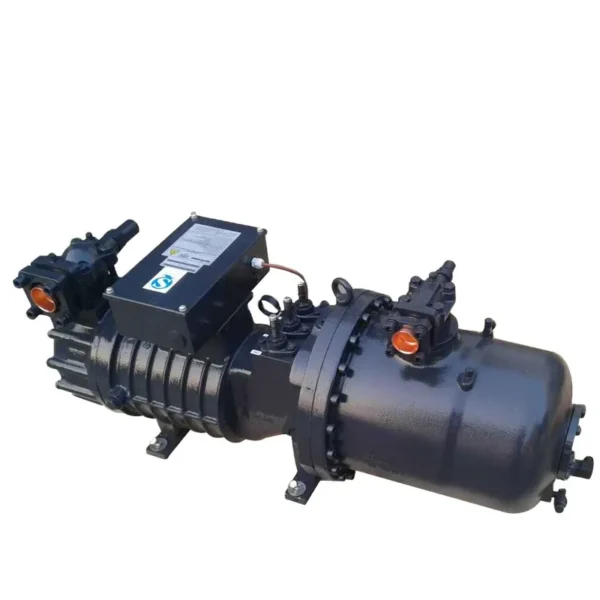

| SRC-S-163-L4 Italy brand Refcomp semi-hermetic screw compressor |
Functionality:
*High efficiency oil separation system
*Sound emissions and vibrations extremely low
*Improved compression process
*Step or stepless capacity control
Features characteristic:
Extent of delivery:
Y/ motor(400V-3-50HZ,460V-3-50HZ) with 6TC temperature sensors,suction shut-off valve,discharge shut-off valve,intergrated check valve,intergrated safety relief valve,flanged-on oil separator,oil sight glass,oil filter,oil charge.Oil heater,4 steps capacity control(100-75-50-min%) or stepless(100-min%)
motor protection moudle RCX-A(220V-1-50/60HZ),electrical box with enclosure class IP54,Nitrogen protective charge,kit oil cooling connection(only on SRC-XS-040/050/060,SRC-S-255/285/305/755/785/885/985),Vibration dampers kit.
Accessories:
On request the following accesssories can be delivered:
Special motors,connection kit for liquid injection,connection kit for ECO port with shut-off valve,connection kit for oil cooling,oil level control,coversion kit for step-less capacity control,bridges for D.O.L. starting

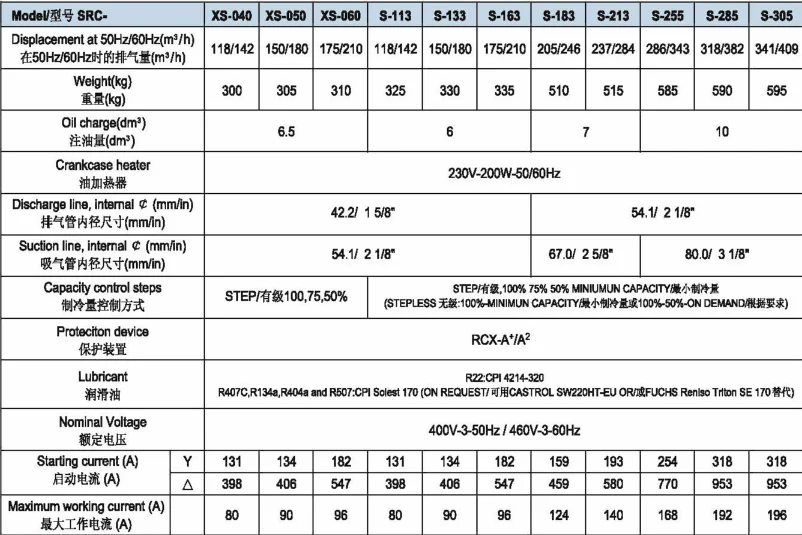

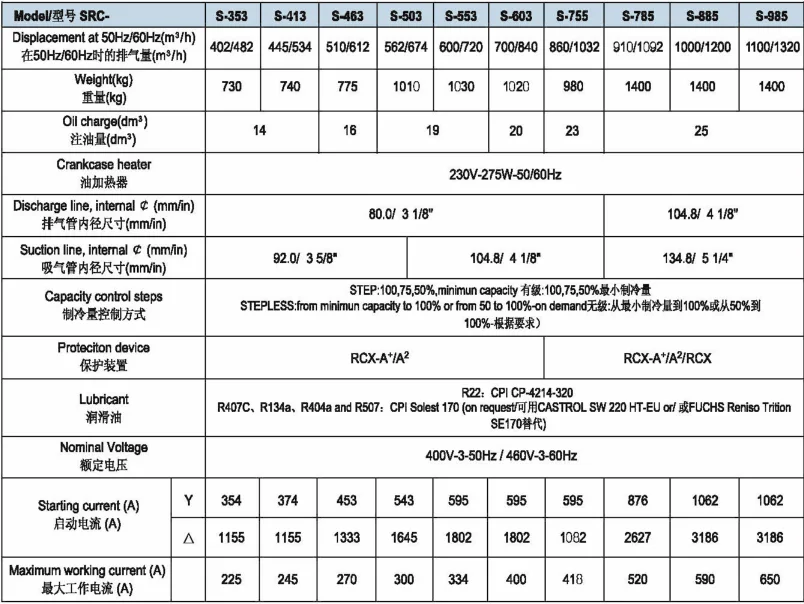

Technical data:
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $4700 / piece
- 10–19 piece: US $4600 / piece
- 20+ piece: US $4500 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this screw compressor?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this screw compressor carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the screw compressor be supplied for my local voltage?
The standard configuration is 380v-420v /3 Ph / 50Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
